Strain gauges are critical components in the field of mechanical engineering, particularly in the areas of stress and strain measurement. They are widely used for determining the force or load applied to an object by measuring the deformation it undergoes. Among the different types of strain gauges, semiconductor strain gauges are gaining popularity due to their higher sensitivity and precision compared to traditional metallic ones. This article delves into the principles, working mechanisms, advantages, and applications of semiconductor strain gauges.
What Are Strain Gauges
A strain gauge is a device that detects strain (deformation) in an object when it is subjected to a mechanical load. The deformation of the material causes a change in its electrical resistance, which can be measured. This change in resistance is directly proportional to the strain experienced by the material. Strain gauges are commonly used in various industrial applications to measure forces, loads, and stresses in structures and mechanical components.
There are different types of strain gauges, including foil strain gauges, which are made from a thin metal foil, and semiconductor strain gauges, which use semiconductor materials instead of metal. Semiconductor strain gauges offer distinct advantages in certain applications, such as their superior sensitivity and resistance to temperature variations.
The Principle Behind Semiconductor Strain Gauges
Semiconductor strain gauges operate based on the piezoresistive effect, which is the change in electrical resistance of a material when it undergoes mechanical stress. Unlike metallic strain gauges, where the change in resistance is relatively small and linear, semiconductor materials exhibit a much larger change in resistance under stress, making them more sensitive to small changes in strain.
In a semiconductor strain gauge, a small piece of semiconductor material—usually silicon or germanium—is placed in contact with the surface of the object being measured. When the object is subjected to stress or strain, the semiconductor material deforms, which leads to a change in its resistance. This change is then measured and can be used to calculate the amount of strain the material has undergone.
How Do Semiconductor Strain Gauges Work?
The working mechanism of a semiconductor strain gauge is based on the piezoresistive effect. Semiconductor materials like silicon have a unique property: when they are subjected to mechanical stress, the charge carriers within the material (electrons and holes) experience a change in mobility. This change in mobility results in a significant variation in the electrical resistance of the material.
Semiconductor strain gauges are typically designed in the form of a thin, rectangular grid or pattern. This grid is bonded to the object whose strain is to be measured. As the object deforms under stress, the strain is transferred to the semiconductor material, causing it to stretch or compress. This deformation alters the electron distribution in the semiconductor, changing its resistance.
The change in resistance is typically measured using a Wheatstone bridge circuit, a common method for precise measurement of small resistance changes. The Wheatstone bridge is configured with four resistive elements, one of which is the semiconductor strain gauge. As the resistance of the strain gauge changes, the balance of the Wheatstone bridge is disturbed, and this imbalance is measured as a voltage signal, which is proportional to the amount of strain experienced by the object.
Key Characteristics of Semiconductor Strain Gauges
Semiconductor strain gauges possess several distinct characteristics that set them apart from other types of strain gauges. These include:
- High Sensitivity: Semiconductor strain gauges exhibit a much larger change in resistance compared to metallic strain gauges under similar strain conditions. This makes them highly sensitive, even to small amounts of strain.
- Temperature Sensitivity: While semiconductor strain gauges are more sensitive to strain, they are also more sensitive to temperature variations. This can sometimes pose challenges in applications where temperature stability is critical.
- Non-linear Response: The relationship between strain and resistance in semiconductor strain gauges is typically non-linear. However, this non-linearity can be accounted for with appropriate calibration and signal processing techniques.
- Small Size: Semiconductor strain gauges can be manufactured in very small sizes, making them ideal for use in compact applications where space is limited.
- Higher Resistance: Semiconductor strain gauges generally have a higher resistance than metallic strain gauges, which can result in lower power consumption in some applications.
Advantages of Semiconductor Strain Gauges
Semiconductor strain gauges offer a number of advantages over traditional metallic strain gauges, making them suitable for a variety of high-precision applications. Some of the main benefits include:
- Increased Sensitivity: Due to the larger piezoresistive effect in semiconductors, these strain gauges can detect even very small deformations, making them ideal for high-precision measurements in research and development, as well as in industrial applications.
- Enhanced Accuracy: The high sensitivity of semiconductor strain gauges enables more accurate strain measurements, which is crucial in applications where precision is paramount.
- Miniaturization: Semiconductor strain gauges can be made smaller than their metallic counterparts, which allows them to be integrated into compact systems without taking up significant space.
- Low Power Consumption: Semiconductor strain gauges typically have higher resistance, which allows for lower power consumption in certain measurement systems.
Challenges of Semiconductor Strain Gauges
Despite their advantages, semiconductor strain gauges also come with certain challenges that must be addressed to optimize their performance. Some of these challenges include:
- Temperature Sensitivity: As mentioned earlier, semiconductor materials are highly sensitive to temperature changes. This can lead to inaccurate readings if the temperature is not carefully controlled. To mitigate this issue, compensation techniques such as using temperature-compensated circuits or incorporating temperature sensors can be employed.
- Non-linear Behavior: The non-linear relationship between strain and resistance in semiconductor strain gauges can complicate calibration. Advanced signal processing and calibration techniques are required to ensure accurate measurements.
- Fragility: Semiconductor materials are generally more brittle than metallic materials, making them more susceptible to damage under harsh conditions. Proper mounting and protection are essential to ensure their longevity in demanding environments.
Applications of Semiconductor Strain Gauges
Semiconductor strain gauges are used in a wide range of applications, particularly in areas that require high sensitivity and precision. Some common applications include:

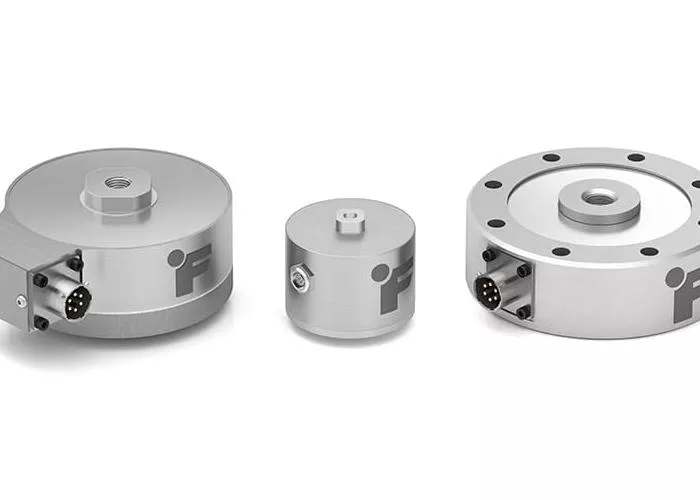

- Load Cells: Semiconductor strain gauges are commonly used in load cells to measure the weight or force applied to an object. The high sensitivity of semiconductor strain gauges allows load cells to provide accurate measurements, even in low-force applications.
- Pressure Sensors: In pressure sensing applications, semiconductor strain gauges are used to detect small deformations in a diaphragm when pressure is applied. This deformation is converted into a corresponding change in resistance, which is then measured to determine the pressure.
- Force Measurement in Robotics: In robotic systems, semiconductor strain gauges are used to measure the forces acting on robotic arms and other components. Their small size and high sensitivity make them ideal for integration into these systems.
- Aerospace and Automotive Industries: Semiconductor strain gauges are often used in aerospace and automotive applications for structural health monitoring, as they can detect minute deformations in critical components such as wings, fuselages, and chassis.
- Medical Devices: In medical devices, semiconductor strain gauges are used to measure pressure, force, or strain in various monitoring devices, such as prosthetics, pressure sensors in surgical tools, and in diagnostic equipment.
Conclusion
Semiconductor strain gauges offer significant advantages over traditional strain gauges, particularly in applications where high sensitivity and precision are required. Their ability to detect small changes in strain makes them invaluable in fields such as load measurement, pressure sensing, and robotics. However, the challenges associated with temperature sensitivity and non-linearity must be carefully managed to ensure accurate and reliable performance. With ongoing advancements in semiconductor materials and technology, semiconductor strain gauges will continue to play a critical role in a wide range of industries, from aerospace to healthcare.
