Rotameters, also known as variable area flow meters, are devices used to measure the flow rate of fluids, particularly in applications where precise control of liquid or gas flow is required. The term “rotameter” comes from the Latin word “rota,” meaning wheel, and “meter,” meaning measuring instrument, which reflects the device’s working principle. A standard rotameter is a type of flow meter that operates based on the principle of variable area measurement. It is commonly used in industries such as chemical processing, water treatment, pharmaceuticals, and various research and testing environments.
This article aims to explore the operation, structure, and applications of standard rotameters, delving into their working principles, benefits, and limitations. By the end of this article, readers will have a solid understanding of what rotameters are and how they contribute to the accurate measurement and regulation of fluid flow.
How Does a Rotameter Work
The fundamental principle behind a rotameter is the change in the cross-sectional area of a tapered tube as the flow rate of the fluid varies. A standard rotameter consists of a vertically oriented, tapered tube, with a float inside. This float is typically conical or cylindrical in shape, and its position within the tube depends on the flow rate of the fluid passing through it.
When a fluid flows through the rotameter, the flow causes the float to rise against gravity. The more fluid passing through the device, the higher the float will rise, as the fluid exerts a force on the float. As the float moves upward, it gradually reduces the cross-sectional area of the tube through which the fluid flows, thereby balancing the flow rate and float position. The position of the float is directly related to the flow rate, and this position can be read on a calibrated scale, usually marked along the side of the tube.
Detailed Explanation of Flow Measurement
As the flow rate increases, the float is lifted higher within the tapered tube, causing the flow area to increase. The float will continue to rise until the forces exerted by the flowing fluid and gravity are in equilibrium. This balance ensures that the float remains at a certain height corresponding to a specific flow rate. The calibrated scale on the rotameter’s tube provides a visual indication of this flow rate. For most rotameters, the flow rate can be read directly from the position of the float against this scale.
The movement of the float is a direct result of the fluid’s velocity and the cross-sectional area of the tube. This relationship between the flow rate and the float position allows for a simple yet accurate measurement of flow in a variety of fluid systems.
How Does a Standard Rotameter Work
A standard rotameter consists of several key components that work together to ensure accurate flow measurement:
The Tapered Tube
The tapered tube is the central component of a rotameter, providing the variable area through which the fluid flows. The taper is essential because it enables the flow rate to be determined by the position of the float. The material of the tube is typically glass or transparent plastic to allow for easy observation of the float’s position. The transparency of the tube is crucial for visual inspection and accurate reading of the flow rate.
The Float
The float is designed to be buoyant in the fluid and is typically made of materials such as stainless steel, plastic, or ceramic. It is often cylindrical or conical, designed to fit within the tapered tube. The float’s size and shape are chosen to ensure it can move freely within the tube and respond to changes in the flow rate. The float’s weight is balanced against the force exerted by the flowing fluid, which causes it to move up or down within the tube.
The Scale
A calibrated scale is marked along the side of the tapered tube, enabling users to read the position of the float and determine the flow rate. This scale may be linear or nonlinear, depending on the flow characteristics of the fluid and the design of the rotameter. Some rotameters also feature a magnetic or digital readout for more precise flow measurements.
Connection Ports
Rotameters are typically fitted with inlet and outlet ports to allow the fluid to enter and exit the device. These ports are designed to be compatible with the specific fluid handling system, ensuring a secure and leak-free connection. Standard rotameters are often designed to accommodate a variety of pipe sizes, making them versatile and easy to integrate into existing systems.
Types of Rotameters
There are several different types of rotameters, each suited to specific applications. The most common types are:
Glass Rotameters
Glass rotameters are the most traditional type and are known for their high accuracy and clear visibility. They are often used in laboratory or research settings where precise flow measurement is critical. These rotameters are typically designed with a glass tube, allowing the float’s position to be clearly seen. However, they are fragile and may not be suitable for high-pressure or high-temperature applications.
Metal Rotameters
Metal rotameters are designed for industrial applications that require robust and durable flow measurement solutions. The tapered tube is usually made of metal, and the float is constructed from a corrosion-resistant material. Metal rotameters are ideal for high-pressure, high-temperature, or hazardous environments where glass rotameters might not be feasible due to the risk of breakage.

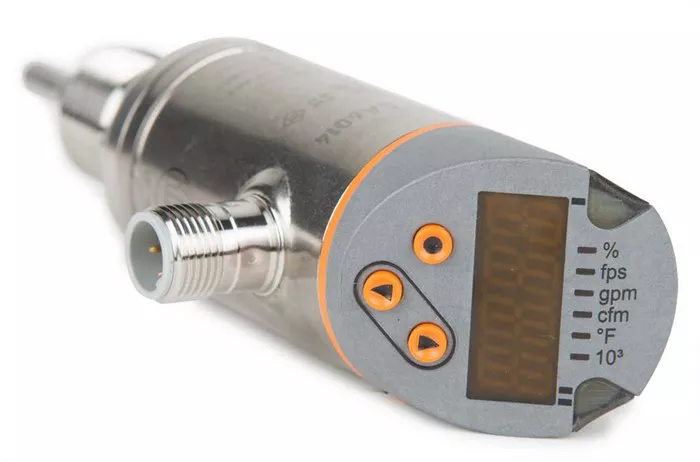

Digital Rotameters
Digital rotameters use electronic sensors to detect the position of the float and convert this data into an electronic signal. This type of rotameter often includes digital displays, allowing for more precise and easy-to-read flow measurements. Digital rotameters may also offer additional features such as alarms or data logging capabilities, making them suitable for more advanced flow monitoring tasks.
Advantages of Using Standard Rotameters
Rotameters offer several advantages in fluid flow measurement, including simplicity, reliability, and cost-effectiveness. Below are some of the key benefits of using standard rotameters:
1. Simple and Easy to Use
The operation of a rotameter is straightforward and intuitive. Because the flow rate is directly proportional to the position of the float, it is easy for operators to read the flow rate without requiring complicated calibration or mathematical calculations. This simplicity makes rotameters ideal for applications where quick and easy flow measurement is needed.
2. Low Cost and Affordable
Compared to more complex flow measurement devices, rotameters are relatively inexpensive, making them an attractive option for cost-conscious users. Their affordability does not come at the cost of reliability or accuracy, as standard rotameters are capable of providing precise flow readings in a wide range of applications.
3. Wide Range of Applications
Rotameters are versatile instruments that can be used to measure the flow of both gases and liquids in various industries. From chemical and pharmaceutical industries to water treatment plants and research laboratories, rotameters are adaptable and reliable for a wide range of fluid flow applications.
4. No Need for External Power
Rotameters operate passively, requiring no external power source for operation. The movement of the float is driven solely by the fluid flow, making rotameters a convenient and energy-efficient solution for flow measurement.
Limitations of Standard Rotameters
While standard rotameters offer many benefits, they do have some limitations that users should be aware of when selecting flow measurement devices:
1. Sensitivity to Viscosity
Rotameters are sensitive to the viscosity of the fluid being measured. Fluids with higher viscosity may cause the float to rise more slowly, leading to inaccurate flow rate readings. For this reason, rotameters may not be suitable for all types of fluids, particularly those with high viscosity or complex flow characteristics.
2. Limited to Low-Flow Applications
Standard rotameters are best suited for low to moderate flow applications. For extremely high flow rates, other flow measurement devices, such as turbine meters or electromagnetic flow meters, may provide more accurate results. Rotameters are also generally not suitable for very high-pressure environments.
3. Fragility of Glass Rotameters
Glass rotameters, in particular, can be fragile and susceptible to damage from impacts or pressure fluctuations. While metal rotameters are more durable, they may not offer the same level of clarity for visual flow reading as their glass counterparts.
Applications of Rotameters
Rotameters are widely used in various industries for fluid flow measurement and regulation. Some of the most common applications include:
Chemical Processing
In chemical processing plants, rotameters are used to monitor and control the flow of chemicals and other fluids during production. They are commonly found in processes such as mixing, blending, and reaction monitoring, where precise flow control is essential for maintaining quality and consistency.
Water Treatment
Rotameters play a critical role in water treatment facilities, where they help monitor and control the flow of water through various stages of treatment. Accurate flow measurement ensures that treatment processes such as filtration, disinfection, and chemical dosing are carried out efficiently and effectively.
Laboratory and Research Applications
In laboratories, rotameters are often used for experimental setups requiring precise flow control of gases or liquids. Researchers use rotameters to measure and regulate the flow rates of fluids in experiments, ensuring accurate and repeatable results.
Conclusion
Standard rotameters are reliable and cost-effective flow measurement devices that operate based on the principle of variable area. Their simplicity and ease of use make them popular in a variety of industries, including chemical processing, water treatment, and research. Despite some limitations, such as sensitivity to viscosity and fragility in glass models, rotameters remain an essential tool for accurate fluid flow measurement. Understanding how rotameters work and their applications allows engineers and operators to select the right type of flow measurement device for their specific needs.
