Conductivity sensors are critical devices used across various industries to measure the electrical conductivity of liquids. These sensors provide valuable insights into the properties of water and other liquids, making them essential in applications ranging from environmental monitoring to industrial processes. This article delves into the role of conductivity sensors, explaining their function, design, applications, and how they work in detail. We will explore the science behind these sensors, the different types available, and their advantages and limitations.
What Are Conductivity Sensors
Conductivity sensors, sometimes referred to as conductance meters, are tools designed to measure the ability of a solution to conduct electrical current. The conductivity of a solution is influenced by the number and type of dissolved ions (charged particles), making these sensors crucial in determining the ionic content in a liquid. The higher the concentration of dissolved ions, the better the solution can conduct electricity. These sensors are used to assess various parameters such as salinity, total dissolved solids (TDS), and water quality in different environments.
The Science Behind Electrical Conductivity
Electrical conductivity (EC) is a fundamental property of materials that quantifies the ability of a substance to transmit an electric current. In liquids, conductivity depends on the presence of charged particles (ions) such as sodium (Na+), chloride (Cl-), and calcium (Ca2+). These ions are created when salts or minerals dissolve in water. The degree of conductivity is measured in Siemens per meter (S/m), with higher values indicating a higher concentration of ions.
In pure water, the concentration of ions is minimal, resulting in low conductivity. As minerals or salts are dissolved, the number of ions increases, leading to higher conductivity. Conductivity sensors capitalize on this principle, using electrodes to measure how easily electric current can pass through a solution, thus providing a real-time reading of its conductivity level.
How Do Conductivity Sensors Work?
At the core of a conductivity sensor is the process of measuring the electrical current flow through a solution. Here’s a breakdown of how the sensor works:
Basic Components of a Conductivity Sensor
1. Electrodes: The primary components in conductivity sensors are electrodes made from materials like platinum, graphite, or stainless steel. These electrodes are immersed in the liquid whose conductivity is being measured. The sensor typically features two electrodes: one acting as the anode (positive) and the other as the cathode (negative). The electrodes serve as contact points through which an electrical current is passed.
2. AC Power Supply: To prevent electrolysis from occurring, conductivity sensors use alternating current (AC) instead of direct current (DC). DC would cause the electrodes to degrade due to electrolysis, while AC maintains a continuous, stable measurement without affecting the electrode materials.
3. Measurement Circuit: The sensor includes a measurement circuit that measures the current flow between the electrodes. The circuit can calculate the conductivity based on how much current flows through the liquid in relation to its resistance.
The Measurement Process
Once the electrodes are placed in the solution, an alternating voltage is applied to them. The ions in the solution respond by moving toward the oppositely charged electrode, allowing an electrical current to flow between the two electrodes. The resistance to the flow of this current is inversely related to the conductivity of the solution: the lower the resistance, the higher the conductivity.
The sensor measures the resistance of the solution and uses it to calculate the conductivity. A typical conductivity sensor works with a range of measurements, and the sensor’s internal circuitry is designed to convert the measured resistance into conductivity values. The output is usually displayed as microsiemens per centimeter (µS/cm), a common unit of conductivity measurement.
Types of Conductivity Sensors
There are several types of conductivity sensors, each designed for specific applications. The two main categories are:
1. Contacting Conductivity Sensors
These are the most common type of conductivity sensors. They work by directly immersing the electrodes in the solution to measure the conductivity. Contacting sensors typically feature two or four electrodes. The two-electrode design is simpler and less expensive but may be prone to errors due to uneven electrode contact or fouling. The four-electrode design is more accurate as it helps eliminate errors caused by electrode fouling or scaling, making it ideal for more demanding applications.

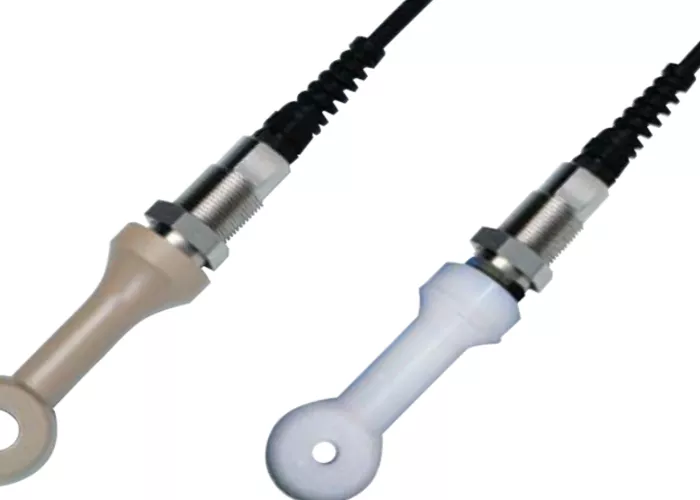

2. Inductive Conductivity Sensors
Inductive conductivity sensors do not require direct contact with the solution. Instead, they measure conductivity using electromagnetic induction. These sensors operate by generating an electromagnetic field around a coil. As the conductive liquid passes through the coil, the induced current is proportional to the liquid’s conductivity. Inductive sensors are particularly useful in applications where direct contact with the liquid is not possible or desirable, such as in highly corrosive environments.
Applications of Conductivity Sensors
Conductivity sensors have a wide range of applications across various industries. These sensors are vital for monitoring the quality of water, ensuring optimal conditions in industrial processes, and maintaining the safety of drinking water. Some of the most common applications include:
Water Quality Monitoring
In environmental monitoring, conductivity sensors are used to assess water quality. By measuring the conductivity of water, operators can determine the concentration of dissolved salts and minerals. This information is critical for managing freshwater sources, maintaining aquaculture environments, and monitoring the health of rivers, lakes, and oceans. High conductivity levels may indicate pollution, contamination, or the presence of excess nutrients, which could lead to harmful algal blooms or other ecological imbalances.
Industrial Water Treatment
Industries that rely on water for cooling or manufacturing processes need to carefully manage water quality. Conductivity sensors play a significant role in water treatment plants and industrial applications where monitoring of water chemistry is required. These sensors help to control processes like reverse osmosis, desalination, and ion-exchange systems. By keeping track of conductivity, operators can adjust the water treatment methods to optimize efficiency, prevent scaling or corrosion, and ensure water meets specific chemical standards.
Food and Beverage Industry
In the food and beverage industry, conductivity sensors are used for quality control, particularly in processes involving water or liquid-based ingredients. For example, in beverage production, measuring the conductivity of water helps ensure consistency in the final product. These sensors are also used to monitor the concentration of various ingredients, such as salts or sugars, that affect the conductivity of the solution.
Aquaculture and Fish Farming
Conductivity sensors are used in aquaculture to maintain the appropriate environmental conditions for fish and other aquatic organisms. Since conductivity is influenced by the salinity and mineral content of water, these sensors help operators maintain optimal water conditions, which is crucial for fish health and growth. Monitoring conductivity can also help detect changes in water quality that may indicate potential problems such as contamination or imbalances in nutrient levels.
Pharmaceutical Manufacturing
In pharmaceutical manufacturing, conductivity sensors are utilized to monitor the purity of water used in the production of medicines. The pharmaceutical industry requires ultra-pure water to avoid contamination, and conductivity sensors ensure that the water meets stringent quality standards. These sensors help ensure that the water used in drug formulation, cleaning processes, and equipment sterilization is free from unwanted ions.
Advantages and Limitations of Conductivity Sensors
Like any measurement tool, conductivity sensors come with both advantages and limitations. Understanding these can help users determine whether a conductivity sensor is the right tool for a specific application.
Advantages
- Real-time Measurements: Conductivity sensors provide immediate, continuous measurements, allowing for real-time monitoring of liquid properties.
- Non-Destructive: Since conductivity sensors do not alter the liquid being measured, they are a non-destructive method of analysis.
- Wide Range of Applications: These sensors are versatile and can be used in various industries, from environmental monitoring to industrial processes.
- Low Maintenance: Contacting conductivity sensors are relatively easy to maintain, requiring periodic cleaning and occasional calibration.
Limitations
- Electrode Fouling: In solutions with high levels of debris or minerals, the electrodes can become fouled, which can impact sensor accuracy. Regular cleaning may be required.
- Temperature Sensitivity: Conductivity readings are influenced by temperature, and sensors often require temperature compensation to provide accurate measurements.
- Calibration: Regular calibration is needed to ensure accurate measurements, especially in applications where precision is critical.
Conclusion
Conductivity sensors are indispensable tools in industries and applications where monitoring the quality of liquids is essential. By measuring the conductivity of a solution, these sensors provide valuable insights into its ionic content, helping to maintain water quality, optimize industrial processes, and ensure the safety of both products and environments. With continued advancements in sensor technology, conductivity sensors will remain a vital component in ensuring the efficiency and sustainability of various industrial and environmental systems.
