Ultrasonic sensors are widely used devices that employ sound waves to measure distances, detect objects, or gauge the properties of surfaces. These sensors operate on the principle of echolocation, a method used by animals like bats and dolphins. In this article, we will dive deep into the inner workings of ultrasonic sensors, their applications, and how they outperform other sensor technologies in various scenarios.
What Are Ultrasonic Sensors

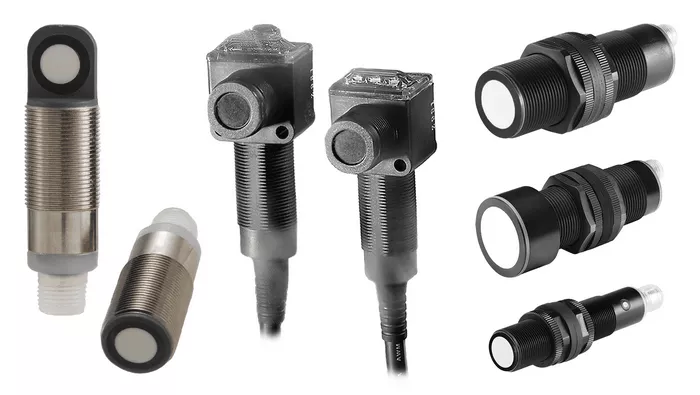

Ultrasonic sensors are a type of non-contact sensor that uses high-frequency sound waves to measure distances, detect objects, and sometimes even analyze the characteristics of materials. These sensors operate by emitting an ultrasonic pulse and measuring the time it takes for the pulse to reflect off an object and return to the sensor. This principle is known as time-of-flight (ToF). By knowing the speed of sound in air, the sensor can calculate the distance between the sensor and the object.
Compared to other types of sensors, such as infrared sensors, ultrasonic sensors are more versatile because they can be used in various environmental conditions without being significantly affected by ambient light or temperature. This makes them ideal for industrial, automotive, and consumer applications.
How Do Ultrasonic Sensors Work
Ultrasonic sensors work by emitting a burst of ultrasonic sound waves, typically at frequencies above 20 kHz, which are outside the range of human hearing. When these sound waves encounter an object, they bounce back to the sensor, and the sensor measures the time it takes for the waves to return. The formula used to calculate the distance is:
Distance = (Speed of Sound × Time) / 2
Since the sound waves travel at a constant speed (in dry air at 20°C, the speed of sound is approximately 343 meters per second), the sensor can easily calculate the distance to the object by measuring the time it takes for the sound waves to travel to the object and return. The division by 2 accounts for the round trip of the sound waves.
Components of Ultrasonic Sensors
Ultrasonic sensors typically consist of three main components:
- Transducer: The transducer is the key component that both emits and receives the ultrasonic sound waves. It is typically made of piezoelectric material, which can convert electrical energy into sound energy and vice versa.
- Signal Processor: This component is responsible for processing the signals from the transducer, calculating the time of flight, and converting that data into a usable output, such as distance or proximity.
- Output Interface: The output interface allows the sensor to communicate with external devices, such as microcontrollers or industrial equipment, providing data in a usable format (e.g., analog, digital, or serial).
Types of Ultrasonic Sensors
There are various types of ultrasonic sensors, each designed to serve specific applications. Some of the most common types include:
- Single Point Sensors: These sensors measure the distance to a single point, such as the distance between the sensor and an object in its direct line of sight. These are commonly used in robotic navigation or object detection systems.
- Array Sensors: These sensors use multiple ultrasonic transducers arranged in a grid pattern. The array allows for more complex measurements, such as mapping out the shape and position of objects in a 3D space, making them ideal for more advanced applications like robotics or autonomous vehicles.
- Level Sensors: Ultrasonic level sensors are commonly used in industries like water treatment, food processing, and chemical manufacturing. They measure the level of liquids or solids within a container without making physical contact, which is crucial for maintaining hygienic conditions in certain industries.
Applications of Ultrasonic Sensors
Ultrasonic sensors are highly versatile and find use in a wide range of applications across different industries. Below are some of the key areas where ultrasonic sensors are used:
1. Automotive Industry
In the automotive industry, ultrasonic sensors are commonly used for parking assistance and collision detection systems. These sensors help vehicles detect obstacles around them, improving safety and assisting in parking in tight spaces. The sensors’ ability to function in various environmental conditions, such as rain or fog, makes them a reliable choice for this application.
2. Robotics and Automation
Robots, particularly autonomous robots, rely heavily on ultrasonic sensors for navigation and obstacle detection. By using ultrasonic sensors, robots can create maps of their surroundings, avoid obstacles, and determine the distance to objects. This helps improve the efficiency and safety of automated systems in warehouses, factories, and other settings.
3. Industrial Measurement and Control
In industrial settings, ultrasonic sensors are used for a variety of purposes, including distance measurement, level sensing, and thickness gauging. For example, ultrasonic level sensors are used to monitor the levels of liquids or solids in tanks, silos, or pipes. Similarly, ultrasonic sensors are used for thickness measurements in materials like metals and plastics, helping maintain quality control in manufacturing processes.
4. Medical Applications
Ultrasonic technology is commonly used in the medical field for diagnostic imaging, such as in ultrasound scans. Ultrasonic sensors are also used in various medical devices to monitor patient conditions, including blood flow and respiratory patterns. The ability to operate without causing harm or discomfort to patients makes ultrasonic sensors ideal for many medical applications.
5. Environmental Monitoring
Ultrasonic sensors can be used in environmental monitoring systems to measure distances, detect changes in water levels, and track the movement of debris or pollutants. These sensors are particularly valuable in monitoring floodwaters or detecting changes in environmental conditions in hazardous areas.
Advantages of Ultrasonic Sensors
Ultrasonic sensors have several advantages over other types of sensors, making them a popular choice for a wide variety of applications. Some of these advantages include:
- Non-Contact Operation: Since ultrasonic sensors do not require physical contact with the object, they are ideal for applications where contact could be problematic, such as in hygienic environments or with delicate materials.
- Works in Various Conditions: Ultrasonic sensors are not affected by environmental factors such as dust, dirt, or smoke, unlike optical sensors like infrared sensors, which can be impaired by these factors.
- High Accuracy: Ultrasonic sensors are capable of providing accurate distance measurements, often within a few millimeters, making them suitable for applications that require precise measurement.
- Wide Range of Detection: Ultrasonic sensors can detect objects at various distances, ranging from a few centimeters to several meters, depending on the sensor’s specifications.
Challenges of Ultrasonic Sensors
Despite their many advantages, ultrasonic sensors do have some limitations and challenges. These include:
- Environmental Interference: While ultrasonic sensors can operate in a variety of environmental conditions, certain factors like temperature, humidity, and air pressure can affect the speed of sound and, consequently, the accuracy of measurements. This can be mitigated by calibrating the sensor for specific environmental conditions.
- Surface Material Sensitivity: Ultrasonic sensors may not work well with soft or absorbent surfaces, as these materials may not reflect the sound waves effectively. Similarly, very smooth surfaces can cause the sound waves to scatter, leading to inaccurate readings.
- Limited Resolution: While ultrasonic sensors provide accurate distance measurements, they may not have the fine resolution required for detecting very small objects or providing detailed spatial data in high-precision applications.
Conclusion
Ultrasonic sensors are an essential technology with wide-ranging applications across industries such as automotive, robotics, manufacturing, and healthcare. Their ability to measure distances without contact, work in various environmental conditions, and provide high accuracy makes them an invaluable tool in many modern technologies. While there are some challenges associated with their use, such as environmental interference and surface material sensitivity, ultrasonic sensors continue to evolve, offering even more advanced capabilities for a growing number of applications.
