In modern agriculture, efficiency and speed are paramount for optimizing crop yields and reducing labor costs. One of the most revolutionary machines to achieve these goals is the combine harvester. A combine harvester, often referred to simply as a “combine,” is a versatile agricultural machine designed to perform multiple functions in the harvesting process, including reaping, threshing, and winnowing. This article explores what combine harvesters are, their various components, how they work, and the benefits they bring to farming operations.
What is a Combine Harvester?
A combine harvester is a large, self-propelled machine that is used to harvest a variety of grain crops, such as wheat, corn, barley, and oats. It is called a “combine” because it combines several different operations into one process: cutting, threshing, and cleaning. Traditionally, these tasks were performed by different machines or manual labor, but the combine harvester streamlines the entire process, saving both time and labor.
The Evolution of the Combine Harvester
Combine harvesters were first introduced in the early 20th century. The early versions of the machine were relatively simple, hand-powered devices that required significant human input. However, technological advancements have transformed these machines into highly sophisticated pieces of machinery that can efficiently harvest crops with minimal human intervention. Today’s modern combines are powered by large engines and equipped with advanced technologies like GPS, sensors, and automated systems.
Key Components of a Combine Harvester
The combine harvester is composed of several key components that work together to perform the harvesting process. Below is an overview of the main parts and their functions:
1. Header
The header is the front part of the combine harvester and is responsible for cutting and gathering the crop. It consists of a cutting platform with a rotating reel that pushes the crop towards the cutters. There are different types of headers designed for various crops, such as wide headers for wheat or narrow headers for row crops like corn. The type of header used depends on the type of crop being harvested and the width of the field.
2. Cutter Bar
The cutter bar is the component that actually cuts the crop. It features a series of sharp blades that move back and forth, cutting the crop close to the ground. This bar works in conjunction with the reel, which ensures that the crops are moved toward the cutters in an orderly fashion.
3. Auger
The auger is responsible for transporting the cut crops from the header to the intake of the threshing mechanism. It is a spiral-shaped conveyor system that ensures the harvested crops are efficiently fed into the combine for further processing.
4. Threshing Mechanism
The threshing mechanism is the heart of the combine harvester. Its job is to separate the grains from the rest of the plant material (such as the husks, stalks, and leaves). The threshing drum, which is a rotating drum with sharp teeth or spikes, smashes the harvested crop and removes the grain. The separated grain then moves on to the next step in the cleaning process.
5. Separation System
After threshing, the next step is to separate the grain from the chaff and other debris. This is done through a combination of screens and a fan system. The fan blows air to remove lighter particles like chaff, while the heavier grains fall through the screens and are collected in a hopper. Some combine harvesters are also equipped with additional separation mechanisms such as rotary separators, which provide a more thorough separation of the grain from the plant material.
6. Grain Tank
The grain tank is where the separated grain is collected. Depending on the size of the combine, the grain tank can hold anywhere from a few hundred to several thousand liters of grain. Once the grain tank is full, the grain is unloaded into a trailer or transport vehicle using an unloading auger.
7. Unloading System
The unloading system is responsible for transferring the grain from the tank to a transport vehicle. The auger that unloads the grain is typically long and flexible, allowing for precise unloading in different field conditions. The unloading system also helps reduce the downtime between harvesting and transporting the grain.
8. Cab and Control System
The cab of a combine harvester is where the operator controls the machine. Modern combines feature advanced control systems that allow the operator to monitor various functions such as the grain flow, fuel usage, and harvesting efficiency. Many combines are equipped with GPS systems, yield monitors, and touch-screen interfaces that help operators manage their harvesting operations with greater precision.
How Do Combine Harvesters Work?
Now that we have examined the main components of a combine harvester, let’s break down how the machine works in the field. The process of harvesting with a combine harvester typically follows these steps:
1. Setting Up the Combine
Before the harvesting process begins, the combine harvester must be properly set up for the specific crop being harvested. This includes adjusting the header to the appropriate cutting height, selecting the proper threshing settings, and calibrating the grain tank and unloading system. Operators may also calibrate the sensors and control systems to optimize performance.
2. Cutting the Crop
As the combine moves through the field, the header cuts the crop and gathers it into the auger. The rotating reel helps push the crop into the cutting mechanism, and the cutter bar ensures the crop is cut at the correct height. The combine operates in a continuous motion, cutting and collecting crops from large swaths of land.
3. Threshing and Separating the Grain
Once the crop is gathered into the threshing drum, the threshing mechanism separates the grain from the plant material. The rotating drum beats the crop to break the stems and release the grain. This is a crucial step, as the grain must be separated efficiently without being damaged. The grain is then moved into the separation system, where lighter materials such as chaff and straw are blown away by air, leaving behind clean, separated grain.
4. Cleaning and Sorting the Grain
After the grain has been separated, it undergoes a final cleaning process. This step ensures that any remaining plant material or debris is removed before the grain is stored in the grain tank. Some combines also feature sorting systems that can further clean the grain, ensuring only the highest quality grains are collected.
5. Unloading the Grain

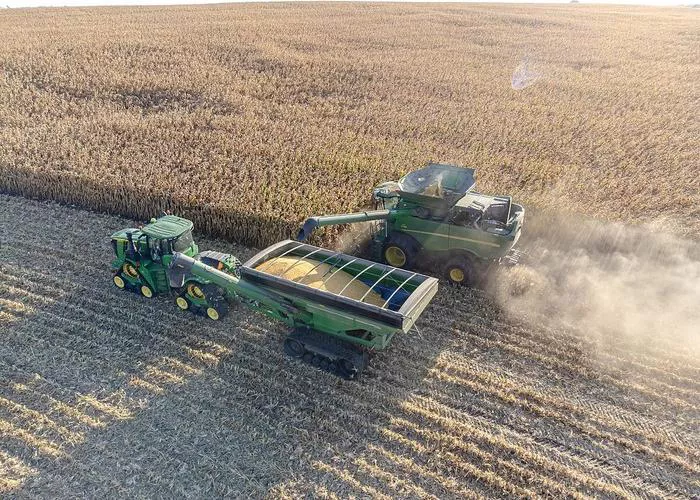

Once the grain tank reaches capacity, the operator can unload the grain into a transport vehicle or trailer. The unloading auger is used to transfer the grain from the combine’s tank to the waiting vehicle. This process is usually done while the combine is still operating in the field, allowing for minimal downtime.
6. Continuing the Harvest
The combine continues its harvesting process, cutting, threshing, separating, cleaning, and unloading until the entire field is harvested. Depending on the size of the field and the combine, this process can take anywhere from a few hours to several days. Modern combines are designed to be highly efficient, allowing operators to harvest large fields in a relatively short amount of time.
Benefits of Using a Combine Harvester
Combine harvesters offer a range of advantages for farmers and agricultural operations. Some of the key benefits include:
1. Increased Efficiency
Combine harvesters streamline the entire harvesting process by performing multiple tasks simultaneously. This significantly reduces the time and labor required to harvest crops, increasing overall efficiency. Farmers can cover large areas of land quickly and with minimal manpower, improving productivity and profitability.
2. Reduced Labor Costs
In the past, harvesting crops required significant manual labor. With the advent of combine harvesters, much of this labor has been automated, leading to lower labor costs. The combine operator is the only person required to run the machine, and even that job is often aided by advanced automated systems.
3. Higher Yields
Because combine harvesters are capable of harvesting crops with greater precision, they help reduce the loss of grain in the field. Their efficient threshing and separating mechanisms ensure that more grain is collected, leading to higher overall yields. The ability to harvest at the optimal time also contributes to improved crop quality and yield.
4. Versatility
Combine harvesters are versatile machines that can be used for a wide variety of crops, including grains, legumes, and oilseeds. With different header attachments and settings, combine harvesters can be adapted to harvest different types of crops, making them an essential tool for farmers who grow multiple crops.
5. Precision and Monitoring
Modern combine harvesters are equipped with advanced technologies, including GPS systems and yield monitoring sensors. These technologies allow farmers to track the performance of their equipment and monitor crop yields in real-time. This data can be used to make informed decisions about crop management and improve future harvests.
Conclusion
The combine harvester is an essential piece of machinery in modern agriculture, helping to improve harvesting efficiency, reduce labor costs, and increase yields. With its combination of cutting, threshing, and cleaning capabilities, the combine harvester plays a vital role in ensuring that crops are harvested quickly and efficiently. As technology continues to advance, combine harvesters will become even more sophisticated, offering greater precision and automation for farmers worldwide. Understanding how these machines work and their benefits is crucial for anyone involved in agriculture, as they represent the future of crop harvesting.
