Force sensors are devices used to detect and measure force or pressure applied to an object. These sensors play an essential role in various industries, including automotive, robotics, aerospace, and manufacturing. Whether monitoring the pressure in hydraulic systems or measuring the force exerted by a robot arm, force sensors are indispensable for precise control and operation in many applications. But what exactly are force sensors, and how do they work? This article delves into the fundamentals of force sensors, their working principles, types, and their application across industries.
Understanding the Concept of Force and Pressure
Before diving into the specifics of force sensors, it is important to understand the basic concepts of force and pressure. Force refers to any interaction that causes a change in an object’s motion, measured in units like newtons (N). Pressure, on the other hand, is the force exerted per unit area, typically measured in pascals (Pa). In many applications, the need arises to measure the amount of force or pressure exerted on a surface, and this is where force sensors come into play.
What Are Force Sensors?
Force sensors are transducers that convert a mechanical force or pressure applied to them into an electrical signal, which can then be measured or analyzed. The force sensor output is typically an electrical signal that is proportional to the applied force. These sensors are used to monitor both static and dynamic forces in a wide range of applications, providing vital feedback for control systems, automation, and measurement purposes.
The sensors’ role is to provide real-time data that can help engineers and operators make informed decisions. This makes force sensors crucial in ensuring optimal operation, preventing system failures, and improving safety standards. Force sensors come in different types, each with its own mechanism for converting force into an electrical signal.
How Do Force Sensors Work?
Force sensors function by using various physical principles, such as strain gauges, piezoelectric effects, or capacitive changes. The basic mechanism involves detecting the deformation caused by an applied force and converting it into an electrical signal. Let’s take a deeper look into the core working principles of force sensors.
Strain Gauge-Based Force Sensors
The most common type of force sensor is the strain gauge-based sensor. A strain gauge is a device that measures the strain (deformation) on a material when a force is applied. The strain gauge consists of a thin metallic wire or foil pattern that deforms with the material it is attached to. This deformation causes a change in the electrical resistance of the strain gauge. The change in resistance is proportional to the amount of strain, and by using a Wheatstone bridge circuit, the change can be translated into an electrical signal that corresponds to the applied force.
Strain gauge-based force sensors are highly accurate and are widely used in applications ranging from weighing scales to industrial machinery. They are particularly useful in measuring small forces and can detect both compressive and tensile forces. Strain gauges are often used in conjunction with amplifiers and signal conditioning circuits to improve accuracy and signal quality.
Piezoelectric Force Sensors
Another common type of force sensor uses the piezoelectric effect. The piezoelectric effect refers to the generation of an electrical charge in certain materials when subjected to mechanical stress. In these sensors, materials like quartz or specially designed ceramics are used to detect force. When a force is applied, the crystal or ceramic generates an electrical charge, and the magnitude of the charge is proportional to the amount of force.
Piezoelectric sensors are particularly useful for dynamic force measurements, such as those required in vibration analysis, shock measurements, and impact testing. These sensors are highly sensitive and are often used in high-frequency applications. However, they are not suitable for measuring static forces because the generated charge can dissipate over time.
Capacitive Force Sensors
Capacitive force sensors operate by detecting changes in capacitance, which occurs when the distance between two capacitor plates changes. When a force is applied to a capacitive sensor, the distance between the plates changes, which in turn alters the capacitance. This change in capacitance is then measured and converted into an electrical signal. Capacitive force sensors are ideal for applications requiring high sensitivity and low power consumption. They are commonly used in applications like touchscreens and some medical devices.
Optical Force Sensors
Optical force sensors rely on the principle of light transmission. When a force is applied to the sensor, it changes the optical path or the light intensity detected by a photodetector. These sensors are highly accurate and capable of measuring very small forces. However, they are more sensitive to environmental factors like temperature and vibration, which can affect the light transmission. Optical force sensors are often used in precision applications, including in laboratory settings or for detecting small deformations in materials.
Types of Force Sensors
There are several types of force sensors, each designed for specific applications. The most commonly used types are strain gauges, piezoelectric sensors, capacitive sensors, and optical sensors. Let’s explore these different types in more detail.
Load Cells
Load cells are a type of force sensor that measures the force or weight applied to an object. They are commonly used in industrial weighing systems, such as in scales or inventory management systems. Load cells work by converting the force applied to them into an electrical signal, which is then measured and interpreted by a digital readout. They typically use strain gauges or piezoelectric elements to detect force.

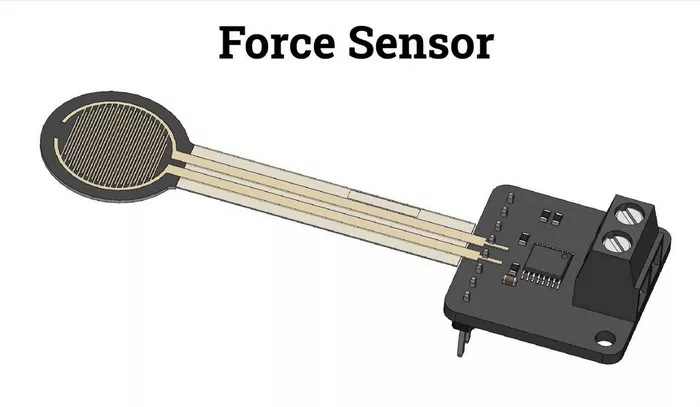

Force Sensing Resistors
Force sensing resistors (FSRs) are sensors that change their resistance when a force is applied. These sensors are typically made of a flexible material that deforms under pressure, altering the resistance. FSRs are ideal for applications where flexibility and low cost are important, such as in robotics, wearable devices, and touch-sensitive devices. However, they are less accurate than strain gauges or piezoelectric sensors.
Pressure Sensors
Although not always classified directly as force sensors, pressure sensors are closely related. Pressure sensors measure the force exerted by a fluid (gas or liquid) on a surface. They work by detecting changes in pressure and converting that information into an electrical signal. Pressure sensors are widely used in systems like hydraulic pumps, air compressors, and fuel systems. They can be based on various principles, including strain gauges and piezoelectric elements.
Vibration Sensors
Vibration sensors are a specific category of force sensors used to detect dynamic forces such as vibration or oscillation. These sensors convert the mechanical vibration into an electrical signal. Vibration sensors are essential in applications such as machinery monitoring, automotive diagnostics, and seismic studies. They are typically based on piezoelectric or capacitive principles, providing valuable insights into the health and performance of machinery.
Applications of Force Sensors
Force sensors are found in a wide range of applications, from industrial machinery to consumer electronics. Below are some common areas where force sensors are used:
Industrial Applications
In the industrial sector, force sensors are used to monitor and control processes such as material handling, weight measurement, and pressure monitoring. They are often integrated into machines that require precise force feedback for accurate operation, such as robotic arms, conveyor belts, and hydraulic systems. Force sensors ensure that these systems operate efficiently and safely by providing real-time data about the forces acting on them.
Automotive Industry
Force sensors play a critical role in automotive applications, including testing and monitoring the forces experienced by vehicles during testing or operation. They are used to measure tire pressure, brake forces, and load distribution in vehicles. Force sensors are also used in automotive safety systems, such as airbags, to monitor and react to the forces during a collision.
Medical Devices
Force sensors are also commonly used in medical devices. For example, they are incorporated into prosthetic limbs to detect the forces exerted during walking, enabling better control of the device. In medical imaging and diagnostics, force sensors can help with accurate positioning of patients and devices. Furthermore, force sensors are integral in devices like infusion pumps and surgical tools.
Consumer Electronics
In consumer electronics, force sensors are found in devices like smartphones, tablets, and smartwatches. These sensors are used in touchscreens to detect user interaction, as well as in wearables to measure pressure or force applied to the device. They contribute to the overall user experience by enabling sensitive and responsive touch interfaces.
Conclusion
Force sensors are vital components in modern engineering and technology. From industrial machinery and automotive safety to medical devices and consumer electronics, these sensors are essential for accurate force measurement and control. By converting mechanical force into electrical signals, force sensors enable engineers and operators to monitor and optimize processes, ensuring efficiency and safety. Whether using strain gauges, piezoelectric materials, or capacitive elements, the diverse range of force sensors available today offers solutions for virtually every application requiring force measurement.
