Measuring the flow of liquids accurately is a critical task in numerous industries, including chemical processing, water treatment, oil and gas, pharmaceuticals, and food and beverage manufacturing. Liquid flowmeters are instruments designed to quantify the movement of liquid through a pipe or channel. These devices offer insights into flow rate, volume, and sometimes fluid properties such as viscosity and temperature. Selecting the right flowmeter and understanding its working principles can greatly influence process efficiency, cost management, and system safety.
How Do Liquid Flowmeters Work
Before diving into the mechanisms of liquid flowmeters, it’s essential to understand the core principles of fluid flow. Fluid movement can be described in terms of volume flow rate (e.g., liters per minute) or mass flow rate (e.g., kilograms per second). The flow regime—laminar or turbulent—also affects how fluids move through a pipe. Laminar flow is smooth and orderly, occurring at low velocities, whereas turbulent flow is chaotic and occurs at high velocities.
Flow measurement can be categorized into direct and indirect methods. Direct methods involve measuring the actual volume or mass passing through a section of pipe, while indirect methods infer flow based on other variables such as pressure differential or electromagnetic induction.
Types of Liquid Flowmeters
Liquid flowmeters come in various designs, each suited to particular applications, fluid types, and accuracy requirements. The most common types include:
1. Differential Pressure Flowmeters
These devices work on Bernoulli’s principle, which states that an increase in the speed of a fluid occurs simultaneously with a decrease in pressure. The most common differential pressure flowmeters include orifice plates, venturi tubes, and flow nozzles.
- Orifice Plates: These are flat plates with a precisely machined hole that creates a pressure drop as fluid flows through. The pressure differential before and after the orifice is used to calculate the flow rate.
- Venturi Tubes: These have a gradually narrowing throat followed by an expanding section. The design minimizes energy loss and is more efficient for larger flow systems.
- Flow Nozzles: These are intermediate between orifice plates and venturi tubes and are commonly used in steam and high-pressure liquid applications.
2. Positive Displacement (PD) Flowmeters
PD flowmeters physically trap fluid in compartments and then count the number of times these compartments are filled and emptied. They are exceptionally accurate and ideal for viscous fluids such as oil and syrup.
- Gear Meters: Use rotating gears to measure flow; each rotation correlates with a known volume.
- Rotary Vane Meters: Utilize vanes that rotate within a chamber to displace a fixed volume of fluid.
- Nutating Disc Meters: Employ a wobbling disc mechanism that moves with the flow of liquid, displacing a fixed volume.
3. Electromagnetic Flowmeters
These meters rely on Faraday’s Law of Electromagnetic Induction, which states that a voltage is induced when a conductive fluid passes through a magnetic field. The voltage generated is proportional to the flow rate.
Electromagnetic flowmeters are ideal for measuring the flow of conductive liquids such as water, wastewater, and slurries. They are non-intrusive and have no moving parts, which reduces maintenance and improves longevity.
4. Ultrasonic Flowmeters
Ultrasonic meters measure flow by sending high-frequency sound waves through the fluid and observing changes in the signal. There are two primary types:
- Transit-Time Meters: Use two sensors positioned opposite each other. The time difference between upstream and downstream signal transmission is used to calculate flow velocity.
- Doppler Meters: Utilize the Doppler effect by measuring frequency shifts in sound waves reflected from suspended particles or bubbles in the fluid.
5. Turbine Flowmeters
Turbine flowmeters use the mechanical rotation of a turbine within the flow path. As liquid flows through, it causes the turbine to spin. The rotational speed correlates to the volumetric flow rate. These are commonly used in water, oil, and chemical applications where clean fluids are present.

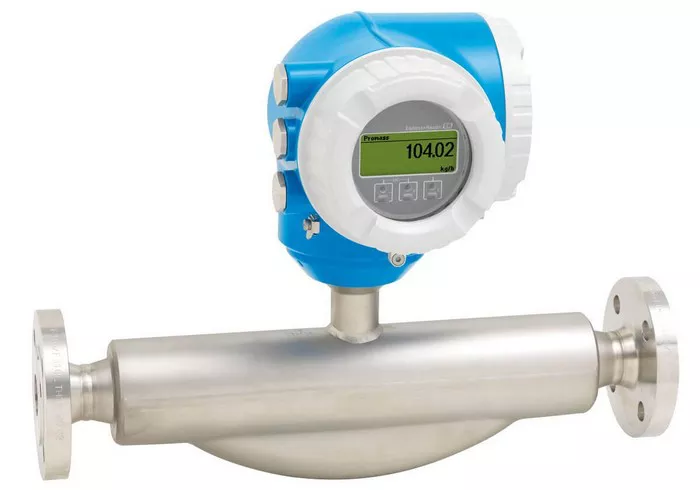

6. Coriolis Flowmeters
Coriolis meters are among the most accurate and sophisticated flowmeters available. They measure mass flow directly by detecting the Coriolis force exerted on a vibrating tube through which the liquid flows. These meters can also provide density and temperature measurements, making them ideal for high-precision applications in chemical processing and pharmaceuticals.
Key Components of a Flowmeter System
Regardless of the type, most flowmeter systems consist of several essential components:
- Sensor/Primary Element: This is the component that interacts with the fluid to produce a measurable signal.
- Transmitter: Converts the raw signal from the sensor into a standardized output such as 4-20 mA or digital protocols like HART, Modbus, or Profibus.
- Flow Computer or Display Unit: Processes the signal to calculate and display the flow rate. Advanced systems can log data, generate reports, and interface with control systems.
Factors Affecting Flowmeter Selection
Choosing the right liquid flowmeter involves balancing a range of technical and economic factors. Some key considerations include:
- Fluid Characteristics: Is the liquid clean or dirty? Is it conductive? Viscous? Corrosive?
- Accuracy Requirements: Some applications, such as batching chemicals, require extremely high accuracy, while others, like wastewater monitoring, may tolerate lower precision.
- Flow Range: The meter should be capable of accurately measuring the expected minimum and maximum flow rates.
- Pipe Size and Installation Constraints: Some meters require long straight runs of pipe, while others can be mounted in tight spaces or retrofitted onto existing systems.
- Maintenance and Durability: Non-intrusive meters generally require less maintenance, while mechanical ones may suffer from wear over time.
Applications of Liquid Flowmeters
Flowmeters are critical to virtually every sector that involves fluid transport. Some typical applications include:
- Water and Wastewater Management: Monitoring usage, detecting leaks, and optimizing treatment processes.
- Oil and Gas Industry: Measuring crude oil, refined fuels, and injection chemicals under high pressure and temperature.
- Pharmaceuticals: Ensuring precise dosing and blending of ingredients to comply with regulatory standards.
- Food and Beverage: Measuring flow in pasteurization, mixing, and bottling processes.
- HVAC Systems: Managing chilled water, boiler feedwater, and cooling tower flow rates.
Installation Best Practices
Proper installation is critical to obtaining accurate and reliable measurements. Here are a few best practices:
- Ensure Correct Orientation: Some meters must be installed horizontally or vertically, depending on the model and flow direction.
- Maintain Straight Runs: For meters sensitive to flow profile, such as turbine or differential pressure types, adequate straight pipe lengths upstream and downstream are crucial.
- Avoid Air Bubbles and Entrained Gases: These can distort readings, especially in ultrasonic and electromagnetic meters.
- Regular Calibration: Routine calibration ensures accuracy over time, especially for meters in critical applications.
- Protect from Vibration and Temperature Extremes: These factors can affect performance, particularly for Coriolis and ultrasonic sensors.
Calibration and Maintenance
All flowmeters require periodic calibration to maintain accuracy. Calibration involves comparing the meter’s readings against a known standard. It can be done on-site (in-situ) or in a specialized lab. Maintenance requirements vary depending on the meter type:
- Mechanical Meters: Subject to wear and tear; require regular inspection and parts replacement.
- Non-Contact Meters: Such as ultrasonic and electromagnetic meters, have fewer moving parts and are generally more durable.
- Coriolis Meters: Require periodic zeroing and may be sensitive to mounting conditions.
Emerging Trends and Technologies
Advancements in digital communication, sensor miniaturization, and real-time data analytics are transforming flow measurement. Some emerging trends include:
- IoT Integration: Smart flowmeters with wireless connectivity allow for remote monitoring and diagnostics.
- Artificial Intelligence and Predictive Maintenance: Using machine learning algorithms to detect early signs of sensor degradation.
- Multi-Variable Flowmeters: Devices that simultaneously measure flow, pressure, temperature, and density, reducing the need for multiple instruments.
- Clamp-On Flowmeters: Especially in retrofit projects, clamp-on ultrasonic meters avoid pipe cutting and process interruption.
Conclusion
Liquid flowmeters play an indispensable role in monitoring and managing fluid movement across countless industrial and commercial applications. With a wide variety of technologies available, understanding how each type works and what conditions they are best suited for is crucial for optimal selection and use. As industries continue to push for greater efficiency, precision, and automation, flowmeter technology is evolving rapidly, offering new levels of accuracy, intelligence, and integration.
For engineers and technicians, staying informed about the latest developments and best practices in flow measurement is not just beneficial—it’s essential to ensuring the reliability and performance of critical fluid systems.
