Capacitive touch sensors have revolutionized the way we interact with modern devices, replacing the traditional mechanical switches with a more advanced and intuitive touch-based system. From smartphones to household appliances, capacitive touch sensors are now embedded in nearly every device that requires user interaction. But what exactly are capacitive touch sensors, and how do they work? In this article, we will explore the principles behind these sensors, their types, applications, and their integration into various systems. We will also touch upon related technologies like infrared sensors and ultrasonic transducers for better understanding.

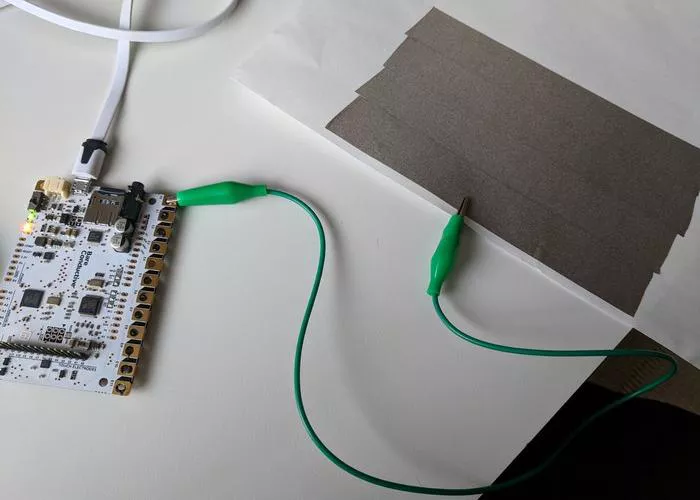

What Are Capacitive Touch Sensors
Capacitive touch sensors are devices that use the principle of capacitance to detect and register the touch of a human finger or other conductive materials. Capacitive sensing technology has become a prominent feature in consumer electronics, automotive systems, and industrial applications due to its ability to provide fast, reliable, and touch-sensitive control. Capacitive sensors are widely favored for their durability and the clean, easy-to-use interface they offer in modern touchscreens and control panels.
Unlike traditional mechanical switches, which physically move or make contact to complete a circuit, capacitive touch sensors detect changes in capacitance when a conductive object, such as a finger, approaches or touches the sensor surface. The sensor operates by measuring variations in the electrical field surrounding it, and these variations can be interpreted as touch events. This makes capacitive touch sensors not only more durable but also less prone to wear and tear.
How Do Capacitive Touch Sensors Work?
At the heart of capacitive touch sensors is the concept of capacitance, which is the ability of a system to store an electrical charge. All conductive objects, including the human body, possess capacitance. When a person touches a capacitive sensor, the electrical field around the sensor is disturbed, leading to a change in the capacitance that is detected by the sensor’s circuit.
The Basic Components of a Capacitive Touch Sensor
A capacitive touch sensor consists of several key components that enable it to detect touch:
- Conductive Layer: This is usually a transparent conductive material like indium tin oxide (ITO) that forms the surface of the touch panel. This layer forms the capacitive plates that detect the touch.
- Electrodes: Underneath the conductive layer are electrodes that create an electric field. These electrodes are arranged in a grid-like pattern, and they are responsible for measuring the changes in capacitance when the touch happens.
- Microcontroller (MCU): The microcontroller reads the capacitance values and processes the data to determine whether a touch has occurred.
- Signal Processing Circuit: This part is responsible for filtering and processing the capacitance signals to eliminate noise and provide accurate touch detection.
Capacitive Touch Detection Process
The detection of a touch begins when a person places a finger on or near the sensor surface. The human body, being conductive, alters the electric field around the sensor, changing the capacitance at the location of the touch. The electrodes underneath the conductive layer detect this change in capacitance. The microcontroller interprets this change as a touch event and processes it accordingly.
Capacitive touch sensors are highly sensitive and can detect the presence of a finger without requiring physical contact. The sensor system continuously measures the capacitance values and updates the touch detection in real-time, which makes it possible to detect multiple touches, or even gestures like swiping or pinching, depending on the design of the sensor.
Types of Capacitive Touch Sensors
There are primarily two types of capacitive touch sensors used in modern technology: surface capacitive sensors and projected capacitive sensors. Each of these types has its own unique characteristics and applications.
Surface Capacitive Sensors
Surface capacitive sensors are the simplest type of capacitive touch sensor. These sensors have a conductive layer on the surface of the sensor panel, typically made of a thin layer of indium tin oxide (ITO). The electrodes are arranged around the edges of the panel, and they detect the change in capacitance when a finger touches the surface.
These sensors are commonly used in applications where only one touch is required at a time, such as in industrial control panels and basic touchscreen interfaces. However, surface capacitive sensors have limitations, including the fact that they only detect touch at one location at a time and are usually limited to a single layer of detection.
Projected Capacitive Sensors
Projected capacitive sensors are a more advanced form of capacitive sensing. These sensors feature a grid of horizontal and vertical electrodes embedded beneath the surface of the sensor panel. This design allows projected capacitive sensors to detect touch across multiple points on the surface at the same time, making them suitable for multi-touch applications.
Projected capacitive sensors are widely used in modern smartphones, tablets, and other devices that require the detection of multiple simultaneous touches. This technology allows for more complex gestures, such as zooming or rotating images, which are essential in modern touch interfaces.
Mutual vs. Self-Capacitance
Capacitive touch sensors can also be classified based on the way they measure capacitance: mutual capacitance and self-capacitance.
- Mutual Capacitance: This method uses a matrix of electrodes where the capacitance is measured between the intersecting rows and columns. Mutual capacitance sensors can detect multiple touches at once, making them suitable for more complex touch applications.
- Self-Capacitance: In self-capacitance sensors, each electrode is isolated, and the capacitance is measured individually for each electrode. These sensors typically detect only a single touch at a time.
Applications of Capacitive Touch Sensors
Capacitive touch sensors are used in a wide range of applications across various industries. Their ability to provide precise touch detection, combined with their durability, makes them ideal for use in both consumer and industrial products.
Consumer Electronics
The most common and recognizable use of capacitive touch sensors is in consumer electronics, particularly in smartphones, tablets, and laptops. Capacitive touchscreens have become the standard interface for these devices due to their ability to offer fast, reliable touch input and multi-touch capabilities.
In addition to touchscreens, capacitive sensors are also used in capacitive buttons for devices like home appliances, where a simple touch can activate a function without the need for mechanical switches. They are also used in modern gaming devices and wearables, such as smartwatches, that require intuitive and responsive touch input.
Automotive Applications
Capacitive touch sensors are increasingly being integrated into automotive systems, providing enhanced touch-based control in vehicles. Capacitive sensors are used in touch-based controls for infotainment systems, climate control systems, and other vehicle functions. These sensors are preferred in automotive applications due to their sleek design, durability, and ability to withstand the harsh environments of a car’s interior.
Industrial Control Systems
Capacitive touch sensors are also used in industrial control systems, offering a more efficient and durable alternative to mechanical switches and buttons. In environments where frequent use and high durability are essential, capacitive touch panels offer a longer-lasting solution with less wear and tear. Capacitive sensors are commonly found in machinery control panels, factory automation systems, and human-machine interfaces (HMIs).
Advantages and Challenges of Capacitive Touch Sensors
While capacitive touch sensors offer numerous advantages, there are also challenges associated with their use. Understanding both sides is essential for designing and integrating these sensors into various systems.
Advantages
- Durability: Capacitive touch sensors have no moving parts, making them highly durable and resistant to wear and tear.
- High Sensitivity: Capacitive sensors are very sensitive to touch, offering quick response times and precise touch detection.
- Multi-Touch Capability: Projected capacitive sensors can detect multiple simultaneous touches, allowing for more complex and interactive user interfaces.
- Clean and Sleek Design: Capacitive touch sensors allow for a clean and modern design since there are no physical buttons or switches involved.
Challenges
- Environmental Sensitivity: Capacitive touch sensors can be sensitive to environmental conditions like humidity or temperature, which may affect their performance.
- Touch Interference: Some materials, such as gloves or certain materials, may interfere with the sensor’s ability to detect touch, limiting its functionality.
- Cost: Capacitive touch sensors, especially projected capacitive ones, can be more expensive to manufacture compared to traditional mechanical switches.
Conclusion
Capacitive touch sensors have become an integral part of modern technology, enabling a wide range of applications from consumer electronics to industrial systems. Their ability to offer fast, reliable, and multi-touch input without the need for physical contact has made them a preferred choice in many industries. While there are some challenges to their use, such as environmental sensitivity and higher manufacturing costs, the advantages they offer in terms of durability, sensitivity, and user experience make them a valuable technology in the modern world. With the continued advancement of capacitive sensing technology, we can expect even more innovative applications in the future.
