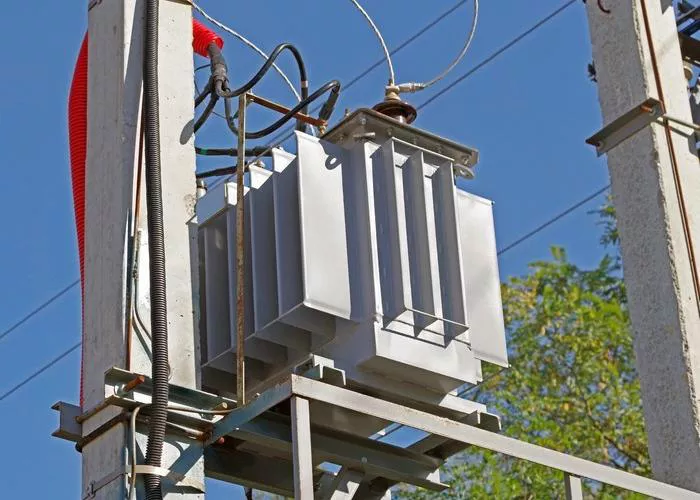

An inductive voltage transformer (IVT), also commonly referred to as a potential transformer (PT), is an electrical device designed to step down high voltages to a lower, standardized voltage level that can be safely measured and monitored by control and protection equipment in electrical power systems. These transformers are essential components in substations, power plants, and industrial installations, where accurate voltage measurement is critical for system operation, protection, and metering.
Historical Development and Application
Since the early days of electrical power distribution, accurate voltage measurement has been a priority for engineers to maintain system reliability and safety. Inductive voltage transformers emerged as a practical solution, leveraging electromagnetic induction principles to transform voltages. Their development coincided with the expansion of high-voltage transmission lines, where direct measurement of line voltage was neither safe nor feasible.
Construction and Design of Inductive Voltage Transformers
Core and Windings
The primary component of an inductive voltage transformer is its laminated iron core, designed to provide a low-reluctance magnetic path. This core is wound with two sets of coils: the primary winding and the secondary winding. The primary winding is connected directly to the high voltage line, while the secondary winding delivers a scaled-down voltage output, typically standardized to 110V or 120V for instrumentation.
Insulation and Safety Considerations
Given the high voltage on the primary side, IVTs are constructed with robust insulation systems to prevent electrical breakdown. Insulating materials such as oil, resin, or SF6 gas are often used to fill the transformer’s enclosure, providing both electrical insulation and thermal dissipation. Modern designs emphasize safety and compliance with international standards such as IEC 60044-2, ensuring reliable operation under fault conditions and over a wide temperature range.
Accuracy and Burden Ratings
Inductive voltage transformers are designed to meet strict accuracy classes, commonly ranging from 0.1 to 3.0, depending on their intended use—whether for metering or protective relaying. The accuracy class defines the maximum permissible error under rated conditions. Additionally, the burden rating specifies the maximum load (in volt-amperes) that the transformer secondary can supply without exceeding accuracy limits.
How Does Inductive Voltage Transformer Work
Electromagnetic Induction Fundamentals
The operation of an inductive voltage transformer is grounded in Faraday’s law of electromagnetic induction. When an alternating current flows through the primary winding, it produces a time-varying magnetic flux in the core. This flux induces a proportional voltage in the secondary winding according to the turns ratio between the two windings.
Voltage Transformation Ratio
The voltage transformation ratio is the ratio of the number of turns in the primary winding to the number of turns in the secondary winding. For example, if the primary has 10,000 turns and the secondary has 100 turns, the voltage is stepped down by a factor of 100. This enables the secondary voltage to be safely measured with standard instruments.
Magnetic Saturation and Its Effects
Core saturation occurs when the magnetic flux density exceeds the material’s limit, causing distortion of the secondary voltage waveform and reduction in accuracy. IVT cores are carefully designed with appropriate cross-sectional area and lamination to prevent saturation under normal operating voltages. However, transient overvoltages or faults can cause temporary saturation, which must be accounted for in protective relay settings.
Types and Variations of Inductive Voltage Transformers
Electromagnetic Voltage Transformers
The most common IVTs are electromagnetic types that rely on iron cores and copper windings. They are robust, reliable, and provide accurate voltage scaling in the majority of power system applications. Variations exist based on core shape (e.g., ring, shell, or core-type) and insulation method.
Capacitive Voltage Transformers vs. Inductive Transformers
While inductive voltage transformers operate based on magnetic induction, capacitive voltage transformers (CVTs) use capacitive voltage dividers for voltage scaling. CVTs are generally used for very high voltage lines (above 230kV) and in communication circuits but have different characteristics, including phase shifts and frequency responses, compared to IVTs.
Specialized Designs
There are specialized IVTs designed for specific environments such as outdoor use with weatherproof enclosures, or those optimized for high-frequency measurement in power electronics applications. Some modern IVTs incorporate additional sensors for temperature, partial discharge, or humidity monitoring to enhance reliability and diagnostic capabilities.
Applications of Inductive Voltage Transformers
Power System Protection
In protection schemes, IVTs provide the necessary voltage input for relays that detect abnormal conditions such as overvoltage, undervoltage, or phase imbalance. The reliability and accuracy of these transformers are critical since incorrect voltage measurements can lead to maloperation of protective devices, potentially causing system outages or equipment damage.
Metering and Billing
Accurate measurement of voltage is vital for energy metering, especially in high voltage transmission and distribution networks. IVTs ensure that billing meters receive a stable and reduced voltage signal that corresponds to the actual system voltage, enabling precise calculation of power consumption and energy charges.
Control and Monitoring
Voltage transformers supply measurement signals to control systems that regulate voltage levels through tap changers or capacitor banks. Continuous voltage monitoring helps maintain system stability and power quality, avoiding voltage fluctuations that could affect sensitive industrial processes and consumer equipment.
Advantages and Limitations of Inductive Voltage Transformers
Advantages
- High Accuracy: IVTs provide reliable and precise voltage measurement over a broad operating range.
- Durability and Longevity: Their robust construction allows them to withstand harsh environmental conditions and electrical stresses.
- Standardized Outputs: The output voltages conform to standardized levels, facilitating compatibility with measurement and protection devices.
- Wide Range of Voltage Levels: Suitable for use from medium voltage to ultra-high voltage systems.
Limitations
- Size and Weight: Due to their iron cores and insulation requirements, IVTs can be bulky and heavy compared to solid-state alternatives.
- Core Saturation: Vulnerable to distortion under transient overvoltages which can affect protective relay accuracy.
- Frequency Sensitivity: Designed primarily for power frequency (50/60 Hz), making them less effective for harmonic or high-frequency measurements.
- Maintenance Requirements: Periodic testing and inspection are necessary to ensure insulation integrity and performance over time.
Installation and Maintenance Considerations
Proper Installation Practices
Installation of IVTs requires careful consideration of mechanical mounting, electrical connections, and grounding. The primary winding is connected directly to the high voltage line, so appropriate clearance and insulation distances must be maintained to prevent arcing. Secondary circuits must never be opened under load to avoid dangerous voltage spikes and potential damage.
Testing and Calibration
Routine testing, including ratio, polarity, and burden tests, is critical to verify that the IVT operates within its specified accuracy class. Calibration may involve comparing secondary voltage against a known standard and adjusting or replacing the transformer if errors exceed acceptable limits.
Fault Diagnosis and Troubleshooting
Common faults include insulation degradation, winding shorts, or core damage due to transient events. Diagnostic methods involve insulation resistance testing, partial discharge measurement, and thermal imaging to detect hotspots.
Emerging Trends and Future Developments
Digital and Optical Voltage Transformers
Advances in sensor technology have led to the development of digital voltage transformers that use electronic sensors to measure voltage and convert it into digital signals. Optical voltage transformers, employing fiber optic sensors, offer immunity to electromagnetic interference and reduced size. These technologies are gradually supplementing traditional inductive transformers in modern smart grid applications.
Integration with Smart Grid Systems
Integration of IVTs with advanced communication protocols enables real-time voltage monitoring and control, enhancing grid stability and enabling demand response strategies. This integration facilitates predictive maintenance and system optimization, contributing to increased grid resilience.
Conclusion
Inductive voltage transformers remain fundamental components in the electrical power industry, providing accurate and reliable voltage measurement necessary for protection, metering, and control. Their design is rooted in electromagnetic principles, and their robust construction ensures safe operation under high voltage conditions. Despite emerging digital alternatives, IVTs continue to play a critical role, especially in traditional and high-voltage networks, underscoring their enduring relevance in power engineering.
