Measuring pressure is crucial in various scientific, industrial, and meteorological applications. Two of the most commonly used instruments for this purpose are barometers and manometers. While both are designed to measure pressure, they serve different functions, operate on distinct principles, and are used in unique contexts. This article will explore the key differences between barometers and manometers in detail, helping you understand their construction, purpose, and application.
1. What Is a Barometer?
A barometer is an instrument used primarily to measure atmospheric pressure. Atmospheric pressure is the force exerted by the weight of the atmosphere above a particular point. Barometers are extensively used in meteorology to forecast weather and determine altitude.
There are several types of barometers, including:
- Mercury Barometer: Uses a column of mercury in a glass tube. Atmospheric pressure pushes on a reservoir of mercury, causing the level in the tube to rise or fall.

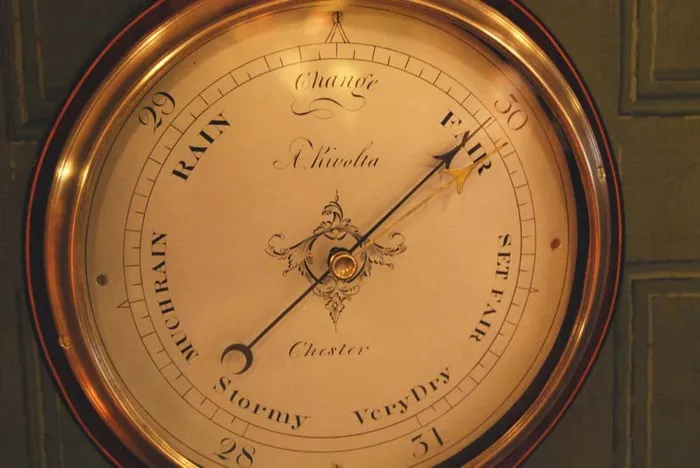

- Aneroid Barometer: Contains a small, flexible metal box called an aneroid cell. The box contracts or expands with changes in atmospheric pressure, and these movements are transferred to a dial.
- Digital Barometer: Uses electronic sensors to measure air pressure and is often integrated into modern devices like smartphones and GPS units.
Barometers are typically calibrated in units such as millibars (mb), inches of mercury (inHg), or pascals (Pa).
2. What Is a Manometer?
A manometer is an instrument used to measure the pressure of gases or liquids in a closed system. Unlike barometers, which measure atmospheric pressure, manometers measure the difference between two pressures or between a pressure and atmospheric pressure.
Manometers come in various types, such as:
- U-tube Manometer: A U-shaped tube filled with a liquid (usually mercury or water). The difference in the height of the liquid columns indicates the pressure.
- Inclined Manometer: A variation of the U-tube with an inclined limb, allowing for more precise readings of low pressures.
- Digital Manometer: Employs electronic sensors to provide pressure readings in real time with high accuracy.
Manometers are widely used in laboratory experiments, HVAC systems, gas supply lines, and fluid mechanics studies.
3. Key Differences Between Barometers and Manometers
Understanding the fundamental differences between these two instruments can help determine which is suitable for a specific application.
Purpose
- Barometer: Measures atmospheric pressure.
- Manometer: Measures pressure within a closed system or pressure difference.
Operating Principle
- Barometer: Responds to atmospheric pressure directly.
- Manometer: Measures the difference in pressure between two points.
Applications
- Barometer: Used in weather forecasting, altimetry, and environmental monitoring.
- Manometer: Used in mechanical engineering, HVAC systems, gas distribution, and laboratory experiments.
Calibration and Units
- Barometer: Typically calibrated in inHg, mb, or Pa.
- Manometer: Calibrated in mmHg, cmH2O, Pa, or psi depending on the liquid and application.
Portability and Design
- Barometer: Can be compact and integrated into other devices.
- Manometer: Often designed for specific installations or setups and may require careful calibration.
4. How Do Barometers Work?
To understand how a barometer functions, consider a mercury barometer. In this setup, a glass tube closed at one end is filled with mercury and inverted into a mercury reservoir. The space above the mercury column becomes a vacuum, and atmospheric pressure pushes down on the mercury in the reservoir, balancing the mercury in the tube. The height of the mercury column directly correlates to the atmospheric pressure.
An aneroid barometer, on the other hand, operates without liquid. Instead, it uses a sealed metal chamber that responds to changes in air pressure by expanding or contracting. These movements are amplified through mechanical linkages and displayed on a dial.
In digital barometers, pressure-sensitive electronic components convert pressure changes into readable data, often displaying atmospheric pressure along with temperature and altitude.
5. How Do Manometers Work?
A traditional U-tube manometer uses liquid displacement to measure pressure. One end of the U-tube is connected to the system under pressure, while the other is open to the atmosphere or another pressure source. The liquid inside the tube moves in response to the pressure difference, and the height difference between the two columns provides a direct measure of the pressure.
Inclined manometers enhance sensitivity by inclining the tube, allowing small pressure differences to result in more noticeable height changes. Digital manometers replace the liquid and mechanical components with electronic sensors, offering higher precision and ease of use in complex systems.
6. Common Uses of Barometers
Barometers are widely used for:
- Weather Prediction: Atmospheric pressure changes indicate upcoming weather conditions. A falling barometer suggests bad weather, while a rising barometer indicates fair weather.
- Aviation: Pilots use barometric readings to determine altitude.
- Hiking and Climbing: Handheld barometers help measure altitude changes.
- Scientific Research: Used in environmental studies and atmospheric research.
Their ability to provide real-time data on atmospheric conditions makes barometers invaluable tools in many fields.
7. Common Uses of Manometers
Manometers serve various practical purposes, such as:
- Industrial Equipment Monitoring: Check gas pressure in pipelines.
- HVAC Systems: Measure airflow and duct pressure.
- Medical Devices: Used in devices like sphygmomanometers for blood pressure measurement.
- Laboratory Settings: Monitor pressure in closed experimental setups.
They are essential tools for diagnosing pressure-related issues and ensuring system integrity in mechanical and fluid dynamics applications.
8. Advantages and Disadvantages
Barometer
Advantages:
- Simple to use
- Offers accurate atmospheric pressure readings
- Durable in digital formats
Disadvantages:
- Mercury models can be hazardous
- Sensitive to temperature changes
Manometer
Advantages:
- High accuracy in differential pressure measurements
- Versatile in applications
- Simple construction for basic models
Disadvantages:
- Not ideal for measuring absolute atmospheric pressure
- Requires careful handling and calibration
9. Choosing the Right Instrument
Choosing between a barometer and a manometer depends on the pressure type you need to measure. If your interest lies in monitoring atmospheric conditions, then a barometer is your best bet. On the other hand, if you are dealing with enclosed systems or want to measure pressure differentials, a manometer is more suitable.
Consider the following factors:
- Nature of the Pressure: Atmospheric vs system-specific
- Required Accuracy: Manometers often provide more precise readings
- Application Context: Weather forecasting vs industrial monitoring
- Portability Needs: Barometers, especially digital ones, are generally more portable
Understanding these distinctions can prevent costly mistakes and improve measurement accuracy in your projects.
Conclusion
Both barometers and manometers play critical roles in pressure measurement, but they serve distinctly different purposes. A barometer is tailored for atmospheric pressure readings, making it indispensable in meteorology and altitude determination. Meanwhile, the manometer excels in system-based pressure assessments, finding utility in various scientific and industrial domains.
By understanding their differences, operating principles, and appropriate applications, you can select the right tool for your needs and ensure accurate, reliable pressure readings. Whether you’re predicting a storm or calibrating a pressure system, knowing the distinction between a barometer and a manometer is fundamental to effective pressure measurement.
FAQs
Q1: Can a manometer be used to measure atmospheric pressure?
A: Technically, yes. A manometer can be adapted to measure atmospheric pressure by comparing it to a known vacuum, but this is not its primary function. Barometers are more accurate and convenient for this purpose.
Q2: Which is more accurate, a barometer or a manometer?
A: Manometers can provide more precise readings, especially in controlled environments or for differential pressure. Barometers are accurate for atmospheric measurements.
Q3: Are mercury barometers still in use?
A: Mercury barometers are still used but less frequently due to safety and environmental concerns. Digital and aneroid barometers have largely replaced them.
Q4: What liquid is commonly used in manometers?
A: Mercury is traditional, but water, alcohol, or oil may also be used depending on the application and sensitivity required.
Q5: Can I use a digital barometer for scientific research?
A: Yes, many digital barometers offer high precision and are used in professional meteorological and environmental studies.
Q6: Is calibration important for both instruments?
A: Absolutely. Regular calibration ensures both barometers and manometers provide accurate and reliable readings, especially in critical applications.
Q7: What’s the main difference in how the two instruments are set up?
A: Barometers are generally stand-alone and exposed to the atmosphere, while manometers are connected to a specific system for pressure monitoring.
