In the realm of instrumentation, accelerometers play a pivotal role in measuring acceleration forces that may be static, like gravity, or dynamic, caused by movement or vibrations. Among the diverse types of accelerometers, single-axis accelerometers are widely used for applications requiring acceleration measurement along a single dimension. This article delves deep into what single-axis accelerometers are, their working principles, construction, applications, and the technological advancements shaping their future.
What Are Accelerometers
Accelerometers are devices designed to detect and measure acceleration forces. These forces may be generated by motion, vibration, shock, or gravity, and accelerometers convert these physical movements into electrical signals that can be measured and analyzed. Although accelerometers come in various forms—such as single-axis, dual-axis, and tri-axis—this article will focus primarily on single-axis accelerometers, explaining their structure and how they capture acceleration along a specific direction.

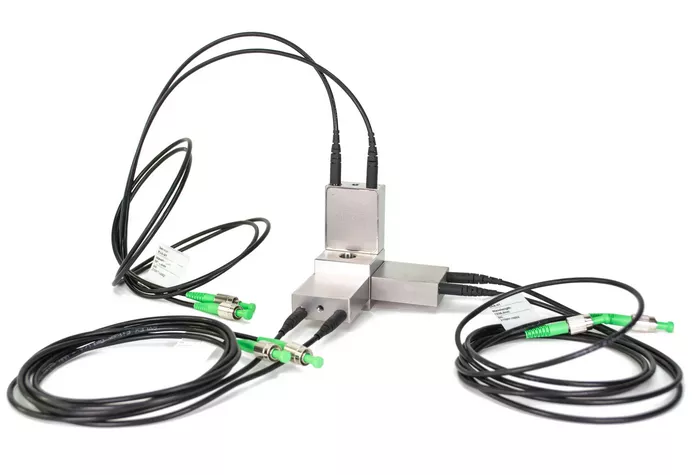

What is a Single-Axis Accelerometer?
A single-axis accelerometer is a sensor designed to measure acceleration strictly along one axis or direction. Typically, this axis corresponds to one of the three spatial dimensions—X, Y, or Z. These devices are ideal in applications where acceleration along one plane is of primary concern, simplifying data interpretation and reducing the complexity and cost compared to multi-axis accelerometers.
Unlike multi-axis accelerometers that measure acceleration in two or three perpendicular directions simultaneously, single-axis accelerometers isolate the measurement to a single direction, providing precise and focused data for that axis. This precision makes them highly valuable in specialized mechanical, aerospace, automotive, and industrial instrumentation tasks.
Construction of Single-Axis Accelerometers
The basic construction of a single-axis accelerometer involves a sensing element, a seismic mass, a suspension system, and a transducer that converts mechanical movement into an electrical signal.
- Sensing Element and Seismic Mass: The core component of an accelerometer is the seismic mass, often called the proof mass. This mass moves in response to acceleration forces. Its displacement or force is directly proportional to the acceleration experienced along the sensitive axis.
- Suspension System: The mass is suspended using springs, beams, or cantilever structures that constrain the movement to one axis and provide a restoring force to bring the mass back to its original position when acceleration stops.
- Transduction Mechanism: The displacement or force generated by the seismic mass needs to be converted into an electrical signal. Common transduction methods include capacitive, piezoelectric, piezoresistive, and electromagnetic sensing.
The most common design uses a cantilever beam with the seismic mass at the free end, allowing deflection in response to acceleration. This deflection changes the capacitance between electrodes or generates voltage through piezoelectric materials, providing an electrical output proportional to acceleration.
How Single-Axis Accelerometers Work
The fundamental principle behind single-axis accelerometers is Newton’s Second Law of Motion: Force equals mass times acceleration (F = ma). When the accelerometer experiences acceleration along its sensitive axis, the seismic mass attempts to resist this acceleration due to inertia. The relative displacement of this mass against its suspension system is measured.
For instance, in a capacitive single-axis accelerometer, the seismic mass forms part of a capacitor plate system. When acceleration occurs, the distance between the plates changes, altering the capacitance. This capacitance variation is translated into an electrical signal proportional to the acceleration.
Similarly, in piezoelectric accelerometers, the seismic mass applies stress to piezoelectric materials, which generate an electrical charge proportional to the applied force, thereby indicating acceleration.
Types of Single-Axis Accelerometers
Single-axis accelerometers are categorized based on their sensing and transduction mechanisms. The main types include:
- Piezoelectric Accelerometers: Utilize piezoelectric materials that generate electric charge under mechanical stress. They are well-suited for high-frequency vibration measurements and shock detection.
- Capacitive Accelerometers: Measure changes in capacitance caused by the movement of the seismic mass. These are widely used for low-frequency, static, or dynamic acceleration measurements, including tilt sensing.
- Piezoresistive Accelerometers: Use materials whose electrical resistance changes under mechanical strain. They are effective for both static and dynamic acceleration sensing and are popular in harsh environmental conditions.
- Electromagnetic Accelerometers: Work on the principle of electromagnetic induction generated by the movement of a coil or magnet.
Each type has specific advantages and disadvantages related to sensitivity, frequency response, size, power consumption, and environmental robustness.
Applications of Single-Axis Accelerometers
The versatility of single-axis accelerometers allows them to serve in numerous industries and applications, including but not limited to:
- Vibration Monitoring and Analysis: In mechanical systems such as engines, turbines, and rotating machinery, single-axis accelerometers detect vibration signatures to diagnose faults and prevent breakdowns.
- Structural Health Monitoring: Used to monitor acceleration and movement in bridges, buildings, and infrastructure, helping detect stress and potential failures.
- Automotive Systems: These sensors are used for airbag deployment systems, vehicle stability control, and crash testing to measure acceleration along specific axes.
- Aerospace and Aviation: Flight instrumentation often relies on single-axis accelerometers to measure pitch, roll, or yaw accelerations individually for precise control.
- Consumer Electronics: In smartphones, gaming devices, and wearables, single-axis accelerometers provide orientation and motion detection capabilities.
Calibration and Signal Processing
Calibration is crucial for single-axis accelerometers to ensure the output accurately reflects the true acceleration. Calibration involves exposing the sensor to known acceleration inputs (such as gravity or vibration standards) and adjusting the output accordingly.
Signal conditioning and processing techniques—such as filtering, amplification, and analog-to-digital conversion—are employed to refine the raw sensor signals. Noise reduction algorithms and digital compensation improve accuracy and reliability in real-world environments.
Challenges and Limitations
While single-axis accelerometers are effective for many applications, they come with some inherent challenges:
- Axis Alignment: Precise alignment of the accelerometer axis with the desired measurement direction is necessary. Misalignment can cause erroneous readings.
- Cross-Axis Sensitivity: Although designed to measure acceleration in one axis, some sensors exhibit sensitivity to accelerations in perpendicular directions, leading to signal contamination.
- Environmental Influences: Temperature fluctuations, electromagnetic interference, and mechanical shock can affect sensor performance and longevity.
- Range and Resolution Trade-offs: Increasing measurement range often compromises sensitivity and resolution, requiring careful sensor selection based on application needs.
Recent Advancements in Single-Axis Accelerometers
Recent technological progress has enhanced single-axis accelerometer capabilities. Innovations include microelectromechanical systems (MEMS) technology, which enables miniaturization, low power consumption, and integration with electronics. MEMS accelerometers dominate many commercial and industrial applications due to their small size and high reliability.
Furthermore, advancements in materials science and nanotechnology have improved sensor sensitivity and reduced noise. Integration with wireless communication and IoT platforms allows real-time monitoring and remote diagnostics, expanding the potential of single-axis accelerometers in smart systems.
Conclusion
Single-axis accelerometers remain essential tools within the broader field of instrumentation for accurately measuring acceleration along a single dimension. Their fundamental operating principles rooted in classical mechanics enable diverse applications across mechanical engineering, aerospace, automotive, and consumer electronics. Despite challenges like axis alignment and environmental effects, continual advancements in sensor design and signal processing enhance their reliability and usability. Understanding their construction, working mechanism, and application scope provides valuable insights into their crucial role in modern technology.
FAQs
What is the difference between a single-axis and multi-axis accelerometer?
A single-axis accelerometer measures acceleration in only one direction or axis, while multi-axis accelerometers can measure acceleration simultaneously along two or three perpendicular axes, providing a more comprehensive motion profile.
Can single-axis accelerometers measure both static and dynamic acceleration?
Yes, depending on their design. Capacitive and piezoresistive single-axis accelerometers can measure both static acceleration (like gravity) and dynamic acceleration (caused by motion or vibration), whereas piezoelectric types are typically used for dynamic measurements.
How are single-axis accelerometers calibrated?
Calibration involves exposing the sensor to known acceleration values, often gravity or standardized vibration sources, and adjusting its output to match these references to ensure accuracy.
What industries rely most heavily on single-axis accelerometers?
Industries such as automotive, aerospace, mechanical engineering, civil infrastructure monitoring, and consumer electronics extensively utilize single-axis accelerometers for motion sensing, vibration analysis, and safety systems.
Are MEMS accelerometers considered single-axis?
MEMS technology can be used to create single-axis, dual-axis, or tri-axis accelerometers. The classification depends on the number of sensing axes integrated into the MEMS device.
