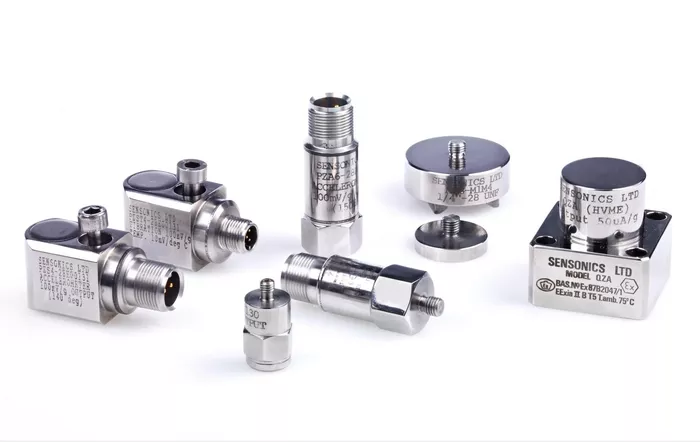

Piezoelectric accelerometers are widely used sensing devices that convert mechanical motion into an electrical signal. These instruments play a vital role in vibration monitoring, structural health analysis, industrial machinery diagnostics, and aerospace applications. Their robustness, high frequency response, and reliability in extreme conditions make them indispensable tools for engineers and technicians working with dynamic systems.
What is an Accelerometer?
An accelerometer is a sensor that measures the rate of change of velocity of an object, typically referred to as acceleration. These devices are essential in applications where motion, orientation, and vibration need to be quantified. Accelerometers can be found in everything from smartphones and cars to industrial machines and space vehicles, with various working principles, including capacitive, resistive, and piezoelectric.
The Basics of Piezoelectricity
Piezoelectricity is a property of certain crystalline materials, such as quartz, tourmaline, and certain ceramics, to generate an electric charge in response to mechanical stress. When these materials are compressed, stretched, or otherwise deformed, they produce a measurable voltage across their surfaces. This phenomenon forms the fundamental operating principle of piezoelectric accelerometers.
Components of a Piezoelectric Accelerometer
A typical piezoelectric accelerometer consists of several key components:
- Sensing Element: Made from piezoelectric materials like quartz or ceramic.
- Seismic Mass: A mass that presses against the sensing element when acceleration occurs.
- Housing: Protective casing that holds internal elements together and shields them from external contaminants.
- Preload Mechanism: Ensures proper contact between the seismic mass and the sensing crystal.
- Signal Conditioning Electronics: Often integrated to convert high impedance charge signals into usable voltage signals.
These components work together to accurately measure dynamic accelerations and transmit electrical signals that correspond to mechanical inputs.
How Do Piezoelectric Accelerometers Work?
The working principle of a piezoelectric accelerometer is based on Newton’s second law of motion: Force equals mass times acceleration (F = ma). When the base of the accelerometer experiences acceleration, the seismic mass inside exerts a force on the piezoelectric crystal. This mechanical stress generates an electrical charge proportional to the applied force. Since the mass is constant, the charge output is directly proportional to the acceleration.
This electrical signal is typically very weak and requires amplification and conditioning. Charge amplifiers or integrated electronics convert this high-impedance signal into a low-impedance voltage that can be easily transmitted and analyzed.
Types of Piezoelectric Accelerometers
Piezoelectric accelerometers come in various configurations tailored to specific needs. The most common types include:
- Charge Mode Accelerometers: These produce a charge output that requires an external charge amplifier. They are ideal for high-temperature environments due to the absence of internal electronics.
- IEPE (Integrated Electronics Piezoelectric) Accelerometers: These include built-in electronics that provide a voltage output. They are easier to use and more common in general-purpose applications.
- Shear Mode Accelerometers: These are designed to reduce sensitivity to thermal transients and base strain.
- Compression Mode Accelerometers: These offer high sensitivity and are typically used in lower-frequency vibration measurements.
Each type has its advantages and is chosen based on factors like frequency range, environmental conditions, and application requirements.
Applications of Piezoelectric Accelerometers
Piezoelectric accelerometers are used in a wide range of industries and applications:
- Industrial Machinery Monitoring: Used for predictive maintenance by detecting unbalanced components, misalignment, or bearing faults.
- Automotive Industry: Employed in crash testing, engine vibration analysis, and suspension performance.
- Aerospace Engineering: Critical in testing aircraft components and monitoring in-flight vibration.
- Consumer Electronics: Integrated into devices for orientation sensing, gaming input, and fall detection.
- Structural Health Monitoring: Installed in buildings and bridges to monitor vibration and stress for safety and maintenance.
Their ability to operate reliably under harsh conditions makes them ideal for demanding environments.
Advantages of Piezoelectric Accelerometers
There are several benefits to using piezoelectric accelerometers:
- Wide Frequency Range: Capable of detecting both low and high-frequency vibrations.
- High Sensitivity: Excellent signal-to-noise ratio makes them effective for detecting small accelerations.
- Robustness: Durable and can withstand harsh environments, including high temperatures and corrosive conditions.
- Long Lifespan: Minimal moving parts reduce wear and extend operational life.
- Compact Design: Suitable for applications with limited space.
These advantages make piezoelectric accelerometers the go-to choice in many technical fields.
Limitations of Piezoelectric Accelerometers
Despite their many strengths, piezoelectric accelerometers do have limitations:
- Inability to Measure Static Acceleration: They cannot measure constant or DC acceleration, such as gravity.
- Temperature Sensitivity: Although they can operate at high temperatures, their output can still vary with temperature changes.
- High Impedance Output (Charge Mode): Requires careful cable handling and specialized electronics to avoid signal degradation.
- Cost: High-performance models can be expensive, particularly those with rugged features or built-in electronics.
Understanding these limitations is crucial for proper selection and use.
Installation and Mounting Considerations
Proper installation of piezoelectric accelerometers is essential to ensure accurate readings. Key factors include:
- Mounting Surface: Should be clean, flat, and free of burrs.
- Mounting Method: Ranges from adhesive bonding to stud mounting, depending on the application and frequency range.
- Torque Specification: Correct torque must be applied to avoid damaging the sensor or distorting readings.
- Cable Handling: Signal cables must be secured to prevent noise due to motion or electromagnetic interference.
Incorrect installation can lead to measurement errors or even sensor failure.
Calibration and Maintenance
Regular calibration is vital for ensuring the accuracy of piezoelectric accelerometers. Calibration involves comparing the sensor output to a known standard under controlled conditions. Some important points include:
- Frequency Response Testing: Determines how the sensor reacts to different vibration frequencies.
- Sensitivity Verification: Ensures the output remains within specified limits.
- Environmental Conditioning: Exposing the sensor to different temperatures and humidity levels to verify consistent performance.
Proper maintenance includes periodic inspection, cleaning, and storage in appropriate conditions to extend sensor life.
Choosing the Right Piezoelectric Accelerometer
Selecting the right accelerometer involves evaluating multiple criteria:
- Frequency Range: Choose based on the dynamics of the system being monitored.
- Amplitude Range: Ensure the sensor can handle the expected acceleration levels.
- Environmental Conditions: Consider temperature, humidity, and potential exposure to chemicals.
- Output Type: Decide between charge or voltage output depending on system requirements.
- Size and Weight: Critical in applications like aerospace or consumer electronics where mass must be minimized.
A careful evaluation of these factors ensures optimal performance and reliability.
Conclusion
Piezoelectric accelerometers are essential tools for measuring dynamic acceleration across various industries. They operate on the principle of piezoelectricity, converting mechanical stress into electrical signals. Their high frequency response, sensitivity, and durability make them suitable for demanding applications. While they have some limitations, proper selection, installation, and maintenance can maximize their effectiveness. As technology evolves, these devices continue to adapt, offering more capabilities and integration opportunities.
FAQs
Q1: Can piezoelectric accelerometers measure static acceleration like gravity?
No. Piezoelectric accelerometers are designed to measure dynamic (changing) accelerations. They cannot measure static acceleration because they rely on motion-induced stress to generate a signal.
Q2: What is the difference between IEPE and charge mode accelerometers?
IEPE accelerometers have built-in electronics that provide a low-impedance voltage output, simplifying signal transmission. Charge mode accelerometers provide a high-impedance charge output and require an external amplifier but can operate in higher temperature environments.
Q3: How often should a piezoelectric accelerometer be calibrated?
Calibration frequency depends on usage, but typically, annual calibration is recommended for most industrial applications to ensure accuracy.
Q4: What types of materials are used in piezoelectric sensors?
Common materials include quartz, lead zirconate titanate (PZT), and tourmaline. Each has specific properties suited to different applications and environments.
Q5: Are piezoelectric accelerometers affected by electromagnetic interference (EMI)?
Yes, especially in charge mode. Proper shielding and cable grounding are essential to minimize EMI and ensure accurate readings.
Q6: Can piezoelectric accelerometers operate in vacuum or underwater environments?
Yes, with the proper housing and sealing, piezoelectric accelerometers can be used in vacuum or submerged environments, making them versatile for aerospace and marine applications.
