Oxygen sensors are vital components in modern mechanical and automotive systems, playing a crucial role in monitoring and controlling combustion efficiency and emissions. These sensors detect the concentration of oxygen in gases, especially exhaust gases in internal combustion engines, enabling precise adjustments to air-fuel mixtures. By ensuring optimal combustion, oxygen sensors help reduce harmful emissions, improve fuel economy, and maintain engine performance.
This article delves into the fundamentals of oxygen sensors, their types, working principles, applications, and their relationship with other instrumentation technologies. By exploring these topics in depth, readers will gain a comprehensive understanding of why oxygen sensors are indispensable in engineering and environmental control.
What is an Oxygen Sensor?

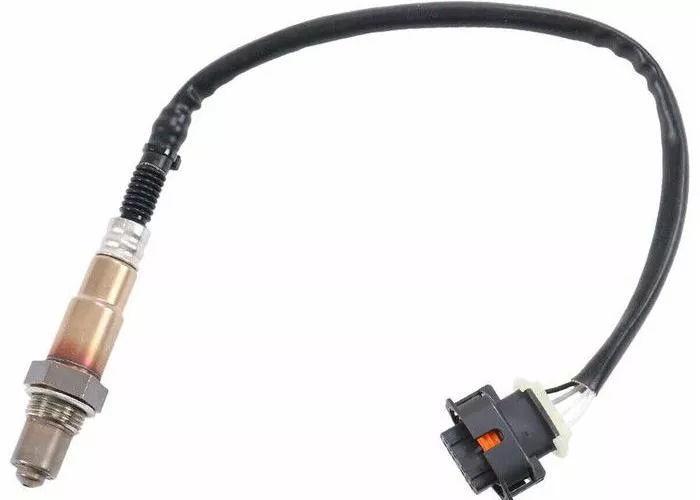

An oxygen sensor, often called an O2 sensor or lambda sensor, is a device that measures the proportion of oxygen in a gas or liquid. Primarily used in automotive exhaust systems, it provides feedback to the engine control unit (ECU) to regulate fuel injection and maintain an optimal air-to-fuel ratio.
The sensor’s ability to detect oxygen content directly influences engine efficiency, emissions control, and compliance with environmental standards. Without oxygen sensors, engines would run inefficiently, producing excess pollutants such as carbon monoxide (CO), unburned hydrocarbons (HC), and nitrogen oxides (NOx).
Types of Oxygen Sensors
1. Zirconia Oxygen Sensors
Zirconia oxygen sensors are the most common type, made from zirconium dioxide ceramic coated with a thin layer of platinum. They operate based on the electrochemical properties of zirconia, which conducts oxygen ions at high temperatures. The sensor generates a voltage signal proportional to the difference in oxygen concentration between the exhaust gas and the outside air.
This voltage is typically between 0.1V (lean mixture, more oxygen) and 0.9V (rich mixture, less oxygen). The sensor needs to reach an operating temperature of around 300–600°C to function accurately.
2. Titania Oxygen Sensors
Titania sensors work differently by changing their electrical resistance in response to oxygen concentration changes. Instead of producing a voltage, the sensor’s resistance decreases as the oxygen content drops (rich mixture). While less common than zirconia types, titania sensors are simpler and often used in certain automotive applications.
3. Wideband Oxygen Sensors
Wideband or broadband oxygen sensors provide a more precise measurement of oxygen content over a broad range of air-fuel ratios. They employ a complex internal cell and control circuitry to maintain a constant oxygen concentration within the sensor, offering accurate feedback to the ECU for fine-tuned fuel control.
How Do Oxygen Sensors Work?
Understanding the working principle of oxygen sensors requires knowledge of electrochemical reactions and gas exchange processes. The most widely used zirconia sensor functions as a galvanic cell, producing a voltage based on oxygen ion movement.
Principle of Operation: Zirconia Sensors
The zirconia sensor contains a ceramic element coated with platinum electrodes on both sides—one exposed to exhaust gases and the other to ambient air. At high temperatures, oxygen ions move through the zirconia ceramic, creating a voltage difference between the electrodes. This voltage corresponds to the oxygen concentration difference between exhaust gases and ambient air.
The ECU interprets this voltage to determine if the engine is running rich (too much fuel) or lean (too much air) and adjusts the fuel injection accordingly.
Principle of Operation: Titania Sensors
Titania sensors change their electrical resistance in response to oxygen levels. The sensor’s resistance varies exponentially with oxygen concentration, allowing the ECU to infer the air-fuel ratio by measuring this resistance.
Wideband Sensor Functionality
Wideband sensors use a complex internal mechanism that includes a pumping cell and a reference cell. By controlling the current needed to maintain a set oxygen level inside the sensor, the ECU can calculate the exact air-fuel ratio, enabling precise engine tuning.
Applications of Oxygen Sensors
Automotive Industry
Oxygen sensors are indispensable in modern vehicles for maintaining optimal combustion and meeting emissions regulations such as Euro 6 or EPA standards. Positioned in the exhaust manifold or exhaust pipe, they provide continuous feedback to the ECU for real-time air-fuel mixture adjustments.
Besides fuel economy and emissions control, oxygen sensors help diagnose engine performance issues and facilitate onboard diagnostics (OBD) systems. A malfunctioning oxygen sensor triggers warning lights and may result in higher emissions and reduced fuel efficiency.
Industrial Combustion Control
Oxygen sensors are also widely used in industrial furnaces, boilers, and gas turbines to optimize combustion efficiency and reduce emissions. Controlling the oxygen level in exhaust gases helps maintain safe and efficient operation of combustion systems.
Environmental Monitoring
In environmental instrumentation, oxygen sensors monitor air quality and emissions, contributing to pollution control and compliance with environmental standards. They often work alongside other instrumentation such as pressure sensors and optical sensors to provide comprehensive monitoring solutions.
Key Components and Construction of Oxygen Sensors
Oxygen sensors generally consist of the following main parts:
- Sensor Element: Typically made from zirconia or titania ceramic material.
- Electrodes: Platinum electrodes coated on the sensor element to facilitate electrochemical reactions.
- Heater: An internal heating element that raises the sensor to operating temperature quickly for accurate measurements.
- Protective Housing: A metal or ceramic shell that shields the sensor from exhaust gases and physical damage.
- Wiring and Connector: Electrical connections to the vehicle’s ECU or control unit.
Factors Affecting Oxygen Sensor Performance
Several factors can influence oxygen sensor accuracy and lifespan, including:
- Contamination: Exposure to leaded fuel, silicone, or antifreeze can poison the sensor, reducing its sensitivity.
- Temperature: Proper heating is essential; low temperatures reduce ion conduction in zirconia sensors.
- Mechanical Damage: Vibration, impact, or corrosion can degrade sensor function.
- Sensor Aging: Over time, the sensor element degrades, leading to slower response and inaccurate readings.
Comparing Oxygen Sensors with Related Sensors
Oxygen sensors are often part of a broader network of sensors in combustion and emission systems. For example, MAF sensors (Mass Air Flow sensors) measure the amount of air entering the engine, working in tandem with oxygen sensors to optimize fuel delivery.
Additionally, flow sensors and pressure sensors provide complementary data that enhance overall engine and system control.
Advances in Oxygen Sensor Technology
Recent advancements have improved oxygen sensor accuracy, durability, and integration with electronic control systems. Developments include:
- Wideband Sensors: Offering precise air-fuel ratio measurement over a broader range than traditional narrowband sensors.
- Improved Materials: New ceramics and coatings resist contamination and extend sensor life.
- Integrated Diagnostics: Sensors with self-diagnostic features to detect malfunctions and relay information to vehicle ECUs.
- Wireless and Miniaturized Sensors: Enabling easier installation and data transmission in complex systems.
Conclusion
Oxygen sensors are fundamental to modern mechanical and automotive systems, providing critical data for efficient combustion control, emissions reduction, and engine performance optimization. Through electrochemical principles, these sensors measure oxygen content in exhaust gases, enabling real-time adjustments to fuel delivery. Whether in automotive engines, industrial combustion, or environmental monitoring, oxygen sensors ensure compliance with regulations and contribute to sustainable operation.
Understanding the types, operation, and challenges of oxygen sensors allows engineers and technicians to select, maintain, and innovate these devices effectively. As sensor technology continues to evolve, oxygen sensors will remain at the forefront of instrumentation solutions supporting cleaner and more efficient combustion systems.
FAQs
What is the typical lifespan of an oxygen sensor?
Oxygen sensors generally last between 60,000 to 100,000 miles in automotive applications, but this can vary depending on operating conditions and sensor type.
Can a faulty oxygen sensor affect engine performance?
Yes, a malfunctioning oxygen sensor can cause poor fuel economy, increased emissions, rough idling, and even engine misfires.
How do wideband oxygen sensors differ from narrowband sensors?
Wideband sensors provide a continuous and precise measurement of the air-fuel ratio across a broad range, while narrowband sensors only indicate if the mixture is rich or lean relative to stoichiometric conditions.
Are oxygen sensors used outside of automotive engines?
Yes, oxygen sensors are also employed in industrial combustion systems, environmental monitoring, and medical applications to measure oxygen levels.
How do oxygen sensors relate to other sensors like MAF or flow sensors?
Oxygen sensors measure oxygen concentration in exhaust gases, while MAF and flow sensors measure the intake air volume and flow, respectively. Together, they provide comprehensive data for combustion control and engine management.
