Wound Rotor Induction Motors (WRIM) are a specialized type of induction motor designed to offer higher efficiency and better control over speed and torque compared to standard squirrel cage motors. These motors are widely used in industrial applications where adjustable speeds, higher starting torque, and the need for reduced mechanical stresses are critical. A WRIM differs significantly from a standard induction motor, particularly in its rotor construction and its ability to incorporate external resistances to modify motor characteristics.
In this article, we will explore the structure, operation, and application of the Wound Rotor Induction Motor, delving into the critical features that make it a versatile and reliable choice for various industrial systems. Additionally, we will also discuss how WRIM compares with other types of electrical equipment, like Electrical Equipment, and explore some of the key benefits of choosing this type of motor in certain applications.

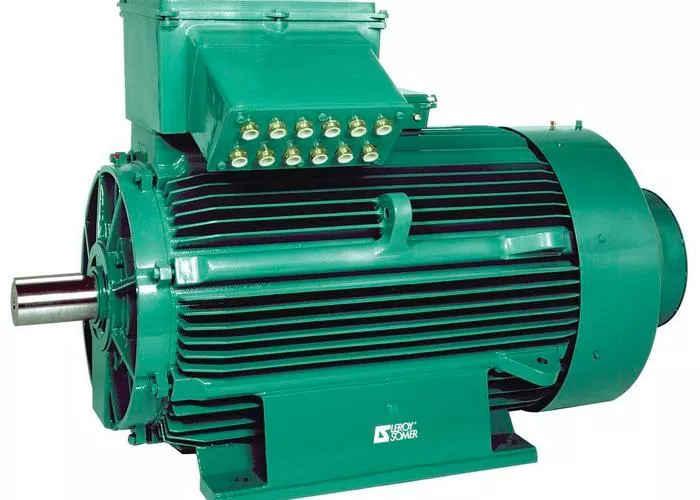

Basic Structure of a Wound Rotor Induction Motor
The Wound Rotor Induction Motor consists of two main parts: the stator and the rotor. The stator is similar to that of a standard induction motor, with a three-phase winding that generates a rotating magnetic field when powered. The rotor, however, is where the primary distinction lies. Unlike the squirrel cage rotor, the rotor in a WRIM has three separate windings placed on its laminated iron core. These windings are connected to external resistances via slip rings. This construction allows for external control of the rotor’s impedance, which can impact the motor’s starting and operational characteristics.
Stator Design
The stator of a Wound Rotor Induction Motor is made up of a series of electrical windings, which are usually connected to a three-phase AC supply. These windings are placed in slots on the outer periphery of the stator core, which is made of laminated steel sheets to reduce eddy current losses. The three-phase AC supply to the stator creates a rotating magnetic field that induces a current in the rotor windings, leading to the motor’s operation.
Rotor Design and Slip Rings
The rotor in a WRIM features wound windings that are connected to slip rings at the end of each winding. These slip rings allow the rotor windings to be connected to external resistors, which can be adjusted to alter the motor’s characteristics, such as its starting torque or speed. The addition of external resistance provides a significant advantage in terms of controlling the motor’s acceleration and reducing mechanical stresses during startup. This feature is beneficial for heavy-load applications or situations where precise control is necessary.
How Does a Wound Rotor Induction Motor Work?
To understand how a WRIM works, it’s essential to consider the interaction between the stator and rotor windings. The stator, when powered by a three-phase AC supply, generates a rotating magnetic field. This rotating field induces a current in the rotor windings, which causes the rotor to turn. The principle of electromagnetic induction lies at the heart of this process, with the rotor always striving to follow the rotating magnetic field generated by the stator.
Rotating Magnetic Field and Induced EMF
When the AC supply is applied to the stator windings, it generates a rotating magnetic field. This field induces an electromotive force (EMF) in the rotor windings according to Faraday’s law of induction. The induced EMF causes a current to flow through the rotor windings, and due to the interaction between the current-carrying rotor windings and the stator’s magnetic field, the rotor experiences a force that causes it to rotate.
Role of External Resistors
One of the distinctive features of the Wound Rotor Induction Motor is the ability to adjust the external resistance connected to the rotor windings via the slip rings. This external resistance allows for better control over the starting current and torque. By increasing the resistance during startup, the current flowing through the rotor is reduced, which helps in minimizing mechanical stresses and current surges. As the motor accelerates and reaches a certain speed, the external resistances can be gradually reduced, allowing the motor to operate more efficiently and smoothly.
Slip and Synchronous Speed
The concept of slip is crucial when discussing induction motors. Slip is the difference between the synchronous speed (the speed of the rotating magnetic field) and the actual speed of the rotor. In a WRIM, the slip is typically higher during startup, and the rotor speed gradually increases as the motor accelerates. As the motor approaches synchronous speed, the slip decreases. The ability to control the slip in a WRIM is vital for applications that require fine adjustments in speed, torque, and mechanical power output.
Advantages of Wound Rotor Induction Motors
Wound Rotor Induction Motors offer several advantages over traditional squirrel cage induction motors, particularly in demanding industrial applications. These advantages are due to their unique rotor design and the ability to control external resistance. Let’s explore some of the key benefits of using WRIMs:
Higher Starting Torque
One of the primary advantages of a WRIM is its ability to generate high starting torque. This is particularly useful in applications where a motor needs to overcome high initial inertia, such as in crushers, mills, and large fans. The ability to control the starting torque through external resistances ensures that the motor can handle heavy loads without straining the electrical supply system.
Better Speed Control
WRIMs offer better speed control compared to squirrel cage motors. The external resistors allow for precise adjustments in the motor’s speed, which is essential in applications like hoists, winches, and variable speed drives. This makes WRIMs ideal for systems requiring dynamic speed regulation, such as conveyor belts, rolling mills, and pumps.
Reduced Inrush Current
The use of external resistance helps in reducing the inrush current during motor startup. This is particularly important in applications where large motors are required to start frequently, as it prevents damage to electrical components and reduces the overall power demand. The inrush current reduction also minimizes the risk of voltage dips and ensures a more stable power supply system.
Improved Efficiency and Performance
WRIMs are generally more efficient in high-load conditions compared to standard induction motors. By adjusting the resistance, the efficiency of the motor can be optimized for specific applications. This helps in achieving better overall system performance while maintaining the desired output.
Applications of Wound Rotor Induction Motors
Wound Rotor Induction Motors are commonly used in applications that require high starting torque, smooth acceleration, and variable speed control. Some of the most common applications include:
Heavy-Load Applications
Due to their ability to provide high starting torque, WRIMs are ideal for heavy-load applications such as crushers, mills, and large pumps. In these systems, the motor must overcome considerable inertia during startup, and the WRIM’s external resistance helps to mitigate this challenge.
Variable Speed Drives
WRIMs are also widely used in systems that require variable speed control. By adjusting the external resistance and controlling the slip, the motor’s speed can be precisely regulated, making it suitable for applications like conveyors, hoists, and elevators.
Wind Power Systems
Another growing application for Wound Rotor Induction Motors is in wind power systems. These motors are often used in conjunction with wind turbines where the ability to control speed and torque is essential for optimizing energy generation. Their variable-speed capabilities make them well-suited for integrating with wind energy systems, where wind speeds fluctuate continuously.
Conclusion
The Wound Rotor Induction Motor is a versatile and efficient machine that offers several advantages over traditional squirrel cage motors. Its ability to control speed, torque, and starting characteristics through external resistances makes it suitable for a wide range of industrial applications. Whether it’s for heavy-load systems, variable speed drives, or applications requiring precise motor control, the WRIM proves to be an essential component in modern industrial machinery.
By understanding how a Wound Rotor Induction Motor works, engineers and designers can select the appropriate motor for their systems, ensuring optimal performance and longevity. As technology continues to advance, the Wound Rotor Induction Motor remains a reliable choice for numerous applications, contributing to more efficient and controlled mechanical power transmission in industries worldwide.
