Ultrasonic transducers are devices that play a crucial role in many industries, from medical diagnostics to industrial testing. They convert mechanical energy into electrical energy (or vice versa) using sound waves beyond the range of human hearing, typically at frequencies greater than 20 kHz. This article will explore the basic principles of ultrasonic transducers, how they function, their applications, and some examples of the technology in use.
Understanding Ultrasound and Ultrasonic Transducers
What is Ultrasound?
Ultrasound refers to sound waves with frequencies above the range of human hearing. The human ear can typically hear sounds in the frequency range of 20 Hz to 20 kHz. Anything above 20 kHz is considered ultrasonic. In many fields, these high-frequency sound waves are used for a variety of applications due to their ability to travel through different mediums, including solids, liquids, and gases.
In the context of ultrasonic transducers, these sound waves are harnessed to transmit and receive signals, allowing devices to detect objects, measure distances, and perform diagnostic tasks.
What is an Ultrasonic Transducer?

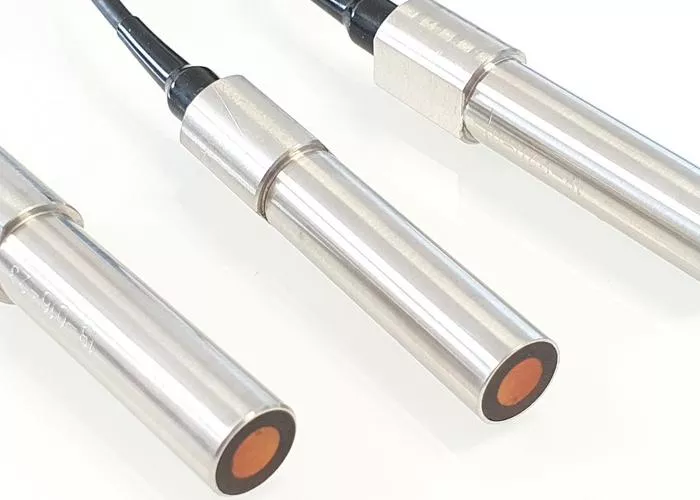

An ultrasonic transducer is a device that generates and detects ultrasonic waves. It can either convert electrical energy into mechanical (ultrasonic) energy, or the reverse, where it converts mechanical (ultrasonic) energy back into electrical signals. Transducers are integral components in systems that rely on sound waves to perform measurements or imaging.
In simpler terms, an ultrasonic transducer is like an ear that listens to ultrasonic sound waves or a mouth that sends them out. It uses the principle of piezoelectricity to generate and detect ultrasonic signals.
Principle of Piezoelectricity
At the heart of most ultrasonic transducers is a phenomenon called piezoelectricity. This is a property of certain materials (such as quartz, barium titanate, and lead zirconate titanate) where an electrical charge is produced when mechanical stress is applied to them. Conversely, when an electrical signal is applied to these materials, they change shape, producing mechanical vibrations.
In an ultrasonic transducer, a piezoelectric crystal or ceramic material is used to convert electrical signals into mechanical vibrations (ultrasonic waves) and vice versa. When an electrical signal is applied, the piezoelectric material vibrates at the desired frequency, generating ultrasonic sound waves. When the sound waves bounce off an object, the crystal vibrates in response to the incoming waves, producing an electrical signal that can be analyzed.
Structure of an Ultrasonic Transducer
An ultrasonic transducer generally consists of several key components:
- Piezoelectric Element: This is the core of the transducer, where the conversion between electrical and mechanical energy occurs. It is typically made from materials like lead zirconate titanate (PZT) or other piezoelectric ceramics.
- Backing Material: This material is placed behind the piezoelectric element to absorb unwanted sound waves and prevent them from reflecting back into the crystal. It helps improve the clarity and accuracy of the signal.
- Matching Layer: The matching layer ensures that the sound waves can efficiently transfer between the transducer and the medium (air, water, tissue, etc.). It reduces the impedance mismatch between the piezoelectric element and the surrounding material.
- Housing: The housing protects the sensitive components of the transducer and provides a structure for it to be mounted on equipment.
- Electrode: Electrodes are connected to the piezoelectric element to apply electrical signals to it or to receive the electrical signal generated by the element in response to ultrasonic waves.
How Ultrasonic Transducers Work
To understand how ultrasonic transducers work, it’s useful to break it down into two primary phases: transmission and reception.
1. Transmission of Ultrasonic Waves
When an ultrasonic transducer is used for imaging or distance measurement, the process begins with the transmission of ultrasonic waves. The transducer receives an electrical signal from an external power source (like a generator) that causes the piezoelectric element to vibrate. The frequency of these vibrations is typically in the range of 1 MHz to 15 MHz for medical imaging, but can be even higher for industrial applications. These vibrations propagate through the medium, whether it’s air, water, or tissue.
The transducer’s piezoelectric element generates these high-frequency sound waves (ultrasonic waves), which travel through the medium. As the waves move, they spread out in all directions, like ripples in water, until they encounter an object or surface.
2. Reception of Echoes
After the ultrasonic waves leave the transducer, they interact with the object they encounter. The waves may be reflected, refracted, or absorbed depending on the properties of the object and the medium.
When the waves are reflected back to the transducer, the piezoelectric element detects the returning sound waves. These reflected waves cause the piezoelectric material to vibrate in response, which generates an electrical signal. This signal is then amplified and sent to the processing equipment.
The time it takes for the waves to travel to the object and return to the transducer is measured. By knowing the speed of sound in the medium, the system can calculate the distance to the object. This principle is used in applications like sonar, ultrasonic distance measuring devices, and some types of medical imaging.
Signal Processing
The electrical signals generated by the piezoelectric element are typically very weak and need to be processed by an external device to extract meaningful information. This processing can involve filtering, amplification, and sometimes complex calculations, especially when interpreting signals for medical or industrial applications.
In medical ultrasonography, for instance, the echoes are used to create images of the inside of the body. The time delay of the echoes and their intensity can indicate the type and structure of tissues, blood flow, or even tumors.
Applications of Ultrasonic Transducers
Ultrasonic transducers are used in a wide variety of industries and fields. Their versatility makes them invaluable tools in many different types of systems.
1. Medical Imaging (Ultrasound)
The most widely recognized use of ultrasonic transducers is in medical imaging, particularly in ultrasound scans. Medical ultrasound uses high-frequency sound waves to create images of the inside of the body, helping doctors diagnose conditions related to the heart, organs, and blood vessels, as well as monitor the development of a fetus during pregnancy.
In an ultrasound scan, the transducer sends out ultrasonic waves, which pass through the body. These waves reflect off various tissues, and the echoes are recorded to create an image on a monitor. This technique is non-invasive and does not involve the use of ionizing radiation, making it a safer alternative to X-rays and CT scans.
2. Non-Destructive Testing (NDT)
Ultrasonic transducers are commonly used in non-destructive testing (NDT) to inspect materials and structures without causing damage. In this application, the transducer sends ultrasonic waves into a material (e.g., metal, concrete, plastic). The waves reflect back when they encounter flaws like cracks, voids, or changes in material properties.
By analyzing the time it takes for the waves to return and their intensity, technicians can determine the location, size, and nature of defects in the material. This method is widely used in industries such as aerospace, automotive, and manufacturing to ensure the safety and integrity of critical components.
3. Distance Measurement and Sonar
Ultrasonic transducers are also used for distance measurement in various settings. This principle is employed in devices such as sonar systems used in marine navigation. In these systems, ultrasonic waves are emitted from the transducer, and the time taken for the waves to bounce back from the ocean floor or other objects is used to calculate the depth or distance.
In industrial applications, ultrasonic sensors can be used to measure the level of liquids or solids in tanks, helping optimize processes in factories, warehouses, and other industrial environments.
4. Cleaning Applications
Ultrasonic transducers are also used in cleaning systems, where high-frequency sound waves generate microscopic bubbles in a liquid. These bubbles implode on the surface of objects immersed in the liquid, creating intense pressure waves that help remove dirt, grease, or other contaminants. This process is highly effective for cleaning delicate or intricate items like jewelry, medical instruments, or electronic components.
5. Flow Measurement
In some industries, ultrasonic transducers are used for flow measurement in pipes. The transducer sends ultrasonic waves through the fluid flowing inside the pipe. By measuring how the waves are affected by the flow of the fluid, the system can calculate the flow rate of the liquid.
This application is commonly used in water treatment plants, oil and gas pipelines, and other fluid transport systems.
Advantages of Ultrasonic Transducers
Ultrasonic transducers offer several advantages that make them highly useful in a range of applications:
- Non-invasive: Especially in medical imaging, ultrasonic waves allow for detailed internal imaging without the need for surgical procedures or exposure to harmful radiation.
- High Accuracy: Ultrasonic transducers can provide precise measurements of distances, thicknesses, and flow rates, making them valuable in engineering, manufacturing, and scientific applications.
- Versatility: They can be used in a wide range of environments and for different materials (solids, liquids, and gases), making them adaptable for many industries.
- Real-time Data: Ultrasonic transducers provide real-time feedback, which is essential in both industrial testing and medical diagnostics.
Conclusion
Ultrasonic transducers are vital tools in many different industries, offering a versatile and non-invasive way to generate and detect ultrasonic waves. Their ability to convert electrical signals into sound waves and vice versa, based on the principles of piezoelectricity, underpins a range of applications from medical imaging to industrial testing. By understanding how these transducers work, we can better appreciate their role in improving safety, diagnostics, and measurement across diverse fields. Whether you are using ultrasound for a routine checkup or applying ultrasonic technology to inspect complex materials, these devices are an integral part of modern technology.
