Digital clamp meters are essential tools used by electricians, engineers, and technicians to measure electrical current in a variety of settings. These instruments provide a safe and non-intrusive method for measuring both AC and DC currents without the need to disconnect wires. This article will explore what digital clamp meters are, how they work, their applications, types, and key features, shedding light on their importance in modern industrial instrumentation.
What Is a Digital Clamp Meter?
A digital clamp meter is a handheld electronic instrument used to measure current flowing through a conductor. Unlike traditional ammeters, which require the user to break the circuit and insert the meter in series, a clamp meter allows the user to measure current without disconnecting the circuit. The device works by clamping around a conductor, using magnetic fields to detect the flow of current and display the measurement on a digital screen.
These meters are highly valued for their ability to safely measure high currents, and their non-contact measurement makes them ideal for use in live circuits. Digital clamp meters can measure both alternating current (AC) and direct current (DC) in a wide range of industrial and residential applications.
How Do Digital Clamp Meters Work?
The operation of a digital clamp meter is based on the principle of electromagnetic induction. The clamp features a current transformer (CT) or Hall effect sensor that can measure the magnetic field generated by the current flowing through a conductor. Here’s a detailed breakdown of how they work:
1. Current Transformer (CT) Method
The most common technology in clamp meters is the current transformer. The transformer is essentially a coil of wire wrapped around a magnetic core. When the conductor carrying the current is passed through the core, a magnetic field is induced. This magnetic field is proportional to the amount of current flowing through the conductor. The current transformer then converts this magnetic flux into a corresponding electrical signal that the digital meter can interpret and display.
2. Hall Effect Sensor Method
Some modern digital clamp meters use Hall effect sensors instead of current transformers. The Hall effect is a phenomenon in which a voltage is generated when a current-carrying conductor is placed within a magnetic field. The Hall sensor in the clamp meter detects this voltage, which is then processed to measure the current. This method is particularly useful for measuring DC current and offers greater precision and sensitivity than the traditional CT method.

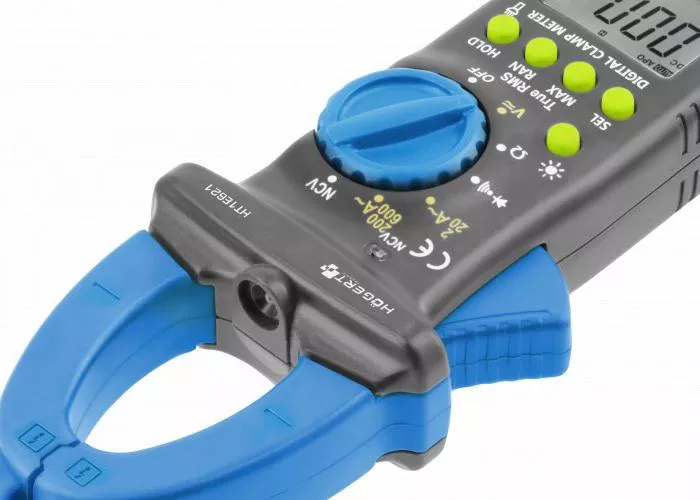

Key Components of a Digital Clamp Meter
To understand the functionality of a digital clamp meter better, it is important to know its key components:
1. Clamp Jaws
The clamp jaws are the most visible part of the meter. They are designed to open wide enough to clamp around a conductor. Inside the jaws, the current transformer or Hall effect sensor is housed. The jaws must be large enough to fit around cables of various sizes, making the clamp meter versatile in different applications.
2. Display Screen
The display screen is typically a digital LCD that shows the measured current in amperes (A). Some models also display voltage, resistance, frequency, and other parameters, depending on their features. The display is an essential part of the clamp meter, allowing users to read measurements easily and accurately.
3. Rotary Switch
The rotary switch allows users to select the appropriate measurement mode for the clamp meter. Depending on the model, users can choose between measuring AC or DC current, voltage, resistance, frequency, or other electrical parameters. This switch enables flexibility in using the clamp meter for various tasks.
4. Function Buttons
Modern clamp meters come equipped with function buttons that enable additional features, such as data hold, peak hold, and range selection. These features enhance the versatility and usability of the instrument in both simple and complex electrical measurements.
Types of Digital Clamp Meters
There are various types of digital clamp meters available, each designed for different measurement needs. Some of the key types include:
1. AC Digital Clamp Meters
AC digital clamp meters are designed primarily to measure alternating current (AC). They are commonly used in power distribution systems, electrical maintenance, and HVAC systems. AC clamp meters often rely on current transformers (CT) to detect the magnetic field created by the alternating current.
2. AC/DC Digital Clamp Meters
AC/DC digital clamp meters are capable of measuring both alternating current (AC) and direct current (DC). These versatile meters are ideal for use in applications that involve both types of current, such as in battery-powered systems, industrial machinery, and solar energy installations. The Hall effect sensor is commonly used in these meters to accurately measure DC current.
3. True RMS Digital Clamp Meters
True RMS digital clamp meters are designed to provide accurate measurements of both sine wave and non-sine wave AC currents. They are essential for environments where electrical signals are not purely sinusoidal, such as in systems with variable frequency drives (VFDs), computers, and other equipment that generate complex waveforms. The True RMS feature ensures that the clamp meter gives an accurate reading, even for distorted or fluctuating waveforms.
4. Multimeter Clamp Meters
Multimeter clamp meters are more advanced models that combine the functions of a clamp meter and a digital multimeter (DMM). These meters can measure a wide range of electrical parameters, including voltage, resistance, capacitance, and continuity, in addition to current. Multimeter clamp meters are highly useful for technicians and engineers who require comprehensive measurement capabilities in a single instrument.
Applications of Digital Clamp Meters
Digital clamp meters are used in a wide array of industries and applications. Some of the most common uses include:
1. Electrical Circuit Troubleshooting
Clamp meters are essential for diagnosing problems in electrical circuits. Whether it is an issue with a power supply, motor, or wiring, digital clamp meters can quickly pinpoint faults. By measuring current, voltage, and resistance, technicians can troubleshoot issues with minimal downtime and without the need to disconnect wires.
2. Industrial Instrumentation
In industrial settings, digital clamp meters play a crucial role in monitoring electrical systems and ensuring the efficiency of equipment. These meters are commonly used in power plants, factories, and processing plants to measure current in motors, transformers, and other electrical devices. Accurate current measurement is critical to optimizing the performance and safety of industrial machinery. For more information on Instrumentation, you can explore the available resources.
3. Electrical Maintenance in Residential and Commercial Buildings
In residential and commercial electrical maintenance, digital clamp meters are used for routine checks and repairs. Whether measuring the current in outlets, appliances, or circuit breakers, these meters ensure that the electrical system is functioning correctly and safely. They are especially useful when it comes to preventing overloads and identifying areas that require maintenance or upgrades.
4. HVAC and Refrigeration Systems
Digital clamp meters are indispensable tools in HVAC (heating, ventilation, and air conditioning) systems. Technicians use them to measure current in various components, such as compressors, motors, and control panels. Accurate current measurements help ensure optimal system performance and energy efficiency in HVAC systems.
Key Features of Digital Clamp Meters
When selecting a digital clamp meter, there are several key features to consider:
1. Current Range
The current range of a clamp meter determines the maximum amount of current it can measure. Depending on the application, users may require meters with higher or lower ranges. It’s essential to select a clamp meter that can handle the specific current levels encountered in the field.
2. Accuracy
Accuracy is one of the most critical factors in selecting a clamp meter. Digital clamp meters with higher accuracy provide more reliable and precise measurements, which is especially important in industrial and scientific applications. Most digital meters offer an accuracy rate of ±1% or better.
3. Safety Features
Safety is paramount when working with electrical systems. High-quality digital clamp meters come equipped with features like overcurrent protection, fuse protection, and insulation that help protect the user from electrical hazards. The design should ensure that the user can measure currents safely in live circuits without coming into contact with high-voltage components.
4. Additional Measurement Capabilities
Advanced digital clamp meters come with a variety of additional measurement capabilities, such as the ability to measure voltage, resistance, and temperature. These extra functions can make the meter more versatile and useful for different applications, such as those in industrial instrumentation or residential electrical work.
Conclusion
Digital clamp meters are indispensable tools in modern electrical work, offering safe, efficient, and non-intrusive current measurement capabilities. Whether used in industrial instrumentation, electrical maintenance, or troubleshooting, these versatile meters provide accurate data that helps ensure the proper functioning of electrical systems. Understanding how they work, their features, and their applications can help users select the right clamp meter for their specific needs. With a wide range of options available in the market, professionals can find the perfect digital clamp meter to enhance their work.
