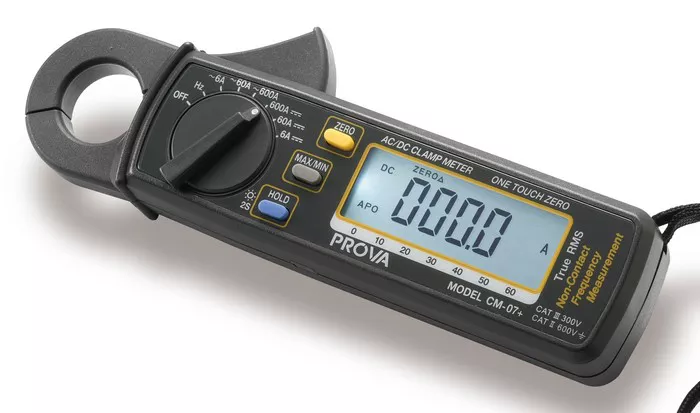

True RMS (Root Mean Square) digital clamp meters are essential instruments in modern electrical diagnostics, offering precision in environments where waveforms are not purely sinusoidal. Unlike average-responding meters, True RMS meters calculate the effective value of any waveform—whether it’s pure sine, square, or distorted—thus ensuring accurate measurements regardless of the signal’s complexity.
This distinction is vital in today’s electrical systems, where non-linear loads such as variable frequency drives, computers, and LED lighting produce complex waveforms. In such environments, conventional meters may give readings that deviate significantly from the actual value. A True RMS clamp meter overcomes this by measuring the power of the waveform over time, providing more reliable data for technicians and engineers.
The Functionality of Digital Clamp Meters
Digital clamp meters are handheld devices used to measure current without the need for direct contact or circuit interruption. They achieve this through a current transformer integrated into the clamp, which senses the magnetic field produced by the current-carrying conductor. The strength of this magnetic field correlates with the magnitude of the current, allowing for indirect, safe, and non-intrusive current measurements.
At their core, clamp meters work on the principle of electromagnetic induction. When the jaws of the clamp are closed around a conductor, they form a magnetic loop that captures the alternating magnetic field. This field is then converted into an electrical signal, which is processed by the internal circuitry of the meter to display the current reading.
Digital clamp meters are especially valuable for measuring AC current, but modern models have expanded their functionality to include DC current, voltage, resistance, frequency, and even temperature. Among these, AC Clamp Meters are particularly popular for routine electrical work, especially in industrial and commercial settings.
True RMS vs Average Responding Meters
The key differentiator between a True RMS meter and an average responding meter lies in how they calculate current or voltage values. Average responding meters assume that the waveform is purely sinusoidal, which simplifies the calculation but reduces accuracy when measuring non-sinusoidal signals.
True RMS meters, however, use a mathematical approach that involves squaring the instantaneous values of the waveform, averaging those squares over time, and then taking the square root of that average. This process accurately captures the energy content of irregular waveforms.
For example, in environments with heavy electronic loads—such as uninterruptible power supplies (UPS), rectifiers, or computer networks—the current waveform is often distorted due to switching components. An average responding meter might show a value significantly lower than the actual current, leading to improper diagnostics. A True RMS clamp meter provides a precise measurement, which is critical for safe equipment operation and troubleshooting.
Applications of True RMS Digital Clamp Meters
True RMS digital clamp meters are indispensable across a wide range of fields. In industrial maintenance, they are used to monitor motors, transformers, and control systems. In HVAC systems, technicians rely on them to measure inrush currents and diagnose power quality issues. In residential and commercial installations, they help verify load balancing and detect current leaks.
One of the most advantageous applications is in predictive maintenance programs. By regularly monitoring current draw and waveform behavior, engineers can identify trends that suggest equipment wear or failure, allowing for proactive interventions.
Another critical application is in energy auditing. Technicians can use True RMS meters to verify the performance of energy-saving devices, ensuring that installed equipment is not only operational but also delivering promised efficiencies.
Key Features of True RMS Clamp Meters
Modern True RMS digital clamp meters offer a host of features that make them versatile and user-friendly. Key capabilities include:
Wide Measurement Range: Most meters can measure current from a few milliamps up to several thousand amperes.
Multi-Parameter Display: In addition to current, many meters also provide voltage, resistance, continuity, frequency, and capacitance readings.
Data Logging and Hold Functions: Users can capture and retain measurement data for post-analysis.
Backlit Display and Flashlight: Useful for low-light environments like control panels or server rooms.
nrush Current Measurement: This function captures the initial surge current when equipment starts, which is crucial for diagnosing motor and drive issues.
Flexible Probes: Some models include flexible current probes for measuring large or awkwardly placed conductors.
A good example of a general-purpose tool in this category is the Digital Clamp Meters, which combine portability with a full range of diagnostic functions.
How True RMS Clamp Meters Work
Inside a True RMS meter, the analog current or voltage signal is first converted to a digital signal using an analog-to-digital converter (ADC). This signal is then fed into a microprocessor that performs the RMS calculation. The algorithm typically samples the signal multiple times per cycle (often thousands), ensuring a high-resolution representation of the waveform.
These sampled points are squared and summed, averaged over a time window, and then square-rooted to arrive at the RMS value. The meter then displays this result on a digital screen, often alongside auxiliary data like min/max values or frequency.
For high-frequency signals or signals with fast transients, sampling rate and bandwidth become crucial. Advanced meters use high-speed ADCs and sophisticated filtering to handle these requirements accurately.
Benefits of Using True RMS Clamp Meters
The primary benefit of True RMS measurement is **accuracy**, particularly in complex electrical environments. But the advantages go beyond simple correctness:
Safety: Accurate measurements prevent overloading of circuits and equipment, reducing fire and shock hazards.
Efficiency: Precise diagnostics lead to faster repairs and less downtime.
Versatility: These meters work reliably with any waveform type, including those produced by modern electronic devices.
Time-Saving: The clamp mechanism allows for quick measurements without breaking the circuit.
Data Integrity: For logging and auditing purposes, True RMS meters ensure that all recorded values reflect real operational conditions.
Limitations and Considerations
While True RMS clamp meters offer numerous advantages, they are not without limitations. These include:
Higher Cost: True RMS meters tend to be more expensive than average responding models.
Complexity: The advanced electronics involved may require calibration and careful handling.
Bandwidth Limits: Some models may not accurately measure signals above a certain frequency.
Physical Constraints: Large conductors or confined spaces may pose challenges for clamp access, although flexible sensors mitigate this issue to some extent.
Despite these constraints, the value offered by True RMS measurement typically outweighs the drawbacks, especially for professional and industrial applications.
Choosing the Right True RMS Clamp Meter
When selecting a True RMS digital clamp meter, several factors should be considered:
Current Range: Ensure the meter can handle the maximum expected load.
Jaw Opening Size: The jaws should fit around the largest conductor you plan to measure.
Functionality: Decide if you need features like temperature, inrush current, or data logging.
Accuracy and Resolution: Higher-resolution meters provide more precise readings, which can be crucial in critical systems.
Build Quality: Look for rugged, weather-resistant designs if you’re working in demanding environments.
Referencing manufacturer specifications and reviews can help identify the best model for your needs. For more context, consider the various categories of Clamp Meters available in the market.
Calibration and Maintenance
To maintain accuracy over time, True RMS meters require periodic calibration. This process involves comparing the meter’s readings with a known standard and making adjustments as needed. Most professional-grade meters offer software or calibration ports to facilitate this.
Proper storage is also important—avoid high humidity, dust, and extreme temperatures. Clean the clamp jaws regularly to ensure good magnetic coupling, and check for physical damage or corrosion.
Batteries should be replaced as needed, and internal fuses must be checked and maintained according to manufacturer instructions.
Conclusion
True RMS digital clamp meters are indispensable tools in today’s electrically complex world. They enable precise measurement of current and voltage across diverse waveform types, ensuring both safety and operational efficiency. By understanding how they work and what they offer, engineers, electricians, and technicians can make informed decisions that enhance the reliability of their diagnostics and maintenance activities.
Whether you’re dealing with a simple residential circuit or an industrial control system riddled with harmonics and transient events, a True RMS meter provides the accuracy and confidence needed to get the job done right.
As electrical systems continue to evolve, the demand for precise, user-friendly, and robust measurement tools will only grow. Embracing technologies like True RMS clamp meters is a step toward safer, smarter, and more efficient electrical diagnostics.
