Laser distance sensors have become indispensable in various industries due to their ability to provide accurate, reliable, and non-contact distance measurements. These sensors are utilized in a wide range of applications, from industrial automation to robotics and construction. In this article, we will delve deep into the workings of laser distance sensors, exploring their principles, types, advantages, applications, and how they compare to other sensing technologies.
What Are Laser Distance Sensors

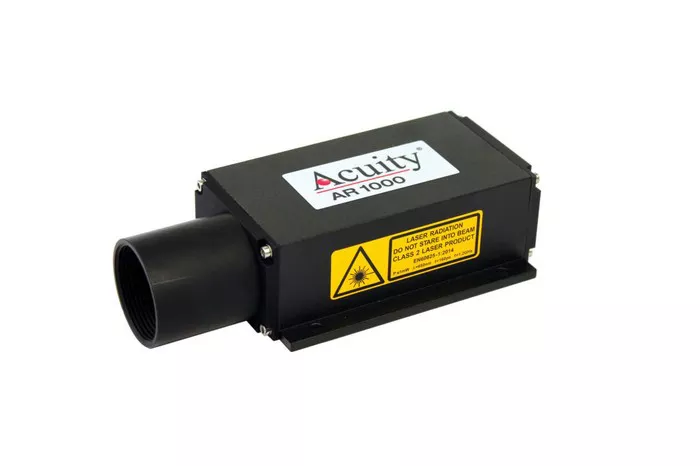

A laser distance sensor, also known as a laser rangefinder or laser scanner, is an advanced optical sensor that measures the distance to an object using laser beams. Unlike traditional mechanical or ultrasonic sensors, which rely on sound waves or physical movement, laser distance sensors utilize light to measure the distance with high precision. These sensors emit a laser beam towards a target, and based on the time it takes for the laser to return after reflecting off the object, the sensor calculates the distance.
Laser distance sensors are favored for their high accuracy, long-range measurement capabilities, and non-contact nature, making them suitable for applications where physical contact with the object is not feasible or desirable. They are widely used in industries such as manufacturing, automotive, robotics, and construction for tasks such as object detection, level measurement, and positioning.
How Do Laser Distance Sensors Work
The operation of a laser distance sensor is primarily based on the principles of light reflection and time-of-flight (TOF) measurements. There are several methods that laser sensors can use to determine distance, but the most common and effective ones are the time-of-flight and phase shift methods.
Time-of-Flight (TOF) Method
In the time-of-flight method, the laser sensor emits a pulse of light towards the target object. The light travels at the speed of light and is reflected back to the sensor by the surface of the object. The sensor measures the time it takes for the pulse to travel to the object and back. By knowing the speed of light, the sensor can calculate the distance based on the time elapsed.
The equation for calculating the distance (d) in the time-of-flight method is:
d = (c * t) / 2
Where:
- c is the speed of light (approximately 3 x 10^8 meters per second)
- t is the time taken for the light to travel to the object and back (measured in seconds)
- d is the distance between the sensor and the target object
Since the light pulse travels at an incredibly fast speed, the time measurement needs to be highly precise, requiring advanced electronics to ensure accurate readings.
Phase Shift Method
In the phase shift method, the laser sensor emits a continuous laser beam that is modulated with a specific frequency. The light reflected from the target object is received by the sensor, and the phase shift between the emitted and received beams is calculated. This phase difference is directly proportional to the distance between the sensor and the target object.
The phase shift method is often preferred in applications that require continuous distance measurements, such as level sensors in tanks and silos. This method is highly accurate and can provide real-time measurements with minimal delay.
Types of Laser Distance Sensors
Laser distance sensors can be classified into different types based on their measurement techniques and applications. The two main types are:
1. Time-of-Flight (TOF) Laser Sensors
TOF laser sensors are among the most commonly used types in industrial applications. They operate based on the time-of-flight principle, emitting a short pulse of light towards the target. The sensor then measures the time it takes for the pulse to travel to the object and return. TOF sensors are typically used in applications that require high-accuracy distance measurements over long ranges.
2. Phase-Shift Laser Sensors
Phase-shift laser sensors continuously emit modulated light and measure the phase difference between the emitted and received beams. These sensors are ideal for applications where continuous distance measurement is required with minimal delay. They are often used in monitoring applications, such as material handling, robotics, and automated machinery.
3. Triangulation Laser Sensors
Triangulation laser sensors work by measuring the angle of the reflected light from the target. The sensor uses a laser to emit a light beam at the target, and the reflection is captured by a photodiode array. By calculating the angle of reflection, the sensor can determine the distance to the object. Triangulation sensors are highly accurate and are typically used in applications requiring precise measurements of small objects or surfaces.
Advantages of Laser Distance Sensors
Laser distance sensors offer several advantages over traditional measurement techniques. These benefits include:
1. High Accuracy
Laser sensors are known for their superior accuracy, especially when compared to other types of sensors like ultrasonic sensors. Laser beams are highly focused, allowing for precise measurements, even at long distances. This makes laser distance sensors ideal for applications where high measurement precision is critical, such as in robotics and manufacturing.
2. Long Measurement Range
Laser sensors can measure distances over significantly longer ranges than other sensors. While ultrasonic sensors typically measure distances up to 10 meters, laser sensors can measure distances up to several hundred meters. This makes them suitable for large-scale applications, such as construction and land surveying.
3. Non-Contact Measurement
Laser distance sensors are non-contact, meaning they can measure distances without physically touching the target object. This feature is particularly useful in situations where contact with the object could cause damage or where the object is difficult to reach. For example, in high-temperature or hazardous environments, laser sensors can take measurements safely from a distance.
4. Fast Response Time
Laser sensors provide fast measurement speeds, often giving results in a fraction of a second. This makes them highly suitable for dynamic environments where quick data acquisition is essential, such as in conveyor systems, automated warehouses, and industrial robotics.
5. Resistance to Environmental Factors
Laser distance sensors are less affected by environmental factors such as air pressure, temperature, and humidity compared to ultrasonic sensors. This makes them more reliable in a variety of operating conditions, ensuring consistent performance over time.
Applications of Laser Distance Sensors
Laser distance sensors are versatile devices used in a wide range of applications. Their accuracy, long range, and non-contact nature make them ideal for the following sectors:
1. Robotics and Automation
Laser sensors play a key role in robotics and automation systems, helping robots navigate and interact with their environment. These sensors are used for collision avoidance, object detection, and path planning. Laser sensors provide robots with the ability to measure distances to objects in real-time, allowing them to make decisions and adjust their movements accordingly.
2. Manufacturing and Quality Control
In manufacturing environments, laser distance sensors are used for precision measurements of parts, components, and assemblies. They are also used in quality control systems to ensure that manufactured products meet specified dimensions and tolerances. Laser sensors provide accurate, non-contact measurements that are essential for maintaining product quality and consistency.
3. Construction and Surveying
Laser distance sensors are widely used in construction and surveying applications to measure distances, areas, and volumes. These sensors enable surveyors to measure distances with high accuracy without the need for physical markers or manual measurement tools. Laser rangefinders are often used for site surveys, building measurements, and land mapping.
4. Automotive and Aerospace Industries
Laser distance sensors are employed in the automotive and aerospace industries for various purposes, such as parking assistance, collision detection, and navigation systems. In these sectors, laser sensors help vehicles and aircraft maintain safe distances and avoid obstacles. They are also used for precise measurements of parts during the manufacturing process.
5. Material Handling and Logistics
Laser sensors are used in material handling and logistics for applications such as conveyor systems, inventory tracking, and automated storage. Laser distance sensors provide real-time distance measurements, helping to optimize the flow of materials, monitor stock levels, and ensure smooth operations in warehouses and distribution centers.
Comparison with Other Types of Sensors
While laser distance sensors are highly effective, they are often compared to other types of sensors like ultrasonic sensors and infrared sensors. Each type of sensor has its own advantages and limitations, and the choice of sensor depends on the specific requirements of the application.
Laser Distance Sensors vs. Ultrasonic Sensors
Ultrasonic sensors use sound waves to measure distance, whereas laser sensors use light. Laser sensors are more accurate and offer a greater measurement range than ultrasonic sensors, which are limited to relatively short distances. Laser sensors are also more suitable for precise measurements and are less affected by environmental conditions like temperature and humidity. However, ultrasonic sensors are generally more cost-effective and can be used in applications where high precision is not required.
Laser Distance Sensors vs. Infrared Sensors
Infrared sensors work by emitting infrared light and measuring the reflected signal. While infrared sensors are effective for detecting objects and measuring distances over short ranges, they lack the precision and range offered by laser sensors. Infrared sensors are often used for basic proximity detection, whereas laser distance sensors are preferred for high-precision applications.
Conclusion
Laser distance sensors are a vital tool in modern engineering and automation, offering exceptional accuracy, long-range capabilities, and versatility. They are used across a broad range of industries, from manufacturing and robotics to construction and logistics. As technology continues to evolve, laser sensors will likely become even more advanced, offering higher performance and enabling new applications that were once thought impossible. Understanding the working principles, types, and applications of laser distance sensors can help engineers and designers make informed decisions when choosing the right sensor for their specific needs.
