Level sensors are essential components used in various industries to measure and monitor the level of liquids, solids, and granular materials within a container, tank, or process. These sensors play a crucial role in maintaining safe and efficient operations in many applications, ranging from industrial manufacturing to food production and environmental monitoring. Understanding how level sensors work and the different types available can help optimize processes and prevent costly mistakes such as overflows, shortages, or equipment damage.
In this article, we will explore what level sensors are, how they function, and the different types available. We will also discuss their applications, benefits, and key considerations when selecting the appropriate sensor for a given application.

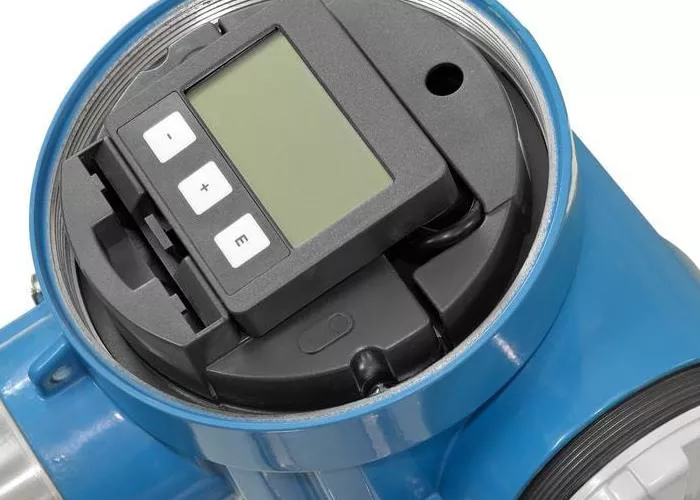

What Are Level Sensors?
A level sensor is a device designed to measure the height of a material within a container or a vessel. The sensor typically outputs an electronic signal that corresponds to the measured level of the material. These sensors are vital for monitoring fluid and solid levels in many industries, including manufacturing, automotive, chemical processing, water treatment, and food production.
Level sensors can be divided into two broad categories:
Continuous Level Sensors: These sensors provide real-time, continuous measurement of the level within a container or vessel. The sensor output is proportional to the height of the material, enabling ongoing monitoring of the material level.
Point Level Sensors: These sensors provide discrete, on-off signals indicating when a particular level threshold has been reached. They do not provide continuous measurement but are useful for detecting high or low levels.
Level sensors are used to protect equipment, prevent spillage, automate processes, and ensure operational efficiency by providing accurate, reliable, and real-time level data.
How Do Level Sensors Work?
Level sensors work based on various principles of physics and engineering. Depending on the technology used, they can measure the level of materials in different ways. The key methods employed in level sensing include the following:
1. Capacitive Level Sensors
Capacitive level sensors work on the principle of capacitance, which is the ability of two conductors to store electrical charge. A capacitive level sensor consists of two conductive plates (or a plate and the tank wall), which form a capacitor. As the level of the material inside the container changes, the dielectric constant of the material changes, which, in turn, alters the capacitance between the plates.
Capacitive level sensors can be used for both liquids and solids. They are highly sensitive to small changes in level and provide continuous level measurement. These sensors are commonly used in applications where the material being measured is non-conductive, such as oils, chemicals, and water-based solutions.
Working Principle:
- When the tank is empty, the capacitor’s dielectric constant is low (the air between the plates has a low permittivity).
- As the tank fills with a material that has a different dielectric constant (such as a liquid or solid), the capacitance increases.
- The sensor measures the change in capacitance and uses this information to calculate the level of the material.
2. Ultrasonic Level Sensors
Ultrasonic level sensors operate based on sound waves. These sensors emit high-frequency sound waves (ultrasonic waves) that travel through the air and reflect back when they encounter the surface of the material being measured. The sensor calculates the time taken for the sound waves to return, and using the speed of sound in the air, it determines the distance to the material surface.
Ultrasonic sensors are typically used for continuous level measurement of liquids and solids in open or closed containers. They are highly versatile and can measure materials with varying characteristics.
Working Principle:
- An ultrasonic pulse is emitted from the sensor.
- The pulse travels through the air and reflects off the surface of the material inside the container.
- The sensor calculates the time taken for the pulse to return and determines the distance to the material surface.
- The level is calculated by subtracting the measured distance from the total height of the container.
3. Radar Level Sensors
Radar level sensors are similar to ultrasonic sensors in that they use waves to detect the level of materials. However, instead of using sound waves, radar level sensors emit microwave pulses. These microwaves travel through the air and reflect off the surface of the material, providing precise distance measurements.
Radar level sensors offer several advantages over ultrasonic sensors, such as higher accuracy, the ability to measure in harsh conditions, and resistance to environmental factors like temperature, humidity, and pressure changes.
Working Principle:
- A radar pulse is emitted from the sensor.
- The pulse reflects off the surface of the material and returns to the sensor.
- The time taken for the pulse to return is measured, and the distance to the surface is calculated using the speed of light.
Radar sensors can measure both solid and liquid levels, and they are highly accurate even in challenging conditions such as high-pressure or high-temperature environments.
4. Magnetic Level Sensors
Magnetic level sensors use a float with a magnet inside that moves in response to the level of material in the tank. As the material level changes, the float moves along the vertical axis of the tank. The movement of the float is detected by a magnetic field sensor located outside the tank. These sensors provide continuous or discrete level measurements, depending on the design.
Magnetic level sensors are commonly used in liquid applications, especially for hazardous or corrosive substances. They are often paired with external indicators for visual monitoring of the material level.
Working Principle:
- A magnetic float moves up and down in the tank as the level of the material changes.
- The magnet inside the float activates a sensor located outside the tank.
- The sensor detects the movement of the float and converts this information into an electrical signal that corresponds to the level.
5. Optical Level Sensors
Optical level sensors work based on light reflection and refraction principles. These sensors use an LED light source and a photodetector to detect changes in light intensity. The sensor is typically positioned at the desired level within the container, and when the material comes into contact with the sensor, it reflects or refracts the light, triggering a signal.
Optical sensors are commonly used for point-level detection, especially in applications where precise detection of high or low levels is required. These sensors are ideal for transparent or low-viscosity liquids, such as water or alcohol.
Working Principle:
- An LED light source emits light towards the material in the container.
- The light is either reflected or refracted by the material’s surface.
- A photodetector detects the change in light intensity and triggers the sensor to output a signal.
6. Float-Based Level Sensors
Float-based level sensors are one of the oldest and simplest types of level sensing devices. These sensors use a float that rests on the surface of the liquid. As the liquid level changes, the float moves up or down. The movement of the float is typically measured by a mechanical or electrical sensor, such as a reed switch, which triggers an output signal when the float reaches a particular level.
Float-based sensors are cost-effective and reliable, making them a popular choice in many industries. They are commonly used for point-level detection in tanks, sumps, and wells.
Working Principle:
- A float moves up and down as the liquid level changes.
- The float’s position is sensed by a mechanical or electrical switch.
- When the float reaches a preset position, the sensor outputs a signal indicating the level.
Applications of Level Sensors
Level sensors are used in a wide range of applications across various industries. Some of the most common applications include:
Water Treatment: Monitoring the levels of water in treatment tanks, reservoirs, and filtration systems to maintain optimal operating conditions and prevent overflow.
Oil and Gas: Measuring liquid levels in tanks, pipelines, and separators to optimize storage and distribution processes.
Chemical Processing: Monitoring the levels of chemicals in reactors, storage tanks, and blending vessels to ensure safe and efficient operations.
Food and Beverage: Measuring ingredients and liquids such as milk, beer, and juices in production lines to maintain quality and consistency.
Automotive: Monitoring fuel levels in vehicles and ensuring accurate fuel gauges.
Pharmaceuticals: Ensuring precise level control of liquids in mixing tanks, reactors, and fermentation vessels to maintain batch quality.
Mining and Aggregates: Measuring solid material levels in bins, hoppers, and silos to optimize processing and inventory control.
Benefits of Using Level Sensors
The use of level sensors offers several advantages in industrial processes and applications:
Enhanced Safety: By preventing overflows, dry running, and underfilling, level sensors help prevent accidents and damage to equipment.
Improved Efficiency: Continuous monitoring of material levels ensures optimal use of resources and prevents downtime caused by unmonitored fluctuations in levels.
Automation: Level sensors enable automated control of material flow, which can reduce labor costs and improve system responsiveness.
Accuracy: With precise level measurements, operators can make informed decisions that improve overall process quality and consistency.
Cost Savings: By preventing overfilling or underfilling, level sensors reduce material waste, saving both time and money.
Conclusion
Level sensors are crucial instruments used in many industrial and commercial applications to ensure the accurate monitoring and control of material levels. Whether it’s measuring the level of liquids in a tank, solids in a silo, or materials in an assembly line, level sensors play a vital role in maintaining the efficiency and safety of operations.
Choosing the right type of level sensor depends on factors such as the nature of the material being measured, environmental conditions, and the required level of accuracy. As technology advances, the capabilities of level sensors continue to expand, offering more precise, reliable, and adaptable solutions to meet the growing demands of modern industries.
