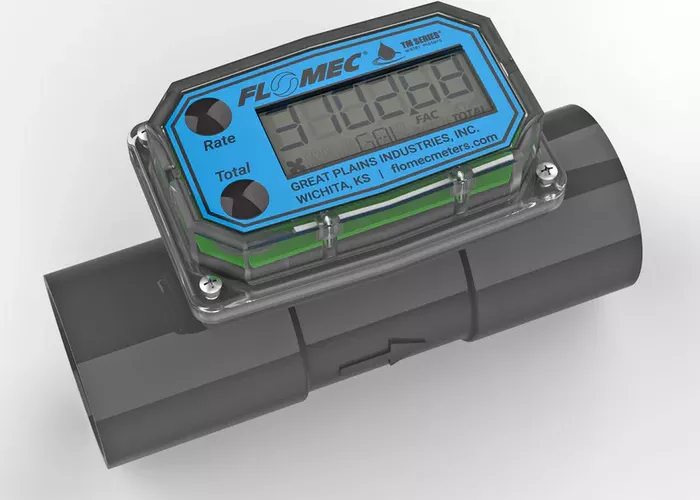

Gas flowmeters are essential instruments used in various industries to measure the flow rate of gases. They are crucial for applications in industries such as manufacturing, energy production, chemical processing, and environmental monitoring. By providing accurate and reliable data on gas flow, flowmeters enable operators to optimize processes, ensure safety, and maintain system efficiency.
In this article, we will explore the different types of gas flowmeters, their working principles, applications, and how they contribute to industries reliant on precise gas measurements.
What Is Gas Flow Measurement
Gas flow measurement refers to determining the volume or mass of a gas passing through a specific point within a system during a given time period. Accurate gas flow measurement is essential for managing and controlling various processes, including combustion, production, and environmental emissions monitoring.
Unlike liquid flow measurement, gas flow measurement presents unique challenges due to the compressible nature of gases. Variables such as temperature, pressure, and gas composition can significantly impact gas flow behavior. As a result, gas flowmeters must account for these factors to ensure precision in measurements.
Types of Gas Flowmeters
Several types of gas flowmeters are used in different applications. Each type operates on a unique principle suited to specific operating conditions. Below, we discuss some of the most common types of gas flowmeters.
1. Differential Pressure Flowmeters
Differential pressure (DP) flowmeters are one of the most widely used gas flowmeters. They operate on the principle that a pressure drop occurs when a gas flows through a restriction or orifice in a pipeline. By measuring the difference in pressure before and after the restriction, the flow rate can be determined using the Bernoulli equation.
These flowmeters are typically used in high-flow applications and can be further classified into types such as orifice plates, venturi tubes, and flow nozzles. Differential pressure flowmeters are commonly found in natural gas pipelines and chemical processing plants.
2. Thermal Mass Flowmeters
Thermal mass flowmeters measure the mass flow rate of gases based on the relationship between heat transfer and gas flow. The working principle is based on the fact that as gas flows over a heated sensor, it carries away heat, causing the temperature of the sensor to drop. The amount of heat loss is proportional to the mass flow rate of the gas.
These flowmeters are suitable for applications where accurate mass flow measurements are required, regardless of temperature or pressure fluctuations. They are particularly useful for measuring low flow rates of gases such as nitrogen, oxygen, and natural gas.
3. Positive Displacement Flowmeters
Positive displacement flowmeters operate by trapping a specific volume of gas and counting how many times the trapped volume is displaced by the flowing gas. The total flow is determined by multiplying the number of displacements by the known volume of the trapped gas.
These flowmeters are highly accurate and are often used for low to medium flow rates. They are particularly useful when high precision is needed in measuring gases like air, nitrogen, and other non-corrosive gases. Their design makes them suitable for applications where stable flow conditions are present.
4. Coriolis Flowmeters
Coriolis flowmeters operate on the principle of the Coriolis effect, which describes how the motion of a gas affects the sensor as it moves through a vibrating tube. The gas flow causes a phase shift in the vibration, which is proportional to the mass flow rate. Coriolis flowmeters directly measure the mass flow of gas, providing a highly accurate and reliable reading.
These flowmeters are especially useful for highly accurate measurements of gases in industries such as oil and gas, chemical manufacturing, and food processing. They can also measure the density and temperature of the gas, providing additional valuable data for process control.
5. Ultrasonic Flowmeters
Ultrasonic flowmeters use the principle of sound waves to measure gas flow. These devices employ ultrasonic sensors to send sound waves through the gas. The velocity of the sound waves is affected by the flow of the gas, and the flow rate is determined based on the change in sound velocity as it travels upstream and downstream through the gas.
Ultrasonic flowmeters are non-invasive, offering the advantage of not having to interrupt the flow of the gas or physically contact the gas stream. They are ideal for large-diameter pipelines and applications where minimal maintenance is required, such as in natural gas distribution systems.
How Do Gas Flowmeters Work?
The operation of a gas flowmeter depends on the specific technology employed in its design. However, all gas flowmeters aim to determine the flow rate of gas passing through the meter. Below, we provide an overview of the fundamental principles behind the operation of gas flowmeters.
1. Measurement Principle
Each type of gas flowmeter is based on a distinct measurement principle, which determines how the flowmeter responds to gas flow. For example, differential pressure flowmeters use the pressure drop across an orifice, thermal mass flowmeters measure heat transfer, and ultrasonic flowmeters rely on changes in sound wave velocity.
2. Flow Rate Calculation
After the flowmeter measures the relevant parameter (such as pressure drop, temperature, or sound velocity), it uses calibration data and mathematical formulas to calculate the flow rate. In most cases, the flow rate is expressed in either volume per unit of time (e.g., liters per minute) or mass per unit of time (e.g., kilograms per hour).
3. Output Signal
Gas flowmeters typically generate an output signal that can be displayed on a digital readout or transmitted to a control system. The output can be an analog signal (e.g., 4-20 mA), a digital signal (e.g., Modbus or HART), or even a pulse output, depending on the design of the flowmeter.
For more advanced flowmeters, like Coriolis flowmeters or thermal mass flowmeters, the output may also include additional parameters, such as temperature, pressure, and density. This extra data helps operators monitor and control gas flow more effectively.
Applications of Gas Flowmeters
Gas flowmeters are used in a wide variety of industries, each with specific needs and requirements for accurate gas flow measurement. Below are some common applications of gas flowmeters:
1. Oil and Gas Industry
In the oil and gas industry, accurate gas flow measurement is essential for ensuring efficient production and transport of natural gas and other gases. Gas flowmeters are used to monitor flow rates in pipelines, gas wells, and compressor stations, helping operators optimize throughput, monitor for leaks, and ensure regulatory compliance.
2. Chemical and Petrochemical Industries
In chemical manufacturing, precise gas flow measurement is crucial for controlling chemical reactions and optimizing production. Gas flowmeters are used to monitor the flow of gases such as hydrogen, oxygen, and nitrogen in processes such as chemical synthesis, polymer production, and air separation.
3. Environmental Monitoring
Environmental monitoring applications require gas flowmeters to measure the emission of gases into the atmosphere. By measuring the flow of pollutants, such as carbon dioxide or methane, flowmeters help ensure compliance with environmental regulations and help mitigate the impact of industrial processes on air quality.
4. HVAC and Building Automation
In HVAC systems and building automation, gas flowmeters help monitor the flow of gases such as air, natural gas, and refrigerants. They play a vital role in ensuring the efficient operation of heating, ventilation, and air conditioning systems, providing real-time data that helps optimize energy consumption and maintain comfortable living conditions.
5. Medical Applications
Gas flowmeters are also critical in the medical field. They are used in anesthesia machines, respirators, and oxygen supply systems. Accurate measurement of oxygen and other medical gases is essential for patient care, ensuring the proper dosage of gases during medical procedures and life-support interventions.
Factors to Consider When Choosing a Gas Flowmeter
When selecting a gas flowmeter for a specific application, several factors must be considered to ensure accurate measurements and reliable performance. Key considerations include:
1. Gas Properties
The type of gas being measured is an important factor in selecting a flowmeter. Different flowmeter types perform better with specific gases. For example, thermal mass flowmeters are ideal for gases with low flow rates, while Coriolis flowmeters are suitable for high-precision mass flow measurements.
2. Flow Range
Each type of flowmeter has a specific range of flow rates that it can accurately measure. It is essential to match the flowmeter’s range with the expected flow conditions in the application. Over-ranging or under-ranging can lead to inaccurate readings and system inefficiencies.
3. Operating Conditions
The temperature, pressure, and composition of the gas should be taken into account when choosing a flowmeter. Some flowmeters, such as differential pressure flowmeters, are sensitive to these factors, while others, like thermal mass flowmeters, can accommodate a wide range of operating conditions.
4. Accuracy and Calibration
Accuracy is one of the most important considerations when selecting a flowmeter. Depending on the application, a high degree of accuracy may be required. Some flowmeters are more accurate than others, and calibration plays a significant role in ensuring reliable measurements over time.
Conclusion
Gas flowmeters are critical instruments in a wide range of industries, from oil and gas to healthcare, ensuring efficient processes, regulatory compliance, and safety. Understanding the various types of gas flowmeters and their operating principles is essential for selecting the right device for specific applications. With technological advancements, gas flowmeters continue to evolve, offering higher precision, better performance, and increased flexibility for a variety of applications.
