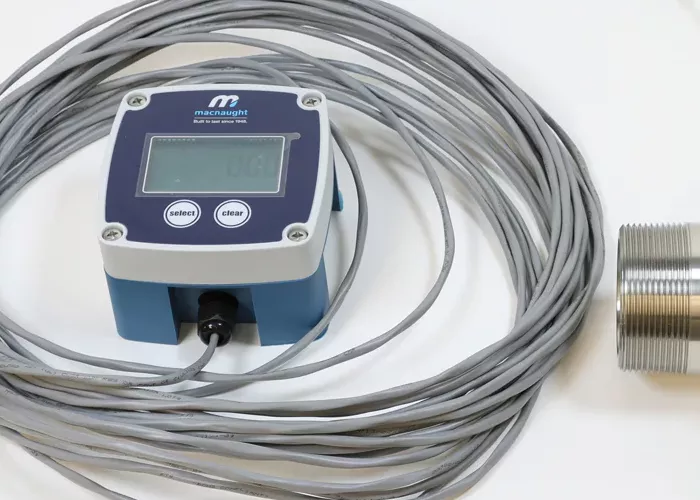

Ultrasonic flowmeters are advanced devices used to measure the flow rate of liquids and gases in pipes and other conduits. These flowmeters are highly regarded for their non-invasive measurement technique, which allows for precise and reliable flow measurement without the need for any physical contact with the fluid. The operation of ultrasonic flowmeters relies on the principles of sound wave propagation through the fluid medium. Their versatility, accuracy, and ability to handle challenging environments make them an indispensable tool in a variety of industrial applications.
How Do Ultrasonic Flowmeters Work
Ultrasonic flowmeters operate based on the principle of ultrasonics—high-frequency sound waves that are emitted and received by transducers. These sound waves travel through the fluid, and by analyzing the time it takes for the waves to travel from one transducer to another, the flow rate of the fluid can be determined. The most common methods used in ultrasonic flowmeters are the transit-time difference and Doppler shift methods, both of which rely on different characteristics of sound wave behavior in moving fluids.
Transit-Time Method
The transit-time method is the most commonly used principle in ultrasonic flowmeters. In this method, two transducers are placed on opposite sides of the pipe. One transducer emits an ultrasonic pulse, and the other receives it. The time it takes for the pulse to travel downstream and upstream is measured. When the fluid is moving, the time for the pulse to travel downstream is shorter than the time for the pulse to travel upstream. The difference in time between the upstream and downstream travel of the pulse is used to calculate the velocity of the flow. From this, the volumetric flow rate can be determined by using the known pipe dimensions.
Doppler Shift Method
The Doppler shift method works based on the frequency shift of the ultrasonic wave as it interacts with particles or bubbles within the fluid. As the fluid flows, the sound wave encounters particles or gas bubbles, which scatter the wave. The frequency of the scattered wave changes depending on the flow velocity, with a shift towards higher frequencies if the flow is towards the sensor, and towards lower frequencies if the flow is away from the sensor. The magnitude of this frequency shift is directly proportional to the flow velocity, and by measuring the Doppler shift, the flow rate can be calculated. This method is particularly useful for measuring flows of liquids that contain suspended particles or gas bubbles.
Types of Ultrasonic Flowmeters
Ultrasonic flowmeters can be classified into several types based on their construction, installation method, and the measurement principles they use. Each type has its advantages and is suitable for different applications. The main categories of ultrasonic flowmeters are:
Clamp-On Ultrasonic Flowmeters
Clamp-on ultrasonic flowmeters are mounted on the outside of the pipe, which makes them non-invasive and easy to install. This type of flowmeter is especially useful for applications where it is not feasible to cut into the pipe or where minimal disruption to the system is desired. The clamp-on design typically uses the transit-time method for flow measurement. The key advantage of clamp-on ultrasonic flowmeters is that they do not require any contact with the fluid, making them ideal for measuring the flow of potentially hazardous, corrosive, or high-temperature fluids.
In-Line Ultrasonic Flowmeters
In-line ultrasonic flowmeters, unlike clamp-on models, are installed directly into the pipeline. These flowmeters are often preferred for their ability to provide more precise and consistent flow measurements since they are in direct contact with the fluid. In-line models may employ either the transit-time or Doppler shift method, depending on the nature of the fluid being measured. These flowmeters are often used in applications where high accuracy is critical, such as in oil and gas, water treatment, and chemical processing industries.
Hybrid Ultrasonic Flowmeters
Hybrid ultrasonic flowmeters combine both the transit-time and Doppler shift methods in a single device. This dual-sensing capability allows for accurate flow measurement in a wider range of conditions. For example, hybrid ultrasonic flowmeters can measure clean liquids using the transit-time method and dirty or gas-laden liquids using the Doppler shift method. The hybrid design ensures that the flowmeter performs optimally, regardless of the fluid’s characteristics.
Advantages of Ultrasonic Flowmeters
Ultrasonic flowmeters are popular in industries and applications where accurate flow measurement is required, and they offer several advantages over traditional mechanical flowmeters. Some of the key benefits include:
Non-Invasive Measurement
One of the most significant advantages of ultrasonic flowmeters is their non-invasive nature. Since the sensors are mounted on the outside of the pipe (in the case of clamp-on models), there is no need to cut into the pipe or disrupt the flow of the fluid. This makes installation easier and less costly, and eliminates the need for any downtime during the installation process.
High Accuracy and Reliability
Ultrasonic flowmeters are known for their high level of accuracy. The precision in flow measurement is due to the sophisticated technology used to calculate flow velocity based on the propagation of sound waves. Since ultrasonic flowmeters do not have any moving parts, they are less prone to wear and tear, ensuring long-term reliability.
Wide Range of Applications
Ultrasonic flowmeters can be used to measure the flow of a wide variety of fluids, including both clean and dirty liquids, gases, and even slurries containing suspended solids. Their versatility makes them ideal for industries such as water and wastewater treatment, chemical processing, oil and gas, HVAC systems, and many others.
Minimal Maintenance Requirements
Unlike mechanical flowmeters, which may require regular calibration and maintenance due to the presence of moving parts, ultrasonic flowmeters have no such components, reducing maintenance costs and downtime. Once installed, they require minimal intervention and have a long operational lifespan.
Applications of Ultrasonic Flowmeters
Ultrasonic flowmeters are employed in a wide range of industries due to their ability to provide accurate and reliable flow measurements. Below are some of the most common applications of ultrasonic flowmeters:
Water and Wastewater Treatment
In water and wastewater treatment plants, ultrasonic flowmeters are widely used to measure the flow of water, sewage, and chemicals. The non-invasive nature of clamp-on ultrasonic flowmeters makes them especially valuable in situations where access to pipes is limited or where maintenance disruptions must be minimized.
Oil and Gas Industry
In the oil and gas industry, ultrasonic flowmeters are used to measure the flow of crude oil, natural gas, and refined products. These flowmeters are ideal for measuring both clean and dirty fluids, and they are often employed in pipeline monitoring, production facilities, and offshore operations. The ability to measure flow accurately without disrupting the system is a key factor in maintaining efficiency and reducing operational costs in this industry.
Chemical Processing
Ultrasonic flowmeters are used extensively in chemical processing plants where precise flow measurement is essential for maintaining product quality and ensuring safety. The ability to measure corrosive, abrasive, and hazardous chemicals without direct contact makes ultrasonic flowmeters ideal for these applications.
HVAC Systems
In heating, ventilation, and air conditioning (HVAC) systems, ultrasonic flowmeters are used to measure the flow of water and other fluids in pipes. Accurate flow measurements are essential for maintaining energy efficiency and ensuring that HVAC systems are operating at peak performance. Ultrasonic flowmeters help prevent overheating, ensure optimal water distribution, and manage energy consumption effectively.
Food and Beverage Industry
In the food and beverage industry, ultrasonic flowmeters are used to monitor the flow of liquids such as milk, juices, and beer. These flowmeters ensure accurate measurement during production, packaging, and distribution, and their non-invasive nature is crucial in maintaining hygiene standards in the production process.
Challenges and Limitations of Ultrasonic Flowmeters
While ultrasonic flowmeters offer many advantages, they are not without their challenges and limitations. Understanding these limitations is essential for selecting the right flow measurement technology for specific applications. Some of the challenges include:
Accuracy in Turbulent Flows
Ultrasonic flowmeters can sometimes struggle with accurately measuring flow in highly turbulent fluids, as the irregular flow patterns can interfere with the propagation of sound waves. This is particularly true for the transit-time method, where high turbulence can lead to errors in the time difference between upstream and downstream pulses. In such cases, additional flow conditioning devices may be required to ensure accuracy.
Installation Complexity
While clamp-on ultrasonic flowmeters are easy to install, in-line ultrasonic flowmeters can be more challenging. Proper installation requires careful alignment of the transducers and precise calibration, especially in larger systems or systems with complex flow patterns. Incorrect installation can lead to inaccurate readings, so it is crucial to follow manufacturer guidelines and best practices during setup.
Dependence on Fluid Properties
The performance of ultrasonic flowmeters can be affected by the properties of the fluid being measured. For example, the presence of air bubbles, suspended solids, or gas in the fluid can interfere with the sound waves and lead to measurement errors. The Doppler shift method can help address some of these challenges, but it is important to consider fluid characteristics when selecting a flowmeter.
Conclusion
Ultrasonic flowmeters are an invaluable tool for accurately measuring the flow of liquids, gases, and slurries in a wide variety of industrial applications. With their non-invasive operation, high accuracy, and minimal maintenance requirements, they offer several advantages over traditional mechanical flowmeters. Although they may face some challenges, such as difficulties with turbulent flows or fluid properties, ultrasonic flowmeters are still considered one of the most advanced and reliable flow measurement technologies available today. Understanding how ultrasonic flowmeters work, their various types, and their applications can help engineers and industries select the best flow measurement solution for their specific needs.
