Electrostatic voltmeters represent a class of precision instruments used to measure voltage levels without drawing any current from the circuit under test. These devices are uniquely suited for applications requiring high input impedance and accurate, non-contact voltage measurement. Unlike conventional voltmeters that rely on magnetic or electronic feedback mechanisms, electrostatic voltmeters operate on the principle of electrostatic force between charged plates, enabling measurement of both DC and low-frequency AC voltages with exceptional sensitivity.
How Do Electrostatic Voltmeters Work
At the core of the electrostatic voltmeter lies the principle of electrostatic attraction or repulsion between charged conductors. When a voltage is applied across two conductive plates separated by a dielectric medium, an electrostatic force is generated due to the potential difference. This force is proportional to the square of the voltage applied, enabling the device to translate the magnitude of this force into a measurable deflection or displacement.
The basic equation governing the force between two parallel plates is:
F = (ε₀ * A * V²) / (2 * d²)
where:
- F is the electrostatic force,
- ε₀ is the permittivity of free space,
- A is the area of the plates,
- V is the voltage across the plates, and
- d is the distance between the plates.
This relationship highlights the nonlinear dependence of force on voltage and plate separation. In practical instruments, mechanical linkages and springs are used to balance this force, allowing a calibrated reading of voltage based on displacement.
Construction and Design of Electrostatic Voltmeters

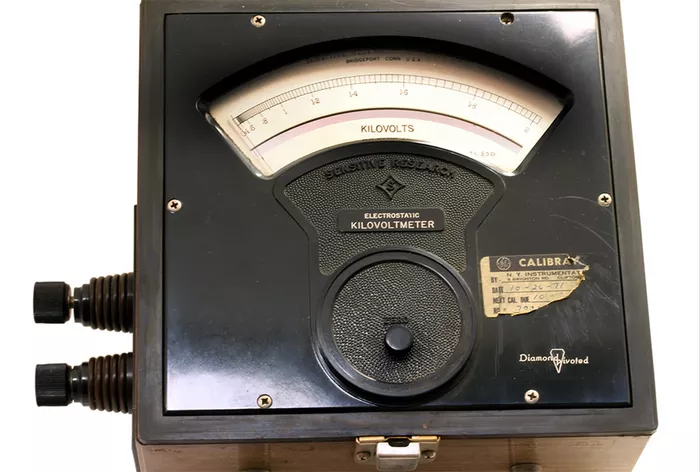

An electrostatic voltmeter typically consists of two main electrodes: a fixed plate and a movable plate. These plates are mounted in close proximity inside an insulating enclosure to prevent external interference. The movable plate is attached to a delicate suspension system, such as a torsion fiber or a spring, which allows it to deflect under electrostatic force.
The scale and pointer system is coupled to the movable electrode. When a voltage is applied, the electrostatic force causes the movable plate to shift, moving the pointer across a calibrated scale. Since the force depends on the square of the voltage, the scale is usually nonlinear, or the device incorporates mechanical or electronic compensation to linearize the readings.
Materials selection is critical for accuracy and stability. The plates are usually made of polished metal to ensure uniform electric fields, and the dielectric properties of the medium between the plates must remain stable to avoid measurement drift. Additionally, the entire assembly is often shielded to reduce the effect of external electric fields and electromagnetic interference.
Operational Characteristics and Advantages
Electrostatic voltmeters are prized for their very high input impedance, often in the range of hundreds of megaohms to gigohms. This characteristic allows them to measure voltage without significantly loading or altering the circuit under test—a critical factor when working with sensitive electronic components or high-voltage systems.
Because the measurement relies purely on electrostatic forces, there is virtually no current drawn from the source, unlike traditional voltmeters that may load the circuit due to their internal resistances. This makes electrostatic voltmeters ideal for applications in vacuum tubes, high-voltage power supplies, electrostatic experiments, and insulating materials testing.
They can measure both DC and low-frequency AC voltages effectively. However, their response time is slower compared to electromagnetic instruments because of the mechanical movement involved. Furthermore, the square-law dependence on voltage requires careful calibration and often compensation for accurate linear scale readings.
Types of Electrostatic Voltmeters
Moving-Plate Electrostatic Voltmeters
These traditional instruments use a movable electrode suspended by a torsion fiber or spring. When voltage is applied, the movable plate experiences an electrostatic force, causing it to deflect. The angular displacement is proportional to the square of the applied voltage. Calibration ensures the dial or pointer indicates the voltage magnitude directly.
Vibrating Electrode Electrostatic Voltmeters
To improve sensitivity and reduce errors from mechanical friction or inertia, vibrating electrode designs superimpose a small mechanical oscillation on the movable plate. This creates an AC component that can be measured electronically, increasing precision and reducing noise effects.
Electrostatic Voltmeters with Electronic Feedback
Modern designs may combine electrostatic force measurement with electronic feedback mechanisms to linearize the output and allow digital readouts. These hybrid instruments retain the high input impedance advantage while providing faster response and easier integration with automated systems.
Applications of Electrostatic Voltmeters
Due to their unique operating principle, electrostatic voltmeters find use in specialized fields including:
- High-voltage measurement: In laboratories and power distribution networks where precise voltage measurements are critical without circuit loading.
- Electrostatic field studies: For research involving electric fields and potentials, particularly in physics experiments.
- Vacuum tube technology: Measurement of electrode potentials without interfering with delicate tube operation.
- Material testing: In dielectrics and insulating materials where the voltage stress measurement is crucial.
- Calibration standards: Providing reference measurements due to their high accuracy and stability.
Limitations and Challenges
Despite their advantages, electrostatic voltmeters have some limitations:
- Nonlinearity: The square law relationship requires either nonlinear scales or electronic compensation to obtain linear voltage readings.
- Mechanical sensitivity: The delicate moving parts are susceptible to vibration, shock, and environmental factors, affecting reliability.
- Frequency limitations: They are generally limited to DC and low-frequency AC measurements; high-frequency voltages cause dynamic errors due to inertia.
- Size and cost: Precision construction and materials can make these instruments bulkier and more expensive than solid-state voltmeters.
How to Use and Calibrate an Electrostatic Voltmeter
Proper usage involves ensuring the voltmeter is isolated from external electric fields and vibrations. The instrument should be zeroed or balanced before measurements, usually by adjusting a mechanical screw or electronic offset control to set the pointer at zero with no applied voltage.
Calibration is performed by applying known voltages from a precision voltage source and recording the meter readings. A calibration curve is then developed, often involving polynomial fitting to correct for the nonlinear scale. Regular recalibration is necessary to maintain accuracy over time, especially when the device is used in varying environmental conditions.
Conclusion
Electrostatic voltmeters remain indispensable tools in fields where non-intrusive, high-impedance voltage measurement is essential. Their unique operation principle—measuring voltage through electrostatic forces—allows unparalleled sensitivity and accuracy in certain niche applications. Although they require careful calibration and handling due to their mechanical nature, ongoing innovations continue to enhance their usability and integration with modern measurement systems.
FAQs
What makes electrostatic voltmeters different from conventional voltmeters?
Electrostatic voltmeters measure voltage by detecting electrostatic forces between charged plates rather than relying on current flow or magnetic effects, resulting in extremely high input impedance and no circuit loading.
Can electrostatic voltmeters measure AC voltages?
Yes, they can measure low-frequency AC voltages, but their mechanical nature limits response at high frequencies, making them less suitable for high-frequency AC measurements.
Why is the scale of an electrostatic voltmeter nonlinear?
Because the electrostatic force depends on the square of the applied voltage, the scale is inherently nonlinear unless electronic or mechanical compensation is used to linearize the output.
Are electrostatic voltmeters suitable for field use?
While they offer high accuracy, their delicate mechanical parts and sensitivity to vibration and environmental factors generally make them more suitable for laboratory or controlled environments rather than harsh field conditions.
How often should an electrostatic voltmeter be calibrated?
Calibration frequency depends on usage and environmental factors but typically ranges from every 6 months to annually to ensure measurement accuracy and instrument reliability.
What are the common sources of error in electrostatic voltmeters?
Common errors include mechanical friction, environmental vibration, temperature variations affecting the dielectric medium, and external electromagnetic interference.
