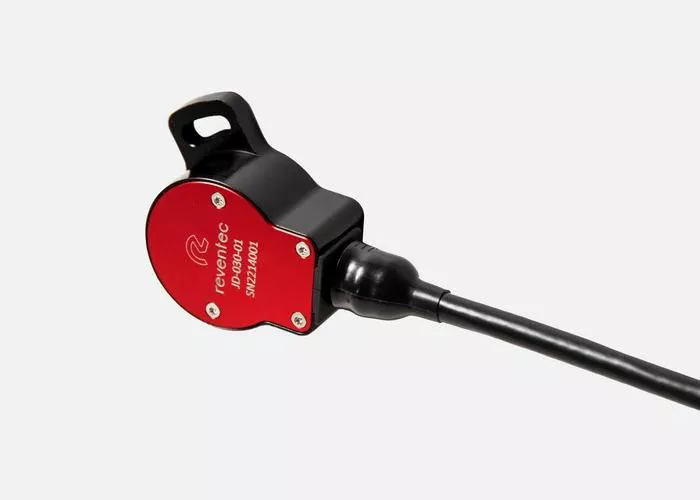

Tunnel Magnetoresistance (TMR) sensors are a class of magnetic sensors that have revolutionized the way magnetic field sensing is implemented in modern electronic systems. Derived from the principles of quantum mechanics and magnetoresistance, TMR sensors utilize a magnetic tunnel junction (MTJ) structure that changes resistance in the presence of a magnetic field. This feature allows them to measure magnetic fields with exceptional precision and sensitivity.
TMR sensors are commonly used in a broad spectrum of applications, including automotive systems, industrial automation, consumer electronics, and medical devices. Their ability to detect minute changes in magnetic fields, coupled with their low power consumption and high signal-to-noise ratio, makes them ideal for applications demanding accuracy and reliability.
How TMR Sensors Work
At the heart of a TMR sensor is the magnetic tunnel junction—a nanoscale sandwich of two ferromagnetic layers separated by an ultra-thin insulating barrier, often made of magnesium oxide (MgO). One of these magnetic layers has a fixed magnetic orientation, while the other is free to change its orientation in response to an external magnetic field.
When an electrical voltage is applied across the MTJ, electrons tunnel through the insulating barrier. The resistance of this tunneling current is affected by the relative orientation of the magnetizations of the two ferromagnetic layers.
In parallel orientation, the sensor exhibits low resistance. In antiparallel orientation, it exhibits high resistance.
The variation in resistance is proportional to the magnetic field strength and direction, allowing precise magnetic field measurements. This phenomenon is known as tunnel magnetoresistance and can produce resistance changes up to 600% or more, significantly higher than other magnetoresistive effects like Anisotropic Magnetoresistance (AMR) or Giant Magnetoresistance (GMR).
Advantages of TMR Technology
TMR sensors offer several compelling advantages over traditional magnetic field sensors.
High Sensitivity: Capable of detecting low-level magnetic fields with excellent accuracy.
Low Power Consumption: Ideal for battery-powered and energy-efficient applications.
Wide Bandwidth: Useful in high-speed signal processing applications.
High Output Signal: Reduces the need for external amplification circuits.
Long-Term Stability: Less prone to drift over time compared to Hall effect sensors.
These advantages have led to the adoption of TMR sensors in demanding environments such as automotive and aerospace applications, where precision and durability are critical.
Applications of TMR Sensors in Modern Systems
The flexibility and performance characteristics of TMR sensors allow them to be integrated across a wide range of technologies.
1. Automotive Systems
In automotive engineering, TMR sensors are used for position and speed detection, such as camshaft and crankshaft position sensing. Their high sensitivity ensures accurate engine timing, enhancing vehicle performance and efficiency. Additionally, TMR-based wheel speed sensors contribute to anti-lock braking systems (ABS) and electronic stability programs (ESP).
2. Industrial Automation
TMR sensors are increasingly used in robotics and manufacturing automation for precise position feedback, encoder systems, and proximity detection. Their ability to function reliably in harsh environments, including high temperatures and electromagnetic interference, makes them superior to many traditional sensors.
3. Consumer Electronics
In smartphones and tablets, TMR sensors are found in digital compasses and stylus tracking mechanisms. Their compact size and low power requirements make them suitable for space-constrained designs.
4. Medical Devices
Medical imaging systems and non-invasive diagnostic tools use TMR sensors to detect subtle magnetic fields associated with biological functions. Their sensitivity enables more accurate measurements, especially in magnetic field mapping and biomagnetic monitoring.
Comparison with Other Magnetic Sensors
TMR sensors are part of a broader family of magnetic sensors, including Hall effect, AMR, and GMR sensors. While each type has its strengths and ideal use cases, TMR technology stands out due to its exceptional performance metrics.
Hall Effect: Low sensitivity, low power consumption, low output signal, moderate stability
AMR: Moderate sensitivity, moderate power consumption, moderate output signal, good stability
GMR: High sensitivity, moderate power consumption, high output signal, good stability
TMR: Very high sensitivity, very low power consumption, very high output signal, excellent stability
Integration with Other Sensing Technologies
TMR sensors can be synergistically combined with other types of sensors to enhance system capabilities. For instance, pairing TMR sensors with infrared sensors enables dual-mode detection in smart devices, enhancing gesture recognition accuracy. Similarly, integrating TMR with flow sensors allows non-intrusive fluid flow measurement, especially in magnetic flow meters used in chemical or water treatment industries.
Another example is in advanced instrumentation systems, where TMR sensors provide magnetic field feedback in closed-loop control systems. This helps maintain accuracy and safety in automated processes.
Design Considerations for TMR Sensors
While TMR sensors offer numerous benefits, designers must consider the following aspects for optimal performance.
Magnetic Shielding: To minimize the impact of unwanted stray magnetic fields, appropriate shielding is often necessary.
Temperature Compensation: Some TMR sensors include built-in temperature compensation circuits to maintain accuracy across a wide temperature range.
Calibration and Linearity: Systems should incorporate calibration routines to ensure linearity and repeatability.
Integration with Microcontrollers: TMR sensors typically output analog or digital signals that can be easily interfaced with microcontrollers for real-time data processing.
Conclusion
Tunnel Magnetoresistance (TMR) sensors represent a significant leap forward in magnetic field sensing technology. Their unique working principle, high sensitivity, low power consumption, and robustness make them highly suitable for applications ranging from automotive and industrial systems to consumer electronics and medical diagnostics.
As industries continue to demand higher performance, greater accuracy, and reduced energy consumption, TMR sensors are poised to play an increasingly vital role in shaping the future of sensor technology.
FAQs
Q1: What makes TMR sensors different from Hall effect sensors?
TMR sensors offer significantly higher sensitivity and signal output compared to Hall effect sensors. While Hall sensors are simpler and cheaper, TMR sensors provide better accuracy, making them suitable for more demanding applications.
Q2: Are TMR sensors suitable for high-temperature environments?
Yes, many modern TMR sensors are designed to operate reliably at high temperatures, especially those used in automotive and industrial applications. Some models include built-in temperature compensation features.
Q3: Can TMR sensors detect 3D magnetic fields?
Yes, advanced TMR sensors can measure magnetic fields in three axes (X, Y, and Z), making them ideal for motion tracking, navigation, and spatial orientation systems.
Q4: Do TMR sensors require signal amplification?
Not typically. TMR sensors produce a high output signal that often eliminates the need for external amplification, simplifying circuit design and reducing power consumption.
Q5: Are TMR sensors expensive?
Although TMR sensors can be costlier than traditional sensors like Hall effect types, the benefits in sensitivity, power efficiency, and long-term stability often justify the higher initial investment in precision applications.
