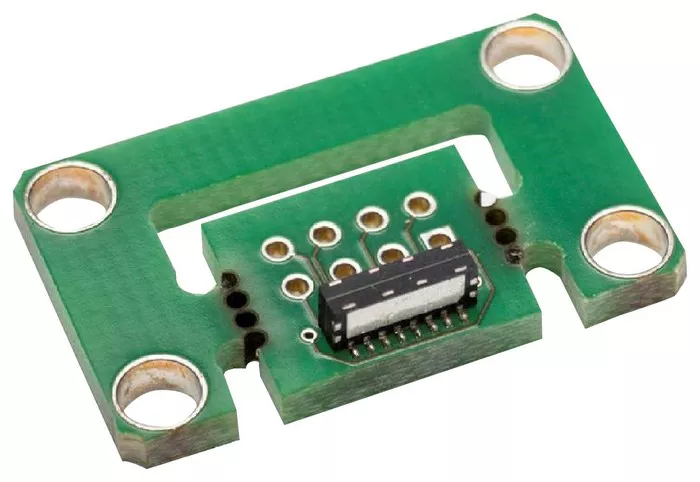

GMR sensors, or Giant Magnetoresistance sensors, are advanced magnetic field sensors that exploit the quantum mechanical phenomenon known as giant magnetoresistance. This effect was first discovered in 1988 by Albert Fert and Peter Grünberg, who later received the Nobel Prize in Physics for their groundbreaking work. GMR sensors have since become integral to various sectors, including data storage, automotive applications, and industrial instrumentation.
Giant Magnetoresistance refers to the significant change in electrical resistance that occurs in multilayered magnetic materials when subjected to a magnetic field. These materials typically comprise alternating thin layers of ferromagnetic and non-magnetic metals, such as iron and chromium. The resistance in these structures changes based on the alignment of magnetic moments in the layers — parallel alignment results in low resistance, while antiparallel alignment leads to high resistance.
How GMR Sensors Work
The structure of a GMR sensor consists of at least two ferromagnetic layers separated by a non-magnetic conductive layer. One of the ferromagnetic layers has a fixed magnetic orientation, while the other is free to align with external magnetic fields. When no external field is present, the layers are typically antiparallel, resulting in high resistance. However, in the presence of a magnetic field, the free layer aligns with the field, causing the layers to become parallel and the resistance to drop.
This change in resistance is directly proportional to the magnetic field’s strength and orientation, enabling precise magnetic field detection. The sensor can then convert this resistance change into an electrical signal, which is interpreted by a processing unit or microcontroller.
Types of GMR Sensor Configurations
There are several configurations of GMR sensors, each optimized for specific applications:
1. Spin-Valve GMR
Spin-valve GMR sensors are the most common. They consist of two ferromagnetic layers: one pinned and one free. These sensors offer high sensitivity and are widely used in hard disk drives and automotive systems.
2. Multilayer GMR
This configuration uses multiple alternating layers of ferromagnetic and non-magnetic materials. It offers a higher magnetoresistive ratio but is more complex to manufacture.
3. Granular GMR
In granular GMR structures, magnetic granules are embedded in a non-magnetic matrix. These are typically used in niche applications where miniaturization is essential.
Applications of GMR Sensors
GMR sensors have penetrated numerous industries due to their compact size, high sensitivity, and durability. Some of their key applications include:
1. Automotive Industry
GMR sensors are employed in anti-lock braking systems (ABS), speed sensing, camshaft and crankshaft position detection, and throttle position sensors. Their ability to function reliably in harsh environments makes them ideal for automotive use.
2. Data Storage
GMR technology was the backbone of early high-density hard disk drives. The sensors read data by detecting minute changes in magnetic fields as the disk spins under the read/write head.
3. Industrial Automation
In the realm of instrumentation, GMR sensors are used for non-contact position and angle sensing. They enhance system precision and reliability in robotic arms, conveyor systems, and motor controls.
4. Medical Devices
GMR sensors are used in bio-sensing and diagnostic tools. Their small size and high sensitivity make them ideal for detecting biomagnetic signals, such as those generated by the human heart and brain.
5. Consumer Electronics
Smartphones and wearable devices utilize GMR sensors for digital compass functionalities. Their fast response and low power consumption suit portable electronics perfectly.
Advantages of GMR Sensors
GMR sensors offer several benefits over traditional magnetic sensors like Hall effect or magneto-resistive sensors:
- High Sensitivity: GMR sensors detect very small magnetic field variations, often in the microtesla range.
- Low Power Consumption: Their passive operation requires less power, extending battery life in portable applications.
- Compact Form Factor: Their thin-film construction allows integration into miniature devices.
- High Signal-to-Noise Ratio: The output signal is robust against electrical and magnetic noise.
Challenges and Limitations
Despite their numerous advantages, GMR sensors are not without limitations:
- Temperature Sensitivity: Variations in temperature can affect sensor performance and accuracy.
- Complex Manufacturing: Producing multilayer thin films requires precise deposition techniques, increasing costs.
- Magnetic Hysteresis: In some configurations, hysteresis can degrade measurement linearity and repeatability.
Integration with Modern Sensing Technologies
GMR sensors are increasingly being integrated with other sensor technologies to enhance functionality. For example, in multi-sensor systems used in smart manufacturing, GMR sensors may work alongside vibration sensors to monitor equipment health or alongside flow sensors for fluid dynamics studies.
This hybrid approach is essential for complex applications like predictive maintenance, where detecting both magnetic and vibratory changes provides more accurate insights into machine behavior.
Design Considerations for GMR Sensor Implementation
When designing systems with GMR sensors, engineers must consider several factors to ensure optimal performance:
- Magnetic Field Strength: Ensure the expected field range matches the sensor’s sensitivity range.
- Temperature Compensation: Implement hardware or software solutions to account for thermal drift.
- Noise Filtering: Use proper shielding and signal conditioning to mitigate interference.
- Alignment: The sensor must be correctly aligned with the magnetic source for accurate readings.
Conclusion
GMR sensors represent a transformative technology that leverages quantum physics for practical applications in numerous industries. Their high sensitivity, small size, and adaptability make them a preferred choice for magnetic field sensing. As manufacturing techniques improve and integration with other sensor technologies becomes more seamless, GMR sensors are poised to play an increasingly pivotal role in the future of intelligent systems and automation.
FAQs About GMR Sensors
What makes GMR sensors different from Hall effect sensors?
GMR sensors offer higher sensitivity and a better signal-to-noise ratio than Hall effect sensors, making them more suitable for detecting weak magnetic fields.
Are GMR sensors suitable for high-temperature environments?
While GMR sensors perform well in many industrial applications, their performance can degrade at elevated temperatures unless proper compensation techniques are used.
Can GMR sensors detect direction as well as strength of magnetic fields?
Yes, GMR sensors can be configured to detect both the magnitude and direction of a magnetic field, depending on their design.
What are some common devices that use GMR sensors?
They are widely used in hard drives, automotive systems, industrial automation equipment, and wearable electronics.
How do GMR sensors compare with infrared sensors?
Infrared sensors detect thermal radiation and are used for motion detection or temperature measurement, while GMR sensors detect magnetic fields. Both are used in instrumentation but for fundamentally different physical phenomena.
