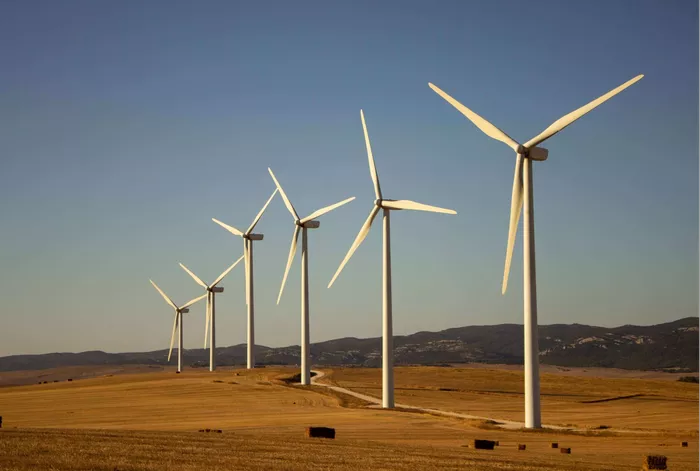

Horizontal-Axis Wind Turbines (HAWTs) represent the most widely recognized and deployed type of wind turbines across the globe. These machines harness the kinetic energy of wind to generate electricity, playing a crucial role in the transition toward renewable energy sources. Unlike their vertical-axis counterparts, HAWTs have blades that rotate around a horizontal axis, typically oriented to face the wind. This design has been optimized over decades to maximize aerodynamic efficiency, mechanical reliability, and energy output.
The advent and widespread deployment of HAWTs have revolutionized the energy sector, offering a sustainable alternative to fossil fuels. This article delves into the technical details of what HAWTs are, how they operate, and the engineering principles that govern their function. By understanding these fundamentals, one can appreciate the significance of HAWTs in modern energy infrastructure and their potential for future development.
What Are Horizontal-Axis Wind Turbines
Basic Structure and Components
A typical horizontal-axis wind turbine consists of several critical components: the rotor blades, hub, main shaft, gearbox, generator, nacelle, and tower. The blades are aerodynamically designed, often resembling airplane wings, to efficiently convert wind energy into rotational motion. They are mounted on a hub which connects to the main shaft. The main shaft transmits mechanical energy to a gearbox, which adjusts rotational speed suitable for the generator. The generator then converts mechanical energy into electrical energy.
The general mechanical design principles applied here ensure durability and efficiency. The nacelle houses the gearbox and generator, protecting these critical components from environmental factors. The tower elevates the rotor to higher altitudes where wind speeds are generally stronger and more consistent, improving energy capture.
Blade Design and Aerodynamics
Blade design is central to the efficiency of HAWTs. These blades are typically constructed using composite materials that offer an optimal balance between strength and weight. Aerodynamically, blades employ airfoil shapes that generate lift—a force perpendicular to the wind direction—that causes the rotor to spin. The angle of attack, blade pitch, and airfoil profile are meticulously engineered to maximize lift while minimizing drag.
In addition, the number of blades varies with application, but modern utility-scale HAWTs commonly use three blades. This number provides an ideal balance between mechanical complexity, aerodynamic efficiency, and noise reduction. As wind passes over the blades, the pressure difference on either side of the airfoil generates torque, turning the rotor shaft.
Yaw Mechanism and Orientation
For maximum energy extraction, the turbine must face the wind. The yaw system allows the nacelle and rotor to rotate about the tower axis, aligning the turbine with prevailing wind direction. Sensors detect wind direction, and motors adjust the yaw angle dynamically. This precise orientation is vital since even small deviations can significantly reduce the turbine’s energy capture.
How Horizontal-Axis Wind Turbines Work
Conversion of Wind Energy to Mechanical Energy
The operation of a HAWT begins with the wind striking the blades. Wind energy is kinetic energy, which depends on wind speed and air density. The blades intercept this kinetic energy and convert it into rotational mechanical energy through aerodynamic lift. The rotational speed is generally low but produces high torque, which must be converted for electrical generation.
The fundamental aerodynamic equation describing power extracted from wind is:
Power = 0.5 × ρ × A × v³ × Cp
where ρ is air density, A is the swept area of the blades, v is wind velocity, and Cp is the power coefficient—a measure of efficiency. Notably, the cubic relationship with wind speed highlights the critical influence of wind conditions on power output.
Role of the Gearbox and Generator
The rotational speed of the blades is often too slow to directly drive the generator, which requires higher rotational speeds for efficient electrical generation. A gearbox steps up the speed from the rotor shaft (typically 10-30 rpm) to the generator speed (usually 1,000-1,800 rpm). Although some modern designs use direct-drive generators to eliminate the gearbox, traditional HAWTs rely on this critical component.
The generator converts the mechanical rotational energy into electrical energy through electromagnetic induction. The quality of electrical output depends on generator design and control systems. These components together form the core of the turbine’s energy conversion process.
Control Systems and Safety Mechanisms
HAWTs are equipped with sophisticated control systems to optimize performance and protect the turbine under adverse conditions. Blade pitch control adjusts the angle of the blades relative to the wind to regulate rotational speed and power output. During high winds or storms, blades can be pitched to reduce aerodynamic forces, preventing damage.
Other safety mechanisms include braking systems that stop the rotor in emergency situations, and sensors that monitor vibrations, temperature, and other parameters. These systems ensure longevity and reliability of the turbine, even under fluctuating environmental conditions.
Advantages of Horizontal-Axis Wind Turbines
High Energy Efficiency
HAWTs are renowned for their high aerodynamic efficiency, typically reaching power coefficients up to 0.45, approaching the theoretical Betz limit of 0.59. This efficiency makes them the preferred choice for large-scale wind farms and utility applications.
Scalability and Versatility
These turbines can be scaled to megawatt capacities, suitable for commercial power generation. The modularity of components allows for easier maintenance and upgrades, enhancing operational flexibility. Their design also adapts well to different site conditions and wind regimes.
Proven Technology with Extensive Deployment
HAWTs have been widely adopted worldwide, benefiting from decades of research and continuous technological advancements. This extensive use has resulted in mature manufacturing processes, lower costs, and improved reliability compared to other turbine types such as vertical-axis or microturbines.
Challenges and Limitations
Mechanical Complexity and Maintenance
The moving parts such as gearboxes and yaw mechanisms add mechanical complexity, necessitating regular inspection and maintenance. Wear and tear on components can lead to downtime and repair costs, which must be factored into lifecycle economics.
Site-Specific Constraints
Optimal operation requires consistent and sufficiently strong winds, limiting suitable locations. Additionally, the visual and noise impact, as well as effects on wildlife, pose environmental and social challenges.
Dependence on Wind Variability
Because wind speeds fluctuate, power output from HAWTs is inherently intermittent. This variability necessitates integration with energy storage or backup systems for grid stability.
Conclusion
Horizontal-Axis Wind Turbines stand at the forefront of renewable energy technology, converting the natural power of wind into electrical energy with remarkable efficiency. Their sophisticated design, combining aerodynamic principles with robust mechanical and electrical engineering, enables scalable and reliable energy production. While challenges such as mechanical complexity and environmental impact exist, ongoing innovations continue to address these issues.
As the global demand for clean energy intensifies, HAWTs will remain a pivotal technology, advancing both in performance and integration with broader energy systems. Understanding their operation and design is essential for engineers, policymakers, and stakeholders committed to a sustainable energy future.
FAQs
What distinguishes horizontal-axis wind turbines from vertical-axis wind turbines?
HAWTs have blades that rotate around a horizontal axis and are generally more efficient, especially at large scales, compared to vertical-axis turbines whose blades rotate vertically. HAWTs require yaw mechanisms to face the wind, whereas vertical-axis turbines are omnidirectional but less aerodynamically efficient.
How does the blade pitch control system improve turbine performance?
Blade pitch control adjusts the angle of the blades relative to the wind, allowing the turbine to optimize lift and torque under varying wind conditions. It also acts as a safety feature by feathering the blades to reduce forces during high winds.
Why is a gearbox used in most horizontal-axis wind turbines?
The gearbox increases the low rotational speed of the rotor blades to the higher speed required by the generator for efficient electricity production. However, some turbines use direct-drive generators that eliminate the gearbox.
What materials are typically used to manufacture HAWT blades?
Blades are commonly made from composite materials such as fiberglass-reinforced epoxy or carbon fiber composites, which provide high strength-to-weight ratios, durability, and resistance to environmental degradation.
Can horizontal-axis wind turbines operate efficiently in low wind conditions?
HAWTs require a minimum wind speed (cut-in speed) to start generating power and are optimized for moderate to strong winds. Performance in low wind conditions is limited, which can impact energy yield in certain locations.
How do modern horizontal-axis wind turbines integrate with the electrical grid?
Modern turbines use power electronics to regulate voltage and frequency, ensuring stable and synchronized output. They may also be integrated with smart grid systems for load balancing, demand response, and improved grid reliability.
