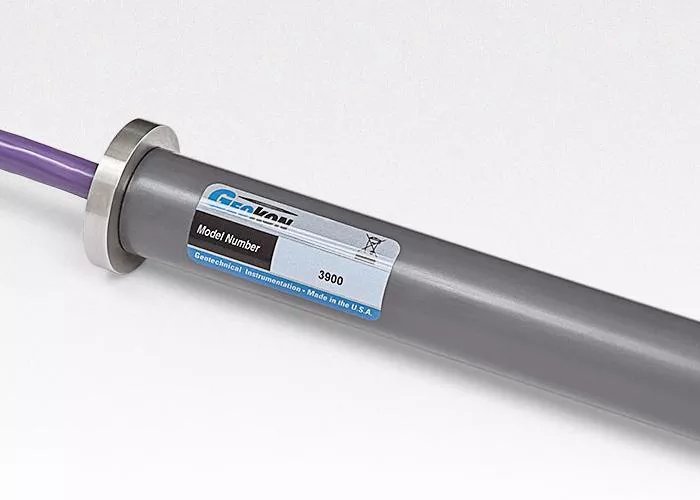

Dynamic strain gauges are specialized sensors designed to measure rapidly changing mechanical strain in materials and structures. Unlike static strain gauges, which measure slow or steady deformation, dynamic strain gauges capture transient, time-varying strain phenomena that occur under fluctuating loads, impacts, vibrations, and other dynamic conditions. These devices are crucial in applications where understanding the real-time mechanical behavior of components under variable stress is necessary for design validation, safety assurance, and structural health monitoring.
Fundamentals of Strain Measurement
Strain is defined as the deformation per unit length experienced by a material when subjected to stress. It is a dimensionless quantity often expressed in microstrain (µε), representing minute elongations or compressions in the material’s structure. Measuring strain accurately is fundamental to understanding the mechanical performance and durability of engineering components.
Strain gauges convert mechanical deformation into a measurable electrical signal, typically resistance change, that corresponds proportionally to the strain. When a strain gauge is bonded to a surface, any deformation of the surface alters the gauge’s length and cross-sectional area, thereby changing its electrical resistance. By tracking these resistance changes with sensitive electronic equipment, engineers can infer the amount and type of strain experienced by the material.
What Distinguishes Dynamic Strain Gauges?
Dynamic strain gauges differ from conventional static strain gauges primarily in their ability to capture high-frequency strain variations with precision. Their design, material selection, and installation methods are optimized to minimize signal distortion, noise, and phase lag that typically occur in dynamic environments.
Key characteristics that define dynamic strain gauges include:
- High-frequency response: Capable of accurately measuring strain signals that vary rapidly, often in the kilohertz (kHz) range or higher.
- Minimal signal lag: Ensures that the electrical output reflects real-time strain changes without delay.
- Robustness: Designed to endure cyclic loading, vibrations, shocks, and environmental stresses without degradation of performance.
- Enhanced sensitivity and stability: Maintains consistent calibration and linear response over repeated dynamic cycles.
How Dynamic Strain Gauges Work
The working principle of dynamic strain gauges is grounded in the fundamental physics of resistance change under mechanical strain. The typical construction includes a thin metallic foil or semiconductor element arranged in a grid pattern, bonded onto a flexible insulating backing. The entire assembly is then attached firmly to the test specimen’s surface using specialized adhesives that ensure strain transfer fidelity.
When the specimen undergoes deformation due to dynamic loading, the strain transfers through the adhesive layer and backing to the sensing element. This deformation alters the length and cross-sectional area of the sensing grid, changing its electrical resistance. The variation in resistance is converted into an electrical voltage signal using a Wheatstone bridge circuit or similar signal conditioning electronics.
Material Considerations for Dynamic Strain Gauges
The choice of sensing material is pivotal in defining the gauge’s dynamic performance. Common materials include:
- Metallic Foils: Typically composed of alloys such as constantan (copper-nickel) or isoelastic materials, metallic foil gauges provide reliable, linear strain measurement with good fatigue resistance. Their relatively low gauge factor (~2) limits sensitivity but enhances stability.
- Semiconductor Gauges: Utilizing silicon or other semiconductor substrates, these gauges offer extremely high sensitivity (gauge factors up to 100 or more) but can be more temperature-sensitive and fragile under dynamic conditions.
For dynamic applications, metallic foil gauges are preferred due to their proven durability and reduced susceptibility to signal noise from thermal fluctuations.
Signal Conditioning and Data Acquisition in Dynamic Strain Measurement
Capturing dynamic strain data requires sophisticated signal conditioning to ensure that the minute, rapid changes in resistance are accurately converted to meaningful electrical signals. Key elements in this process include:
- Wheatstone Bridge Circuit: A fundamental circuit that converts small resistance changes into voltage differences, enhancing measurement sensitivity.
- Amplifiers: Low-noise instrumentation amplifiers boost the signal strength without distorting the frequency response.
- Filters: Both analog and digital filters are used to remove unwanted noise and interference while preserving the relevant strain signal bandwidth.
- Data Acquisition Systems (DAQ): High-speed DAQ hardware captures and digitizes the strain signal at sampling rates matching or exceeding the dynamic event frequency.
Special attention is given to maintaining signal integrity over the entire frequency range of interest, preventing aliasing, and ensuring synchronization with other measurement channels.
Applications of Dynamic Strain Gauges
Dynamic strain gauges are employed across diverse industries and research fields, including:
- Aerospace: Monitoring the vibrational loads on aircraft wings, fuselage, and engine components during flight to detect potential fatigue and failure.
- Automotive: Measuring transient strain in suspension systems, crash tests, and engine components under rapid load changes.
- Civil Engineering: Structural health monitoring of bridges and buildings subjected to seismic activity or heavy traffic vibrations.
- Mechanical Testing: Characterizing material properties under dynamic loading conditions in laboratory environments.
- Rotating Machinery: Detecting shaft torsion and blade vibrations in turbines, compressors, and generators.
Installation and Calibration Challenges
Successful dynamic strain measurement hinges on meticulous installation and calibration. Challenges include:
- Adhesive Selection and Surface Preparation: The bonding layer must transmit dynamic strain without damping or signal loss, requiring clean, smooth surfaces and appropriate adhesive choices.
- Gauge Orientation: Accurate alignment with the principal strain direction is crucial to obtaining meaningful data.
- Temperature Compensation: Dynamic environments often involve temperature fluctuations that can skew resistance readings, necessitating compensation techniques.
- Calibration Procedures: Calibration must consider the dynamic frequency range and amplitude to ensure the strain gauge output corresponds correctly to actual strain under varying conditions.
Advanced Technologies and Trends in Dynamic Strain Gauges
Research and development in dynamic strain measurement continue to evolve, driven by the need for improved accuracy, miniaturization, and wireless monitoring capabilities. Emerging trends include:
- MEMS-Based Strain Sensors: Micro-electromechanical systems (MEMS) technology enables integration of strain sensing with signal processing in compact, low-power devices.
- Wireless Strain Gauges: Facilitate remote monitoring of dynamic strain without the constraints of wiring, enhancing deployment flexibility.
- Optical Fiber Strain Sensors: Use changes in light properties within fiber optics to detect strain, offering immunity to electromagnetic interference and suitability for harsh environments.
- Improved Signal Processing Algorithms: Machine learning and advanced filtering enhance the extraction of meaningful dynamic strain data from noisy environments.
Conclusion
Dynamic strain gauges are indispensable tools for capturing the real-time mechanical behavior of materials and structures under rapidly changing loads. Their design and functionality are tailored to provide high-fidelity measurements in challenging environments, supporting the advancement of engineering safety, performance, and reliability. Through precise material selection, robust installation techniques, and advanced signal conditioning, dynamic strain gauges unlock insights into transient phenomena that static measurement tools cannot capture.
FAQs
What is the difference between static and dynamic strain gauges?
Static strain gauges measure slow or steady strain, often at near-constant levels, while dynamic strain gauges are designed to capture rapid changes in strain over time, including vibrations, shocks, and transient loads.
Can dynamic strain gauges be used in high-temperature environments?
Yes, but they require special materials, adhesives, and compensation methods to maintain accuracy under elevated temperatures common in dynamic testing scenarios.
Why is signal conditioning important for dynamic strain measurement?
Because dynamic strain signals are often small and rapidly changing, signal conditioning ensures these signals are amplified, filtered, and converted accurately without distortion or loss, enabling reliable data capture.
Are wireless dynamic strain gauges reliable?
Wireless strain gauges have improved significantly and offer convenience and flexibility, but their reliability depends on factors like battery life, transmission range, and environmental interference, which must be managed carefully.
How is the frequency response of a dynamic strain gauge determined?
The frequency response depends on the gauge design, materials, adhesive layer, and the measurement system. It is typically validated through calibration tests that apply known dynamic loads at various frequencies.
What industries benefit most from dynamic strain measurement?
Aerospace, automotive, civil engineering, mechanical testing, and energy sectors benefit extensively from dynamic strain gauges to monitor structural integrity and performance under operational conditions.
