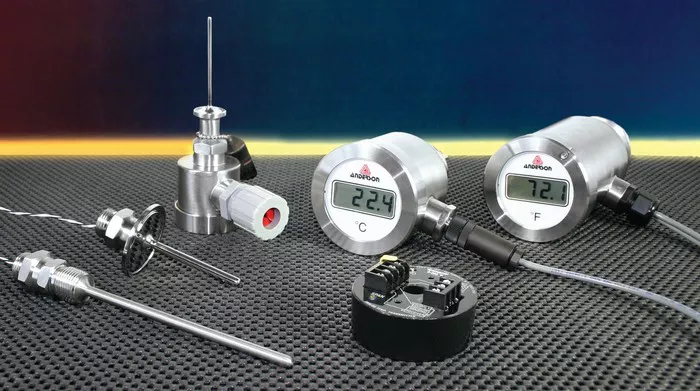

Resistance Temperature Detectors (RTDs) are widely used in various industries to measure temperature accurately and reliably. They are a type of sensor that operates on a simple yet highly effective principle: the electrical resistance of a metal changes with temperature. This property makes RTDs invaluable in applications ranging from industrial automation to aerospace and scientific research. Understanding how RTDs function, their design principles, and their applications is essential for engineers and technicians who work with temperature measurement systems.
1. What Are Resistance Temperature Detectors
RTDs operate on the principle that a material’s electrical resistance changes predictably with temperature. Typically made from pure platinum, nickel, or copper, these metals exhibit stable and repeatable resistance changes over a wide range of temperatures. Platinum is the most commonly used material due to its excellent linearity and resistance to corrosion and oxidation.
The relationship between temperature and resistance in RTDs is typically positive, meaning the resistance increases as the temperature rises. This predictable behavior is what allows RTDs to measure temperature so precisely.
2. Construction of Resistance Temperature Detectors
RTDs are constructed by winding a fine wire of the sensing metal around a ceramic or glass core. This wire is then encased in a protective sheath made of stainless steel or another suitable material to shield the sensor from environmental damage.
The construction of RTDs can vary:
- Wire-wound RTDs: Use a coil of wire embedded in a ceramic substrate.
- Thin-film RTDs: Have a thin layer of metal deposited on a ceramic base.
- Coiled element RTDs: Provide better mechanical stability and longer life under vibration.
Each type has its advantages and is chosen based on the specific application requirements, such as temperature range, sensitivity, and mechanical durability.
3. How Resistance Temperature Detectors Work
The operation of an RTD involves passing a constant current through the sensor and measuring the resulting voltage drop across it. This voltage is then used to calculate the resistance, which correlates directly to temperature.
The most commonly used RTD is the Pt100, which has a resistance of 100 ohms at 0°C. The resistance changes approximately 0.385 ohms per degree Celsius for standard Pt100 sensors.
RTDs can be connected in different wiring configurations to ensure accurate readings:
- 2-wire configuration: Simplest but susceptible to lead resistance errors.
- 3-wire configuration: Compensates for lead resistance; commonly used in industrial settings.
- 4-wire configuration: Offers the highest accuracy by eliminating lead wire resistance entirely.
4. Types of RTD Elements
RTDs are categorized based on the material of the sensing element and the method of construction. The most prevalent types include:
- Platinum RTDs: Preferred for their stability and wide temperature range (-200°C to +850°C).
- Nickel RTDs: Less expensive but limited in temperature range and linearity.
- Copper RTDs: High linearity but poor corrosion resistance, suitable for specific applications only.
Platinum RTDs, especially the Pt100 and Pt1000, are standardized according to IEC 60751 and are commonly used in precision temperature measurement applications.
5. Accuracy and Stability
RTDs are known for their high accuracy and stability over time. The accuracy of an RTD depends on factors such as:
- Tolerance class: Class A, B, or special tolerances.
- Material purity: Higher purity materials yield better accuracy.
- Calibration: Factory or field calibration can improve precision.
Stability is also a key advantage. Unlike thermocouples, which can drift over time, RTDs maintain their accuracy for extended periods under proper conditions.
6. Applications of RTDs
RTDs are employed in a wide range of industries due to their reliability and precision. Common applications include:
- Industrial automation: Monitoring and control of processes in chemical and manufacturing plants.
- HVAC systems: Temperature regulation and monitoring.
- Aerospace and defense: Used in engine testing and environmental monitoring.
- Medical devices: Applied in incubators and other sensitive equipment.
- Food and beverage: Ensuring safe and consistent processing conditions.
Their ability to provide accurate temperature readings makes them indispensable in scenarios where even small temperature deviations can affect product quality or safety.
7. Comparison with Other Temperature Sensors
When comparing RTDs to other temperature sensors such as thermocouples and thermistors, several key differences emerge:
Advantages of RTDs:
- Higher accuracy and stability.
- Better linearity over a wide temperature range.
- Long operational life when properly maintained.
Disadvantages:
- Higher initial cost.
- Slower response time compared to thermocouples.
- Susceptibility to mechanical shock and vibration.
While thermocouples are better suited for extremely high temperatures and rugged environments, RTDs excel in controlled environments where accuracy is paramount.
8. Installation and Maintenance
Proper installation and maintenance of RTDs are critical to ensuring long-term performance and accuracy. Some best practices include:
- Correct placement: Position the sensor where it can accurately reflect the temperature of the medium being measured.
- Avoiding mechanical stress: Prevent damage to the sensing element from vibration or impact.
- Regular calibration: Periodic checks to ensure the sensor remains within tolerance.
Use of thermal wells and protective sheaths can help extend the lifespan of the sensor and improve reliability in harsh environments.
9. Signal Conditioning and Output
RTD signals are typically very low voltage and require amplification and signal conditioning to be useful in control systems. This is done using RTD transmitters or signal conditioners, which convert resistance values into standardized output signals such as:
- 4-20 mA current loops
- 0-10 V voltage signals
- Digital outputs for integration with PLCs and DCS systems
Proper signal conditioning minimizes noise and ensures the integrity of the temperature measurement, especially in environments with electrical interference.
Conclusion
Resistance Temperature Detectors (RTDs) play a crucial role in modern temperature sensing solutions due to their high accuracy, stability, and repeatability. While they may come at a higher cost compared to alternatives like thermocouples, their precision and long-term reliability make them a preferred choice for critical applications across numerous industries. Understanding their working principles, installation techniques, and integration methods is essential for maximizing their benefits and ensuring accurate thermal management.
FAQs
Q1: What is the main advantage of using a platinum RTD over other types?
Platinum RTDs offer superior accuracy, excellent long-term stability, and wide temperature range capabilities, making them ideal for precision applications.
Q2: Can RTDs be used in corrosive environments?
Yes, when properly housed in protective sheaths or thermowells made of corrosion-resistant materials, RTDs can function effectively in corrosive conditions.
Q3: Why are 3-wire and 4-wire RTDs preferred over 2-wire types?
3-wire and 4-wire configurations help eliminate the error introduced by the resistance of the lead wires, thereby increasing measurement accuracy.
Q4: How often should RTDs be calibrated?
The calibration frequency depends on the application and required accuracy. Critical applications may require annual calibration, while others may need less frequent checks.
Q5: What causes RTDs to fail?
Common failure causes include mechanical damage, thermal cycling stress, corrosion, and improper installation practices. Regular maintenance can help mitigate these issues.
Q6: Are RTDs suitable for measuring rapidly changing temperatures?
RTDs generally have slower response times than thermocouples, so they are less suitable for rapidly fluctuating temperatures unless specially designed for such applications.
