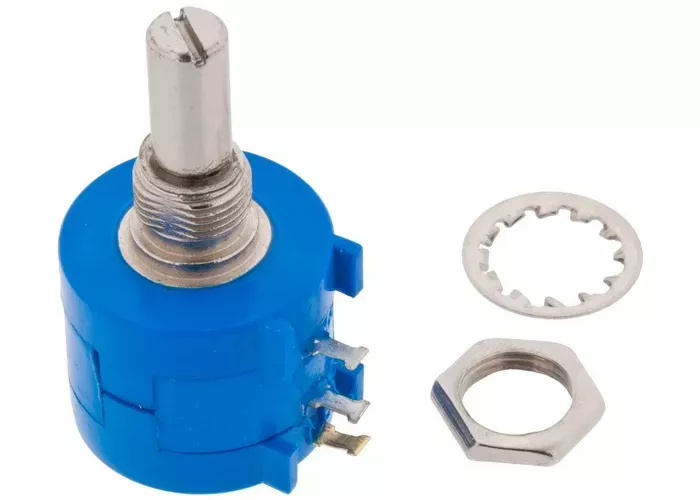

What Are Multiturn Potentiometers and How Do They Work?

by Annie

Multiturn potentiometers are essential components in the realm of precision electrical devices, frequently used for accurate position sensing, voltage adjustment, and calibration purposes. Unlike single-turn potentiometers, which complete their entire resistance adjustment over just one rotation, multiturn potentiometers offer multiple rotations—often ranging from 5 to 25 turns—to achieve a far finer degree of control over their resistance output. This unique feature makes them indispensable in various electrical equipment and instrumentation applications that demand high accuracy and stability.

What is a Potentiometer?

To appreciate the multiturn variant, it’s important first to understand the basic potentiometer. A potentiometer is a three-terminal variable resistor used to measure voltage, adjust signal levels, or control electrical devices. It consists of a resistive element, a sliding contact (wiper), and fixed terminals. By moving the wiper along the resistive path, the output voltage can be varied smoothly between the supply voltage and ground.

Standard potentiometers typically allow for a single 270-degree rotation of the shaft, which limits the resolution and precision of the adjustment. This constraint poses challenges when fine-tuning circuits or calibrating sensitive devices, which is where multiturn potentiometers excel.

The Structure and Design of Multiturn Potentiometers

Multiturn potentiometers incorporate a precision mechanical design that enables the shaft to rotate multiple full turns while still moving the wiper gradually along the resistive track. This is usually achieved through a worm gear mechanism, which translates the multiple rotations of the shaft into a slow and controlled linear displacement of the wiper.

The main components of a multiturn potentiometer include:

  • Resistive Element: Typically made from conductive plastic, cermet (ceramic-metal composite), or wire-wound materials, depending on the application’s accuracy and durability needs.
  • Wiper: The sliding contact that moves along the resistive element, changing the resistance output.
  • Worm Gear Assembly: A geared mechanism that allows multiple shaft rotations to correspond to a single, precise wiper movement.
  • Terminals: Three connection points – two at the ends of the resistive track and one for the wiper output.

How Do Multiturn Potentiometers Work?

The principle of operation is fundamentally the same as a standard potentiometer: varying the wiper position adjusts the voltage division ratio across the resistive element. However, the key difference lies in the mechanical advantage provided by the worm gear system. With each rotation of the shaft, the worm gear turns the wiper incrementally, ensuring that resistance changes are much finer and more controlled.

For example, a 10-turn potentiometer means that the shaft must be rotated 10 complete revolutions to move the wiper from one end of the resistive track to the other. This translates into approximately one-tenth the resistance change per degree of rotation compared to a single-turn potentiometer, significantly enhancing resolution and accuracy.

Applications of Multiturn Potentiometers in Electrical Equipment

Multiturn potentiometers find their niche in applications requiring precise adjustment and reliable repeatability. Common use cases include:

  • Calibration of Measurement Devices: In laboratory and industrial instrumentation, they allow technicians to fine-tune sensors and meters with great precision.
  • Position Sensing: In robotics and automation, multiturn potentiometers help accurately determine angular positions of joints or shafts.
  • Volume and Tone Controls: Some audio equipment uses multiturn potentiometers to allow users to adjust settings delicately.
  • Variable Power Supplies: To precisely regulate output voltage, ensuring safe and stable power delivery to sensitive circuits.
  • Feedback Systems: For example, in servo mechanisms, they provide continuous and accurate positional feedback.

Because of these uses, multiturn potentiometers are often integrated into complex electrical equipment where precision control is a necessity.

Types of Multiturn Potentiometers

Multiturn potentiometers come in different types based on the resistive material and construction method, including:

  • Wire-Wound Multiturn Potentiometers: These use a fine resistance wire wound around a cylindrical core. They offer high precision and durability but can be relatively bulky and more expensive.
  • Conductive Plastic Multiturn Potentiometers: These are lighter and more compact, with good linearity and a smooth adjustment feel, suitable for most general-purpose applications.
  • Cermet Multiturn Potentiometers: Combining ceramic and metal materials, these provide excellent wear resistance and stability, ideal for industrial environments.

Key Specifications and Performance Characteristics

When selecting a multiturn potentiometer, engineers consider several important parameters:

  • Resistance Value: Common ranges span from a few ohms to several megaohms, depending on the application requirements.
  • Number of Turns: Determines the resolution of adjustment. More turns provide finer control.
  • Tolerance: The accuracy of the resistance value, usually expressed as a percentage.
  • Power Rating: The maximum power dissipation the potentiometer can safely handle.
  • Linearity: How closely the resistance change corresponds to the angular position of the shaft, important for precision applications.
  • Temperature Coefficient: Resistance stability under temperature variations.
  • Mechanical Life: Number of operational cycles before wear affects performance.

Installation and Handling Considerations

To maintain the precision and longevity of multiturn potentiometers, careful installation and handling are required:

  • Avoid applying excessive torque to the shaft, as this can damage the worm gear mechanism.
  • Ensure proper mounting to prevent mechanical stresses or vibrations that might impair accuracy.
  • Protect the device from dust, moisture, and corrosive environments that could degrade the resistive element.
  • Use potentiometers with appropriate power ratings to prevent overheating and damage.

Advantages and Limitations of Multiturn Potentiometers

Advantages:

  • Exceptional resolution and fine-tuning capabilities.
  • Improved mechanical stability and durability over single-turn versions.
  • Reliable repeatability in calibration and control applications.

Limitations:

  • Generally larger and more complex than single-turn potentiometers.
  • Higher cost due to intricate mechanical construction.
  • Limited speed of adjustment; not suitable for applications requiring rapid changes.

Conclusion

Multiturn potentiometers represent a crucial class of variable resistors designed for applications where precision, fine adjustment, and reliability are paramount. Their unique worm gear mechanism enables multiple rotations to finely control resistance, making them ideal for a variety of electrical equipment and instrumentation uses. Understanding their design, operation, and specifications allows engineers to select and utilize them effectively, ensuring optimal performance in sensitive and exacting tasks.

FAQs

What distinguishes a multiturn potentiometer from a single-turn potentiometer?

A multiturn potentiometer allows multiple rotations of the shaft to traverse the full resistance range, providing finer resolution and control compared to a single-turn potentiometer that completes adjustment in less than one full rotation.

Where are multiturn potentiometers most commonly used?

They are widely used in calibration of measurement instruments, position sensing in automation, adjustable power supplies, and audio equipment for precise control.

Can multiturn potentiometers handle high power loads?

Multiturn potentiometers are typically designed for low to moderate power applications. For high power requirements, specialized wire-wound types with adequate power ratings should be selected to avoid overheating.

How long do multiturn potentiometers usually last?

Their mechanical life varies by design and usage but generally ranges from tens of thousands to several hundred thousand turns under normal operating conditions.

Are multiturn potentiometers affected by environmental factors?

Yes, exposure to dust, moisture, extreme temperatures, or corrosive substances can degrade performance. Proper sealing and protective measures are recommended for harsh environments.

Can multiturn potentiometers be used in digital circuits?

While they are analog devices, multiturn potentiometers can interface with digital systems by providing analog voltage input for analog-to-digital converters, allowing fine manual adjustment in mixed-signal designs.
