Force sensing resistors (FSRs) are essential components used in a variety of applications, particularly in sensors and interactive devices. These devices are highly valued for their simplicity and effectiveness in measuring force, pressure, or touch. Understanding how FSRs work can provide insights into their practical uses and the underlying technology that powers these sensors.
What Are Force Sensing Resistors

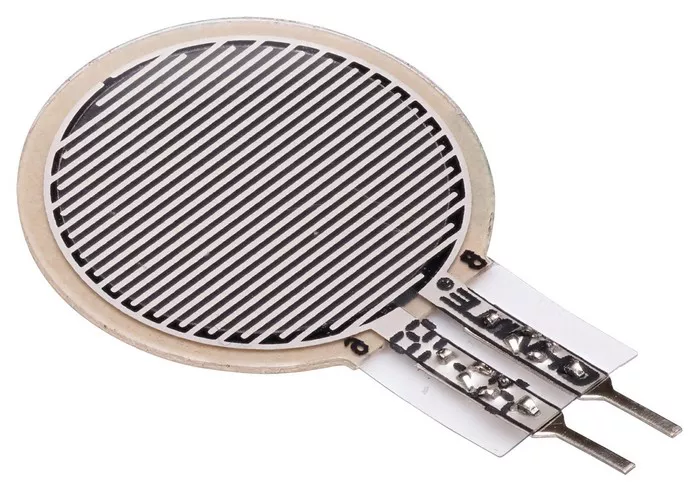

Force Sensing Resistors (FSRs) are sensors that change resistance when a force or pressure is applied to their surface. These sensors are typically used in applications where a measurement of pressure, force, or touch is required, such as in touch-sensitive devices, robotics, or medical equipment. Unlike traditional sensors that measure electrical properties like voltage or current, FSRs use a change in resistance to indicate the level of force applied.
The basic working principle behind FSRs is relatively simple: the resistance of the sensor decreases as the force applied to it increases. This change in resistance can be measured and calibrated into a readable value corresponding to the amount of force or pressure exerted on the sensor.
How Force Sensing Resistors Work
At the core of an FSR’s design is a material that exhibits piezoresistive properties—meaning its electrical resistance changes in response to applied pressure. The typical construction of an FSR consists of a flexible substrate, a conductive material, and an active sensing region. The conductive material used is often carbon-based or metal-coated, which makes it responsive to pressure and force.
Basic Components of an FSR
To better understand the operation of FSRs, it’s important to look at the key components of an FSR sensor:
- Substrate Material: The substrate provides the physical support for the FSR sensor. It is typically flexible and can be made from materials such as plastic, polyimide, or other flexible polymers.
- Conductive Layer: This layer forms the core of the FSR’s resistance-changing mechanism. It can be made from carbon-based materials or metal oxide coatings that change their resistance when pressure is applied.
- Sensing Area: The sensing area is the part of the sensor that interacts directly with the applied force. When pressure is applied to this area, the resistance of the conductive layer changes, which can be detected and measured.
- Electrodes: These are used to connect the sensor to a circuit. They are typically made of metallic materials and are placed at strategic locations on the FSR to facilitate the measurement of resistance changes.
Operating Principle of an FSR
The operation of an FSR can be described in a few simple steps:
- Pressure Application: When a force or pressure is applied to the surface of the FSR, the conductive layer is compressed.
- Change in Resistance: The compression causes the conductive material to change its resistance. The more pressure applied, the greater the reduction in resistance.
- Measurement: The change in resistance is measured by the surrounding circuit, which can then translate this change into a corresponding force or pressure value.
- Output Signal: The circuit outputs a voltage or current signal that is proportional to the amount of force applied to the sensor.
Applications of Force Sensing Resistors
FSRs are widely used across various industries due to their flexibility, ease of integration, and cost-effectiveness. Below are some key applications where FSRs have proven invaluable:
1. Consumer Electronics
In consumer electronics, FSRs are used in a variety of devices, from touch-sensitive interfaces to wearables. For example, many modern smartphones and tablets employ FSRs in their touch screens to detect user input, enabling intuitive user interaction through force-based gestures. Additionally, FSRs are used in gaming controllers and wearable devices to track pressure and movement, providing enhanced user experiences.
2. Robotics
In robotics, FSRs are integral to touch-sensitive robotic hands or grippers. These sensors allow robots to “feel” and respond to pressure, making them capable of manipulating objects with a degree of dexterity. For instance, FSRs are used in robot arms to measure the force applied when grasping or interacting with objects, ensuring that delicate items are not damaged by excessive force.
3. Medical Devices
In the medical field, FSRs are used in a variety of diagnostic and therapeutic devices. One such application is in the design of pressure-sensitive beds, where FSRs are used to monitor the pressure exerted on patients who are bedridden for extended periods. This helps in the early detection of pressure ulcers or bedsores. FSRs are also used in prosthetics to help detect and respond to pressure when a prosthetic limb is in use.
4. Automotive Industry
In the automotive sector, FSRs are used in seat pressure sensors, which detect the weight and position of the driver and passengers. This information is essential for features such as airbag deployment systems, as well as seatbelt tensioners. Additionally, FSRs are employed in pedals to detect the pressure applied by the driver, enabling advanced driving assistance systems (ADAS).
5. Industrial Applications
FSRs are also used in industrial applications to measure forces, pressures, and weights in various machinery and equipment. They are used in weighing scales, load cells, and other systems where precise force measurement is critical. These sensors offer a simple, cost-effective solution for pressure detection in industrial processes.
Advantages and Limitations of Force Sensing Resistors
Force Sensing Resistors offer numerous advantages, but they also come with some limitations. Understanding these factors is key to selecting the right sensor for any application.
Advantages
- Low Cost: FSRs are relatively inexpensive compared to other types of sensors, making them an attractive choice for a wide range of applications.
- Simplicity: The construction of FSRs is simple, making them easy to integrate into different systems. They do not require complex wiring or calibration, making them ideal for cost-sensitive projects.
- Flexibility: FSRs can be used in both rigid and flexible applications, thanks to their flexible substrates. This makes them suitable for wearable electronics and soft robotics.
- Rapid Response: FSRs provide fast responses to changes in force, which is critical in many interactive and real-time systems.
Limitations
- Non-Linear Output: One of the primary limitations of FSRs is that their output is not linear. The change in resistance with respect to force is often non-linear, which means that additional calibration is necessary to achieve accurate readings.
- Accuracy: While FSRs are good for general force sensing applications, they may not offer the precision required in high-accuracy systems like scientific instruments or advanced medical devices.
- Temperature Sensitivity: FSRs can be sensitive to temperature fluctuations, which may cause drift in their resistance values. Compensation circuits may be needed to mitigate these issues.
Conclusion
As technology advances, the use of Force Sensing Resistors is likely to expand. Researchers are exploring ways to improve the linearity, sensitivity, and accuracy of these sensors to make them even more reliable for high-performance applications. Furthermore, the development of new materials and manufacturing techniques could lead to even thinner, more flexible FSRs, enabling their use in new and innovative fields such as robotics, healthcare, and wearable technologies.
In conclusion, Force Sensing Resistors are a versatile and cost-effective solution for force and pressure sensing in a wide array of industries. Their ability to provide simple yet reliable measurements of pressure makes them a critical component in fields ranging from consumer electronics to robotics and healthcare. As advancements in technology continue, the applications of FSRs are poised to grow, offering even greater potential for innovation in the future.
