Laser displacement sensors are vital tools used in various industries for precise measurement of distance, position, and displacement. These sensors have become an essential part of modern measurement systems due to their high accuracy and non-contact nature. This article will explore the working principles, types, applications, and benefits of laser displacement sensors, as well as their advantages over other measurement technologies.
What Are Laser Displacement Sensors

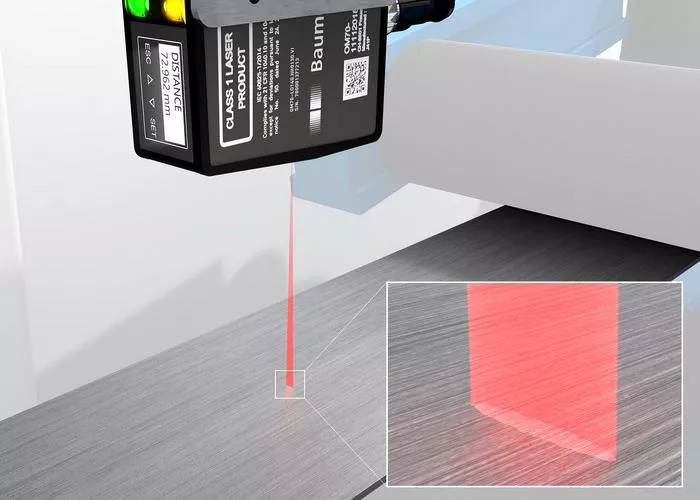

Laser displacement sensors are devices that use laser beams to measure the distance between the sensor and an object’s surface. These sensors are capable of detecting extremely small displacements with high precision, often down to micrometer levels. Unlike traditional mechanical methods, laser displacement sensors offer the benefit of non-contact measurement, reducing the risk of wear and tear on equipment while ensuring greater accuracy.
Laser displacement sensors are widely used in various applications, from manufacturing processes and quality control to automation and robotics. Their ability to measure a wide range of surfaces, whether reflective, dark, or rough, makes them a versatile tool in many different industries.
How Do Laser Displacement Sensors Work?
The operation of a laser displacement sensor is based on a simple principle: the measurement of the time it takes for a laser beam to travel to an object and reflect back to the sensor. This technique is called Time of Flight (ToF). The time interval between sending out the laser pulse and receiving the reflected pulse can be used to calculate the distance between the sensor and the object.
The basic working process of a laser displacement sensor involves the following steps:
- Emission of Laser Pulse: The sensor emits a laser pulse toward the target object. This pulse is typically infrared light, which is emitted from a laser diode.
- Reflection from the Object: The laser beam strikes the target surface and is reflected back towards the sensor.
- Detection of Reflected Light: The sensor receives the reflected light through a photodetector. The intensity and time it takes for the light to return provide information about the distance.
- Signal Processing: The sensor’s internal electronics calculate the time of flight and convert it into a precise measurement of distance or displacement.
Laser displacement sensors often use triangulation or time-of-flight principles. In the triangulation method, the sensor detects the angle at which the laser beam is reflected. This angle, combined with the known distance between the sensor and the beam source, allows the sensor to calculate the distance. Time-of-flight sensors, on the other hand, measure the time it takes for the light to travel to the target and back, as described above.
Types of Laser Displacement Sensors
Laser displacement sensors can be classified into various types based on their working principles, range, and accuracy. Below are some common types:
1. Triangulation-Based Laser Displacement Sensors
Triangulation-based laser displacement sensors operate by measuring the angle of the reflected laser beam. These sensors are typically used for short to medium-range measurements with high precision. Triangulation-based sensors are ideal for applications where high resolution is required, such as in quality control in manufacturing processes.
2. Time-of-Flight (ToF) Laser Displacement Sensors
Time-of-flight (ToF) laser displacement sensors measure the time it takes for a laser pulse to travel to the target and return. These sensors are suitable for long-range applications and are commonly used in applications where a large area needs to be scanned, such as in automotive manufacturing and large-scale industrial processes.
3. Confocal Laser Displacement Sensors
Confocal laser displacement sensors use a laser light source with a small spot diameter to scan an object. The sensor measures the displacement by focusing the laser at a specific point on the object. These sensors offer extremely high resolution and are commonly used for precise thickness measurements and surface profiling.
4. Laser Displacement Sensors with Built-In Data Processing
Some modern laser displacement sensors feature built-in data processing capabilities, allowing them to process the measurement data directly within the sensor. These sensors are equipped with microprocessors that can handle signal conditioning, filtering, and output of the measured data. This feature allows for easier integration into automated systems and makes them ideal for high-speed measurement applications.
Applications of Laser Displacement Sensors
Laser displacement sensors are utilized in various industries due to their precision and versatility. Below are some key applications:
1. Automotive Industry
In the automotive industry, laser displacement sensors are used for high-precision measurements of components during assembly and quality control processes. These sensors can measure the position of moving parts, ensuring proper fit and alignment. They are also employed in advanced safety systems and for the measurement of vehicle body parts.
2. Manufacturing and Quality Control
Laser displacement sensors play a crucial role in manufacturing by enabling the precise measurement of parts and components. In quality control, they are used to measure the dimensions and surface profiles of products to ensure they meet strict specifications. Laser displacement sensors offer higher accuracy than traditional mechanical measurement methods, reducing errors and waste.
3. Electronics Industry
The electronics industry relies on laser displacement sensors for the precise measurement of microcomponents. These sensors can measure tiny distances with micrometer-level accuracy, which is essential for the production of high-precision electronic devices like circuit boards, semiconductors, and microchips.
4. Robotics and Automation
Laser displacement sensors are commonly used in robotics and automation systems to monitor the position and movement of robotic arms and components. By providing real-time displacement measurements, these sensors help ensure the accuracy and precision of robotic operations in manufacturing lines, packaging systems, and assembly plants.
5. Civil Engineering and Infrastructure
Laser displacement sensors are used in civil engineering for monitoring the displacement of structures such as bridges, buildings, and dams. These sensors can detect minute movements, allowing for early detection of potential structural problems. They are also employed in geotechnical engineering for measuring ground subsidence and soil displacement.
6. 3D Scanning and Profiling
Laser displacement sensors are widely used in 3D scanning applications, where they can create detailed surface profiles of objects. This is useful in fields such as reverse engineering, industrial inspection, and archaeological studies. By capturing high-resolution surface data, these sensors enable accurate modeling of physical objects.
Advantages of Laser Displacement Sensors
Laser displacement sensors offer several advantages over traditional measurement systems. Some of these advantages include:
1. High Accuracy and Precision
One of the main advantages of laser displacement sensors is their high level of accuracy and precision. With the ability to measure displacements in the micrometer range, these sensors are ideal for applications where even the smallest deviation can have significant consequences. They are capable of measuring both large and small displacements with incredible precision.
2. Non-Contact Measurement
Laser displacement sensors provide non-contact measurement, which means there is no physical interaction between the sensor and the object being measured. This reduces wear and tear on the sensor and prevents any damage to the object. Non-contact measurement is especially important when measuring delicate or sensitive surfaces, such as semiconductor wafers or fragile glass components.
3. Wide Measurement Range
Laser displacement sensors can measure objects across a wide range of distances, from a few millimeters to several meters, depending on the sensor type. Time-of-flight sensors, in particular, are capable of measuring larger distances, making them suitable for long-range applications.
4. High-Speed Measurements
Laser displacement sensors can take measurements at very high speeds, making them suitable for dynamic applications where objects are moving quickly. This is especially beneficial in automated production lines and robotic systems, where fast and accurate displacement measurement is essential for maintaining the flow of operations.
5. Versatility
Laser displacement sensors are highly versatile and can be used to measure a wide range of surfaces, including shiny, reflective, and rough surfaces. This makes them suitable for diverse applications across different industries, from automotive and manufacturing to electronics and civil engineering.
Challenges and Limitations
Despite their many advantages, laser displacement sensors do have some limitations. For example:
1. Surface Properties
Laser displacement sensors rely on the reflection of the laser beam, which can be affected by the surface properties of the target object. Surfaces that are highly reflective or transparent may cause issues with the sensor’s ability to detect a clear reflection. In such cases, the sensor’s calibration may need to be adjusted.
2. Environmental Factors
Environmental conditions such as dust, fog, or extreme temperatures can affect the performance of laser displacement sensors. These sensors may also struggle in environments with poor lighting or when working with dark-colored or highly absorbent surfaces.
Conclusion
Laser displacement sensors are valuable tools that offer high-precision, non-contact measurement capabilities for a wide range of applications. From automotive manufacturing and robotics to quality control and civil engineering, these sensors provide reliable and accurate measurements, helping to improve the efficiency and quality of various industrial processes. As technology advances, laser displacement sensors are likely to become even more integral to modern manufacturing and automation systems.
