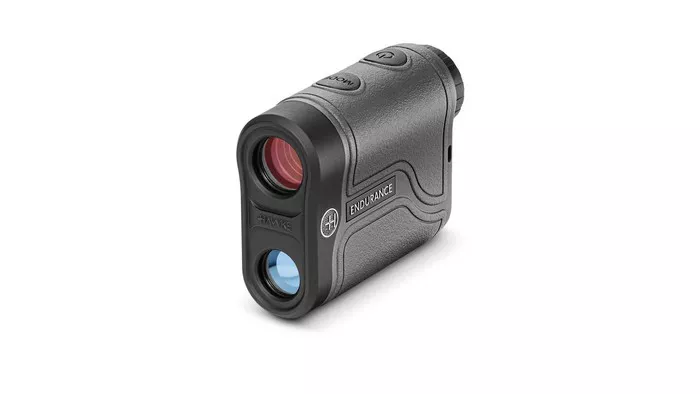

Laser range finders (LRFs) are precision instruments used to measure the distance from the device to a target point using laser technology. These devices are vital across a wide spectrum of industries—from military operations and surveying to forestry, sports, robotics, and industrial automation. Their key advantage lies in the ability to deliver accurate, real-time distance data quickly and reliably, even in challenging environments.
At their core, laser range finders utilize the properties of light, particularly the behavior of laser beams, to determine distances with impressive accuracy. In this article, we will delve into the underlying principles, technical components, and various applications of laser range finders, offering both a theoretical and practical understanding of these highly efficient devices.
The Evolution of Distance Measurement Techniques
Before diving into the workings of laser range finders, it is helpful to appreciate the evolution of distance measurement. Traditionally, measurements were carried out using mechanical tools such as chains, tapes, and measuring wheels. With the advent of optical devices like the theodolite and later total stations, the process became more accurate and efficient.
However, it wasn’t until the development of laser technology in the 1960s that precision distance measurement saw a revolutionary leap. Laser range finders offered a compact, non-contact, and high-speed solution, completely changing the landscape of distance measurement tools.
How Laser Range Finders Work
Laser range finders operate on a simple but powerful principle: they emit a laser beam toward a target and measure the time it takes for the beam to return after hitting the target. Using the speed of light as a constant, the device then calculates the distance using the formula:
Distance = (Speed of Light × Time of Flight) / 2
The division by two accounts for the round trip of the beam—from the device to the target and back again.
Time-of-Flight (ToF) Principle
The most common working principle in laser range finders is the Time-of-Flight (ToF) method. In this process, a short laser pulse is emitted from the range finder toward the target. A sensor in the device then records the time interval between the emission and detection of the reflected pulse. Given that light travels at a known constant (approximately 299,792 kilometers per second in a vacuum), the distance can be accurately calculated.
Phase-Shift Measurement
Another method used in some laser range finders is phase-shift measurement. Here, the device emits a modulated continuous wave laser, and the phase difference between the emitted and received signal is measured. This phase shift correlates directly to the distance, allowing for high-resolution distance measurements. Though typically more accurate than ToF methods, phase-shift systems are often more complex and costly.
Triangulation-Based LRFs
In specific short-range applications, triangulation methods are used. These involve projecting a laser spot onto the target and using an imaging sensor to capture the location of the spot. Based on the geometry of the setup, the distance to the target can then be calculated using trigonometric relationships. This method is especially common in 3D scanning and industrial automation environments.
Key Components of a Laser Range Finder
Laser Diode
The laser diode is the heart of the device, emitting a focused, coherent light beam. Most consumer and industrial range finders use near-infrared laser diodes (around 905 nm or 1550 nm), as these wavelengths are less harmful to the eyes and can travel long distances without significant scattering.
Photodetector
This component detects the reflected laser light from the target. High-speed photodiodes or avalanche photodiodes (APDs) are typically used due to their ability to respond to very short laser pulses with high sensitivity and speed.
Timing Circuitry
Precision timing circuitry is crucial in ToF systems, where the time taken by light to travel to and from the target is minuscule. Advanced range finders use high-frequency oscillators and signal processing algorithms to improve accuracy and reduce noise.
Microcontroller or DSP
A digital signal processor (DSP) or microcontroller interprets the data collected by the sensors, executes the distance calculations, and manages user interface functions. It may also filter data, manage memory, and support communication protocols such as Bluetooth or USB.
Types of Laser Range Finders
Handheld Laser Range Finders
These compact devices are widely used in construction, real estate, and interior design for quick measurements. They are user-friendly, battery-powered, and offer ranges typically from a few meters up to 200 meters.
Military and Tactical LRFs
In military applications, LRFs are mounted on weapons, vehicles, or drones for target acquisition and rangefinding. These devices often include additional features like ballistic calculators, night vision integration, and ruggedized enclosures.
Survey-Grade LRFs
Survey-grade LRFs are used in land surveying, civil engineering, and topographic mapping. Integrated into total stations or standalone, they provide extremely accurate data and are capable of interfacing with GPS and Geographic Information Systems (GIS).
Industrial and Robotic LRFs
Automation systems and mobile robots utilize laser range finders for obstacle detection, mapping, and navigation. These often employ 2D or 3D scanning LIDAR (Light Detection and Ranging) systems to create detailed spatial maps of their environment.
Sport and Consumer LRFs
Laser range finders are increasingly popular in sports such as golf, hunting, and archery. These consumer-grade devices focus on portability, speed, and ease of use, often including features like angle compensation and weatherproofing.
Accuracy and Limitations
Factors Affecting Accuracy
- Surface Reflectivity: Highly reflective targets return stronger signals, improving measurement accuracy.
- Atmospheric Conditions: Rain, fog, or dust can scatter the laser beam, affecting the signal-to-noise ratio.
- Target Size and Angle: A small or obliquely angled target may not reflect sufficient light back to the sensor.
- Beam Divergence: Over long distances, the laser beam can spread out, reducing the intensity of the reflected signal.
Range and Precision
The operational range of an LRF varies depending on its design and application. Consumer devices may have a range of up to 500 meters, while military-grade units can exceed 20 kilometers. Precision also varies—from ±1 mm in high-end survey instruments to ±1 meter in some consumer models.
Applications of Laser Range Finders
Construction and Architecture
In construction, LRFs aid in measuring site layouts, checking level alignments, and verifying dimensions during installations. Their ability to take quick, accurate measurements increases productivity and reduces human error.
Forestry and Environmental Studies
Foresters use laser range finders to measure tree heights, canopy depths, and distances in rugged terrains. Combined with GPS, they are valuable tools for environmental monitoring and land management.
Military and Defense
Military range finders are used in reconnaissance, artillery, and sniping to measure distances to targets. Integrated with fire control systems, they enhance accuracy and reduce collateral damage.
Surveying and Mapping
High-precision LRFs are foundational tools in surveying and geodesy. They are used in conjunction with total stations and GNSS to create topographic maps, define property boundaries, and manage infrastructure projects.
Autonomous Vehicles
In autonomous navigation, laser range finders (specifically LIDAR) are used to generate real-time maps of surroundings. They help vehicles detect obstacles, plan routes, and navigate complex environments.
Sports and Recreation
Golfers use LRFs to gauge distances to the hole or hazards. Hunters and archers rely on them to adjust aim based on range. Some models even incorporate slope adjustments and trajectory calculations.
Safety Considerations
Though laser range finders are generally safe, some emit beams powerful enough to pose risks, especially to the eyes. Devices are classified by the IEC (International Electrotechnical Commission) into safety classes from 1 (eye-safe) to 4 (hazardous).
Most commercial LRFs use Class 1 lasers, ensuring that even in accidental exposure, the light intensity is not sufficient to cause harm. However, military and industrial units may use higher-powered lasers requiring strict handling protocols and safety training.
Conclusion
Laser range finders represent a remarkable fusion of optics, electronics, and computational power. Their ability to deliver rapid, precise distance measurements across a diverse set of environments has transformed numerous fields, from construction and navigation to defense and recreation. Understanding the principles behind their operation not only highlights the ingenuity of modern engineering but also hints at the future potential of laser-based measurement systems.
As technology continues to advance, laser range finders will likely become even more integrated, intelligent, and indispensable—shaping the future of how we measure and interact with our world.
