In the realm of electrical and electronic engineering, ensuring the safety and reliability of devices is paramount. One crucial aspect of safety is verifying that insulation systems effectively prevent dangerous leakage currents or breakdowns that can lead to shocks, fires, or equipment failures. High Potential, or Hipot, testers are specialized instruments designed to conduct this vital insulation integrity testing. They simulate extreme voltage conditions to detect weaknesses in insulation before products reach end-users, safeguarding both people and property.
What Is a Hipot Tester?

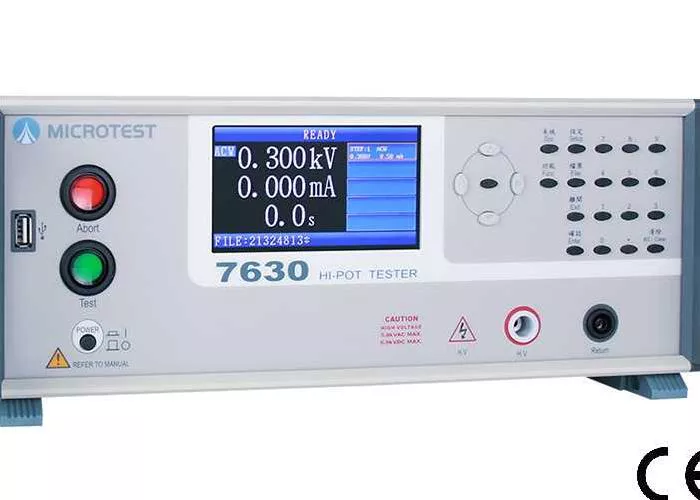

A Hipot tester, short for “High Potential” tester, is an electrical testing device that applies a high voltage—often much higher than the device’s normal operating voltage—to an electrical component or assembly. The objective is to verify whether the insulation within the device can withstand this voltage without breaking down. Essentially, a Hipot tester is used to confirm that the insulation barrier is robust enough to prevent current leakage, which could otherwise cause electrical shock hazards or damage.
Fundamentals of Hipot Testing
The Principle Behind Hipot Testing
Hipot testing operates on the basic electrical principle of applying a high voltage across insulation and monitoring any current that flows through. Under normal operation, the insulation should prevent current from passing, acting as a barrier. During a Hipot test, the voltage is raised significantly above normal levels, sometimes several thousand volts, to simulate extreme conditions. If the insulation is defective, even slightly, it will allow leakage current or, worse, break down entirely, signaling a failure.
Types of Insulation Tested
Hipot testers are employed across a wide variety of electrical and electronic components and systems, including but not limited to:
- Transformers
- Motors
- Printed Circuit Boards (PCBs)
- Cables and wiring harnesses
- Household appliances
- Power supplies
- Medical devices
Each of these requires rigorous insulation testing to comply with industry safety standards and regulations.
How Hipot Testers Work
Test Setup and Preparation
Before conducting a Hipot test, the device under test (DUT) is connected to the tester using specially designed leads and fixtures to ensure safety and proper electrical contact. The DUT must be isolated from other equipment to avoid unintended damage or erroneous readings. The operator sets the test voltage, test duration, and current trip limits based on the DUT’s specifications and applicable standards.
Voltage Application and Measurement
Once the parameters are set, the Hipot tester gradually ramps up the voltage to the preset test level. This step is crucial to avoid sudden voltage surges that might damage the DUT unnecessarily. The voltage is held constant during the test period, which can range from a few seconds to several minutes depending on the test standard.
During this time, the tester continuously monitors the leakage current flowing through the insulation. The current is typically measured in microamperes (µA), and any leakage above a predetermined threshold indicates potential insulation weakness or failure.
Types of High Voltage Tests Conducted
Hipot testers perform different kinds of tests, mainly:
- Dielectric Withstand Test (DWV): This test checks whether the insulation can withstand high voltage without breaking down. It involves applying a high AC or DC voltage for a specified duration and monitoring leakage current.
- Insulation Resistance Test (IR): Although not strictly a Hipot test, IR testing measures insulation resistance using a high DC voltage, usually at lower voltage levels compared to DWV.
- Leakage Current Test: Specifically measures current that leaks through the insulation at rated or test voltages, ensuring it remains within safe limits.
Pass/Fail Criteria and Safety Measures
If the leakage current exceeds the allowable limit or if the insulation breaks down, the tester automatically trips, terminating the test and flagging a failure. Operators rely on these clear pass/fail criteria to ensure only safe, compliant products progress through production.
Safety during testing is paramount because high voltages can be hazardous. Modern Hipot testers incorporate multiple safeguards including interlocks, emergency stops, current limiters, and warning indicators to protect personnel.
Technical Components of Hipot Testers
Voltage Source and Control Circuitry
At the heart of any Hipot tester is a high-voltage source capable of generating stable, controlled voltages up to tens of kilovolts. This is often accomplished using step-up transformers combined with electronic control circuits that precisely regulate voltage ramp-up, hold time, and ramp-down. Some testers use solid-state power supplies or resonant converters for enhanced performance and efficiency.
Leakage Current Measurement System
The leakage current sensor is a highly sensitive ammeter designed to detect very low currents that indicate insulation degradation. It must distinguish between normal capacitive current caused by the device’s inherent capacitance and harmful resistive leakage currents. Advanced testers employ filtering and signal processing techniques to ensure accurate measurement.
User Interface and Data Logging
Modern Hipot testers come equipped with digital displays, programmable test sequences, and connectivity options for data logging and quality control. Operators can define test protocols according to international standards such as IEC, UL, or MIL specifications. Logged data supports traceability and facilitates root cause analysis when failures occur.
Applications and Industry Standards
Industries That Rely on Hipot Testing
Hipot testing is indispensable across multiple industries, including:
- Manufacturing: Ensures products such as motors, transformers, and cables meet safety standards before shipment.
- Consumer Electronics: Guarantees safe operation of household appliances and gadgets.
- Automotive: Validates insulation integrity in electric vehicles and hybrids, where high voltages are common.
- Medical Equipment: Verifies patient safety by checking device insulation rigorously.
- Aerospace and Defense: Maintains high-reliability standards under harsh operating environments.
Key Safety Standards Governing Hipot Testing
Hipot testing procedures and acceptance criteria are guided by internationally recognized standards, including but not limited to:
- IEC 61010: Safety requirements for electrical test equipment.
- UL 60950-1 and UL 62368-1: Safety standards for information technology and audio/video equipment.
- IEEE Std 43: Standard for insulation testing of rotating machinery.
- ISO 6469: Safety specifications for electric vehicles.
Compliance with these standards ensures that the testing performed provides a reliable measure of product safety and durability.
Advancements and Trends in Hipot Testing Technology
Digital and Automated Testing Systems
The evolution of Hipot testers has moved from simple manual devices to fully automated, computer-controlled systems capable of running complex test sequences and integrating with manufacturing execution systems (MES). Automation reduces human error, increases throughput, and enables more consistent quality control.
Enhanced Safety Features and User Ergonomics
Modern Hipot testers incorporate touchscreens, intuitive software, and comprehensive safety interlocks. Remote operation capabilities allow technicians to conduct tests from a safe distance, mitigating risks associated with high voltage exposure.
Integration with Predictive Maintenance and IoT
Emerging trends include the integration of Hipot testing data into IoT platforms and predictive maintenance systems. This allows manufacturers to monitor insulation degradation over time, forecast failures before they occur, and optimize maintenance schedules, thereby enhancing reliability and reducing downtime.
Practical Considerations When Using Hipot Testers
Selecting the Right Hipot Tester
Choosing an appropriate Hipot tester depends on the voltage requirements, the nature of the DUT, production volumes, and compliance standards. For example, a manufacturer of low-voltage consumer electronics may require a different tester than a producer of high-voltage industrial transformers.
Test Environment and Safety Protocols
Tests should be conducted in controlled environments with proper grounding and isolation. Operators must be trained and follow strict safety protocols including the use of personal protective equipment (PPE) and emergency shutdown procedures.
Interpreting Test Results
Understanding the subtle distinctions between capacitive leakage currents and resistive failures is critical. Test parameters should be carefully tailored to the DUT’s characteristics, and borderline results often warrant additional investigation or retesting.
Common Challenges and Troubleshooting in Hipot Testing
Dealing with False Failures
Capacitive loads or moisture on test leads can cause leakage current readings that mimic failures. Proper test setup, lead conditioning, and environmental control help minimize such occurrences.
Equipment Calibration and Maintenance
Regular calibration of Hipot testers is essential to maintain accuracy. Internal components such as transformers and sensors may degrade over time, necessitating periodic inspection and servicing.
Conclusion
Hipot testers play an indispensable role in verifying insulation integrity and ensuring electrical product safety across a vast array of industries. By subjecting devices to rigorous high-voltage stress, they help identify defects early in the manufacturing process, protecting users from electric shock hazards and preventing costly failures in the field. Understanding how Hipot testers work, their technical makeup, and practical applications equips engineers and technicians to uphold the highest standards of safety and quality in their products.
