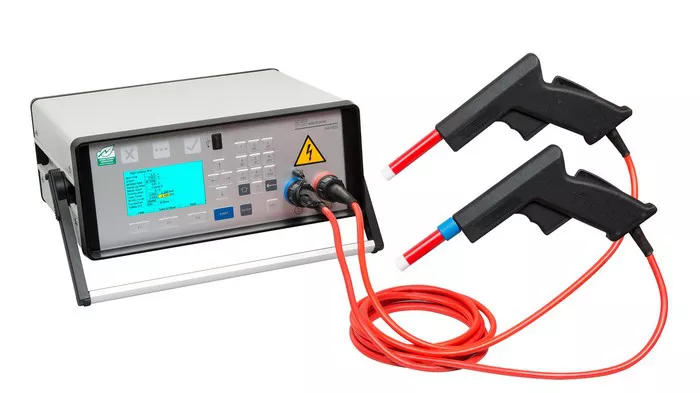

High-voltage measuring instruments play a critical role in electrical engineering, particularly in power generation, transmission, and distribution systems. Accurate measurement of high voltages is essential for system safety, operational efficiency, equipment maintenance, and fault detection. In environments where voltages can exceed tens or hundreds of kilovolts, direct measurement using standard instruments is impractical and dangerous, necessitating specialized tools and techniques designed for high-voltage applications.
Challenges in High-Voltage Measurement
Measuring high voltages poses unique challenges that differ significantly from low-voltage measurement. The primary concerns include ensuring operator safety, avoiding damage to measuring devices, maintaining measurement accuracy over long distances and under high electromagnetic interference, and managing insulation and electrical stress. The sheer magnitude of voltage necessitates the use of indirect measurement techniques that can safely scale down the voltage to a manageable level without compromising accuracy.
Types of High-Voltage Measuring Instruments
Voltage Transformers (Potential Transformers)
Voltage transformers, also known as potential transformers (PTs), are a common type of high-voltage measuring instrument used in power systems. PTs function by stepping down high voltages to a lower, standardized voltage level (usually 110V or less) that can be safely measured by standard instruments. They operate on electromagnetic induction principles, where the primary winding is connected to the high-voltage circuit and the secondary winding provides a scaled-down output proportional to the input voltage.
Capacitive Voltage Dividers
Capacitive voltage dividers utilize capacitors connected in series across the high-voltage source to divide the voltage according to the ratio of capacitances. These devices are favored for their accuracy, high-frequency response, and ability to measure transient voltages. The voltage across one capacitor is measured and then mathematically scaled to determine the original high voltage. Capacitive dividers are often used in high-voltage testing laboratories and transient voltage monitoring applications.
Electrostatic Voltmeters
Electrostatic voltmeters are non-contact instruments that measure voltage based on electrostatic forces between charged plates. They are designed for high-impedance measurement, ideal for very high voltages where conventional loading of the circuit is undesirable. These meters can measure DC and AC voltages without direct electrical connection to the source, minimizing the risk of disturbance or damage to the circuit.
Resistive Voltage Dividers
Resistive voltage dividers employ a series combination of precision resistors to scale down high voltage to a measurable low voltage. Although they introduce some power loss and heat generation, careful design and high-quality resistors can achieve accurate and stable measurements. Resistive dividers are commonly used for steady-state measurements and in conjunction with other instruments like oscilloscopes for waveform analysis.
Electro-Optical Voltage Sensors
More recent advances include electro-optical voltage sensors that exploit the electro-optic effect in certain crystals to measure voltage without direct electrical contact. These sensors offer immunity to electromagnetic interference, high accuracy, and inherent safety advantages, making them suitable for harsh and high-voltage environments. Their non-invasive nature also reduces system downtime during installation and maintenance.
How High-Voltage Measuring Instruments Work
Electromagnetic Induction in Voltage Transformers
Voltage transformers operate on the principle of electromagnetic induction. When an alternating current (AC) voltage is applied to the primary winding, it generates a magnetic flux in the transformer‘s core. This flux induces a voltage in the secondary winding proportional to the turns ratio of the transformer. The voltage on the secondary side is thus a scaled replica of the primary voltage but reduced to a safe, measurable level. Proper insulation, core design, and shielding are crucial to ensure accuracy and safety.
Voltage Division Using Capacitors and Resistors
Capacitive and resistive voltage dividers function by dividing the voltage according to the ratio of their reactive or resistive components. In a capacitive divider, the voltage division ratio is determined by the capacitance values, whereas in a resistive divider, it depends on the resistance values. By measuring the voltage across one element and knowing the ratio, the original high voltage can be calculated accurately. This indirect method minimizes the direct exposure of measuring instruments to high voltage, enhancing safety and reducing the risk of damage.
Electrostatic Force Measurement in Electrostatic Voltmeters
Electrostatic voltmeters measure the voltage by detecting the electrostatic force between two charged electrodes. When a high voltage is applied to one electrode, it induces an electrostatic field that attracts or repels the other electrode, causing mechanical displacement proportional to the voltage magnitude. This displacement is converted into a readable value. Since this method does not draw current from the circuit, it provides high input impedance and negligible loading effects.
Optical Modulation in Electro-Optical Sensors
Electro-optical sensors utilize crystals whose optical properties change when subjected to an electric field (the Pockels effect). A polarized light beam passes through the crystal, and the voltage-induced change in the crystal modulates the polarization state of the light. This modulation is detected by photodetectors and converted into an electrical signal proportional to the applied voltage. The absence of direct electrical connection improves safety and enables measurement in high-voltage and high-frequency environments.
Applications of High-Voltage Measuring Instruments
Power System Monitoring and Control
High-voltage measuring instruments are indispensable for real-time monitoring and control of power systems. Voltage transformers provide essential inputs to protective relays, meters, and SCADA systems, ensuring system stability and preventing faults. Accurate voltage measurements enable operators to detect abnormalities, manage load distribution, and optimize power flow.
High-Voltage Testing and Calibration
In laboratories and manufacturing facilities, high-voltage measuring devices are used to test insulation, verify equipment ratings, and calibrate other instruments. Capacitive and resistive dividers, combined with oscilloscopes and digital recorders, facilitate detailed waveform analysis during transient and impulse testing.
Research and Development
Electro-optical sensors and electrostatic voltmeters find extensive use in research and development of new high-voltage equipment and technologies. Their high accuracy and non-intrusive nature make them suitable for experimental setups involving pulsed power, high-frequency switching, and novel insulation materials.
Safety and Compliance
Regulatory standards for electrical safety and equipment performance require accurate high-voltage measurements. Measuring instruments enable compliance verification, ensuring that electrical installations meet national and international safety codes, thus protecting personnel and infrastructure.
Design Considerations and Safety Aspects
Insulation and Creepage Distances
High-voltage measuring instruments must incorporate robust insulation materials and adequate creepage distances to prevent electrical breakdown and flashovers. The choice of insulation depends on voltage levels, environmental conditions, and mechanical stresses. Proper design ensures reliability and extends the service life of instruments.
Accuracy and Frequency Response
Accuracy is paramount in high-voltage measurement. Instruments must maintain consistent performance across operating conditions, including temperature, humidity, and frequency variations. Frequency response is particularly important when measuring transient or switching phenomena, requiring design optimization for minimal phase shift and amplitude error.
Safety Protocols
Safety protocols for high-voltage measurements include using insulated tools, remote measurement techniques, and protective barriers. Instrumentation is often equipped with built-in safety features such as surge protection, overload capability, and fail-safe design. Operators must follow established guidelines and wear appropriate personal protective equipment.
Conclusion
High-voltage measuring instruments are essential tools in modern electrical engineering, enabling safe, accurate, and reliable measurement of voltages in power systems and high-voltage equipment. From traditional voltage transformers and voltage dividers to advanced electro-optical sensors, each type of instrument employs distinct principles tailored to specific measurement challenges. As technology evolves, these instruments continue to improve, incorporating digital features, enhancing safety, and expanding their application scope. Understanding their operation and design considerations is fundamental for engineers involved in power system management, testing, and research.
