What Are Inductive Sensors and How Do They Work?

by Annie

Inductive sensors play a pivotal role in modern automation, manufacturing, robotics, and numerous other industrial applications. These devices are renowned for their ability to detect metal objects without physical contact, offering highly reliable and durable performance in harsh environments. In this article, we explore the fundamental principles behind inductive sensors, their construction, working mechanism, types, advantages, limitations, and practical uses across various sectors. Understanding how inductive sensors operate is essential for engineers, technicians, and industry professionals who seek to optimize machine control and enhance operational safety and efficiency.

What Is Inductive Sensing

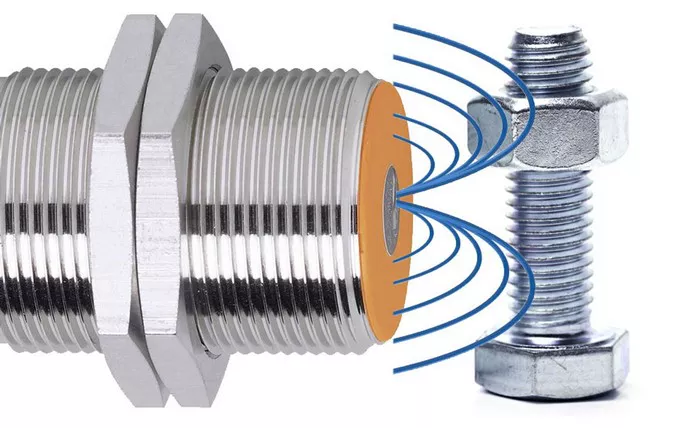

Inductive sensors operate on the principle of electromagnetic induction. At their core, these sensors consist of a coil through which an alternating current (AC) flows, generating an oscillating magnetic field around the sensor’s sensing face. When a conductive metal object enters this magnetic field, eddy currents are induced within the metal, creating a secondary magnetic field that interacts with the sensor’s primary field. This interaction causes a measurable change in the coil’s inductance, which the sensor’s electronics detect and interpret as the presence of a metal object.

More specifically, the sensor coil forms part of an LC oscillator circuit. When a metal target approaches, the oscillation amplitude decreases due to energy being dissipated by the eddy currents. The sensor’s internal circuitry senses this change in oscillation amplitude or frequency and converts it into an electrical output signal, often a binary output indicating whether the target is present or absent.

Construction and Components of Inductive Sensors

The fundamental components of a typical inductive sensor include:

  • Sensing Coil: A tightly wound copper wire coil that generates the electromagnetic field when energized.
  • Oscillator Circuit: Drives the coil with a high-frequency AC signal, producing a stable oscillation.
  • Demodulator or Signal Processing Unit: Monitors changes in oscillation amplitude or frequency caused by the presence of metal targets.
  • Output Stage: Converts the detected change into a usable electrical output signal, such as a switch or transistor output.
  • Housing and Sensing Face: Encases the components, often made from durable materials like stainless steel or plastic, with a sensing face designed to withstand environmental challenges such as dust, oil, moisture, and mechanical impact.

The coil and oscillator are usually housed behind a non-metallic sensing face, which allows the magnetic field to pass freely without interference. The sensor housing is typically cylindrical or rectangular, depending on the intended application and mounting preferences.

How Do Inductive Sensors Work

Electromagnetic Induction

The cornerstone of inductive sensing is electromagnetic induction, first described by Michael Faraday in the 1830s. The sensor coil, energized by a high-frequency AC current (often between 10 kHz to 500 kHz), creates an oscillating magnetic field. When a conductive target approaches, currents induced in the metal oppose the coil’s magnetic field according to Lenz’s Law, reducing the coil’s effective inductance.

Oscillator Response and Signal Detection

This change in inductance directly affects the oscillator circuit’s performance. Without a target, the oscillator maintains a steady amplitude and frequency. When a metal object enters the sensing field, energy is transferred from the coil to the target via eddy currents, lowering the oscillator’s amplitude. The sensor electronics detect this drop and trigger the output to signify detection.

Types of Metal Detected

Inductive sensors are sensitive primarily to conductive metals such as steel, iron, aluminum, copper, and brass. However, sensitivity varies with metal type, size, shape, and proximity. Ferromagnetic metals (like iron and steel) produce a stronger effect due to their magnetic properties, resulting in greater detection distances. Non-ferrous metals generate weaker signals and thus have shorter sensing ranges.

Classification of Inductive Sensors

Inductive sensors come in several configurations, differentiated by size, sensing distance, output type, and operating frequency. The main types include:

Shielded vs. Unshielded Sensors

  • Shielded (Embedded) Sensors: The coil is enclosed in a metal tube that limits the magnetic field’s spread, reducing interference from nearby metal objects. These sensors can be mounted flush with a metal surface.
  • Unshielded (Non-Embedded) Sensors: The coil is exposed, allowing a wider magnetic field. They offer longer sensing distances but require more careful installation to avoid false triggers.

Output Types

  • Normally Open (NO) or Normally Closed (NC): Sensors can be configured to change output state upon detecting metal presence.
  • Analog Output: Some inductive sensors provide a proportional output signal that varies with the distance of the metal target, useful for precise position measurement.
  • Digital Output: Binary output signaling either presence or absence of the target.

Operating Frequency Variations

Higher frequency sensors offer better sensitivity and shorter detection distances, suited for small metal targets. Lower frequency variants detect larger metal objects at longer distances but may have slower response times.

Key Specifications of Inductive Sensors

  • Sensing Distance: The maximum gap at which a metal target can be reliably detected, usually ranging from a few millimeters to several centimeters.
  • Response Time: The time taken for the sensor to switch output after detecting a target, often in milliseconds.
  • Operating Voltage: Typical supply voltages are 10-30 VDC for industrial sensors.
  • Output Current: Maximum current the sensor output can switch, typically 100 to 200 mA.
  • Protection Rating: Ingress Protection (IP) rating indicating resistance to dust and moisture (e.g., IP67 is common).
  • Temperature Range: Operating temperature limits, often between -25°C to +70°C or more.

Advantages of Inductive Sensors

Inductive sensors offer several advantages that make them a preferred choice for metal detection in industrial automation:

  • Non-Contact Operation: No physical contact is required, reducing wear and maintenance.
  • Durability and Reliability: Resistant to dirt, oil, water, and mechanical stress.
  • High Switching Frequency: Capable of rapid detection for high-speed applications.
  • Immunity to Ambient Light: Unlike optical sensors, inductive sensors are unaffected by lighting conditions.
  • Long Lifespan: Solid-state electronics and lack of moving parts enhance durability.

Limitations and Challenges

Despite their strengths, inductive sensors have certain limitations:

  • Metal-Only Detection: Unable to detect non-metallic objects such as plastics, wood, or glass.
  • Short Sensing Range: Typically shorter detection distances compared to capacitive or ultrasonic sensors.
  • Limited to Conductive Materials: Sensor output varies significantly with metal type and shape, requiring calibration.
  • Influence of Nearby Metals: Installation near large metal objects can cause false triggers or reduce sensitivity.

Applications of Inductive Sensors

Inductive sensors find extensive applications across various industries, including:

Manufacturing Automation

Detecting the presence, position, or absence of metal parts on assembly lines to ensure process accuracy and product quality.

Robotics

Used for proximity sensing and object detection to guide robotic arms and automated machinery safely.

Automotive Industry

Monitoring metal components in engines, transmissions, and safety systems, as well as in conveyor systems for vehicle assembly.

Material Handling

Counting metal objects, verifying machine part positioning, and controlling sorting or packaging machines.

Safety Systems

Detecting metal doors, safety guards, or access panels to prevent machinery operation during unsafe conditions.

Elevators and Escalators

Position sensing and safety interlock detection using inductive sensors.

Installation and Best Practices

Correct installation is vital to ensure reliable sensor performance. Some general guidelines include:

  • Mount the sensor perpendicular to the target surface for maximum sensitivity.
  • Maintain recommended minimum distances from large metal structures or multiple sensors to prevent cross-talk.
  • Use shielded sensors for flush mounting in metal environments.
  • Ensure clean sensing face and avoid physical damage or contamination.
  • Verify supply voltage and wiring according to manufacturer specifications.

Conclusion

Inductive sensors are indispensable in the realm of industrial automation and metal detection. Their robust design, non-contact sensing capabilities, and immunity to environmental factors make them ideally suited for diverse applications. Understanding their operating principles and practical considerations enables engineers and users to select, implement, and maintain these sensors effectively. As technology progresses, inductive sensors will continue evolving, offering improved precision and integration in increasingly smart manufacturing environments.

FAQs

Q1: Can inductive sensors detect non-metallic objects?

No, inductive sensors rely on electromagnetic induction and are only capable of detecting conductive metal objects. For non-metallic materials, other sensors like capacitive or ultrasonic sensors are used.

Q2: How far can an inductive sensor detect a metal object?

The sensing range varies with sensor type and metal target but typically ranges from 1 mm to 30 mm. Shielded sensors tend to have shorter ranges than unshielded ones.

Q3: Are inductive sensors affected by ambient lighting?

No, inductive sensors detect changes in magnetic fields and are unaffected by lighting conditions, making them ideal for dark or variable lighting environments.

Q4: What metals can inductive sensors detect?

They detect a wide range of metals including ferrous metals (iron, steel) and non-ferrous metals (aluminum, copper, brass), though sensitivity varies and is generally higher for ferrous metals.

Q5: Can inductive sensors be used outdoors?

Yes, many inductive sensors come with high IP ratings (e.g., IP67 or higher) making them resistant to dust and water, suitable for outdoor industrial applications.

Q6: How do I choose between shielded and unshielded inductive sensors?

Use shielded sensors for flush mounting or where metal objects are close to the sensor body to reduce interference. Unshielded sensors are suited for applications needing longer detection distances and when space permits.

Q7: What are common failure modes of inductive sensors?

Failures usually arise from mechanical damage, wiring faults, or prolonged exposure to extreme environmental conditions. Regular maintenance and correct installation reduce failure risk.

Q8: Can inductive sensors detect metal through other materials?

Yes, as long as the intervening material is non-metallic and not too thick (such as plastic or wood), the sensor can detect metal behind it, though the sensing distance may be reduced.
