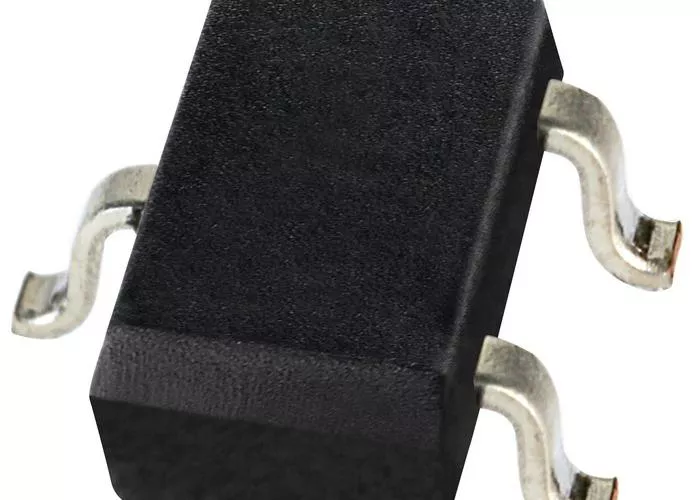

What Are Magnetoresistive Sensors and How Do They Work?

by Annie

Magnetoresistive sensors are a class of devices that detect magnetic fields by exploiting the magnetoresistive effect — a change in electrical resistance due to an applied magnetic field. These sensors have become pivotal in various fields including automotive, consumer electronics, industrial instrumentation, and data storage technologies. Their capability to sense minute variations in magnetic flux density enables highly precise and contactless measurement of position, speed, current, and other physical parameters. This article delves into the fundamental principles behind magnetoresistive sensors, their types, operating mechanisms, and practical applications.

The Magnetoresistive Effect: The Core Principle

At the heart of magnetoresistive sensors lies the magnetoresistive effect, discovered in the 19th century but revolutionized with advancements in materials science and nanotechnology in recent decades. The effect manifests as a change in the electrical resistance of certain materials when exposed to a magnetic field. This change occurs because the magnetic field influences the scattering of conduction electrons, which modifies the flow of electric current.

There are several forms of magnetoresistance observed in different materials:

  • Anisotropic Magnetoresistance (AMR): Resistance varies depending on the angle between the magnetization direction and the current flow.
  • Giant Magnetoresistance (GMR): A much larger resistance change occurring in layered thin films of ferromagnetic and nonmagnetic metals, crucial for magnetic read heads in hard drives.
  • Tunneling Magnetoresistance (TMR): Resistance change due to electron tunneling through an insulating barrier between two ferromagnetic layers.

Each type offers unique sensitivities and operational advantages suited for different applications.

Types of Magnetoresistive Sensors

Magnetoresistive sensors are classified based on the magnetoresistive effect they exploit and their construction:

  • AMR Sensors: Utilize anisotropic magnetoresistance effect. Typically found in compact, low-cost applications requiring reliable magnetic field sensing with moderate sensitivity.
  • GMR Sensors: Employ giant magnetoresistance effect, offering higher sensitivity and better signal-to-noise ratios, suitable for detecting very weak magnetic fields.
  • TMR Sensors: Based on tunneling magnetoresistance, providing even higher sensitivity and greater output signals, often used in advanced data storage and high-precision sensing.

The choice among these depends on the sensitivity requirements, environmental constraints, and cost considerations.

How Magnetoresistive Sensors Work

Magnetoresistive sensors generally consist of a thin film or multilayer structure where electrical resistance changes in response to magnetic fields. The sensor is typically part of an electrical circuit where resistance variations translate into measurable voltage changes. Here is a simplified explanation of how they operate:

  • Baseline Resistance: In the absence of a magnetic field, the sensor exhibits a baseline resistance determined by its material and geometric properties.
  • Magnetic Field Application: When exposed to an external magnetic field, the orientation of magnetic domains within the sensor material shifts, affecting the spin-dependent scattering of electrons.
  • Resistance Change: This shift alters the resistance of the sensor. In AMR sensors, the resistance depends on the angle between the magnetization and current. In GMR and TMR sensors, the relative magnetization alignment of layers affects tunneling or scattering probabilities.
  • Electrical Signal Output: The change in resistance causes a voltage variation in the sensor’s electrical circuit, which is then amplified and processed to determine the magnetic field strength or position of a magnetic target.

Construction and Materials Used in Magnetoresistive Sensors

The performance of magnetoresistive sensors hinges on the choice of materials and the precision in their construction. Typical materials include:

  • Permalloy (NiFe alloys): Widely used in AMR sensors due to favorable magnetic and resistive properties.
  • Multilayer stacks of cobalt, iron, and copper: Key components in GMR sensors to create alternating ferromagnetic and nonmagnetic layers.
  • Magnetic tunnel junctions (MTJs): Thin insulating barriers (like MgO) sandwiched between ferromagnetic layers, essential for TMR sensors.

These materials must be fabricated with nanoscale precision, often through sputtering or molecular beam epitaxy, to achieve the required layering and uniformity for optimal sensor response.

Applications of Magnetoresistive Sensors

Magnetoresistive sensors are utilized across diverse sectors due to their non-contact operation, high sensitivity, and robustness. Key applications include:

  • Automotive Industry: For position sensing in crankshafts and camshafts, wheel speed measurement, and anti-lock braking systems (ABS).
  • Consumer Electronics: In compasses for smartphones, wearable devices, and gaming controllers.
  • Industrial Instrumentation: In robotic positioning, flow meters, and rotational speed sensors, where precise magnetic field detection is crucial.
  • Data Storage: In hard disk drives, GMR and TMR sensors serve as read heads capable of detecting nanoscale magnetic bits.
  • Medical Devices: For magnetic biosensing and magnetic resonance imaging (MRI) equipment calibration.

Advantages of Magnetoresistive Sensors

Magnetoresistive sensors offer several advantages over other magnetic sensing technologies such as Hall effect sensors and inductive pickups:

  • High Sensitivity: Particularly GMR and TMR sensors can detect very low magnetic fields.
  • Compact Size: Thin-film construction allows miniaturization suitable for embedded applications.
  • Low Power Consumption: Ideal for battery-operated devices.
  • Durability: Solid-state nature provides robustness in harsh environments.
  • Fast Response Time: Suitable for dynamic measurements of speed and position.

Challenges and Limitations

Despite their benefits, magnetoresistive sensors face challenges:

  • Temperature Sensitivity: Resistance changes can be influenced by temperature variations, necessitating compensation techniques.
  • Complex Fabrication: Multilayer structures require precise manufacturing processes, increasing cost.
  • Magnetic Noise: Environmental magnetic interference can affect accuracy without proper shielding.
  • Linearity Issues: Sensor response may be nonlinear, requiring calibration and signal conditioning.

Conclusion

Magnetoresistive sensors play a vital role in modern sensing technology by offering precise, contactless detection of magnetic fields. Their unique operating principles based on anisotropic, giant, and tunneling magnetoresistance provide versatile solutions tailored to diverse industrial and consumer needs. While challenges in fabrication and environmental sensitivity remain, ongoing advancements continue to enhance their capabilities. Understanding the physics and applications of these sensors opens opportunities for engineers and designers to harness their potential across multiple domains.

FAQs

What is the difference between AMR, GMR, and TMR sensors?

AMR sensors rely on changes in resistance due to the angle between current and magnetization, offering moderate sensitivity. GMR sensors use layered magnetic and nonmagnetic films to achieve larger resistance changes and higher sensitivity. TMR sensors incorporate a tunneling barrier between ferromagnetic layers, providing the highest sensitivity and signal output among the three.

How do magnetoresistive sensors compare to Hall effect sensors?

Magnetoresistive sensors generally offer higher sensitivity and smaller size compared to Hall effect sensors. They are better suited for detecting low-level magnetic fields and provide faster response times, although they may require more complex signal conditioning.

Can magnetoresistive sensors measure both AC and DC magnetic fields?

Yes, magnetoresistive sensors can detect both alternating (AC) and direct current (DC) magnetic fields, making them versatile for applications such as current sensing and position detection.

Are magnetoresistive sensors affected by temperature?

Temperature changes can influence the resistance and magnetic properties of the sensor materials. Therefore, temperature compensation mechanisms are often implemented to maintain measurement accuracy.
