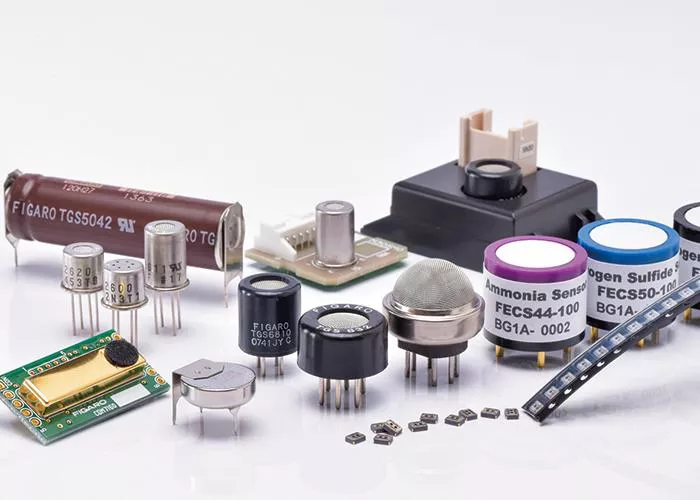

Gas sensors, also known as gas detectors, are devices designed to detect the presence and concentration of gases in an environment. These sensors play a critical role in a variety of industries including environmental monitoring, industrial safety, healthcare, and home automation. Their main purpose is to provide early warning signals when hazardous gases are detected, thus preventing accidents and ensuring compliance with safety standards.
From detecting toxic gases like carbon monoxide (CO) and hydrogen sulfide (H2S) to monitoring combustible gases such as methane (CH4) and propane, gas sensors enable real-time gas concentration measurement. This information is essential for maintaining air quality, protecting workers, and optimizing industrial processes.
Types of Gas Sensors
Gas sensors come in various types, each based on different sensing principles and suitable for specific applications. The main categories include:
1. Electrochemical Gas Sensors
These sensors operate on the principle of an electrochemical reaction between the target gas and an electrode surface. When the gas interacts with the electrode, it produces a measurable electrical current proportional to the gas concentration. Electrochemical sensors are highly selective and sensitive, making them ideal for detecting toxic gases such as carbon monoxide and nitrogen dioxide (NO2).
2. Metal Oxide Semiconductor (MOS) Sensors
MOS sensors utilize the change in electrical resistance of a metal oxide material, typically tin dioxide (SnO2), when exposed to certain gases. When gas molecules interact with the sensor surface, they either donate or withdraw electrons, changing the sensor’s conductivity. MOS sensors are widely used for detecting combustible gases and volatile organic compounds (VOCs), but they can suffer from cross-sensitivity and require higher operating temperatures.
3. Infrared (IR) Gas Sensors
Infrared gas sensors detect gases based on their absorption of specific wavelengths of infrared light. Different gases absorb IR radiation at unique wavelengths, allowing the sensor to selectively identify and quantify gases such as carbon dioxide (CO2), methane, and refrigerants. These sensors are non-consumptive, durable, and unaffected by humidity, but they tend to be more expensive than other types.
4. Catalytic Bead Sensors
Catalytic bead sensors, often used for combustible gas detection, operate by oxidizing the gas on a heated catalyst bead. This oxidation increases the bead’s temperature and resistance, which is measured to estimate the gas concentration. While robust and reliable, these sensors require oxygen to function and may have limited lifespan due to catalyst poisoning.
5. Photoionization Detectors (PID)
PIDs use ultraviolet light to ionize gas molecules, creating charged ions that generate an electrical current proportional to the concentration of VOCs and other gases. These sensors are highly sensitive to low concentrations but are limited in the types of gases they can detect.
How Do Gas Sensors Work?
The fundamental working principle of gas sensors involves the interaction between the target gas molecules and a sensing element that undergoes a physical or chemical change detectable by an electrical or optical system. Below is a detailed explanation of the operation mechanisms for the most common sensor types:
Electrochemical Gas Sensors Operation
An electrochemical gas sensor consists of a working electrode, a counter electrode, and often a reference electrode, all immersed in an electrolyte. When the target gas diffuses into the sensor, it undergoes a redox reaction at the working electrode, generating electrons. This electron flow results in a measurable current proportional to the gas concentration. For example, in a carbon monoxide sensor, CO is oxidized at the electrode, producing a current directly linked to CO levels. These sensors are prized for their accuracy and selectivity, but their lifespan can be limited by electrolyte degradation.
Metal Oxide Semiconductor Sensors Operation
MOS sensors feature a thin film of metal oxide on an insulating substrate with electrodes. At high temperatures (typically 200-400°C), oxygen molecules adsorbed on the sensor surface trap free electrons, creating a depletion layer and increasing resistance. When a reducing gas (e.g., methane) contacts the surface, it reacts with the adsorbed oxygen, releasing the trapped electrons back to the material and decreasing resistance. Measuring this change provides an estimate of the gas concentration. These sensors require periodic calibration due to sensitivity drift and can be influenced by environmental factors like humidity.
Infrared Gas Sensors Operation
IR sensors use an IR light source that emits radiation through a gas sample toward a detector. The presence of specific gases reduces the intensity of the IR light at characteristic wavelengths due to molecular absorption. By analyzing the attenuation at these wavelengths, the sensor calculates the gas concentration. For instance, methane absorbs IR radiation strongly at around 3.3 micrometers. IR sensors provide selective, non-contact detection, making them suitable for harsh environments.
Catalytic Bead Sensors Operation
In catalytic bead sensors, two beads coated with catalyst material act as a Wheatstone bridge—one is active (catalytic) and the other inert (reference). When combustible gases oxidize on the catalytic bead, it heats up, increasing its resistance compared to the reference bead. This imbalance in the bridge circuit produces a voltage proportional to the gas concentration. The need for oxygen limits use in oxygen-deficient environments, and catalyst poisoning by contaminants can degrade performance.
Photoionization Detectors Operation
PIDs employ a UV lamp emitting photons of sufficient energy to ionize gas molecules within a chamber. Ionized molecules produce charged particles that create an electrical current collected by electrodes. The magnitude of this current is related to the concentration of ionizable gases such as benzene, toluene, and xylene. While PIDs detect low concentrations effectively, they are not suitable for non-ionizable gases like methane.
Applications of Gas Sensors
The versatility and critical importance of gas sensors have led to their widespread adoption across multiple sectors:
Industrial Safety
In factories, refineries, and chemical plants, gas sensors protect personnel and infrastructure by detecting leaks of toxic or combustible gases early. Fixed and portable gas detectors ensure compliance with occupational safety regulations, preventing explosions and poisoning.
Environmental Monitoring
Gas sensors track air pollution by measuring levels of greenhouse gases, ozone, nitrogen oxides, and volatile organic compounds. Environmental agencies use this data to enforce pollution limits and study climate change impacts.
Automotive Industry
Cars use gas sensors to monitor exhaust emissions and optimize combustion for fuel efficiency and reduced pollution. Sensors also detect air quality inside cabins to improve passenger comfort.
Healthcare
Medical devices employ gas sensors for breath analysis, detecting biomarkers linked to diseases, or monitoring anesthesia gases during surgery.
Smart Homes and Buildings
Gas sensors integrated into HVAC systems detect harmful gases such as carbon monoxide, alerting occupants and activating ventilation systems to maintain healthy indoor air quality.
Advantages and Challenges of Gas Sensors
Advantages
- Real-time Detection: Provide immediate feedback on gas presence and concentration.
- High Sensitivity: Detect gases at very low concentrations, enhancing safety.
- Selective Sensing: Some sensor types can distinguish between different gases effectively.
- Compact and Portable: Modern sensors are small and suitable for portable detectors.
- Integration Capability: Easily integrated into IoT devices and automated systems.
Challenges
- Cross-Sensitivity: Some sensors respond to multiple gases, causing false alarms.
- Environmental Influences: Humidity, temperature, and pressure can affect sensor accuracy.
- Lifespan and Calibration: Many sensors require periodic calibration and replacement.
- Cost: Advanced sensors like IR and electrochemical types can be expensive.
- Response Time: Some sensors have slower reaction times unsuitable for certain applications.
Conclusion
Gas sensors are indispensable tools that ensure safety, environmental protection, and operational efficiency across many domains. Their working principles—ranging from electrochemical reactions to infrared absorption—enable the detection and quantification of a wide variety of gases. Although challenges such as cross-sensitivity and environmental effects remain, ongoing advancements in materials science, electronics, and data analytics continue to improve sensor performance. Understanding how gas sensors work and their appropriate application is fundamental for engineers, safety professionals, and researchers committed to harnessing technology for a safer, cleaner world.
FAQs
What types of gases can gas sensors detect?
Gas sensors can detect a broad spectrum of gases including toxic gases like carbon monoxide, sulfur dioxide, and hydrogen sulfide; combustible gases such as methane and propane; greenhouse gases like carbon dioxide; and volatile organic compounds.
How often should gas sensors be calibrated?
Calibration frequency depends on the sensor type, usage conditions, and manufacturer recommendations, but generally ranges from every 3 months to annually to maintain accuracy.
Can gas sensors detect multiple gases simultaneously?
Single gas sensors are typically designed for specific gases. However, multi-gas sensor arrays and combined technologies can detect and differentiate multiple gases simultaneously.
What factors affect the accuracy of gas sensors?
Environmental conditions such as temperature, humidity, pressure, and the presence of interfering gases can affect sensor accuracy. Proper installation and calibration help mitigate these effects.
Are gas sensors safe for use in explosive atmospheres?
Many gas sensors are designed with intrinsic safety features to prevent ignition in explosive atmospheres, but it is crucial to select sensors certified for such environments.
