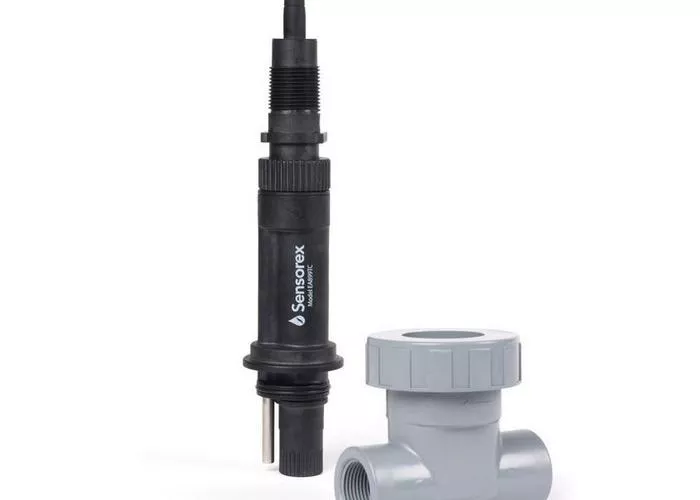

pH sensors are essential instruments used to measure the acidity or alkalinity of a solution. The pH scale, ranging from 0 to 14, quantifies the concentration of hydrogen ions (H⁺) in a liquid, indicating whether the solution is acidic (pH less than 7), neutral (pH exactly 7), or alkaline/basic (pH greater than 7). Accurate pH measurement is critical in numerous fields including environmental monitoring, chemical manufacturing, water treatment, food production, and biomedical research.
Understanding what pH sensors are and how they operate offers valuable insights for professionals across industries, from engineers to scientists. This article delves into the types of pH sensors, the scientific principles behind their function, and their practical applications. We also explore advancements in sensor technology and maintenance best practices, ensuring reliable pH measurement.
Fundamental Principles Behind pH Measurement
At the core of pH measurement lies the concept of hydrogen ion activity in aqueous solutions. pH is mathematically defined as:
pH = -log₁₀[H⁺]
This logarithmic scale means that each unit change in pH represents a tenfold change in hydrogen ion concentration. For example, a solution with pH 4 has ten times more hydrogen ions than a solution with pH 5.
The measurement of pH is inherently an electrochemical process. When a pH sensor is immersed in a solution, it exploits the difference in hydrogen ion concentration between the test solution and a reference solution, generating a measurable electrical potential that correlates with the pH value.
Types of pH Sensors
Glass Electrode pH Sensors
The most widely used pH sensors are glass electrode sensors, often referred to as glass electrodes or combination electrodes when integrated with a reference electrode. The glass electrode comprises a thin glass membrane selectively permeable to hydrogen ions. When immersed in a solution, hydrogen ions interact with the surface of the glass membrane, creating a voltage potential proportional to the pH of the solution.
The glass electrode is paired with a reference electrode, typically containing a stable internal electrolyte and a known potential, which completes the electrochemical cell. The sensor measures the voltage difference between the sensing glass membrane and the reference electrode. This voltage is then converted into a pH reading using calibration curves or formulas based on the Nernst equation.
Solid State pH Sensors
Solid state pH sensors employ ion-sensitive field-effect transistors (ISFETs) instead of glass membranes. ISFETs detect hydrogen ion concentration changes through variations in electric field at a semiconductor gate. These sensors are compact, robust, and suitable for applications where glass electrodes may be fragile or cumbersome.
Other Sensor Types
Additional pH sensor technologies include optical pH sensors, which use pH-sensitive dyes that change color or fluorescence intensity based on acidity, and conducting polymer sensors that alter their electrical properties with pH changes. These alternative sensors offer benefits in specific environments, such as biological systems or harsh industrial settings.
How pH Sensors Work: The Electrochemical Mechanism
The Nernst Equation
The foundation of pH sensor operation is the Nernst equation, which relates the electrical potential generated by the sensor to the ion concentration difference across the sensor membrane:
E = E₀ – (RT / nF) * ln([H⁺]ᵢ / [H⁺]₀)
Where:
- E is the measured electrode potential
- E₀ is the standard electrode potential
- R is the universal gas constant
- T is the temperature in Kelvin
- n is the charge number of the ion (for H⁺, n = 1)
- F is the Faraday constant
- [H⁺]ᵢ and [H⁺]₀ are the hydrogen ion concentrations on the inside and outside of the glass membrane, respectively
Since the internal hydrogen ion concentration inside the sensor is constant, the potential varies solely based on the external hydrogen ion concentration, which corresponds to the sample pH. By measuring this potential, the sensor determines the pH value.
Signal Processing and Calibration
The raw voltage generated by the sensor is typically in millivolts and requires conversion to a readable pH value. This process involves a calibration step using standard buffer solutions of known pH values. Calibration adjusts for any offset or slope deviation from the ideal Nernst response, ensuring accurate and repeatable readings.
Temperature also influences sensor output and is compensated either manually during calibration or automatically with integrated temperature sensors, as pH electrode potentials vary with temperature.
Applications of pH Sensors
Environmental Monitoring
In environmental science, pH sensors monitor the acidity of natural waters, such as lakes, rivers, and oceans, to assess ecosystem health and pollution impact. Acid rain, industrial effluents, and agricultural runoff can significantly alter water pH, affecting aquatic life and biodiversity.
Industrial Process Control
pH measurement is critical in chemical manufacturing, pharmaceuticals, food and beverage production, and wastewater treatment. Maintaining precise pH levels ensures product quality, process efficiency, and regulatory compliance.
Biotechnology and Healthcare
In bioprocessing, pH sensors control fermentation and cell culture environments where slight pH changes can impact biological activity. Medical applications include monitoring blood pH and bodily fluids, which is vital for patient health assessment.
Maintenance and Calibration of pH Sensors
Proper maintenance is essential to preserve the accuracy and longevity of pH sensors. Common practices include regular cleaning to prevent fouling, storage in appropriate solutions to maintain membrane hydration, and periodic calibration with fresh buffer solutions.
Membrane degradation, reference electrode contamination, and temperature fluctuations can all degrade sensor performance over time. Adopting a routine maintenance schedule minimizes measurement errors and sensor downtime.
Advancements in pH Sensor Technology
Recent technological developments focus on enhancing sensor durability, miniaturization, and wireless communication. Innovations such as solid-state sensors with improved sensitivity, integration with IoT platforms for remote monitoring, and disposable sensors for biomedical use are reshaping pH measurement capabilities.
Furthermore, combining pH sensors with multi-parameter probes enables simultaneous measurement of related variables like temperature, dissolved oxygen, or conductivity, providing comprehensive solution characterization.
Conclusion
pH sensors are indispensable tools that translate the chemical activity of hydrogen ions into an electrical signal, enabling precise measurement of solution acidity or alkalinity. From glass electrodes to advanced solid-state sensors, their applications span numerous scientific, industrial, and environmental fields.
Understanding the fundamental electrochemical principles and maintenance requirements of pH sensors ensures optimal performance and reliability. Continuous innovations in sensor technology promise even greater accuracy, convenience, and integration capabilities in the future, solidifying the vital role of pH measurement in science and industry.
FAQs
What is the difference between a glass electrode and an ISFET pH sensor?
Glass electrodes use a selective glass membrane sensitive to hydrogen ions, while ISFET sensors use a semiconductor field-effect transistor to detect pH. ISFET sensors are more robust and suitable for miniaturized applications but may have different calibration and response characteristics.
How often should pH sensors be calibrated?
Calibration frequency depends on usage and environment but generally should be done daily or before each critical measurement session to ensure accuracy. Sensors used in harsh or dirty environments may require more frequent calibration.
Can pH sensors be used in non-aqueous solutions?
Most standard pH sensors are designed for aqueous solutions. Measuring pH in non-aqueous or highly viscous solutions requires specialized sensors or alternative techniques tailored to those environments.
What causes pH sensor drift and how can it be minimized?
Drift can result from membrane aging, reference electrode contamination, temperature changes, or fouling. Minimizing drift involves proper storage, regular cleaning, and frequent calibration.
Are there any alternatives to electrical pH sensors?
Yes, optical pH sensors use colorimetric or fluorescent indicators to measure pH without direct electrical contact. They are useful in environments where electrical interference or fragility is an issue.
