Light sensors are pivotal components in modern electronics and industrial applications, enabling devices to perceive and respond to light intensity. From smartphones that adjust screen brightness to advanced automation systems that control lighting in smart buildings, light sensors bridge the gap between the physical environment and digital control. Their ability to detect varying levels of illumination plays a crucial role in energy efficiency, safety, and enhancing user experience.
Understanding what light sensors are and how they function requires a grasp of both their physical principles and practical applications. This article delves into the types of light sensors, their operating mechanisms, and real-world use cases, with the goal of providing a comprehensive overview for engineers, students, and technology enthusiasts alike.
What Are Light Sensors
A light sensor is an electronic device that detects and measures the intensity or presence of light. It converts the incoming light energy, usually photons, into an electrical signal that can be processed by electronic circuits. Unlike cameras, which capture detailed images, light sensors generally measure the overall brightness or specific light parameters in their environment.
The core function of a light sensor is to respond proportionally to the amount of light it receives. This characteristic allows them to be used in applications where lighting conditions vary and need to be monitored or controlled.
Common Terminology Related to Light Sensors
- Illuminance: Measured in lux, it refers to the luminous flux per unit area, indicating the perceived brightness on a surface.
- Photocurrent: The current generated in a sensor due to incident light.
- Responsivity: The efficiency with which a sensor converts light to electrical signals, usually expressed in amperes per watt (A/W).
Types of Light Sensors
There are multiple types of light sensors, each designed with specific characteristics to suit varied applications. The main categories include:
Photodiodes
Photodiodes are semiconductor devices that generate a current when exposed to light. They operate by converting photons into electron-hole pairs, resulting in a measurable electrical current proportional to the incident light intensity. Photodiodes are known for their fast response times and high sensitivity, making them suitable for optical communication, industrial light measurement, and medical devices.
Phototransistors
Phototransistors function similarly to photodiodes but with an internal amplification mechanism. When light strikes the device, it triggers a small current in the base region, which is then amplified, producing a larger current at the collector. This amplification makes phototransistors more sensitive than photodiodes but typically slower in response. They are widely used in applications where detecting low light levels is essential.

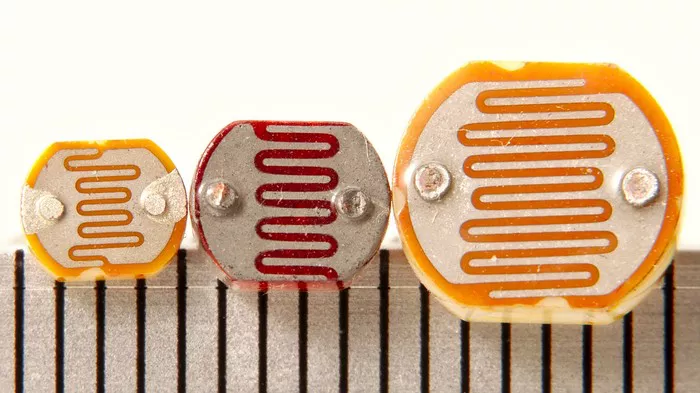

Photoresistors (LDR – Light Dependent Resistors)
Photoresistors change their resistance based on the intensity of light falling on them. In bright light, their resistance decreases, allowing more current to pass through, whereas in darkness, resistance increases. LDRs are cost-effective and easy to use, often found in ambient light detection for streetlights, clock radios, and automatic night lights.
Photovoltaic Cells (Solar Cells)
Photovoltaic cells convert light directly into electrical energy through the photovoltaic effect. Though primarily used in solar panels for power generation, smaller photovoltaic cells function as light sensors by measuring the voltage or current generated in response to light intensity.
Charge-Coupled Devices (CCD) and Complementary Metal Oxide Semiconductor (CMOS) Sensors
Though more complex, CCD and CMOS sensors are specialized light sensors used in imaging applications, such as cameras and scanners. They convert light into electrical signals pixel-by-pixel, enabling the formation of digital images. While their primary role is imaging, they are fundamentally light sensors and are sometimes used for precise light measurement.
How Do Light Sensors Work? — The Operating Principles
Light sensors operate based on the interaction between photons and matter, leading to changes in electrical properties such as current, voltage, or resistance. The mechanisms differ depending on the sensor type, but the underlying physics shares common principles:
Photoelectric Effect
Many light sensors exploit the photoelectric effect, where photons incident on a material excite electrons, creating charge carriers. This effect is the foundation for photodiodes and phototransistors. The intensity of light determines the number of photons hitting the sensor, which correlates with the amount of generated electrical charge.
Photoconductivity
In photoresistors, photoconductivity is the principle at work. When light is absorbed by the semiconductor material, it excites electrons into the conduction band, reducing resistance and allowing more current to flow. The resistance change can be easily measured and converted into a corresponding light intensity value.
Photovoltaic Effect
Photovoltaic cells use this effect to generate voltage and current when exposed to light, creating a direct conversion of light energy into electrical energy. The output magnitude corresponds to the incident light power, which can be calibrated to measure light levels.
Detailed Working of Key Light Sensor Types
Photodiode Operation
A photodiode typically consists of a p-n junction semiconductor. When photons strike the junction, they excite electrons from the valence band to the conduction band, generating electron-hole pairs. Under reverse bias, these charge carriers produce a photocurrent proportional to light intensity. This current is then amplified and converted into a voltage signal for processing.
Phototransistor Operation
Similar to a photodiode, a phototransistor uses light to generate a small current at the base. This current controls the transistor’s conduction between collector and emitter, resulting in an amplified output current. The gain provided by the transistor makes it highly sensitive, although with a slower response time compared to photodiodes.
Photoresistor Operation
Photoresistors are made of semiconductor materials such as cadmium sulfide (CdS). In darkness, the material’s resistance is high. As light intensity increases, photons provide enough energy to excite electrons, decreasing resistance. Measuring the resistance change with a simple voltage divider circuit allows determination of the ambient light level.
Applications of Light Sensors
The versatility of light sensors enables their use across a wide spectrum of fields:
Consumer Electronics
Smartphones, tablets, and laptops use ambient light sensors to automatically adjust screen brightness, optimizing visibility and power consumption. Cameras use light sensors for exposure control and focus adjustment.
Automotive Industry
Modern vehicles utilize light sensors for automatic headlight activation, adaptive lighting systems, and interior ambient lighting control, enhancing safety and comfort.
Industrial Automation
In manufacturing, light sensors detect product presence, control conveyor belts, and monitor process lighting, ensuring efficiency and safety.
Smart Buildings and Energy Management
Light sensors contribute to energy saving by adjusting indoor lighting based on natural light availability, integrating with building management systems.
Healthcare and Medical Devices
Light sensors are integral to devices like pulse oximeters, which measure blood oxygen levels by detecting light absorption through the skin.
Advantages and Limitations of Light Sensors
Advantages
- Energy Efficiency: Automating lighting control reduces electricity consumption.
- Enhanced User Experience: Devices adapt to environmental conditions seamlessly.
- Versatility: Suitable for diverse applications, from consumer gadgets to industrial automation.
- Non-invasive Measurement: Light sensors can detect environmental changes without physical contact.
Limitations
- Sensitivity to Ambient Conditions: External factors such as dust, dirt, or shadows may affect accuracy.
- Limited Spectral Range: Many sensors are sensitive only to visible light or specific wavelengths.
- Response Time: Some sensor types (e.g., photoresistors) have slower response times, limiting their use in fast-changing environments.
Conclusion
Light sensors are fundamental components that enable electronic systems to interpret and respond to their surroundings by detecting light. From basic photoresistors to sophisticated photodiodes and CMOS sensors, they function by translating light intensity into electrical signals through various physical principles such as the photoelectric and photovoltaic effects.
Their broad applicability across industries highlights their importance in energy efficiency, automation, safety, and user interaction. Continuous innovation in this field promises more sensitive, reliable, and versatile sensors that will further integrate with emerging technologies such as IoT and artificial intelligence.
Understanding the operating principles and characteristics of different light sensor types equips engineers and technologists with the knowledge to select the appropriate sensor for specific applications, driving innovation and efficiency in future systems.
FAQs
What is the difference between a photodiode and a phototransistor?
A photodiode directly converts light into current with a fast response and high linearity but produces a relatively small current. A phototransistor amplifies this current internally, providing higher sensitivity but with a slower response time and less linearity.
Can light sensors detect all types of light?
Most common light sensors detect visible light. However, specialized sensors can detect ultraviolet (UV), infrared (IR), or other spectral bands depending on their design and materials used.
Why do some devices use photoresistors instead of photodiodes?
Photoresistors are inexpensive, simple to interface, and suitable for applications where high sensitivity and fast response are not critical. Photodiodes, while more precise and faster, are typically costlier and require more complex circuitry.
How do ambient light sensors improve device battery life?
By automatically adjusting screen brightness based on surrounding light conditions, ambient light sensors prevent excessive power usage when high brightness is unnecessary, extending battery life.
Are light sensors affected by environmental factors?
Yes, factors such as dust accumulation, temperature fluctuations, and physical obstructions can affect the accuracy and sensitivity of light sensors. Proper maintenance and sensor placement help mitigate these issues.
What are the typical response times for different light sensors?
Photodiodes typically have response times in the nanosecond to microsecond range, phototransistors in microseconds to milliseconds, and photoresistors in milliseconds to seconds, depending on their construction and materials.
