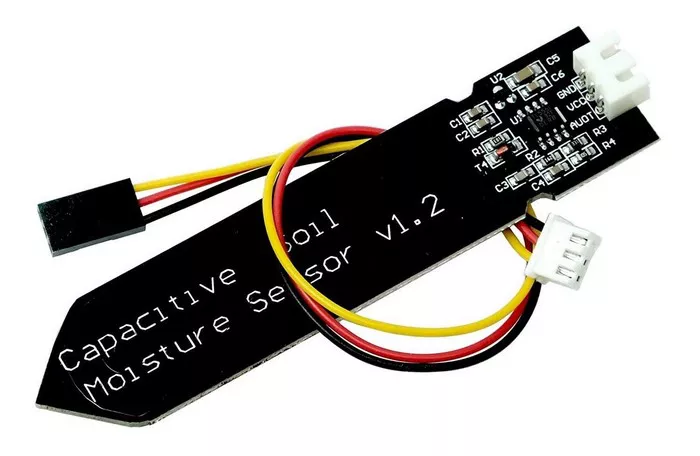

Humidity measurement plays a crucial role in various fields such as HVAC systems, meteorology, agriculture, industrial processes, and medical applications. Among the different types of humidity sensors available, capacitive humidity sensors are one of the most commonly used due to their accuracy, reliability, and cost-effectiveness. This article provides a comprehensive overview of capacitive humidity sensors, focusing on their working principles, structure, applications, advantages, and limitations.
1. Understanding Humidity and Its Types
Humidity refers to the amount of water vapor present in the air. It is an important atmospheric parameter that affects both living organisms and mechanical systems. There are three main types of humidity:
- Absolute Humidity: The actual amount of water vapor in a given volume of air, typically expressed in grams per cubic meter (g/m³).
- Relative Humidity (RH): The ratio of the current absolute humidity to the maximum possible at a given temperature, expressed as a percentage.
- Specific Humidity: The ratio of the mass of water vapor to the total mass of the air parcel.
Most humidity sensors, including capacitive types, are designed to measure relative humidity, which is the most relevant parameter for environmental monitoring and control systems.
2. What is a Capacitive Humidity Sensor?
A capacitive humidity sensor is a type of humidity sensor that measures relative humidity by detecting changes in capacitance caused by the moisture in the air. These sensors utilize a hygroscopic dielectric material between two conductive plates. The dielectric constant of this material changes as it absorbs moisture, which alters the capacitance value. This change in capacitance is then interpreted as a change in relative humidity.
Capacitive humidity sensors are valued for their:
- High accuracy
- Wide humidity range
- Long-term stability
- Low power consumption
- Rapid response time
These characteristics make them suitable for both commercial and industrial applications.
3. Structure and Components of a Capacitive Humidity Sensor
The typical capacitive humidity sensor consists of the following key components:
- Substrate: Usually made from a stable material like glass, ceramic, or silicon.
- Bottom Electrode: A conductive layer deposited on the substrate.
- Dielectric Layer: A moisture-sensitive polymer or oxide layer that changes its dielectric constant with humidity.
- Top Electrode: A semi-permeable conductive layer that allows water vapor to reach the dielectric layer while completing the capacitive structure.
The electrodes and dielectric layer together form a capacitor. As ambient humidity changes, the dielectric constant of the moisture-sensitive layer varies, leading to a change in the overall capacitance, which is detected and processed by electronic circuitry.
4. How Capacitive Humidity Sensors Work
The core working principle of capacitive humidity sensors is based on the change in capacitance due to the absorption of water molecules by a hygroscopic dielectric material. Capacitance (C) is defined by the equation:
C=εrε0A/d
Where:
- Er: Relative permittivity (dielectric constant) of the dielectric material
- E0: Permittivity of free space (a constant)
- А: Area of the plates
- d: Distance between the plates
As the dielectric material absorbs moisture from the air, its relative permittivity increases, thereby increasing the capacitance. This change is directly proportional to the relative humidity. An onboard microcontroller or signal processing circuit converts this capacitance variation into a readable output, such as voltage or digital signal.
5. Signal Processing and Calibration
After the sensor detects a change in capacitance, the signal is processed using an analog-to-digital converter (ADC) and then calibrated against known humidity values. Calibration is essential to ensure accurate and consistent performance. Modern capacitive humidity sensors come pre-calibrated from the factory and may include built-in temperature compensation to maintain accuracy over a wide range of environmental conditions.
Signal conditioning typically includes:
- Filtering to remove noise
- Linearization to correlate sensor output with RH values
- Temperature compensation to adjust readings based on ambient temperature changes
6. Advantages of Capacitive Humidity Sensors
Capacitive humidity sensors offer several advantages that make them suitable for a wide range of applications:
- High Sensitivity: Capable of detecting small changes in humidity.
- Wide Operating Range: Can measure relative humidity typically from 0% to 100%.
- Compact Size: Easily integrated into portable and space-constrained devices.
- Low Power Consumption: Suitable for battery-operated and IoT devices.
- Fast Response Time: Quickly detects changes in ambient humidity.
- Long-Term Stability: Maintains performance over extended periods.
These benefits contribute to their popularity in both consumer electronics and industrial monitoring systems.
7. Limitations and Challenges
Despite their many advantages, capacitive humidity sensors are not without limitations. Some of the key challenges include:
- Contamination Sensitivity: Exposure to dust, chemicals, or oil can affect sensor performance.
- Temperature Dependence: Although many sensors have compensation mechanisms, extreme temperature fluctuations can still impact accuracy.
- Aging Effects: Over time, the dielectric material may degrade, leading to calibration drift.
- Calibration Requirements: Periodic calibration may be necessary for high-precision applications.
Mitigation strategies include using protective coatings, placing sensors in clean environments, and scheduling regular maintenance checks.
8. Applications of Capacitive Humidity Sensors
Capacitive humidity sensors are used in a wide array of applications due to their robustness and adaptability. Key application areas include:
Industrial Applications
- Environmental monitoring in manufacturing plants
- Humidity control in semiconductor production
- HVAC systems for climate control
Consumer Electronics
- Smartphones and wearable devices
- Smart home systems
- Weather monitoring gadgets
Automotive
- Cabin climate control
- Defogging systems
- Battery management in electric vehicles
Healthcare
- Respiratory equipment
- Incubators
- Sterilization monitoring
Agriculture
- Greenhouse monitoring
- Irrigation control
- Crop storage facilities
Their versatility ensures capacitive humidity sensors remain indispensable across many sectors.
Conclusion
Capacitive humidity sensors are an essential component in modern sensing technology, offering a reliable, accurate, and cost-effective means of measuring relative humidity. By utilizing the change in dielectric properties of a moisture-sensitive material, these sensors convert environmental humidity into an easily processed electrical signal. Their wide application range, from industrial settings to personal gadgets, underscores their significance in both everyday life and specialized fields.
While there are challenges related to environmental contamination, temperature effects, and aging, ongoing advancements in materials and signal processing continue to improve their performance and reliability. As technology evolves, capacitive humidity sensors will remain at the forefront of environmental monitoring and control systems.
FAQs
Q1: What is the typical accuracy of a capacitive humidity sensor?
A1: Most high-quality capacitive humidity sensors offer accuracy within ±2% to ±5% RH, depending on the model and operating conditions.
Q2: Do capacitive humidity sensors need calibration?
A2: Yes, while many sensors come factory-calibrated, periodic recalibration may be necessary for critical or long-term applications.
Q3: Can capacitive humidity sensors operate in high-temperature environments?
A3: Many capacitive sensors include temperature compensation and can operate in environments up to 85°C or higher, but performance may vary depending on design.
Q4: How often should capacitive humidity sensors be replaced?
A4: With proper maintenance, they can last several years. However, in harsh environments, replacement might be needed more frequently.
Q5: Are capacitive humidity sensors suitable for outdoor use?
A5: Yes, but they should be housed in protective enclosures to shield them from contaminants and extreme weather conditions.
