What are Piezoresistive Accelerometers and How Do They Work?

by Annie

Piezoresistive accelerometers are a class of sensors designed to measure acceleration forces by exploiting the piezoresistive effect—the change in electrical resistance of certain materials under mechanical stress. These sensors have become integral to many engineering fields, including aerospace, automotive safety, industrial machinery, and consumer electronics, due to their robust design, sensitivity, and ability to provide reliable dynamic measurements.

Unlike other types of accelerometers that rely on capacitive or piezoelectric principles, piezoresistive accelerometers leverage semiconductor materials or metal strain gauges bonded to a microstructure that undergoes deformation under acceleration. This deformation induces a measurable change in resistance proportional to the applied acceleration.

This article explores the fundamental principles, design, working mechanism, applications, advantages, and limitations of piezoresistive accelerometers, providing a comprehensive understanding for engineers, researchers, and enthusiasts.

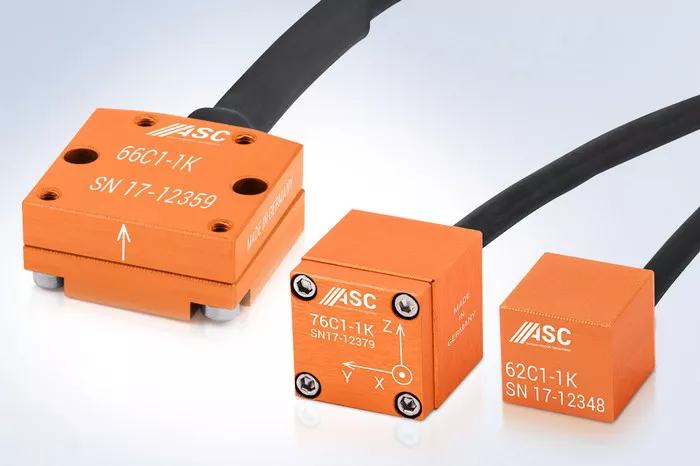

What Are Piezoresistive Accelerometers

The Piezoresistive Effect

The key operating principle behind piezoresistive accelerometers is the piezoresistive effect, which refers to the phenomenon where the electrical resistance of a material changes when mechanical strain is applied. This effect is particularly pronounced in semiconductor materials such as silicon, where strain alters the band structure and charge carrier mobility, resulting in a substantial change in resistivity.

In metals, the piezoresistive effect exists but is significantly weaker compared to semiconductors. Hence, modern piezoresistive accelerometers predominantly use silicon-based sensing elements or metal strain gauges optimized to amplify the resistance change.

Mechanical to Electrical Signal Conversion

The mechanical input—acceleration—induces an inertial force on a proof mass suspended within the sensor structure. This force causes deformation (strain) in the sensing element, which alters its electrical resistance via the piezoresistive effect. This resistance variation is detected using a Wheatstone bridge circuit, converting mechanical strain into a corresponding electrical output voltage.

This voltage output is then calibrated and processed to provide precise acceleration readings.

Structural Components and Design of Piezoresistive Accelerometers

Proof Mass and Suspension System

The core mechanical structure of a piezoresistive accelerometer consists of a proof mass attached to a flexible suspension system, such as cantilever beams or membranes. When acceleration is applied, the proof mass exerts an inertial force that strains the suspension structure.

This strain is transferred to the piezoresistive elements affixed to the beams or membranes.

Sensing Elements: Silicon or Metal Strain Gauges

The sensing elements are typically fabricated from doped silicon or thin metal films deposited on the mechanical structure. In MEMS (Microelectromechanical Systems) accelerometers, highly doped silicon regions are precisely etched and aligned to form resistors with optimized piezoresistive coefficients.

The positioning of these resistors is critical; they are placed where the strain is maximized under acceleration, usually at the fixed ends of cantilever beams or on the suspended membrane.

Wheatstone Bridge Configuration

Four piezoresistive resistors are connected in a Wheatstone bridge to maximize sensitivity and compensate for temperature variations. When acceleration-induced strain changes the resistance values, the bridge becomes unbalanced, generating a differential voltage output proportional to the acceleration magnitude.

This configuration also helps to minimize common-mode noise and enhance measurement stability.

How Piezoresistive Accelerometers Work

Step 1: Acceleration Induces Inertial Force

When the accelerometer experiences acceleration, Newton’s second law dictates that the proof mass resists motion, generating an inertial force equal to the product of mass and acceleration. This force causes deflection or bending in the suspension structure.

Step 2: Strain Generation in the Structure

The inertial force produces mechanical strain in the beams or membrane to which the piezoresistive elements are attached. This strain changes the lattice structure and electron mobility within the piezoresistive material.

Step 3: Resistance Change via Piezoresistive Effect

The strain alters the electrical resistance of the piezoresistive elements. Depending on the nature of the strain (tensile or compressive), the resistance increases or decreases accordingly. This change is very small but measurable with sensitive electronics.

Step 4: Wheatstone Bridge Signal Generation

The differential resistance changes unbalance the Wheatstone bridge, resulting in a voltage output proportional to the acceleration. The output voltage is typically in the millivolt range and requires amplification and signal conditioning for further processing.

Step 5: Signal Conditioning and Output

The raw voltage signal undergoes amplification, filtering, and sometimes analog-to-digital conversion. This processed signal is then used for feedback control, monitoring, or data logging in various applications.

Material Selection and Fabrication Techniques

Semiconductor Materials

Silicon is the preferred material in modern piezoresistive accelerometers due to its large piezoresistive coefficient, mechanical robustness, and compatibility with microfabrication technologies. Doping silicon with elements like boron tailors its electrical properties and optimizes sensitivity.

Metal Strain Gauges

Though less sensitive than silicon, metal strain gauges like constantan or nickel-chromium alloys are still used in some accelerometers. They offer better temperature stability and are easier to manufacture but come with lower sensitivity.

Microfabrication and MEMS Technology

Advancements in MEMS fabrication allow the integration of piezoresistive accelerometers on a microscopic scale. Techniques such as photolithography, deep reactive ion etching (DRIE), and doping enable the production of high-precision, miniaturized accelerometers suitable for mass production.

Applications of Piezoresistive Accelerometers

Aerospace and Aviation

Piezoresistive accelerometers are used to monitor vibrations, structural health, and dynamic loading in aircraft components. Their high sensitivity and reliability are critical in flight safety systems.

Automotive Industry

Airbag deployment systems employ piezoresistive accelerometers for rapid detection of crash events. Additionally, they assist in suspension control, navigation, and vehicle stability systems.

Industrial Machinery Monitoring

They enable vibration analysis, predictive maintenance, and condition monitoring in heavy equipment, motors, and pumps, reducing downtime and preventing catastrophic failures.

Consumer Electronics

Smartphones, gaming devices, and wearable technology utilize miniature piezoresistive accelerometers for motion detection, orientation sensing, and user interface control.

Advantages of Piezoresistive Accelerometers

  • High Sensitivity: The piezoresistive effect in semiconductors offers greater sensitivity compared to metal strain gauges and many other sensing principles.
  • Wide Frequency Response: Capable of measuring both static and dynamic accelerations, including low-frequency events.
  • Compact Size: MEMS fabrication allows small form factors suitable for integration into complex systems.
  • Robustness: Mechanically durable with high shock resistance.
  • Direct Electrical Output: Produces a voltage output easily interfaced with electronics.

Limitations and Challenges

  • Temperature Sensitivity: Resistance changes due to temperature fluctuations require compensation techniques.
  • Nonlinearities: At high acceleration levels, the sensor may exhibit nonlinear behavior.
  • Noise: The small output signals necessitate careful signal conditioning to minimize noise and interference.
  • Drift Over Time: Material aging and mechanical stress can cause output drift, requiring periodic calibration.

Conclusion

Piezoresistive accelerometers remain a cornerstone technology in acceleration sensing due to their intrinsic sensitivity, reliability, and versatility. Rooted in the fundamental piezoresistive effect, these sensors convert mechanical strain caused by acceleration into electrical signals, enabling accurate monitoring across diverse industries.

From aerospace to consumer electronics, their role continues to grow with technological advancements, making them indispensable in modern sensing solutions. Understanding their working principles, design considerations, and challenges is vital for engineers and designers aiming to leverage this technology effectively.

FAQs

Q1: How does a piezoresistive accelerometer differ from a piezoelectric accelerometer?

A piezoresistive accelerometer measures acceleration by detecting resistance changes due to strain, enabling it to measure static and dynamic accelerations. Piezoelectric accelerometers rely on voltage generated by crystal deformation and are generally better suited for dynamic (high-frequency) acceleration but cannot measure static acceleration.

Q2: Why is silicon commonly used in piezoresistive accelerometers?

Silicon has a large piezoresistive coefficient, excellent mechanical properties, and compatibility with microfabrication processes, allowing for precise, miniaturized, and highly sensitive accelerometers.

Q3: What are the main sources of error in piezoresistive accelerometers?

Common errors stem from temperature variations affecting resistance, mechanical hysteresis, electronic noise, nonlinearity at high acceleration, and long-term drift due to material fatigue.

Q4: Can piezoresistive accelerometers measure both static and dynamic accelerations?

Yes, they can measure static accelerations like gravity as well as dynamic accelerations, which makes them versatile for many applications.

Q5: How is temperature compensation achieved in these sensors?

Temperature compensation is typically done by using a Wheatstone bridge configuration to balance temperature effects, incorporating temperature sensors for software correction, or designing materials and structures less sensitive to temperature changes.

Q6: What industries benefit most from piezoresistive accelerometer technology?

Key industries include aerospace, automotive, industrial machinery monitoring, consumer electronics, and medical devices where precise acceleration measurement is critical.

Q7: Are piezoresistive accelerometers suitable for high-shock environments?

Yes, due to their robust mechanical construction, they are capable of withstanding high shocks and vibrations, making them suitable for demanding environments.

Q8: What are the size limitations of piezoresistive accelerometers?

Thanks to MEMS technology, these accelerometers can be fabricated at micrometer scales, allowing integration into very small devices without compromising performance.

Q9: How is the output signal of a piezoresistive accelerometer typically processed?

The small voltage output from the Wheatstone bridge is amplified, filtered to remove noise, and converted from analog to digital for further analysis or control.
