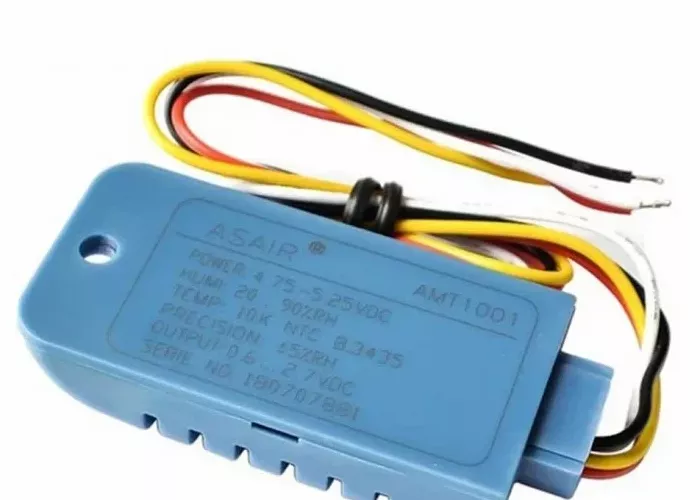

What Are Resistive Humidity Sensors and How Do They Work?

by Annie

Humidity measurement is a cornerstone of numerous industrial, environmental, and domestic applications, influencing everything from weather forecasting and HVAC systems to medical instrumentation and food storage. Among the various types of humidity sensors, resistive humidity sensors stand out for their simplicity, cost-effectiveness, and wide applicability. These sensors are crucial components in modern instrumentation systems, where accurate detection of moisture levels is essential.

This article explores in detail the structure, working principles, advantages, limitations, and common applications of resistive humidity sensors. Whether you’re an engineer, technician, or hobbyist, understanding these devices will enhance your ability to work effectively with moisture-sensitive systems.

What is a Resistive Humidity Sensor?

A resistive humidity sensor, also known as a hygrometer, is an electronic device that measures the relative humidity of the air based on changes in the electrical resistance of a hygroscopic material. As the humidity in the environment changes, the moisture absorbed by the sensing material alters its resistivity, which is then converted into a corresponding electrical signal.

Relative humidity (RH) is typically expressed as a percentage and refers to the amount of water vapor in the air relative to the maximum amount the air can hold at a given temperature. The resistive sensor, through a change in resistance, helps quantify this percentage in real time.

Construction of Resistive Humidity Sensors

Resistive humidity sensors are typically composed of the following elements:

  • Sensing Material: Often made from polymer-based or salt-impregnated substrates that are hygroscopic (they absorb water).
  • Electrodes: Interdigitated or parallel electrodes that are in contact with the sensing material to measure resistance changes.
  • Substrate: Usually a ceramic or glass base that supports the structure.

When humidity levels rise, water molecules are absorbed into the sensing material. This increases the material’s conductivity (or decreases its resistivity), which is detected by the electrodes and interpreted as an electrical signal proportional to the RH.

How Resistive Humidity Sensors Work

The operation of resistive humidity sensors is based on the principle of impedance variation due to moisture absorption. Here’s how it works in detail:

  • The sensing film absorbs or desorbs moisture depending on the surrounding relative humidity.
  • The absorbed water molecules cause ionization of salts (if used), increasing the mobility of ions and electrons in the medium.
  • This results in a measurable change in electrical resistance across the electrodes.
  • An integrated circuit or microcontroller reads the resistance and converts it into RH values using a pre-calibrated relationship.

This simple mechanism makes resistive humidity sensors ideal for embedding into compact electronic circuits and consumer-grade devices.

Types of Resistive Humidity Sensing Materials

The effectiveness of a resistive humidity sensor largely depends on the materials used. Common choices include:

  • Conductive Polymers: Offer high sensitivity and fast response times.
  • Salt-Impregnated Substrates: Utilize the ionizing properties of salts to enhance conductivity with moisture.
  • Carbon Composites: Lightweight and cost-effective with moderate sensitivity.

Each material presents trade-offs in terms of hysteresis, long-term stability, and temperature dependence.

Advantages of Resistive Humidity Sensors

Resistive humidity sensors are widely adopted due to a range of benefits:

  • Low Cost: Inexpensive to manufacture and maintain.
  • Compact Design: Easily integrated into handheld or embedded systems.
  • Decent Accuracy: Typically ±2% to ±5% RH, sufficient for many applications.
  • Good Response Time: Moderate response time (30–60 seconds) in ambient air conditions.
  • Simple Circuitry: Easy to interface with digital or analog circuits.

Limitations of Resistive Humidity Sensors

Despite their advantages, resistive humidity sensors have some notable limitations:

  • Susceptible to Contaminants: Dust, oil, and chemical vapors can alter readings over time.
  • Drift Over Time: Resistance baseline may change due to aging or material fatigue.
  • Temperature Dependence: Resistance changes not only with humidity but also with temperature, requiring compensation.

To mitigate these drawbacks, frequent calibration and environmental shielding are often required in high-precision settings.

Applications of Resistive Humidity Sensors

Due to their reliability and adaptability, resistive humidity sensors are used in a variety of fields, including:

  • HVAC Systems: Control humidity in buildings for comfort and mold prevention.
  • Automotive: Monitor cabin and defogging systems.
  • Consumer Electronics: Smart thermostats, dehumidifiers, and air purifiers.
  • Industrial Automation: Integrated into flow sensors and environmental control systems.
  • Agriculture: Soil moisture and greenhouse humidity monitoring.

Integration with Other Sensor Technologies

In smart and connected systems, resistive humidity sensors often work alongside other sensors. For example, coupling with infrared sensors enables precise climate control in industrial and residential zones. Additionally, when used with pressure sensors, they can be part of comprehensive weather monitoring or HVAC optimization systems.

Calibration and Maintenance

Resistive humidity sensors need to be calibrated periodically to maintain accuracy. Calibration typically involves comparing sensor output to a known humidity standard in a controlled environment. Methods include:

  • Saturated Salt Solutions: Provide fixed RH levels at specific temperatures.
  • Humidity Chambers: Offer dynamic control over temperature and RH for more precise calibration.

Maintenance includes keeping the sensor clean, shielding it from corrosive environments, and replacing aging components as needed.

Performance Metrics and Selection Criteria

When selecting a resistive humidity sensor, several performance metrics should be considered:

  • Accuracy: Tolerance between measured and actual RH.
  • Response Time: Time taken to register changes in RH.
  • Hysteresis: Difference in sensor response during humidity increase vs. decrease.
  • Long-Term Stability: Deviation of output over time under constant conditions.

These parameters are often influenced by the choice of sensing material, sensor geometry, and packaging design.

Emerging Trends in Humidity Sensing

The demand for intelligent and interconnected sensing is pushing the boundaries of humidity sensor technology. Innovations include:

  • MEMS-Based Sensors: Use microelectromechanical systems to achieve ultra-compact, low-power operation.
  • Flexible Sensors: Printable on plastic or textile substrates for wearable electronics.
  • AI-Powered Monitoring: Machine learning algorithms analyze trends in humidity data for predictive maintenance.

As smart manufacturing and environmental monitoring continue to evolve, resistive sensors will play a key role in multi-sensor arrays and integrated systems.

Conclusion

Resistive humidity sensors offer an elegant solution for measuring relative humidity through changes in electrical resistance. Their affordability, simplicity, and versatility make them indispensable in numerous sectors, from consumer electronics to industrial automation. While they are not without challenges—such as sensitivity to contaminants and aging—they remain a popular choice thanks to ongoing improvements in materials science and electronics integration. For those working with instrumentation or climate-sensitive systems, understanding and effectively deploying resistive humidity sensors is a crucial skill.

FAQs

1. What is the typical accuracy of a resistive humidity sensor?

Most commercial resistive humidity sensors offer an accuracy range of ±2% to ±5% RH under standard conditions.

2. How often should resistive humidity sensors be calibrated?

Calibration frequency depends on the application but is generally recommended every 6–12 months in controlled environments.

3. Can resistive humidity sensors be used outdoors?

Yes, but they require protective housing to guard against dust, water, and chemical contaminants.

4. Are resistive humidity sensors suitable for medical applications?

They can be used in medical equipment, particularly where moderate accuracy and compact form factors are acceptable.

5. How do resistive humidity sensors compare to capacitive sensors?

Resistive sensors are typically less expensive and easier to integrate, while capacitive sensors offer better accuracy and stability over time.
