What Is McLeod Gauge and How Does It Work?

by Annie

In the realm of instrumentation and vacuum technology, accurate pressure measurement is crucial for many scientific and industrial applications. Among the variety of vacuum gauges available, the McLeod gauge stands out as a classic and highly reliable instrument for measuring very low pressures, typically in the range of high vacuum to ultra-high vacuum. Although modern electronic vacuum gauges have gained popularity, the McLeod gauge remains a valuable tool, especially when direct calibration or absolute pressure readings are necessary.

History and Development of the McLeod Gauge

The McLeod gauge was invented in 1874 by Herbert McLeod, a British scientist, who sought a method to measure low pressures with precision and simplicity. At the time, vacuum measurement was a significant challenge, and many early gauges were prone to inaccuracies caused by gas contamination, leaks, or improper calibration. McLeod’s design introduced a way to compress a known volume of gas to a measurable pressure, allowing for an absolute determination of the original vacuum level without reliance on indirect electrical properties or material responses.

How McLeod Gauge Works

The McLeod gauge operates on a straightforward physical principle: it compresses a known volume of gas trapped inside a glass tube, causing the pressure to increase to a measurable level. This increase in pressure is then used to calculate the original vacuum pressure in the system. The underlying physics involves the ideal gas law (PV = nRT), where the volume and pressure of the gas are inversely related at constant temperature.

Basic Construction and Components

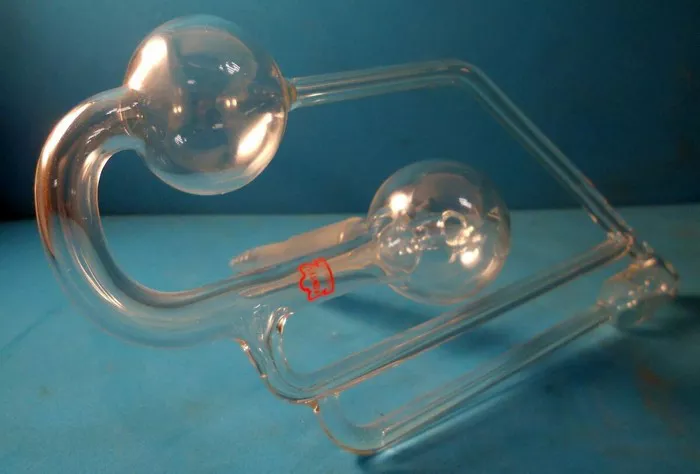

The McLeod gauge consists of a U-shaped glass tube partially filled with a liquid, commonly mercury, due to its high density and non-volatility. The tube contains several key sections:

  • Reservoir bulb: Where the mercury level can be raised or lowered to trap the gas.
  • Compression capillary: A narrow tube segment where the gas is compressed.
  • Scale: Calibrated marks on the glass to read mercury levels and pressure.

Step-by-Step Working Mechanism

The process of measuring vacuum pressure using a McLeod gauge involves several carefully controlled steps:

  • Connection to the vacuum system: The gauge is connected to the vacuum chamber whose pressure is to be measured.
  • Trapping the gas sample: Mercury is raised to a level in the reservoir bulb that traps a known volume of gas in the capillary above the mercury column.
  • Compression of the gas: Mercury is further raised, compressing the trapped gas into a much smaller volume in the capillary.
  • Pressure reading: The height difference of mercury columns in the tube is measured, which represents the compressed gas pressure.
  • Calculation of original pressure: Using the known volume ratio and the mercury height, the original vacuum pressure is calculated mathematically.

Mathematical Analysis and Calculation

The McLeod gauge relies on Boyle’s Law for the calculation of pressure:

P1V1 = P2V2

Where:

  • P1 = Original unknown pressure (vacuum) to be measured
  • V1 = Initial volume of gas trapped
  • P2 = Pressure after compression (measured mercury height)
  • V2 = Compressed gas volume

By measuring the mercury column height (which corresponds to P2) and knowing the volume ratio (V1/V2) from the gauge’s geometry, the original vacuum pressure P1 can be precisely determined.

Advantages of the McLeod Gauge

The McLeod gauge holds several unique advantages in the field of vacuum instrumentation:

  • Absolute measurement: It provides a direct physical measurement of pressure, independent of gas type or calibration drift.
  • Accuracy at low pressures: It is highly accurate for pressures typically below 1 torr, often down to 10-6 torr.
  • Simple mechanical design: Without electronics or sensitive components, it is robust and reliable under various conditions.
  • Calibration standard: Often used as a calibration reference for other vacuum gauges.

Limitations and Challenges

Despite its benefits, the McLeod gauge also has some inherent limitations:

  • Fragility: Being made of glass, it is fragile and must be handled carefully.
  • Mercury use: Mercury is toxic and requires careful handling and disposal to prevent health hazards.
  • Limited dynamic range: Not suitable for higher pressures or dynamic pressure changes.
  • Slow response: The measurement process is manual and not instantaneous.
  • Gas contamination: Water vapor or condensable gases can interfere with accurate readings.

Applications of the McLeod Gauge

The McLeod gauge remains relevant in several key applications:

  • Scientific research: Precision vacuum systems in laboratories.
  • Calibration labs: Benchmarking and verifying other vacuum measurement devices.
  • Vacuum system maintenance: Checking vacuum leaks and residual gases.
  • Industrial processes: Certain manufacturing processes requiring ultra-clean vacuum environments.

Comparison with Other Vacuum Gauges

There are many types of vacuum gauges, including Pirani gauges, ionization gauges, and capacitance manometers. Each has specific operating principles and pressure ranges:

  • Pirani gauges: Measure thermal conductivity of gases, good for rough vacuum.
  • Ionization gauges: Measure ionized gas particles, suitable for ultra-high vacuum but require calibration and are sensitive to contamination.
  • Capacitance manometers: Use diaphragm deflection for absolute pressure measurement but typically operate in higher pressure ranges.

The McLeod gauge’s unique feature is its direct measurement by gas compression, making it invaluable where absolute and stable measurements are essential.

Proper Handling and Maintenance Tips

To ensure longevity and reliable operation of the McLeod gauge, users should follow these guidelines:

  • Handle the glass structure with care to avoid breakage.
  • Use appropriate mercury handling procedures, including personal protective equipment and proper disposal methods.
  • Keep the gauge clean and free from dust or debris.
  • Periodically check for leaks or damage to the gauge.
  • Use the gauge within recommended pressure ranges and avoid sudden pressure changes.

Conclusion

The McLeod gauge is a timeless and fundamental device in the field of vacuum instrumentation. Its principle of gas compression to obtain absolute pressure measurements ensures accuracy and reliability in low-pressure environments. While its practical use has diminished with the rise of electronic gauges, it remains indispensable for calibration and scientific purposes. Understanding how the McLeod gauge works and its operational nuances is essential for engineers, technicians, and researchers engaged in vacuum technology.

FAQs

1. What is the pressure range measurable by a McLeod gauge?

The McLeod gauge is effective for measuring pressures typically from about 10-6 torr up to 1 torr, making it suitable for high and ultra-high vacuum ranges.

2. Why is mercury used in McLeod gauges?

Mercury is chosen due to its high density, which allows for smaller columns to represent significant pressure differences, and its low vapor pressure, which minimizes contamination of the vacuum system.

3. Can the McLeod gauge measure gases other than air?

Yes, the McLeod gauge measures the absolute pressure of any gas because it compresses a trapped volume physically, independent of the gas type.

4. Are there any safety concerns when using a McLeod gauge?

Yes, mercury is toxic, so proper handling, storage, and disposal protocols must be followed to avoid health risks and environmental contamination.

5. How does the McLeod gauge compare with modern electronic vacuum gauges?

While electronic gauges offer faster response and ease of use, McLeod gauges provide absolute pressure measurements without needing calibration against other instruments, making them valuable for standards and verification.
