In the intricate world of modern automotive engineering, sensors play a pivotal role in ensuring optimal performance, fuel efficiency, and reduced emissions. Among these, oxygen sensors—especially wideband oxygen sensors—are critical in managing the air-fuel mixture that powers internal combustion engines. Originally introduced to meet stringent emission regulations, these sensors have evolved to become key components in the closed-loop control of modern engines.
The Evolution from Narrowband to Wideband
Narrowband oxygen sensors, the predecessors of wideband types, were limited in their ability to provide precise air-fuel ratio measurements. They operated effectively only at the stoichiometric point (14.7:1 air-fuel ratio for gasoline engines), toggling between rich and lean signals. In contrast, wideband oxygen sensors offer continuous readings across a wide range of air-fuel ratios, allowing for more refined control strategies.

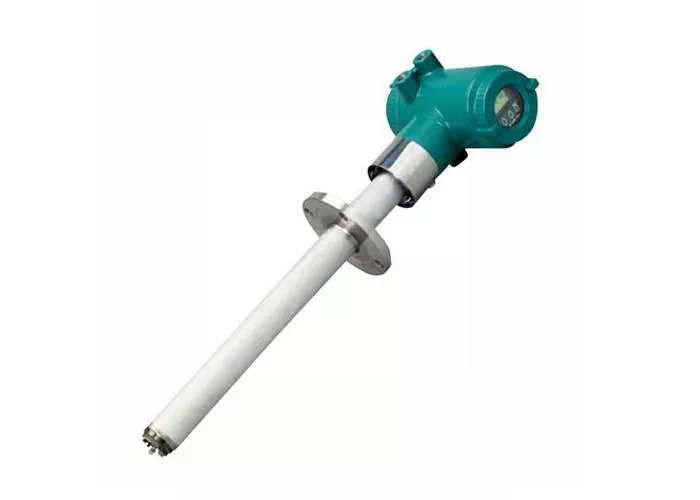

What Is a Wideband Oxygen Sensor?
A wideband oxygen sensor, also known as a wide-range air-fuel ratio sensor, is an advanced sensor designed to measure the oxygen content in the exhaust gases with high precision. Unlike narrowband sensors that simply indicate whether the mixture is rich or lean, wideband sensors quantify how rich or how lean the mixture is.
This precision enables more accurate tuning of fuel delivery systems, especially under varying operating conditions such as acceleration, deceleration, and cruising.
Core Components of a Wideband Oxygen Sensor
Wideband sensors typically consist of the following key components:
- Reference Air Chamber: A sealed section filled with ambient air used as a reference point.
- Pump Cell: Facilitates the movement of oxygen ions via a pumping current, crucial for determining the actual oxygen concentration.
- Nernst Cell: Measures the voltage generated due to the difference in oxygen levels between the exhaust and the reference air.
- Heater Element: Maintains the sensor at an optimal operating temperature (~750°C) for accurate functioning.
How Do Wideband Oxygen Sensors Work?
The working principle of wideband oxygen sensors is rooted in the electrochemical properties of zirconia (zirconium dioxide). The Nernst cell generates a voltage based on the oxygen differential between the exhaust and reference chambers. This voltage influences the current in the pump cell, which adjusts to balance the oxygen concentration.
The pump current is directly proportional to the oxygen content in the exhaust, and thus to the air-fuel ratio. The Engine Control Unit (ECU) interprets this current to fine-tune fuel injection for optimal combustion.
Advantages of Wideband Oxygen Sensors
Wideband oxygen sensors bring a host of benefits over their narrowband counterparts, including:
- Precise air-fuel ratio monitoring across a broad spectrum
- Improved fuel efficiency and reduced emissions
- Enhanced engine performance through better tuning capabilities
- Support for lean-burn and high-performance engine configurations
Applications in Automotive Engineering
Wideband oxygen sensors are predominantly used in:
- High-performance sports cars
- Modern fuel-injected gasoline engines
- Aftermarket tuning and diagnostics
- Lean-burn engines and diesel systems
They also play a critical role in advanced instrumentation setups, working in conjunction with other sensors such as MAF sensors and pressure sensors to provide a holistic view of engine performance.
Zirconia-Based Sensors: The Science Behind the Sensor
The use of zirconia in oxygen sensors is no accident. This ceramic material exhibits excellent ionic conductivity at high temperatures, allowing for efficient oxygen ion exchange in the electrochemical cells. Its durability and responsiveness make it ideal for the high-heat, high-vibration environment of automotive exhaust systems.
Challenges and Limitations
Despite their advantages, wideband sensors are not without drawbacks. Some of the common challenges include:
- Higher cost compared to narrowband sensors
- More complex circuitry and control requirements
- Susceptibility to contamination from leaded fuels or silicone-based substances
Installation and Maintenance
Proper installation is crucial for the effective performance of wideband sensors. They should be positioned in the exhaust stream where they can reach and maintain operating temperature. Regular inspection and cleaning (if recommended by the manufacturer) can extend their operational life.
Integration with Engine Management Systems
Modern engine control systems rely heavily on real-time feedback from wideband oxygen sensors. This feedback is used not just for fuel control but also for diagnostics, emissions control, and even adaptive learning algorithms that modify fuel maps over time for better efficiency and performance.
Comparison with Other Sensor Technologies
Wideband oxygen sensors are often used in tandem with other sensor types to achieve comprehensive monitoring and control. For example:
- Infrared sensors are used for emission analysis and detecting specific gas concentrations.
- Flow sensors monitor the rate of air entering the combustion chamber.
- Vibration sensors help in detecting engine knock or misfires.
The synergy among these sensors allows engineers to develop engines that are not only powerful but also environmentally friendly and economically viable.
Conclusion
Wideband oxygen sensors represent a significant advancement in automotive sensor technology. By providing continuous and accurate measurements of the air-fuel ratio, they enable better control, improved performance, and reduced emissions. Their operation, rooted in the electrochemical properties of zirconia, allows for superior adaptability in a range of conditions. Despite their complexity and higher cost, the benefits they offer far outweigh the limitations, especially as vehicles become smarter and more efficient.
FAQs
1. What is the difference between a wideband and a narrowband oxygen sensor?
Wideband sensors provide a continuous measurement of the air-fuel ratio, while narrowband sensors only indicate whether the mixture is rich or lean relative to the stoichiometric point.
2. Can a wideband sensor replace a narrowband sensor?
In most cases, no. Wideband sensors require a different control circuit and are usually managed by a compatible ECU or standalone controller. However, some modern ECUs can accommodate both types.
3. How long do wideband oxygen sensors last?
Typically, wideband sensors last between 60,000 to 100,000 miles, depending on engine conditions and fuel quality. Contaminants can shorten this lifespan significantly.
4. Are wideband oxygen sensors worth the cost?
Yes, especially in high-performance or fuel-sensitive applications. They offer better fuel economy, lower emissions, and more precise engine tuning capabilities.
5. Can wideband sensors be used in diesel engines?
Yes, some wideband sensors are designed for diesel applications, although they differ slightly in construction and calibration from those used in gasoline engines.
