Vacuum measurement plays a crucial role in various scientific, industrial, and research applications. Among the many tools used for measuring vacuum, the Pirani gauge stands out for its practicality, simplicity, and reliability. This thermal conductivity gauge, named after its inventor Marcello Pirani, has found extensive usage due to its ability to measure low to medium vacuum ranges with good accuracy. In this article, we will delve deep into what a Pirani gauge is, how it works, its components, operational mechanism, and common applications, while providing a detailed understanding backed by engineering principles.

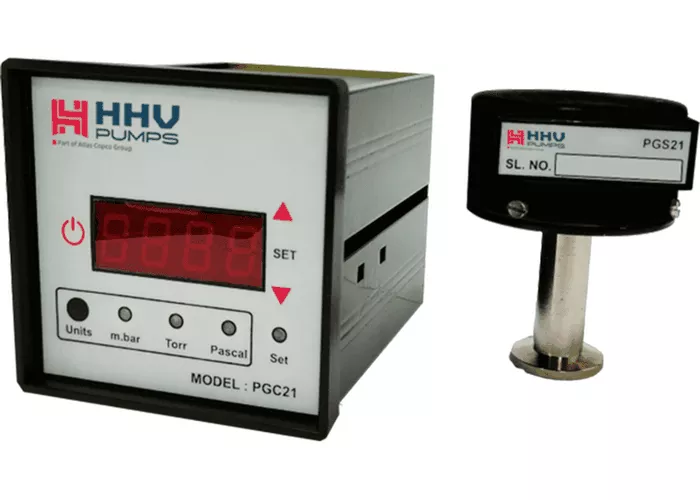

What is a Pirani Gauge?
The Pirani gauge is a type of vacuum gauge used to measure pressure in vacuum systems. It is particularly effective in the range of 0.5 to 10-4 mbar. It operates on the principle of thermal conductivity — the property of gases to conduct heat — which decreases with a drop in pressure. This change in conductivity is used to infer pressure levels.
The Instrumentation behind the Pirani gauge is elegantly simple yet effective, making it a staple in vacuum measurement across diverse sectors such as semiconductor manufacturing, coating processes, and vacuum metallurgy.
Principle of Operation
The core working principle of the Pirani gauge is based on the thermal conductivity of gases. At a constant temperature, the thermal conductivity of a gas is proportional to its pressure. As the gas pressure decreases, its ability to conduct heat also diminishes. The Pirani gauge exploits this phenomenon by using a heated filament whose temperature varies with the pressure of the surrounding gas.
More specifically, when the filament is heated electrically, it loses heat through three primary mechanisms: conduction through the gas, conduction through its supports, and radiation. Among these, the conductive heat loss through the gas is directly dependent on the gas pressure. As pressure decreases, the cooling effect of the gas diminishes, causing the filament to heat up more. This change in temperature alters the filament’s electrical resistance, which can be measured and correlated to the vacuum level.
Construction of a Pirani Gauge
The construction of a typical Pirani gauge includes the following elements:
- Filament: Usually made of tungsten or platinum due to their stable thermal and electrical properties.
- Wheatstone Bridge: A sensitive bridge circuit used to detect minute changes in resistance of the filament.
- Reference Chamber: Maintains a constant pressure and is used for comparison.
- Measuring Chamber: Exposed to the vacuum system whose pressure is to be measured.
The filament is placed within a sealed enclosure that is connected to the vacuum system. The electrical resistance of the filament is measured and interpreted by the Wheatstone bridge to give a pressure reading.
Working Mechanism
Here’s a step-by-step breakdown of how a Pirani gauge works:
- The filament is electrically heated by passing a constant current through it.
- The surrounding gas molecules absorb heat from the filament, depending on the pressure.
- As pressure drops, fewer gas molecules are available to absorb heat, so the filament becomes hotter.
- The increase in filament temperature causes an increase in its electrical resistance.
- This resistance change is detected using a Wheatstone bridge, which converts it into a corresponding pressure value.
This setup makes the Pirani gauge highly sensitive to changes in pressure, especially within the range of 10-1 to 10-4 mbar.
Types of Pirani Gauges
Several variations of the Pirani gauge exist, each tailored for specific applications:
- Basic Pirani Gauge: Uses a simple filament and bridge circuit.
- Digital Pirani Gauge: Incorporates digital readouts and microcontrollers for enhanced precision and functionality.
- Miniature Pirani Gauges: Designed for compact installations and often used in portable vacuum systems.
Applications of Pirani Gauges
The Pirani gauge is a versatile instrument that finds use in a wide range of applications:
- Vacuum coating and thin film deposition systems
- Semiconductor manufacturing equipment
- Freeze drying and food processing
- Vacuum furnaces and metallurgy
- Leak detection in vacuum systems
In all these applications, the Pirani gauge offers real-time, accurate pressure monitoring, which is essential for process control and safety.
Advantages of Using a Pirani Gauge
The Pirani gauge offers several advantages that make it a preferred choice for vacuum measurement:
- Simple and robust construction
- Wide operating range (from atmospheric pressure down to 10-4 mbar)
- Fast response time
- Relatively low cost compared to other vacuum gauges
- Non-intrusive and can be easily integrated into existing systems
Limitations and Considerations
Despite its advantages, the Pirani gauge has some limitations:
- Not suitable for ultra-high vacuum measurements (below 10-4 mbar)
- Performance depends on the type of gas being measured — requires calibration for different gases
- The filament can degrade over time, especially in reactive gas environments
Calibration and Maintenance
To maintain accuracy, periodic calibration is essential. This typically involves comparing the Pirani gauge readings with a reference standard under known pressures. Maintenance mainly involves inspecting and possibly replacing the filament if it shows signs of wear or oxidation. Some modern Pirani gauges include self-calibration features to simplify this process.
Recent Innovations
Modern advancements have improved Pirani gauge functionality in several ways:
- Use of microelectromechanical systems (MEMS) for miniaturization
- Integration with digital control systems for real-time data logging
- Automated zeroing and range selection for improved ease of use
Conclusion
The Pirani gauge remains one of the most commonly used instruments for vacuum pressure measurement due to its robustness, ease of use, and relatively low cost. Its working principle — based on thermal conductivity — is both reliable and intuitive, making it a valuable tool across various industries. Whether in scientific research or industrial vacuum systems, the Pirani gauge continues to play a crucial role in ensuring accurate and efficient pressure monitoring.
FAQs
1. What pressure range does a Pirani gauge measure?
A Pirani gauge typically measures vacuum pressure in the range of 0.5 to 10-4 mbar.
2. Can a Pirani gauge measure atmospheric pressure?
It can measure near-atmospheric pressure but is not optimized for precise readings at or above atmospheric levels. It is best suited for low to medium vacuum conditions.
3. Does the type of gas affect Pirani gauge readings?
Yes, since the gauge operates based on thermal conductivity, which varies between gases, calibration is necessary for accurate readings with different gas types.
4. How often should a Pirani gauge be calibrated?
Calibration frequency depends on usage conditions, but generally, a periodic calibration every 6 to 12 months is recommended for accuracy.
5. What causes a Pirani gauge to malfunction?
Common causes include filament degradation, electrical issues in the Wheatstone bridge, or contamination from reactive gases.
