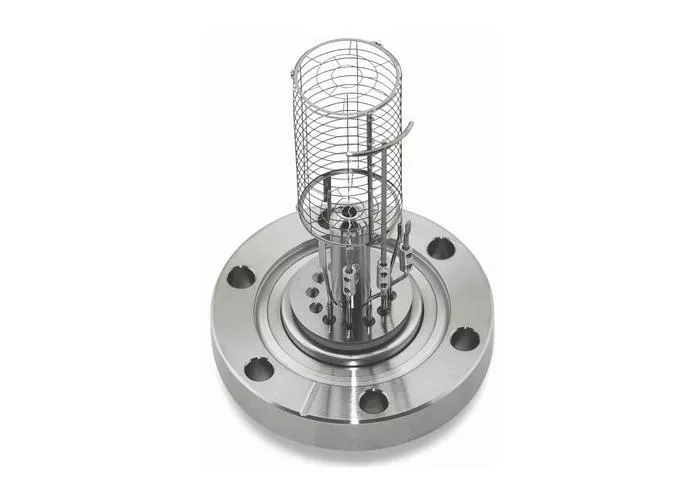

An ionization gauge is a highly sensitive vacuum measurement device used to determine extremely low pressures—typically in the range of 10-3 to 10-10 Torr. These gauges are integral to advanced vacuum systems, often utilized in scientific research, semiconductor manufacturing, space simulation chambers, and other instrumentation fields where maintaining and measuring ultra-high vacuum (UHV) is crucial.
Ionization gauges operate based on the principle that gas molecules can be ionized by collisions with high-energy electrons. By measuring the current generated by these ions, the gauge provides an indirect, yet highly accurate, measurement of gas density and therefore pressure.
Historical Background
The development of ionization gauges dates back to the early 20th century. As vacuum technology evolved, there was a pressing need to measure pressures far below the capabilities of mechanical gauges. The pioneering work of Irving Langmuir and others laid the foundation for what would become the modern ionization gauge. Since then, the device has undergone numerous refinements in sensitivity, range, and reliability.
How Ionization Gauges Work
The core operation of an ionization gauge involves three essential components: an electron source (filament), a grid (or anode), and a collector (ion collector). The general sequence of operation includes:
- Electrons are emitted from a heated filament via thermionic emission.
- These electrons are accelerated by a positively charged grid, creating a dense cloud of high-speed electrons inside the gauge tube.
- As gas molecules pass through the grid area, they collide with these electrons and become ionized (lose or gain electrons).
- The resulting positive ions are attracted to and collected by a negatively charged ion collector.
- The ion current is proportional to the number of gas molecules in the chamber, which correlates to the pressure.
Types of Ionization Gauges
Several variations of ionization gauges exist, each optimized for specific applications and pressure ranges:
Hot Cathode Ionization Gauges
These are the most common type and include subtypes such as the Bayard-Alpert gauge and the triode gauge. They use a heated filament to emit electrons. While highly accurate, the filament can degrade in reactive gas environments, limiting its longevity in certain applications.
Cold Cathode Ionization Gauges
Also known as Penning gauges, these use a high-voltage electric field in conjunction with a magnetic field to sustain a plasma discharge, eliminating the need for a heated filament. They are more robust in harsh environments but may require a threshold pressure to initiate the discharge.
Measurement Range and Accuracy
Ionization gauges are particularly effective in the ultra-high vacuum range. Hot cathode gauges typically measure from 10-3 Torr to 10-10 Torr, while cold cathode gauges may operate effectively from 10-2 Torr down to around 10-9 Torr. Despite their sensitivity, these gauges require periodic calibration and are influenced by gas type, ionization probability, and ambient conditions.
Advantages and Limitations
Advantages:
- Excellent sensitivity in the UHV range
- Compact and easily integrated into vacuum systems
- Relatively low power consumption (especially cold cathode types)
Limitations:
- Susceptible to contamination and chemical degradation
- Require calibration for specific gas types
- Hot cathode gauges can fail due to filament burnout
Applications of Ionization Gauges
Ionization gauges are essential tools in any domain where maintaining low pressure is critical. Some common applications include:
- Semiconductor Manufacturing: Used in vacuum etching and deposition processes.
- Particle Accelerators: Monitor vacuum conditions within beam lines.
- Surface Science: Investigate surface interactions in a vacuum.
- Space Simulation Chambers: Replicate outer space conditions for satellite testing.
- Fusion Research: Measure pressure in plasma containment chambers.
Material Selection and Design Considerations
Materials used in ionization gauges must withstand corrosive environments, thermal cycling, and mechanical stress. Stainless steel, molybdenum, and ceramic insulators are commonly employed. Design factors also include the geometry of the grid, thermal isolation of the filament, and shielding to prevent ion feedback and electron leakage.
Calibration and Maintenance
Calibration involves comparing the ion gauge’s readings to a known standard, such as a spinning rotor gauge or a calibrated capacitance manometer. Maintenance includes regular cleaning, replacing degraded filaments, and ensuring the vacuum system is free from contaminants that could alter gauge sensitivity.
Innovations in Ionization Gauge Technology
Recent advancements include the integration of digital readouts, microcontroller-based feedback systems, and improved materials that resist chemical degradation. Miniaturization has also allowed ion gauges to be embedded in smaller and more mobile systems, expanding their utility in portable and space-limited applications.
Comparison with Other Vacuum Gauges
Unlike mechanical gauges such as Bourdon tubes or Pirani gauges, ionization gauges do not measure pressure through force or thermal conductivity. Instead, they measure the actual number of gas molecules in the vacuum, providing superior accuracy at very low pressures. Capacitive gauges are accurate at higher pressures but become unreliable in UHV applications where ionization gauges excel.
Safety and Handling Considerations
Working with ionization gauges involves handling high voltages and delicate components. Proper grounding, insulation, and system isolation are crucial. In reactive or corrosive gas environments, hot cathode gauges should be avoided or protected by additional filters to prolong filament life and maintain accuracy.
Conclusion
The ionization gauge stands as a cornerstone in vacuum technology, offering unmatched accuracy for ultra-low pressure measurements. Despite its sensitivity to environmental factors and the need for regular calibration, its precision and utility in scientific and industrial applications make it indispensable. With continuing innovation, the role of ionization gauges is set to expand further, especially in advanced fields such as quantum computing, space exploration, and nanotechnology.
FAQs
1. What pressure range can an ionization gauge measure?
Hot cathode gauges can measure from 10-3 to 10-10 Torr, while cold cathode gauges typically range from 10-2 to 10-9 Torr.
2. What is the difference between hot and cold cathode ionization gauges?
Hot cathode gauges use a heated filament to emit electrons, whereas cold cathode gauges use a magnetic discharge method, which does not require a filament.
3. Do ionization gauges work with all gases?
Ionization gauges are sensitive to gas types due to differing ionization potentials. Calibration is often needed for specific gases to ensure accurate readings.
4. How often do ionization gauges need calibration?
Regular calibration is recommended—typically every six to twelve months, depending on the application and operating environment.
5. Are ionization gauges safe to use?
Yes, but they involve high voltage and fragile components, so safety precautions like proper insulation, grounding, and protective housings are necessary during operation and maintenance.
