Oxygen sensors play a critical role in modern automotive and industrial applications by monitoring the oxygen concentration in exhaust gases to optimize combustion and reduce emissions. Among the various types of oxygen sensors, Titania Oxygen Sensors have garnered attention due to their distinct operational principles and advantages over traditional Zirconia Oxygen Sensors. Understanding what Titania Oxygen Sensors are, their working mechanism, and their applications is essential for engineers, technicians, and enthusiasts who work with emission control and instrumentation systems.

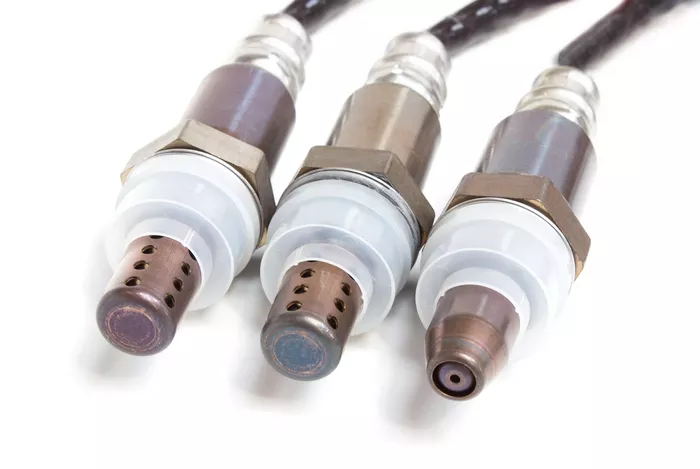

What Is a Titania Oxygen Sensor?
A Titania Oxygen Sensor, also known as a titanium dioxide oxygen sensor, is a type of solid-state oxygen sensor that uses titanium dioxide (TiO2) as the sensing element. Unlike the more common Zirconia Oxygen Sensors, which rely on ionic conduction through zirconium dioxide (ZrO2), Titania sensors operate based on changes in the electrical resistance of the titanium dioxide ceramic material when exposed to varying oxygen concentrations.
Titania sensors are commonly employed in automotive exhaust systems to measure the air-fuel ratio (AFR) in combustion engines. Maintaining the correct AFR is vital for achieving optimal engine performance, fuel economy, and minimizing harmful emissions such as carbon monoxide (CO), hydrocarbons (HC), and nitrogen oxides (NOx).
Historical Context and Development
Titania Oxygen Sensors emerged as an alternative to Zirconia-based sensors in the 1970s and 1980s when automotive manufacturers sought reliable and cost-effective oxygen sensing technologies. While Zirconia sensors dominated the market due to their high sensitivity and accuracy, Titania sensors provided a simpler, low-cost option with rapid response times and good durability.
Over time, the development of more sophisticated engine management systems and stricter emissions regulations have influenced the evolution of oxygen sensor technology, but Titania sensors still maintain niche applications where their unique properties are advantageous.
How Titania Oxygen Sensors Work
The fundamental operating principle of Titania Oxygen Sensors revolves around the variation in electrical resistance of titanium dioxide when exposed to different oxygen partial pressures. Titanium dioxide is a semiconductor whose resistivity changes in response to oxygen concentration, allowing it to serve as a sensing material.
When the sensor is exposed to exhaust gases, the oxygen molecules interact with the titanium dioxide surface. Under oxygen-rich conditions (lean mixture), oxygen atoms adsorb onto the sensor surface, capturing free electrons and increasing the resistance. Conversely, under oxygen-poor conditions (rich mixture), fewer oxygen molecules adsorb, leaving more free electrons available, thus decreasing the resistance.
This resistance change is then converted into a voltage signal by an external circuit, typically a simple voltage divider. The voltage output ranges roughly between 0.1 V (lean) and 0.9 V (rich), which the engine control unit (ECU) interprets to adjust fuel injection for optimum combustion.
Comparison with Zirconia Oxygen Sensors
While both Titania and Zirconia Oxygen Sensors are designed to measure oxygen levels in exhaust gases, their sensing mechanisms differ significantly:
- Zirconia sensors rely on ionic conduction and generate a voltage due to the difference in oxygen partial pressure across a zirconium dioxide electrolyte.
- Titania sensors utilize changes in electrical resistance caused by oxygen adsorption on titanium dioxide.
Titania sensors typically require a heating element to maintain operating temperature (around 600°C) for accurate resistance response. Their output signal is more analog and continuous, while Zirconia sensors often produce a switching output near the stoichiometric point. This difference influences sensor selection based on application requirements.
Construction and Design
Titania Oxygen Sensors consist primarily of a titanium dioxide ceramic element coated on a suitable substrate. The sensor includes electrical contacts to measure the resistance changes, as well as a heater element to keep the sensor at the required temperature for proper functioning.
The sensing element is housed in a protective casing designed to withstand harsh exhaust environments, including high temperature, corrosive gases, and mechanical vibrations. Porous protective layers are often incorporated to allow gas diffusion while preventing particulate contamination.
Because the sensor’s electrical resistance is critical, robust contact materials and stable ceramic formulations are necessary to ensure sensor longevity and repeatability.
Applications of Titania Oxygen Sensors
Titania Oxygen Sensors find their primary applications in:
- Automotive engines: For closed-loop fuel control systems, Titania sensors provide real-time feedback on the air-fuel ratio to optimize combustion and emissions.
- Instrumentation: In various industrial processes requiring oxygen monitoring, Titania sensors offer a reliable means of detecting oxygen concentration changes.
- Exhaust gas monitoring: The sensors help ensure that catalytic converters operate efficiently by providing continuous oxygen level data.
Though Zirconia sensors dominate due to their high accuracy, Titania sensors are preferred in cost-sensitive applications or where continuous analog sensing is required.
Integration with Instrumentation Systems
Titania Oxygen Sensors can be integrated into comprehensive instrumentation systems used for monitoring combustion efficiency and emissions compliance. Their straightforward analog output facilitates seamless connection with data acquisition and control units for real-time system adjustments.
Advantages and Limitations
Advantages
- Cost-effective: Titania sensors are generally less expensive than Zirconia sensors due to simpler manufacturing processes.
- Rapid response: They respond quickly to changes in oxygen concentration, enabling faster engine control feedback.
- Analog output: Provide a continuous voltage signal proportional to oxygen concentration, useful for precise control strategies.
- Durability: Titanium dioxide is chemically stable, providing reasonable resistance to exhaust gases and thermal cycling.
Limitations
- Temperature dependence: Sensor performance heavily relies on maintaining a high operating temperature, necessitating a heater element and additional power consumption.
- Less accurate at extreme conditions: Resistance changes can be non-linear and less predictable at very rich or lean mixtures compared to Zirconia sensors.
- Limited range: Titania sensors are less suitable for precise lambda measurements beyond the stoichiometric point.
Maintenance and Calibration
Titania Oxygen Sensors require periodic checks to ensure reliability. Sensor contamination by soot or other exhaust particulates can degrade performance. Cleaning or replacement may be necessary in such cases.
Calibration involves verifying the sensor output against known oxygen concentrations, often done in laboratory or controlled engine test setups. Because the sensor output is a resistance-based analog signal, stable reference resistors and temperature compensation circuits are used to maintain accuracy.
Conclusion
Titania Oxygen Sensors provide a distinctive approach to oxygen measurement through the resistance variation of titanium dioxide. While they face competition from Zirconia Oxygen Sensors, Titania sensors continue to hold value in specific automotive and industrial applications due to their cost-effectiveness, rapid response, and analog output characteristics.
Understanding the working principle, design considerations, and application contexts of Titania Oxygen Sensors is crucial for leveraging their strengths in emission control and combustion optimization. As engine and emission control technologies advance, Titania sensors remain an important component of the instrumentation landscape.
FAQs
1. How does a Titania Oxygen Sensor differ from a Zirconia Oxygen Sensor?
Titania Oxygen Sensors measure oxygen levels by changes in electrical resistance of titanium dioxide, while Zirconia Oxygen Sensors rely on ionic conduction in zirconium dioxide to generate a voltage signal. This difference affects sensor output, temperature requirements, and accuracy.
2. Why is a heater element necessary for Titania Oxygen Sensors?
Titanium dioxide’s resistance changes significantly only at elevated temperatures, typically around 600°C. The heater ensures the sensor maintains this temperature for accurate and stable measurements.
3. Can Titania Oxygen Sensors be used for precise lambda measurements?
Titania sensors provide analog output useful for monitoring air-fuel ratios but are generally less precise for lambda values far from stoichiometric compared to Zirconia sensors.
4. What are common failure modes of Titania Oxygen Sensors?
Sensor contamination by soot or deposits, heater failure, and degradation of electrical contacts are typical failure modes affecting sensor accuracy and responsiveness.
5. Are Titania Oxygen Sensors suitable for modern engine management systems?
While Zirconia sensors are more common in advanced systems, Titania sensors are still viable for specific applications where cost, rapid response, and analog output are priorities. They can also complement other sensors in comprehensive instrumentation setups.
