Ultrasonic level sensors have gained significant popularity in various industries for their ability to measure the level of a liquid or solid in a tank or container. These sensors provide non-contact and precise measurements, making them essential in applications where traditional mechanical level sensors may not be feasible or reliable. This article will explore the workings of ultrasonic level sensors, their components, applications, advantages, and why they are often the preferred choice in many industries.
What Are Ultrasonic Level Sensors?

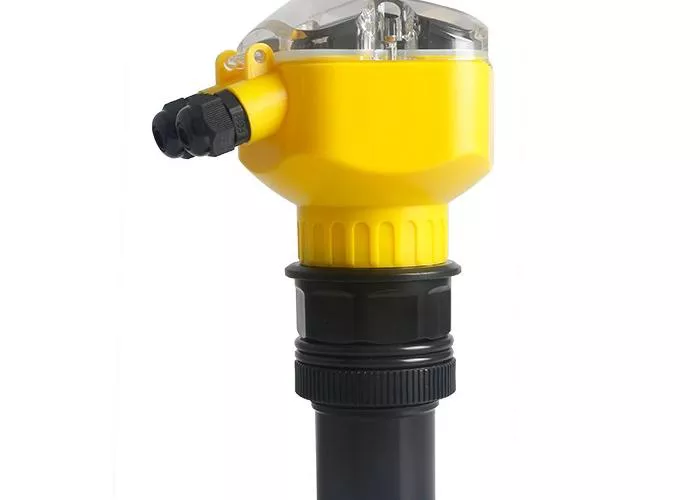

Ultrasonic level sensors are a type of non-contact sensor used to measure the distance between the sensor and the surface of a material, often liquid or solid, within a container. These sensors operate by emitting ultrasonic sound waves and measuring the time it takes for the waves to reflect off the material’s surface and return to the sensor. This time-of-flight measurement is then used to calculate the level of the material.
Ultrasonic level sensors are often chosen for their ability to work in challenging environments. Since they do not require direct contact with the material being measured, they are ideal for applications where contact-based measurement would be cumbersome or even dangerous, such as in hazardous or corrosive environments.
How Do Ultrasonic Level Sensors Work?
The operation of ultrasonic level sensors is based on the principle of sound wave propagation. Sound waves are emitted by the sensor’s transducer, which is typically positioned at the top of a container. These waves travel through the air until they encounter the surface of the material being measured. The waves then bounce back toward the sensor, where they are detected by the same transducer or a separate receiver.
Once the sensor detects the returning sound waves, it measures the time it took for the waves to travel from the sensor to the material and back. This time is then used to calculate the distance to the surface, and from there, the level of the material in the container is determined. The sensor uses the following formula to calculate the distance:
Distance = (Speed of Sound × Time of Flight) / 2
By dividing the total time taken by two, the sensor accounts for the round-trip journey of the sound waves. The speed of sound in air is typically around 343 meters per second at room temperature, but this speed can vary depending on factors such as temperature, humidity, and air pressure. Most ultrasonic level sensors compensate for these variations to ensure accurate readings.
Components of Ultrasonic Level Sensors
Ultrasonic level sensors consist of several key components that work together to measure material levels effectively. The main components include:
- Transducer: This is the heart of the sensor, responsible for emitting and receiving ultrasonic sound waves. It converts electrical energy into mechanical energy (sound waves) and vice versa.
- Signal Processing Unit: This unit processes the signals received by the transducer, calculates the distance based on the time-of-flight measurement, and converts the data into a readable output.
- Display or Output Interface: The display shows the measured level, often in percentage or distance units. In some cases, the sensor may provide an analog or digital output that can be integrated with other systems, such as a control system or a data logger.
- Housing: The housing is the outer shell that protects the internal components of the sensor from environmental factors such as moisture, dust, and physical impact. It is typically made of durable materials such as stainless steel or plastic.
Applications of Ultrasonic Level Sensors
Ultrasonic level sensors are versatile tools used in a wide range of industries. Some of the most common applications include:
- Water and Wastewater Treatment: In water treatment facilities, ultrasonic level sensors are used to monitor the levels of water and chemicals in tanks, ensuring the efficient operation of the treatment process.
- Oil and Gas Industry: Ultrasonic sensors are used to monitor the level of oil, fuel, and other liquids in storage tanks, preventing overflows and ensuring proper tank management.
- Food and Beverage Industry: In food and beverage manufacturing, ultrasonic level sensors are used to measure the levels of ingredients in tanks and silos, ensuring accurate ingredient delivery and preventing spoilage.
- Chemical Processing: Ultrasonic sensors are commonly used in chemical plants to monitor the levels of hazardous chemicals in storage containers, providing a safe and reliable method for measuring potentially dangerous substances.
- Pharmaceutical Industry: Pharmaceutical manufacturers use ultrasonic sensors for precise measurement of ingredients in various stages of production, ensuring consistency and quality in their products.
Advantages of Ultrasonic Level Sensors
Ultrasonic level sensors offer several advantages over traditional contact-based level measurement devices such as float sensors or pressure transducers. Some of the key benefits include:
- Non-Contact Measurement: Since ultrasonic sensors do not need to touch the material being measured, they are ideal for applications where contact would cause contamination, corrosion, or wear. This makes them well-suited for measuring liquids or solids that are difficult or dangerous to reach with physical probes.
- High Accuracy: Ultrasonic sensors are known for their high accuracy in level measurement. By using precise time-of-flight calculations, they can provide accurate measurements with high resolution, even in large tanks or containers.
- Versatility: Ultrasonic sensors can be used to measure a variety of materials, including water, chemicals, oils, and powders. They are also suitable for both open and closed containers, providing flexibility in different applications.
- Minimal Maintenance: Because they do not have moving parts or require direct contact with the measured material, ultrasonic level sensors typically require minimal maintenance. This results in longer sensor lifespans and lower overall operating costs.
- Easy Installation: Installing ultrasonic level sensors is often simple and straightforward. The sensors can be mounted at the top of a container, and the setup generally involves wiring the sensor to a control system or display unit.
Factors That Affect the Performance of Ultrasonic Level Sensors
Although ultrasonic level sensors are reliable and accurate, several factors can affect their performance. These include:
- Environmental Conditions: The speed of sound in air is affected by temperature, humidity, and air pressure. These environmental factors can lead to errors in the distance calculation if not properly accounted for. Many ultrasonic level sensors feature built-in compensation for these variables.
- Surface Characteristics: The type of material being measured and its surface characteristics can affect the sensor’s ability to detect the surface accurately. For example, smooth and flat surfaces provide a clearer reflection of sound waves than irregular or highly textured surfaces.
- Obstructions: Objects or dust in the air can interfere with the sound waves, causing inaccurate measurements. Proper calibration and placement of the sensor can mitigate some of these issues.
- Foam and Vapors: In some cases, foam on the surface of a liquid or the presence of vapors can affect the sensor’s ability to detect the true level. Some ultrasonic sensors are designed to handle these conditions, but they may still cause measurement errors in certain environments.
Comparison with Other Types of Level Sensors
When selecting a level sensor for a particular application, it is important to consider the specific requirements and compare ultrasonic sensors with other types of level measurement devices, such as pressure sensors, infrared sensors, and capacitive sensors. Each type of sensor has its strengths and weaknesses, and the choice depends on factors such as material type, tank size, environmental conditions, and required accuracy.
For example, level sensors like pressure-based sensors are often used for measuring liquid levels in sealed tanks where pressure changes correlate with the material’s height. However, these sensors may not be suitable for open containers or materials that produce significant vapor or foam. In contrast, ultrasonic sensors work well in open tanks and are less affected by these conditions.
Conclusion
Ultrasonic level sensors are a powerful tool for measuring the level of materials in a wide range of industries. They provide accurate, non-contact measurements that are highly reliable, even in challenging environments. With their versatility, ease of installation, and minimal maintenance requirements, ultrasonic level sensors are an essential component in modern measurement systems. Understanding how they work and the factors that affect their performance can help industries select the right sensor for their specific needs.
