Potentiometric sensors are a vital category of sensing devices widely employed across various engineering fields, including mechanical, chemical, and electrical engineering. These sensors operate based on the principle of measuring the voltage or potential difference generated by an electrochemical cell or a mechanical displacement system, where the measured potential is directly related to the quantity or parameter of interest. Their ability to provide precise, stable, and real-time measurements makes them indispensable in many industrial, scientific, and consumer applications.
How Potentiometric Sensors Work
At its core, a potentiometric sensor detects changes in voltage between two electrodes or terminals, where this voltage varies as a function of an external stimulus such as displacement, chemical concentration, or temperature. The measured potential difference (often referred to as the electromotive force or emf) arises without drawing significant current from the sensor, which distinguishes potentiometric measurements from other types like amperometric sensors that rely on current flow.
The fundamental operating principle can be broken down into two major categories:
- Electrochemical Potentiometric Sensors: These sensors measure the voltage generated due to the selective ion activity or concentration difference between two electrodes immersed in a solution or medium.
- Mechanical Potentiometric Sensors (Potentiometers): These devices measure displacement or angular position by varying the resistance in a circuit, which causes a corresponding change in output voltage proportional to the physical movement.
Electrochemical Potentiometric Sensors: Mechanism and Applications
Electrochemical potentiometric sensors utilize an ion-selective electrode coupled with a reference electrode to measure the activity of a specific ion in a solution. The potential difference between these electrodes depends on the ion concentration in the test environment, governed by the Nernst equation:
E = E0 + (RT / zF) * ln(aion)
Where:
- E = measured electrode potential
- E0 = standard electrode potential
- R = universal gas constant
- T = absolute temperature (Kelvin)
- z = charge number of the ion
- F = Faraday’s constant
- aion = activity (effective concentration) of the ion
This relationship enables precise quantification of ionic species in various environments, making potentiometric sensors essential in fields such as environmental monitoring, medical diagnostics, and chemical manufacturing.
Common Types of Electrochemical Potentiometric Sensors
- pH Sensors: Measure hydrogen ion activity, crucial for monitoring acidity or alkalinity in solutions.
- Ion-Selective Electrodes (ISEs): Designed to detect specific ions such as potassium, sodium, calcium, or nitrate.
- Gas Sensors: For detecting gases like oxygen or carbon dioxide by measuring changes in ionic concentration.
Typical Applications
- Water quality analysis
- Biomedical diagnostics, including blood gas and electrolyte monitoring
- Food and beverage industry for quality control
- Industrial process control and chemical production
Mechanical Potentiometric Sensors: Operation and Uses
Mechanical potentiometric sensors, often simply called potentiometers, are devices that convert mechanical motion (linear or rotary) into an electrical signal. These sensors operate by changing the position of a wiper on a resistive element, thus altering the output voltage proportionally to the displacement.
Construction and Working Principle
A typical mechanical potentiometric sensor consists of three terminals: two fixed ends connected to a resistive track and a movable wiper that slides over this track. As the wiper moves, it divides the resistive element into two parts, changing the resistance ratio and thus the output voltage between the wiper and one end terminal.
The output voltage \( V_{out} \) is given by:
Vout = Vin * (Rwiper / Rtotal)
Where \( V_{in} \) is the input voltage applied across the resistive element, \( R_{wiper} \) is the resistance from the start of the track to the wiper, and \( R_{total} \) is the total resistance of the track.
Types of Mechanical Potentiometric Sensors
- Rotary Potentiometers: Measure angular displacement; widely used in robotics, control systems, and instrumentation.

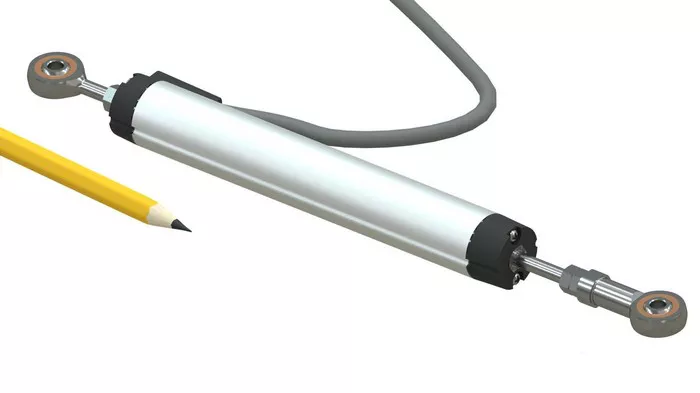

- Linear Potentiometers: Measure linear position or displacement; used in applications like material testing, automated machinery, and vehicle suspension systems.
- Multiturn Potentiometers: Designed for precise angular measurements requiring multiple revolutions.
Applications of Mechanical Potentiometric Sensors
- Position sensing in servo motors and robotics
- Throttle position in automotive engines
- Volume control in consumer electronics
- Feedback devices in CNC machines and industrial automation
Advantages of Potentiometric Sensors
Potentiometric sensors provide several advantages that have driven their widespread adoption:
- High Sensitivity and Precision: Capable of detecting minute changes in displacement or ion concentration.
- Non-Destructive Measurement: Electrochemical types operate without consuming the analyte or drawing current that alters the system.
- Simple Construction: Mechanical potentiometers have straightforward designs, making them cost-effective and easy to maintain.
- Real-Time Monitoring: Offer continuous output for real-time feedback and control.
- Wide Range of Applications: Useful in diverse environments from harsh industrial settings to delicate biological systems.
Limitations and Challenges
Despite their benefits, potentiometric sensors come with inherent challenges that must be addressed depending on the application:
- Electrochemical Sensors: Susceptible to interference from other ions and require calibration to maintain accuracy over time.
- Mechanical Sensors: Physical wear of the resistive track and wiper can degrade performance and lifespan.
- Temperature Sensitivity: Variations in temperature can affect sensor output, necessitating compensation techniques.
- Limited Range: Mechanical potentiometers may have limited angular or linear range depending on construction.
Recent Innovations and Trends
Advancements in materials science and electronics have expanded the capabilities and applications of potentiometric sensors. Innovations include:
- Solid-State Ion-Selective Electrodes: Improved durability and reduced maintenance compared to traditional glass electrodes.
- Miniaturization and Integration: Development of micro-potentiometric sensors for wearable health monitors and portable devices.
- Wireless Potentiometric Sensors: Integration with IoT systems for remote monitoring and smart infrastructure.
- Improved Coatings and Materials: Enhancing resistance to corrosion, fouling, and mechanical wear.
Conclusion
Potentiometric sensors, encompassing both electrochemical and mechanical varieties, represent a foundational technology in sensing and measurement. Their ability to convert physical or chemical changes into quantifiable electrical signals has rendered them invaluable across multiple industries. Understanding their operating principles, advantages, and limitations is essential for selecting the right sensor type for a given application and optimizing performance. Continued advancements promise to extend their capabilities further, fostering innovation in automation, healthcare, environmental monitoring, and beyond.
FAQs
What is the main difference between electrochemical and mechanical potentiometric sensors?
Electrochemical potentiometric sensors measure voltage changes due to ionic concentration differences, while mechanical potentiometric sensors measure voltage changes caused by physical displacement affecting resistance.
How does a potentiometric sensor differ from other types of sensors?
Potentiometric sensors measure voltage without drawing current, providing a non-destructive and highly sensitive measurement, unlike amperometric sensors which rely on current flow.
Are potentiometric sensors affected by temperature?
Yes, temperature can affect the sensor output, especially for electrochemical types governed by the Nernst equation and mechanical types through material property changes. Temperature compensation is often necessary.
What are some common applications of potentiometric sensors?
They are widely used in environmental monitoring (e.g., pH measurement), medical diagnostics, industrial automation, robotics, and consumer electronics.
How do you calibrate a potentiometric sensor?
Calibration involves comparing the sensor output against known standards or reference values to adjust and correct the measurement scale, ensuring accuracy over time.
What causes wear in mechanical potentiometric sensors?
The mechanical sliding action of the wiper on the resistive track causes friction and gradual degradation, which can lead to signal noise and reduced lifespan.
