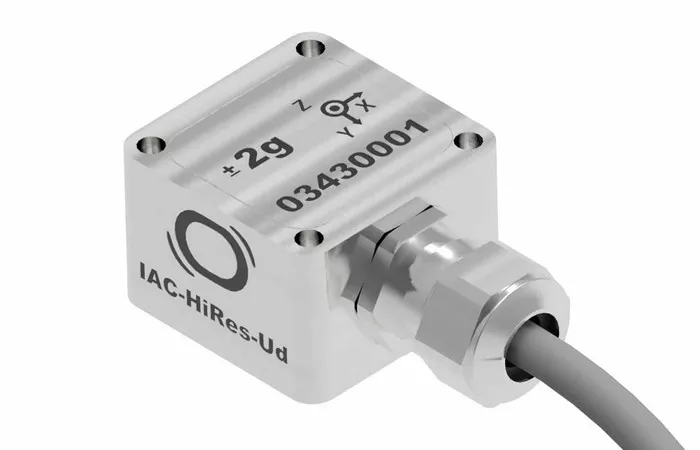

Mechanical accelerometers are essential instruments used to measure acceleration forces in a wide variety of applications, ranging from industrial machinery monitoring to aerospace navigation and consumer electronics. Fundamentally, these devices convert physical acceleration into an electrical or mechanical signal, allowing engineers and technicians to analyze motion, vibration, and shock characteristics of systems.
Unlike their modern electronic or MEMS-based counterparts, mechanical accelerometers rely on purely mechanical components such as masses, springs, and dampers to detect and quantify acceleration. These devices have a long history, dating back to early 20th-century engineering, and remain vital where ruggedness, simplicity, and reliability under harsh conditions are paramount.
This article explores the design principles, operating mechanisms, types, applications, and advantages of mechanical accelerometers. By the end, you will understand how these devices work at a fundamental level and why they continue to be relevant in today’s advanced technological landscape.
What Is Acceleration Measurement
Acceleration is defined as the rate of change of velocity with respect to time. In physical terms, it is a vector quantity with both magnitude and direction. Measuring acceleration accurately requires sensing how quickly an object changes its speed or direction.
Mechanical accelerometers typically measure acceleration by observing the relative displacement of a known mass attached to a spring. According to Newton’s second law, a mass subjected to acceleration experiences an inertial force proportional to that acceleration. By measuring the effect of this inertial force on the system’s mechanical elements, the device infers the acceleration.
Key principles involved include:
Inertia: The resistance of the mass to changes in its state of motion. When the accelerometer moves, the mass tends to stay at rest or in uniform motion due to inertia, causing relative displacement.
Spring Force: A restoring force generated by the spring proportional to its displacement, opposing the inertial force.
Damping: To avoid oscillations or excessive vibration of the mass-spring system, dampers are often included to stabilize the measurement.
By balancing these forces and measuring displacement, mechanical accelerometers provide a direct and robust indication of acceleration.
Core Components of Mechanical Accelerometers
At the heart of every mechanical accelerometer lies a mass-spring-damper system. Each component plays a critical role in the device’s operation:
Proof Mass
The proof mass (or seismic mass) is a precisely defined mass that responds to acceleration forces. When the accelerometer accelerates, the proof mass lags due to inertia, creating relative motion between itself and the device housing.
Spring Element
The spring connects the proof mass to the accelerometer frame. It provides a restoring force proportional to the displacement of the mass. The spring constant determines the sensitivity and natural frequency of the accelerometer.
Damping Mechanism
To ensure stable, accurate readings, damping is introduced to reduce oscillations of the proof mass after movement. Damping can be achieved through viscous fluid, air resistance, or magnetic damping.
Displacement Sensing Element
The relative movement of the proof mass must be converted into a measurable signal. In mechanical accelerometers, this is often done through:
Mechanical linkages or pointer systems (e.g., needle on a dial)
Variable capacitive elements or inductive pickups (in hybrid designs)
Strain gauges or piezoelectric elements in more advanced mechanical setups
How Mechanical Accelerometers Work: Step-by-Step
The working principle of mechanical accelerometers can be summarized in the following process:
1. Acceleration Application: When the device experiences acceleration along its sensitive axis, the housing moves.
2. Inertia Effect: Due to inertia, the proof mass resists this acceleration and tries to remain stationary relative to the inertial frame.
3. Mass Displacement: This resistance causes the mass to displace relative to the accelerometer frame.
4. Spring Force Reaction: The spring, connected to the mass and housing, exerts a restoring force proportional to the displacement.
5. Damping Stabilization: Any oscillations in the system are damped to ensure the displacement reaches a steady state quickly.
6. Measurement of Displacement: The relative displacement of the proof mass is detected and translated into an acceleration value using calibration factors.
This process is inherently analog and continuous, making mechanical accelerometers well suited to real-time monitoring without complex signal processing.
Types of Mechanical Accelerometers
Mechanical accelerometers come in various configurations tailored to specific measurement needs. The main types include:
Spring-Mass Accelerometers
The most common design, where the proof mass is suspended by springs in one or more directions. Displacement is measured directly or indirectly. Variants include single-axis and multi-axis designs.
Piezoelectric Mechanical Accelerometers
Though piezoelectric accelerometers are often considered electronic, many incorporate mechanical masses that induce stress on piezoelectric crystals. The mechanical force generated is proportional to acceleration.
Torsion Pendulum Accelerometers
These devices use a proof mass attached to a torsion wire or rod. Acceleration causes the pendulum to twist, and the angular displacement is proportional to acceleration.
Capacitive Mechanical Accelerometers
These use mechanical movement to change capacitance between plates linked to the proof mass. While capacitive sensing is often associated with MEMS devices, larger mechanical capacitive accelerometers exist for industrial use.
Force-Balance Accelerometers
In more sophisticated mechanical accelerometers, a force-balance mechanism actively counteracts the proof mass displacement to maintain it at zero. The force applied to achieve this balance is proportional to acceleration, providing a linear and highly accurate output.
Design Considerations and Performance Parameters
The design of a mechanical accelerometer involves balancing multiple factors to achieve desired sensitivity, bandwidth, accuracy, and robustness.
Sensitivity
Sensitivity defines how much output change occurs per unit acceleration. Increasing the proof mass or reducing spring stiffness generally increases sensitivity but may affect frequency response.
Frequency Response and Resonant Frequency
The natural frequency of the mass-spring system limits the range of measurable accelerations. Below resonance, the device responds proportionally; near resonance, amplitude spikes; above resonance, measurement accuracy drops. Proper design places the operating range well below resonance.
Dynamic Range
The maximum and minimum accelerations the device can accurately measure. This depends on the mechanical limits of mass displacement and sensor resolution.
Temperature Stability
Mechanical properties of springs and masses change with temperature, potentially affecting accuracy. Materials with low thermal expansion and temperature compensation techniques are used to mitigate this.
Damping Ratio
An optimal damping ratio avoids excessive overshoot and oscillations but allows quick response. Underdamped systems oscillate, while overdamped systems are sluggish.
Applications of Mechanical Accelerometers
Mechanical accelerometers have been widely applied across diverse fields, especially where ruggedness and reliability are essential.
Industrial Machinery Monitoring
Vibration analysis and condition monitoring rely on mechanical accelerometers to detect imbalances, misalignments, and faults in rotating equipment such as motors, turbines, and pumps.
Aerospace and Aviation
Mechanical accelerometers form part of inertial navigation systems (INS) in aircraft and missiles, providing crucial acceleration data for navigation without reliance on external signals.
Automotive Safety Systems
Crash sensors and airbag deployment systems often incorporate mechanical accelerometers to detect sudden deceleration events.
Seismology
Mechanical accelerometers are used in seismographs to record ground motion during earthquakes, thanks to their sensitivity to low-frequency vibrations.
Consumer and Industrial Weighing Devices
Some weighing scales use mechanical accelerometer principles to measure force changes related to acceleration and weight.
Advantages and Limitations of Mechanical Accelerometers
Advantages
Durability: Mechanical accelerometers are robust, able to withstand harsh environmental conditions including high shock, temperature extremes, and vibration.
Simplicity: Their purely mechanical nature requires no complex electronics or power supply, making them ideal for remote or power-constrained environments.
Direct Measurement: They provide analog outputs directly related to displacement, facilitating straightforward interpretation.
Cost-Effectiveness: For many industrial applications, mechanical accelerometers offer a cost-effective solution compared to more complex electronic devices.
Limitations
Limited Frequency Range: Their operational bandwidth is constrained by the natural frequency of the mechanical system.
Size and Weight: Mechanical accelerometers tend to be bulkier and heavier than modern MEMS devices.
Calibration Drift: Mechanical components can wear or change characteristics over time, requiring periodic recalibration.
Lower Resolution: Compared to modern electronic sensors, mechanical accelerometers may have lower sensitivity and accuracy.
Conclusion
Mechanical accelerometers are fundamental tools in the measurement of acceleration, relying on well-established principles of inertia, spring mechanics, and damping. Their robustness, simplicity, and direct physical measurement make them indispensable in a variety of industrial, aerospace, automotive, and scientific applications. Although technology continues to evolve, the mechanical accelerometer’s unique characteristics secure its place in the modern engineer’s toolkit.
By understanding the internal workings, types, and design considerations of mechanical accelerometers, engineers can select and apply these devices effectively to meet demanding measurement challenges.
FAQs
What is the main difference between mechanical accelerometers and MEMS accelerometers?
Mechanical accelerometers rely on macroscopic moving parts like springs and masses to measure acceleration, whereas MEMS accelerometers use microfabricated structures and electronic sensing, making MEMS smaller, lighter, and often more sensitive.
Can mechanical accelerometers measure acceleration in multiple directions?
Yes, multi-axis mechanical accelerometers exist, typically using multiple proof masses and springs arranged orthogonally to detect acceleration along different axes.
How do temperature changes affect mechanical accelerometer accuracy?
Temperature variations can alter the mechanical properties of springs and materials, causing calibration drift. Manufacturers often use materials with low thermal expansion and compensate for temperature to maintain accuracy.
Are mechanical accelerometers still used today?
Yes, they are still used in applications requiring ruggedness, simplicity, and reliability under extreme conditions, such as industrial monitoring, aerospace, and seismic measurement.
How is the output of a mechanical accelerometer typically read?
In basic models, displacement may be read visually via a pointer or dial. More advanced versions convert displacement into electrical signals using capacitive, inductive, or piezoelectric sensors.
What factors limit the maximum measurable acceleration in a mechanical accelerometer?
The physical limits of mass displacement and mechanical stresses on the spring and components restrict the maximum acceleration range. Exceeding these limits can cause damage or nonlinear response.
Why is damping important in a mechanical accelerometer?
Damping prevents oscillations and overshoot of the proof mass after acceleration, stabilizing the measurement and improving response time and accuracy.
How often do mechanical accelerometers need recalibration?
Recalibration intervals depend on the application and environmental conditions but typically range from months to years. Harsh environments may require more frequent calibration.
