The Squirrel Cage Induction Motor is among the most widely used electric motors in industrial and domestic applications. Specifically, the single-phase squirrel cage induction motor stands out as an essential component where only single-phase power supply is available, such as residential or light commercial setups. This article provides an in-depth exploration of this motor type, highlighting its structure, operation, advantages, disadvantages, and practical applications. By the end, readers will gain comprehensive knowledge about the principles and practicalities behind these indispensable machines.
What Are Single-Phase Squirrel Cage Induction Motor
Before diving into the single-phase squirrel cage induction motor, it is important to understand the basics of induction motors in general. Induction motors, also known as asynchronous motors, operate on the principle of electromagnetic induction where the rotor is energized by a magnetic field created in the stator winding. This results in torque production without any physical electrical connection between the stator and rotor.
While induction motors come in various forms, their most common types are three-phase and single-phase motors. The three-phase squirrel cage induction motor, with its superior starting torque and efficiency, dominates heavy industrial applications. However, for residential or small-scale uses where three-phase power is unavailable, single-phase squirrel cage induction motors provide a cost-effective and reliable alternative.
Structure of Single-Phase Squirrel Cage Induction Motor
The construction of a single-phase squirrel cage induction motor closely resembles its three-phase counterpart but with some differences tailored for single-phase operation.
Stator
The stator consists of a laminated iron core with insulated windings distributed around its circumference. In single-phase motors, the stator winding is energized by a single-phase AC supply. Unlike three-phase motors, which produce a rotating magnetic field naturally, a single-phase stator produces a pulsating magnetic field that requires special design considerations for motor starting.

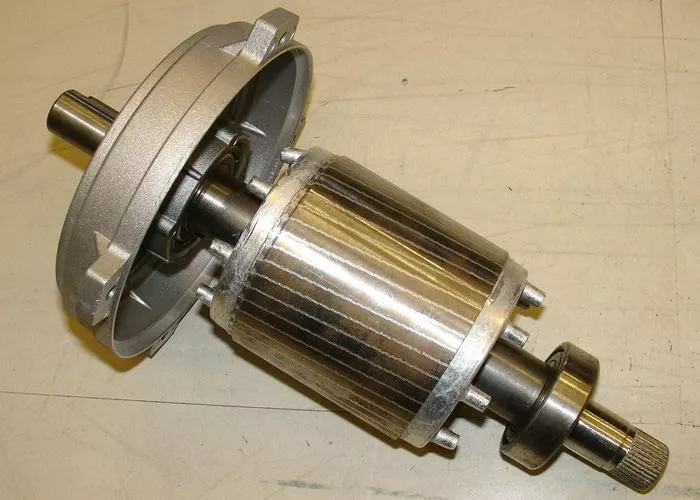

Rotor
The rotor is of the squirrel cage type, comprising aluminum or copper bars embedded into a laminated iron core. These bars are short-circuited at both ends by end rings, forming a cage-like structure. This rotor design is robust, simple, and requires minimal maintenance, contributing to the motor’s popularity.
Auxiliary Components
Because a single-phase supply does not produce a rotating magnetic field directly, most single-phase squirrel cage motors incorporate auxiliary starting mechanisms such as capacitors, shaded poles, or start windings. These elements help generate the initial rotating magnetic field to start the motor.
How Induction Motors Work
The fundamental challenge of single-phase squirrel cage induction motors lies in their starting mechanism. Unlike three-phase motors, which naturally produce a rotating magnetic field due to the phase difference between windings, single-phase motors create a pulsating magnetic field that does not generate starting torque by itself.
Starting Torque Production
At startup, an auxiliary winding or device produces a phase shift in the current, creating a temporary rotating magnetic field. For example, a capacitor connected in series with the auxiliary winding shifts the current phase, enabling the motor to start rotating in a specific direction. Once the motor reaches a certain speed, a centrifugal switch or relay disconnects the auxiliary winding, and the motor continues to run on the main winding alone.
Running Operation
After startup, the rotor experiences a rotating magnetic field generated by the interaction between the stator’s main winding and the rotor currents induced by the pulsating field. This results in torque production and continuous rotation. The squirrel cage rotor bars carry induced currents, generating a magnetic field that interacts with the stator field, sustaining motor operation.
Types of Single-Phase Squirrel Cage Induction Motors
Various designs have been developed to overcome the inherent starting issues of single-phase squirrel cage motors. The most common types include:
Split-Phase Motor
This motor uses an auxiliary starting winding placed in the stator, connected in series with a resistance to produce a phase shift relative to the main winding. The starting winding is disconnected after the motor reaches approximately 75% of synchronous speed. These motors offer moderate starting torque and are suitable for light loads.
Capacitor-Start Motor
A capacitor is connected in series with the starting winding to increase the phase difference and provide higher starting torque compared to split-phase motors. Once the motor achieves the rated speed, the starting circuit is switched off. This type is common in applications requiring a stronger starting load.
Capacitor-Start Capacitor-Run Motor
In this design, a capacitor remains in the circuit even after the motor starts, improving running performance and power factor. This motor provides smooth operation with high starting torque and efficiency.
Shaded Pole Motor
This motor uses a simple construction with shaded poles to create a weak rotating magnetic field, providing a low starting torque. Shaded pole motors are inexpensive and reliable but limited to low-power applications such as fans and small appliances.
Advantages of Single-Phase Squirrel Cage Induction Motors
- Simple Construction: The squirrel cage rotor is robust, with no brushes or slip rings, making it low maintenance and reliable.
- Cost-Effective: Single-phase motors are generally less expensive than three-phase motors and do not require complex power infrastructure.
- Widely Available: Suitable for residential and small industrial applications where only single-phase power supply is present.
- Durability: The squirrel cage design ensures long service life under typical operating conditions.
- Good Running Efficiency: Once started, these motors perform efficiently with minimal losses.
Limitations and Challenges
- Starting Torque Issues: Single-phase squirrel cage motors generally have lower starting torque compared to their three-phase counterparts, requiring auxiliary starting mechanisms.
- Lower Power Ratings: These motors are not suitable for very high power industrial applications.
- Noise and Vibrations: Depending on the design, some motors may exhibit higher noise and vibration levels.
- Efficiency Limitations: Single-phase motors typically have lower efficiency and power factor than three-phase motors.
Applications of Single-Phase Squirrel Cage Induction Motors
Single-phase squirrel cage induction motors find extensive use in various domestic, commercial, and light industrial applications where single-phase power is accessible. Common applications include:
- Household appliances such as washing machines, refrigerators, and air conditioners
- Small pumps and compressors
- Fans and blowers
- Office machinery and vending machines
- Tools and small workshop equipment
These motors excel in environments requiring reliable operation with moderate power levels and limited power supply options.
Maintenance and Troubleshooting Tips
Maintenance of single-phase squirrel cage induction motors is generally straightforward due to their simple design, but routine checks are crucial to ensure long-term performance:
- Inspect insulation resistance of stator windings periodically to prevent electrical faults.
- Check for unusual vibrations or noises, which could indicate bearing wear or rotor bar damage.
- Ensure auxiliary starting components such as capacitors and centrifugal switches are functional.
- Lubricate bearings as per manufacturer recommendations.
- Monitor motor temperature to avoid overheating due to overload or poor ventilation.
Comparison with Other Motor Types
When compared to synchronous motors and other induction motor types, single-phase squirrel cage induction motors are often chosen for simplicity and cost-effectiveness rather than high precision or performance.
Synchronous motors require more complex control and are generally more expensive, whereas squirrel cage motors are rugged and easy to maintain. For three-phase power availability, three-phase squirrel cage induction motors outperform single-phase variants in efficiency and torque capabilities.
Conclusion
The single-phase squirrel cage induction motor remains a vital technology in electrical engineering due to its simplicity, reliability, and suitability for single-phase power supplies. While it has limitations in starting torque and power rating, its versatility in household and light industrial applications is unmatched. Understanding its construction, working principle, and auxiliary components enables engineers and technicians to select, operate, and maintain these motors effectively.
